Solton HD 88

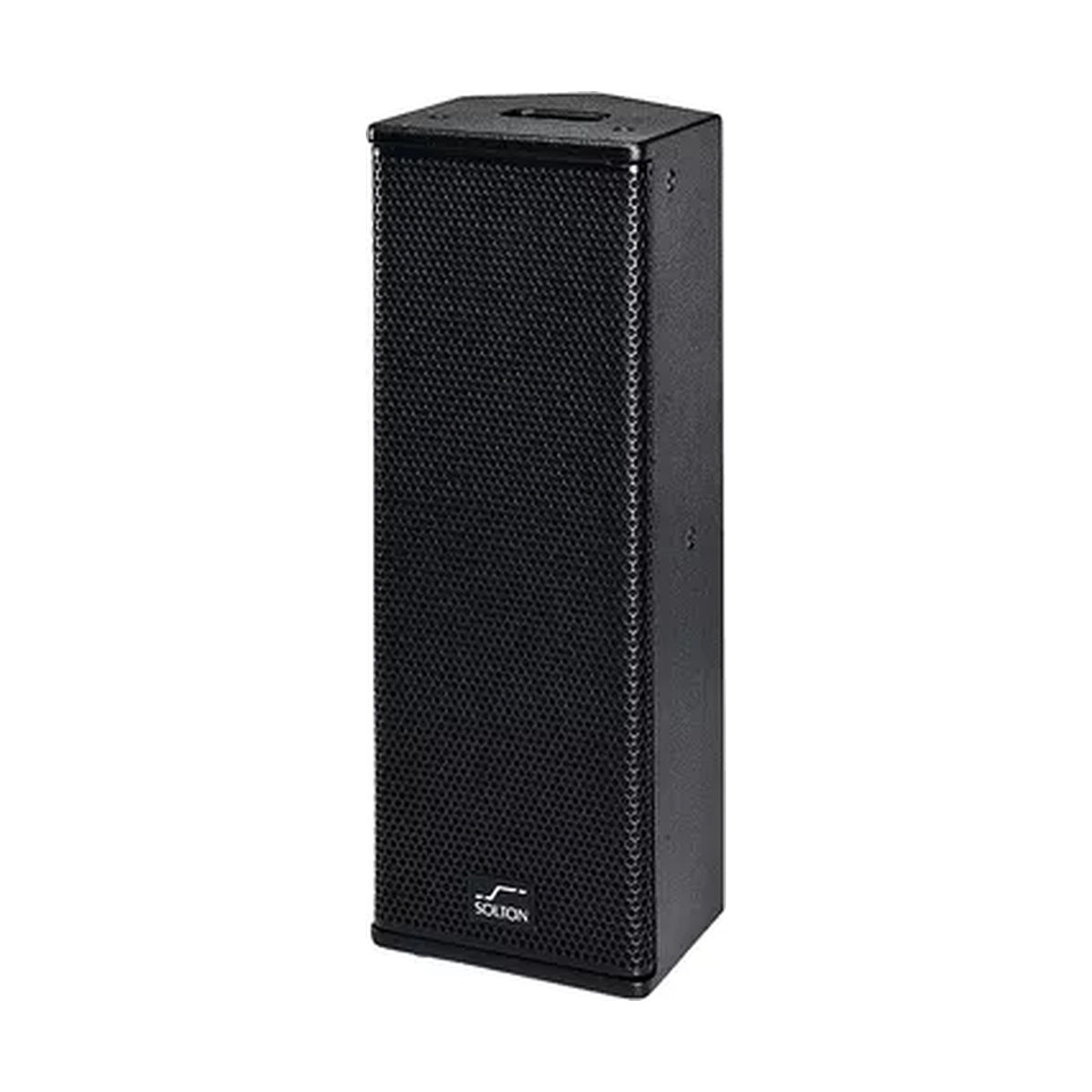

Solton HD 88 is a passive two-way fullrange loudspeaker in a multi-angle 15 mm birch plywood enclosure measuring 250 x 700 x 250 mm — identical in footprint to the active aart T-28 A. Two 8" drivers on 2" voice coils work in a D'Appolito arrangement around a 1.75" voice coil, 1" exit HF compression driver, with a passive 2.0 kHz crossover and PTC protection matching the two sections without any outboard electronics. At 14 kg and 99 dB sensitivity (1 W/1 m), the HD 88 is a flexible tool for both portable PA and permanent installations requiring a slim, discreet cabinet with high output capability.

Dual 8" drivers with 2" voice coils and 2.0 kHz crossover — monitor, frontfill and main in one enclosure

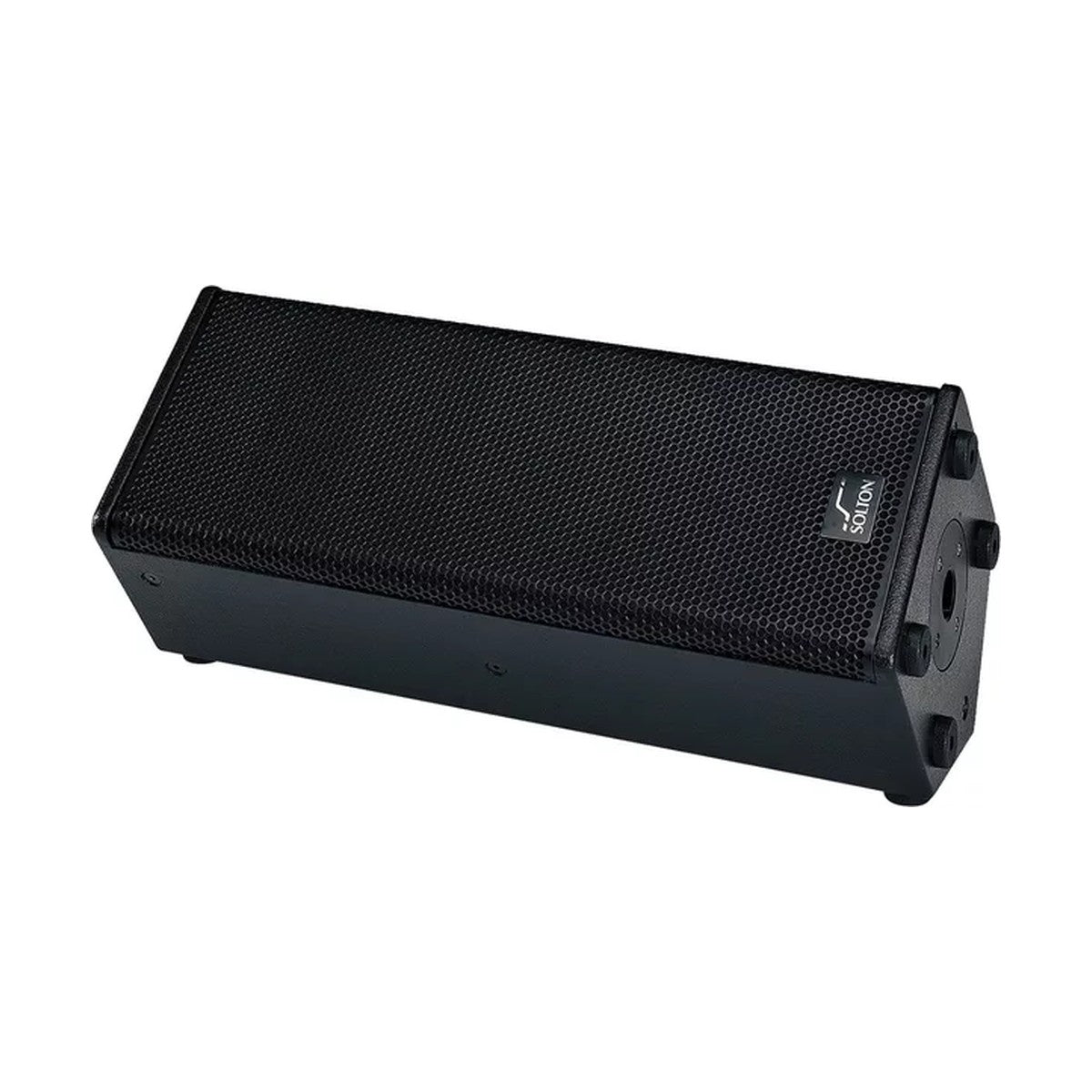

The symmetrical arrangement of two 8" drivers with 2" voice coils minimises vertical lobing at the crossover transition and maintains a coherent wavefront on the listener axis — the same D'Appolito principle as the active aart T-28 A, but without a built-in amplifier or DSP, giving complete freedom in amplifier and processing choices. The passive 2.0 kHz crossover with PTC driver protection requires no external electronics — the HD 88 connects directly to a stereo or mono amplifier channel. The 90° x 60° constant-directivity horn rotates by hand between vertical and horizontal orientation without tools. The multi-angle polyurea-coated enclosure works as a main speaker on a stand, a floor wedge monitor or a compact frontfill at stage-front positions. The dedicated dual-axis wall bracket WM 88 (art. 12538) handles vertical and horizontal wall mounting without adapters. The TU Frame fly bracket (art. 12522) is shared with the aart T-28 A.

Passive architecture — full flexibility in amplifier and processor choice

The 8 Ω nominal impedance and two NL4 connectors (pins 1+/1-) support daisy-chaining multiple HD 88 cabinets from one amplifier channel, or bi-amp operation with an external DSP or analogue processor. Recommended system components: DP 1800 and DX 43 amplifiers, DSP 206 N controller, HD 181 Sub subwoofer. The transport cover art. 12629 fits the same enclosure as the aart T-28 A.

KEY FEATURES

• Type: passive, 2-way, fullrange, multipurpose
• LF drivers: 2x 8", 2" voice coil, D'Appolito arrangement
• HF driver: 1.75" voice coil, 1" exit, compression driver
• Crossover: passive 2.0 kHz + PTC driver protection
• Nominal impedance: 8 Ω
• Power: 400 W continuous / 1600 W peak
• Sensitivity: 99 dB (1 W/1 m); max. SPL: 125 dB continuous / 131 dB peak
• Coverage: 90° H x 60° V nominal (user-rotatable)
• Connectors: 2x NL4 (pins 1+/1-)
• 7x M8, 1x handle, pole socket; U-bracket optional
• Wall bracket WM 88 (art. 12538), fly frame TU Frame (art. 12522)
• Dimensions: 250 x 700 x 250 mm; weight: 14 kg
• Recommended sub: HD 181 Sub

TECHNICAL SPECIFICATIONS

• Art. No.: 11014
• Type: passive, 2-way
• LF drivers: 2x 8", 2" voice coil
• HF driver: 1.75" voice coil, 1" exit, compression driver
• Crossover: passive 2.0 kHz
• Protection: PTC driver protection
• Nominal impedance: 8 Ω
• Power: 400 W continuous / 1600 W peak
• Frequency range (-10 dB): 60 Hz – 20 kHz
• Frequency response (±3 dB): 75 Hz – 18 kHz
• Coverage pattern: 90° H x 60° V nominal (user-rotatable)
• Sensitivity: 99 dB (1 W/1 m)
• Max. SPL: 125 dB continuous / 131 dB peak
• Connectors: 2x NL4 (pins 1+/1-)
• Enclosure: multi-angle, 15 mm birch plywood
• Finish: black polyurea coating
• Fittings: 7x M8, 1x handle, pole socket; U-bracket optional
• Grille: black perforated steel with acoustically transparent foam backing
• Dimensions (WxHxD): 250 x 700 x 250 mm
• Weight: 14 kg
• Accessories: TU Frame (art. 12522), cover (art. 12629), RM8 (art. 12516), WM 88 wall bracket (art. 12538)
• Recommended sub: HD 181 Sub; amplifiers: DP 1800, DX 43; controller: DSP 206 N
• EAN: 4262552320357
