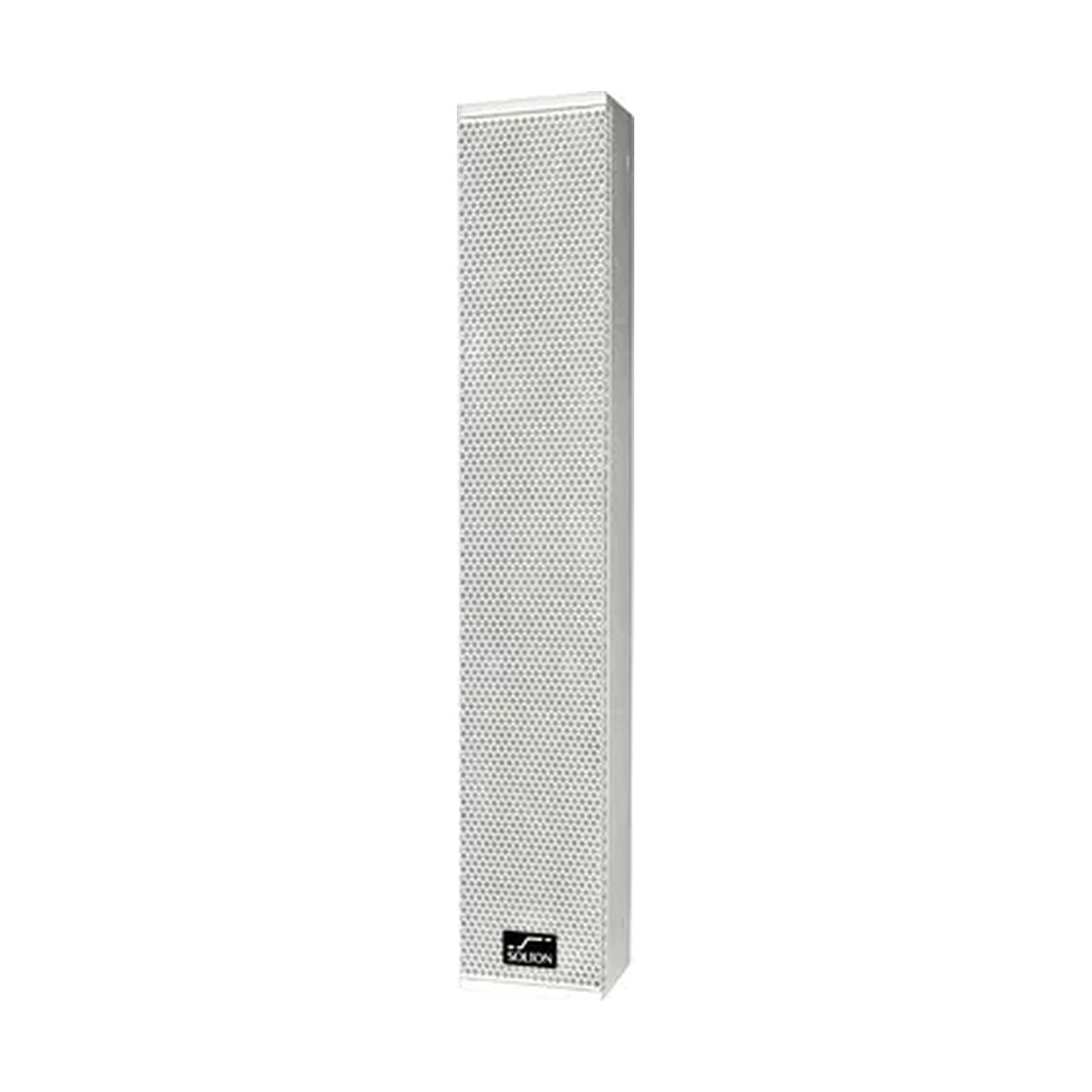

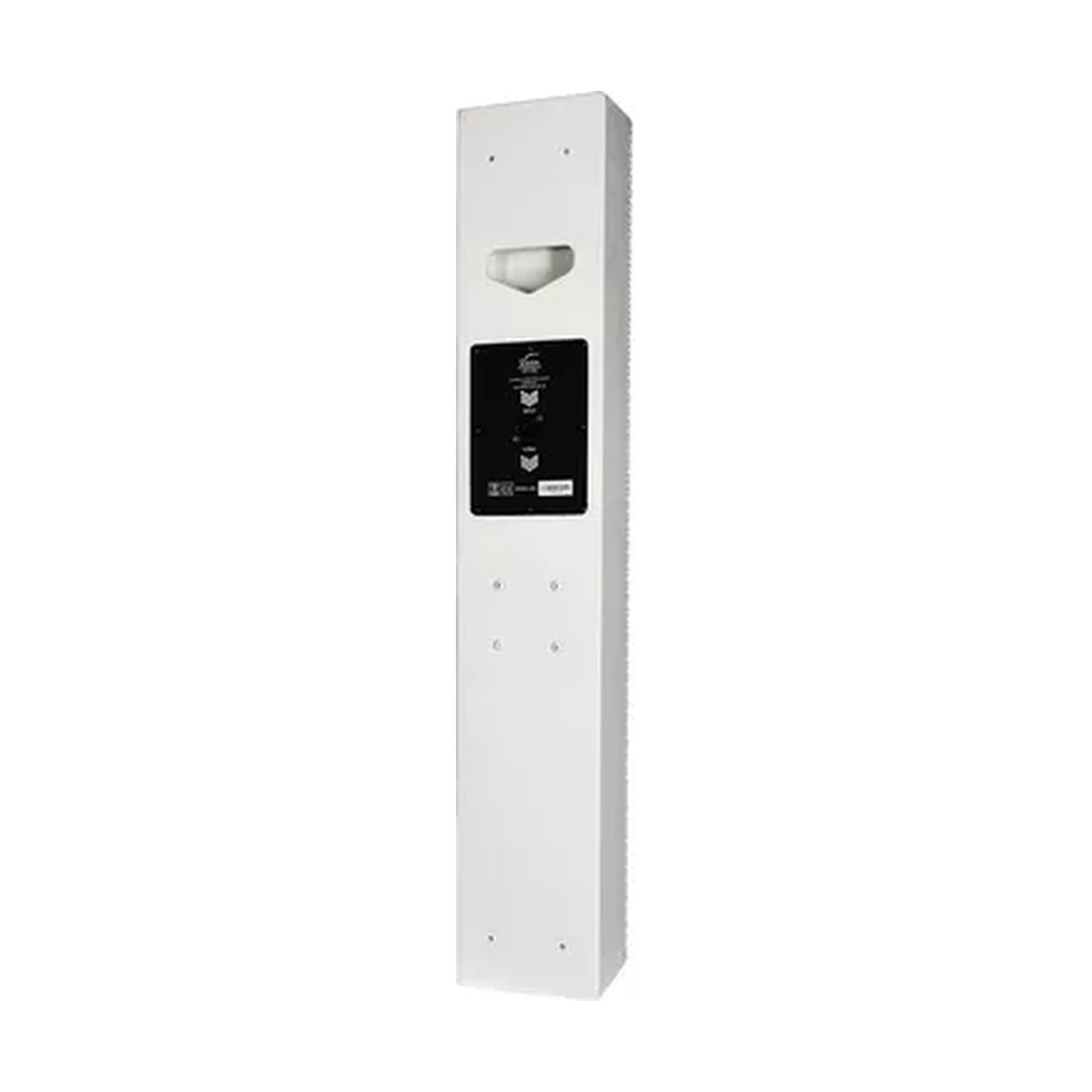

Solton CT 5 N [White]

Solton CT 5 N (art. no. 13307, available in Black and White) is a passive two-way compact line array with four 5" woofers and a 1" Neodymium compression driver, designed for discreet permanent installations and portable PA applications. At 150 x 880 x 124 mm and just 8 kg it is one of the slimmest cabinets in the Solton range — mountable almost invisibly on a wall, column or stand in spaces where a wider enclosure would visually compromise the room design.

Four 5" drivers and Neodymium HF — 120° x 20° and 122 dB in a slim profile

The vertical arrangement of four 5" woofers creates a line source with 120° H x 20° V nominal coverage — wide horizontal dispersion across the listening area with narrow, controlled vertical throw that reduces ceiling and floor reflections. The 1" Neodymium compression driver handles the top end from the 2.1 kHz passive crossover to 20 kHz (-10 dB). PTC protection guards the HF driver under overload without affecting dynamics at normal working levels. At 97 dB sensitivity (1 W/1 m) and 122 dB continuous / 128 dB peak maximum SPL, the CT 5 N covers rooms of up to 200 people without a subwoofer for light programme, and significantly larger spaces when paired with the aart SUB 315 or TWA 15 SUB. The 4 Ω nominal impedance and single NL4 connector (pins 1+/1-) connect directly to a QX 700 or DX 43 amplifier channel. Eight M8 inserts, a pole-mount socket and the optional WB 1 U-bracket (art. 12521) cover all standard mounting scenarios. A dedicated transport bag is available as art. 12624.

Fixed installation and portable PA — satellite for TWA 15 SUB and aart SUB 315

The CT 5 N is the officially recommended satellite for the TWA 15 SUB, which powers the columns directly from its built-in satellite amplifier channel (350 W / 4 Ω). It is equally compatible with the aart SUB 315, which drives two 4 Ω satellites from its own amplifier stage. In permanent installations the CT 5 N suits theaters, churches, conference rooms and restaurants where a conventional PA cabinet would look disproportionate. The White version integrates into light interiors and white walls without visually disrupting the architecture.

KEY FEATURES

• Type: passive, 2-way, compact line array, 4x 5"
• LF drivers: 4x 5" woofer, vertical line array arrangement
• HF driver: 1" Neodymium compression driver
• Crossover: passive 2.1 kHz + PTC driver protection
• Nominal impedance: 4 Ω
• Power: 320 W continuous / 1280 W peak
• Sensitivity: 97 dB (1 W/1 m); max. SPL: 122 dB continuous / 128 dB peak
• Coverage: 120° H x 20° V nominal
• Connector: 1x NL4 (pins 1+/1-)
• 8x M8, handle, pole socket; WB 1 U-bracket (art. 12521) optional
• Dimensions: 150 x 880 x 124 mm; weight: 8 kg
• Recommended subs: aart SUB 315, TWA 15 SUB
• Recommended amplifiers: QX 700, DX 43

TECHNICAL SPECIFICATIONS

• Art. No.: 13307
• Type: passive, 2-way, compact line array
• LF drivers: 4x 5" woofer
• HF driver: 1" Neodymium compression driver
• Crossover: passive 2.1 kHz
• Protection: PTC driver protection
• Nominal impedance: 4 Ω
• Power: 320 W continuous / 1280 W peak
• Frequency range (-10 dB): 90 Hz – 20 kHz
• Frequency response (±3 dB): 100 Hz – 18 kHz
• Coverage pattern: 120° H x 20° V nominal
• Sensitivity: 97 dB (1 W/1 m)
• Max. SPL: 122 dB continuous / 128 dB peak
• Connector: 1x NL4 (pins 1+/1-)
• Enclosure: birch plywood
• Finish: black polyurea coating / White optional
• Fittings: 8x M8, 1x handle, pole socket; WB 1 U-bracket (art. 12521) optional
• Grille: black perforated steel with acoustically transparent foam backing
• Dimensions (WxHxD): 150 x 880 x 124 mm
• Weight: 8 kg
• Accessories: WB 1 wall bracket (art. 12521), bag (art. 12624), RM8 ring screw (art. 12516)
• EAN: 4262552320234
