DiGiGrid X-DG-MGR-BO

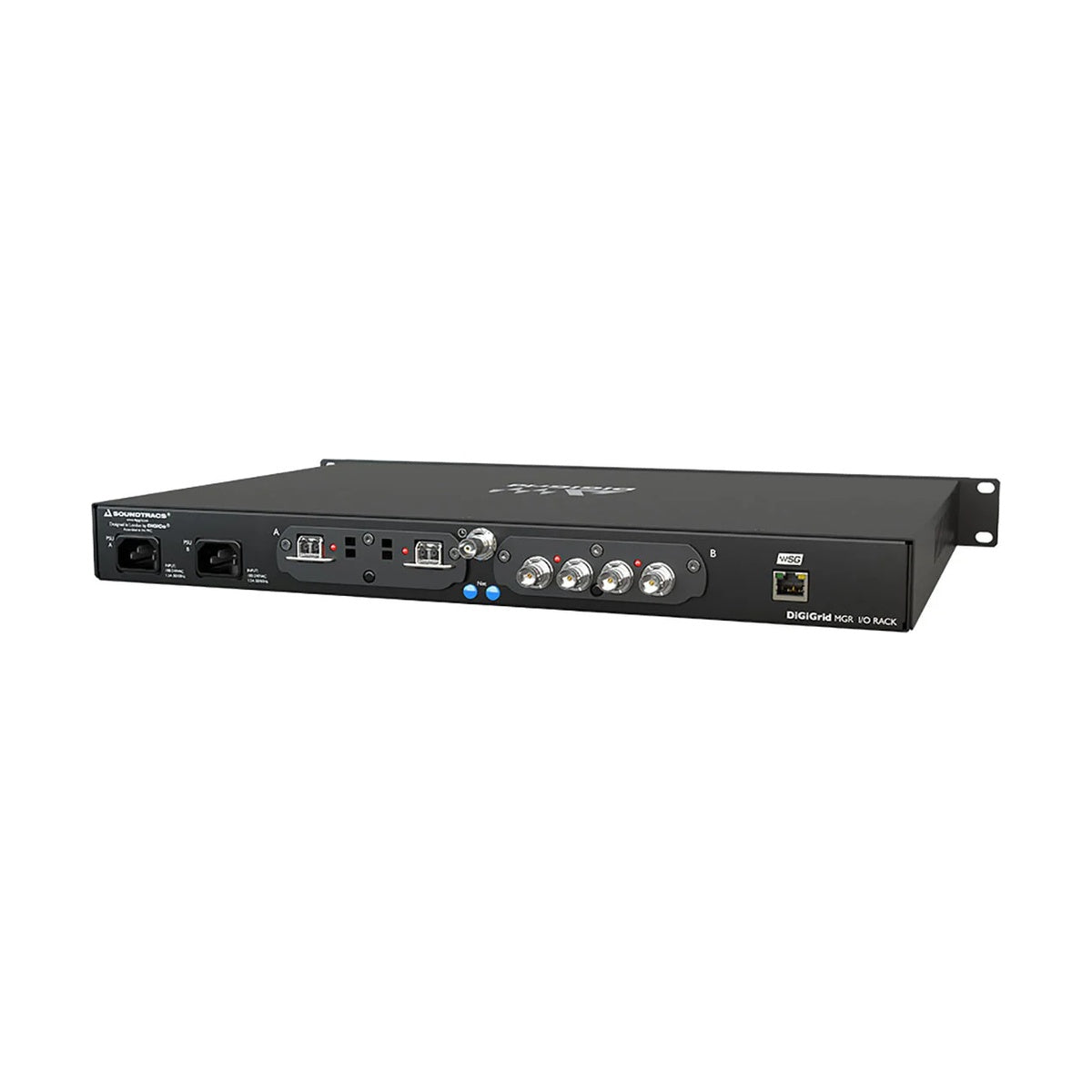

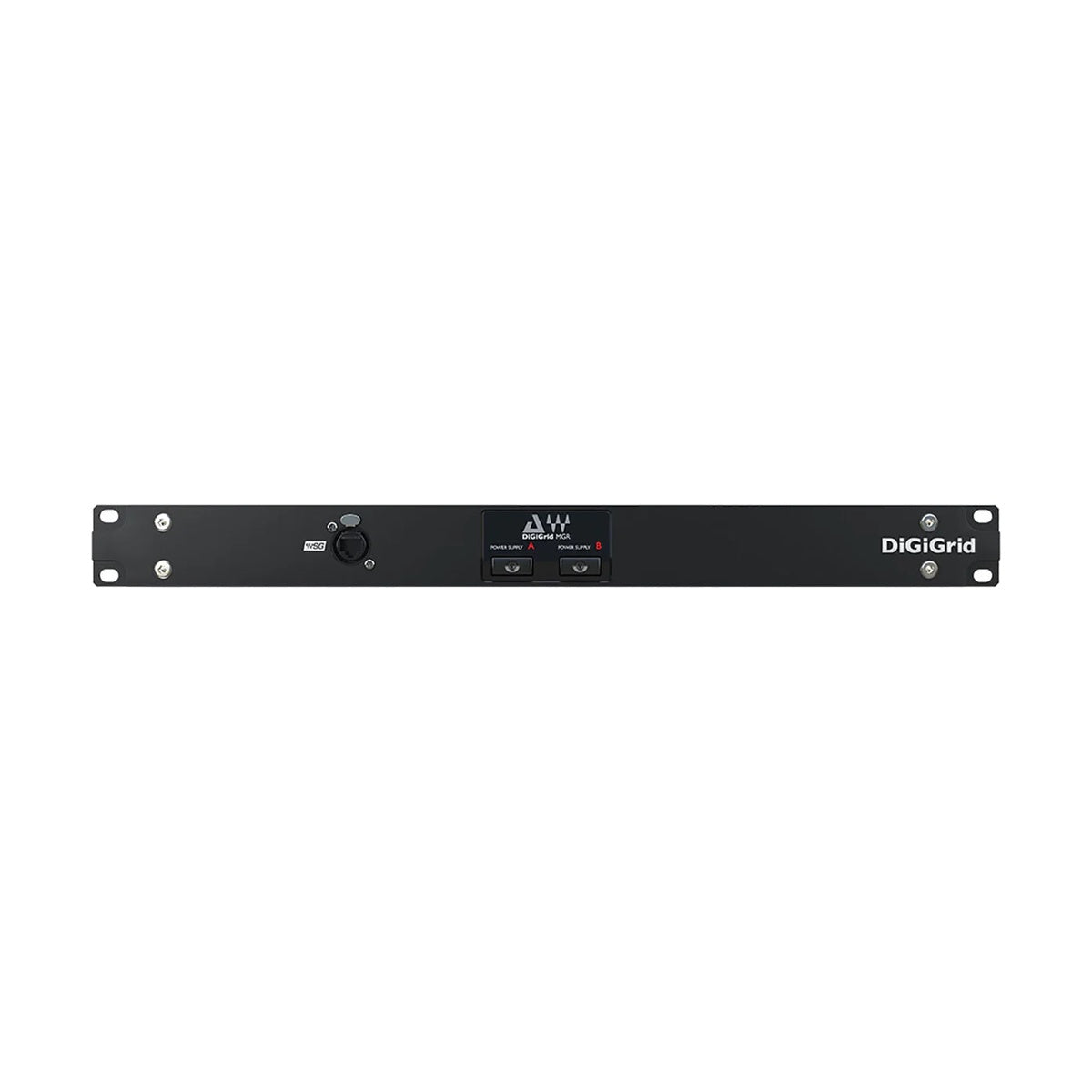

DiGiGrid X-DG-MGR-BO is a professional-grade Quad MADI-to-SoundGrid interface with redundant power supplies and dual BNC and optical MADI ports, offering up to 256 channels of simultaneous I/O. Housed in a 1U rackmount chassis, it is designed for high-channel-count recording and real-time processing in demanding live or broadcast environments.

The interface supports recording up to 128 channels at 96kHz and simultaneous playback of another 128 channels. With an integrated SoundGrid switch providing both front and rear ports, the X-DG-MGR-BO enables fully redundant recording setups without external switching hardware. Its compatibility with both optical and coaxial MADI makes it adaptable to virtually any MADI-equipped console or router.

When paired with a DiGiGrid DGS-XL or IOS-XL SoundGrid server and Waves MultiRack SoundGrid software, the system delivers real-time processing with ultra-low latency. Designed as the central hub of a SoundGrid system, the MGR provides scalable performance, flexible routing, and bulletproof reliability for mission-critical workflows.

KEY FEATURES

• Quad BNC MADI-to-SoundGrid interface
• Dual BNC and dual optical MADI ports
• Dual redundant power supplies for fail-safe operation
• Integrated SoundGrid network switch with front and rear ports
• Record and play up to 128 channels at 96kHz
• Compatible with optical MADI cards and all MADI console types
• Simultaneous recording to multiple computers
• Compatible with SoundGrid Studio ASIO / Core Audio driver
• Real-time processing with Waves MultiRack SoundGrid (requires DGS-XL or IOS-XL server)

TECHNICAL SPECIFICATIONS

• Record, process, and playback up to 128 channels at 48kHz and 96kHz
• Height: 1U / 43.6 mm
• Width: 19″ / 482.60 mm
• Depth: 306 mm
• Weight: 4.6 kg
