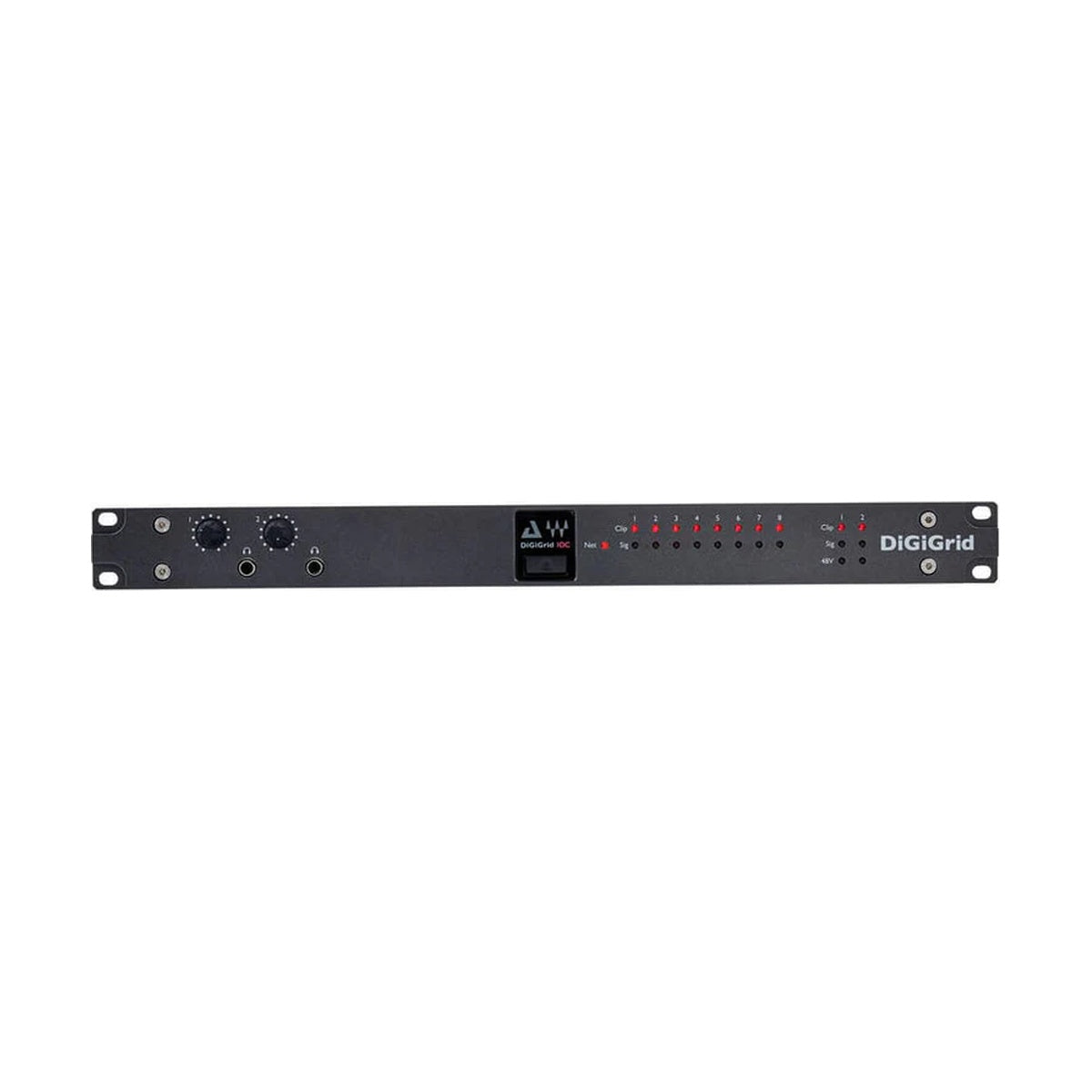

DiGiGrid X-DG-IOC

DiGiGrid

DiGiGrid X-DG-IOC

€1.923,35 €2.046,22
Save €122,87

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 46689
Quantity:
In stock

Contact

DiGiGrid IOC is a versatile I/O control room interface designed for high-end studio integration. It combines broadcast-quality preamps, 192 kHz AD conversion, and a wide variety of analog and digital connectivity options. With 2 mic/line inputs, 8 line inputs and outputs, 16 channels of AES/EBU I/O, ADAT, S/PDIF, Word Clock, and dual SoundGrid ports, the IOC serves as a comprehensive link between analog gear and your SoundGrid network or DAW setup.

KEY FEATURES

  • 1U rack-mountable SoundGrid I/O interface
  • 2 mic/line inputs with broadcast-grade preamps (XLR/TRS combo)
  • 8 analog line inputs and 8 line outputs via D-Sub 25
  • 16 channels of AES/EBU I/O via D-Sub 25 connectors
  • 1 x ADAT input and 1 x ADAT output (up to 4 channels at 96 kHz)
  • S/PDIF input/output
  • Word Clock input and output for external sync
  • Dual SoundGrid RJ45 ports for system integration and redundant networking
  • Sampling rates up to 192 kHz (176.4 and 192 kHz in reduced ADAT mode)
  • Ideal for control rooms, post-production, and broadcast environments

TECHNICAL SPECIFICATIONS

  • Manufacturer: DiGiGrid
  • Form factor: 1U rackmount
  • Mic/line inputs: 2 (XLR/TRS combo)
  • Line inputs: 8 (D-Sub 25)
  • Line outputs: 8 (D-Sub 25)
  • AES/EBU I/O: 16 channels (D-Sub 25)
  • ADAT I/O: 1 in / 1 out (up to 4 channels at 96 kHz, 2 at 192 kHz)
  • S/PDIF: Yes
  • Word Clock I/O: Yes
  • Phantom power: Yes
  • Max sample rate: 192 kHz
  • Bit depth: 24-bit
  • Network ports: 2 x SoundGrid (RJ45), AVB-compatible
  • MIDI interface: No
  • Bus powered: No
  • Power adapter included: Yes
