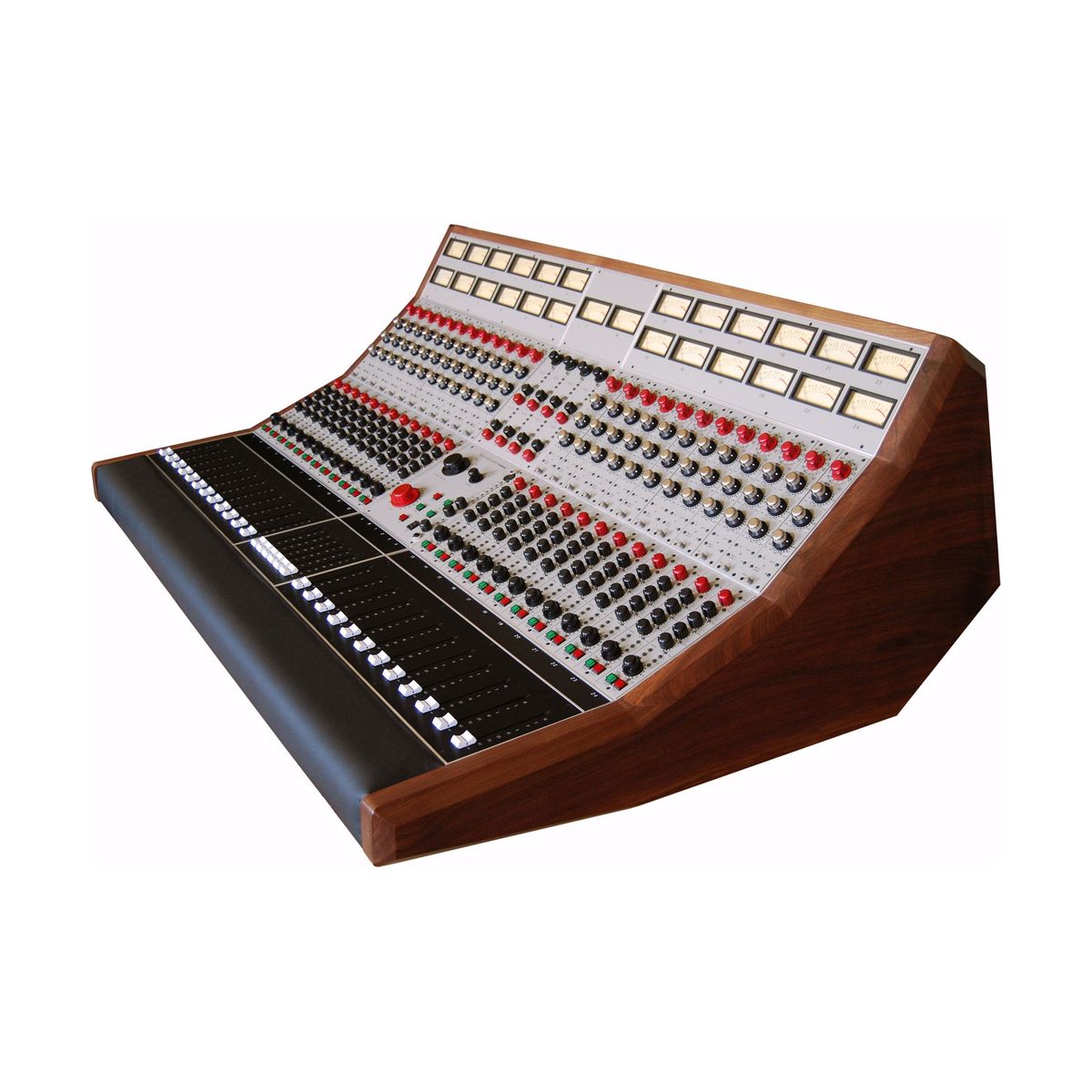

Wunder Audio Wunderbar Console - 24 channel, 32 monitors, 1 Powerbar PSU, Exquisite Trim

Wunder Audio Wunderbar Console — 24 Channel, 32 Monitors, 1 Powerbar PSU, Exquisite Trim

The 24-channel Wunderbar with 32 monitor paths is the configuration where the full Wunderbahn architecture — three independent stereo buses, fully discrete Class-A signal path, and transformer balancing at every stage — sits in a frame that fits comfortably in a mid-sized studio room. A single Powerbar PSU covers this configuration with fully isolated DC voltage and audio paths. It is the right scale for environments that combine ensemble tracking with extended overdub sessions and hybrid analog/DAW mixing workflows, without requiring the physical footprint or dual PSU infrastructure of the larger frames.

Wunderbahn Summing Architecture Across 24 Channels

The Fully Balanced Busing Scheme removes ground from the audio path across all 24 channels — the same discrete summing architecture as the 48- and 56-channel configurations, delivering the same increase in dynamic range and reduction in residual noise. The three stereo bus amplifiers — Wunder, Neve 1272, and API 312 — operate independently or cascade simultaneously, with proportions adjusted by six master faders in the center section. At 24 channels, routing different instrument groups to different bus flavors becomes a direct mixing decision: drums and rhythm section through the API character, vocals and keys through the Neve texture, all within the same session. All 24 channels carry transformer-balanced Direct Outputs and Insert Send/Return loops. The 1046 Routing Modules are fully transformer-balanced Class-A Discrete, with a flip-able monitor fader, six group buses with illuminated switches, four aux sends switchable pre/post, Pan Defeat, 48V phantom power, and Opto Silent Mute.

D-Sub Connectivity and Build Specification

In Super D format, all connections across each eight-channel section run on D-Sub 25 connectors: Mic Input, Line Input, Direct Output, Routing Module Input, Insert Send, Insert Return, DAW Input, and DAW Mult. Across 24 channels that means three eight-channel D-Sub sections — a clean, fast wiring architecture for hybrid analog/DAW setups where rear-of-desk organization directly affects session speed. Channel strip EQ is configurable as PEQ2 or PEQ4 four-band modules, with mixed configurations supported within the same frame. Exquisite Trim covers the end caps, meter bridge, and armrest in 1.5" solid hardwood (Oak, Walnut, or Roasted Coffee Bean Birch) with an inlaid logo, finished with Black or Brown Top Grain leather. Every unit is hand-built to the client's exact specifications, with a 50% non-refundable deposit required to initiate the build.

KEY FEATURES

• Wunderbahn system: three independent stereo buses — Wunder, Neve 1272, API 312 — separable or cascaded
• 24 input channels, 32 monitor paths
• 1x Powerbar PSU with isolated DC voltage and audio paths
• PEQ2 or PEQ4 four-band EQ modules — mixed configurations supported within one frame
• Transformer-balanced Direct Outputs and Insert loops on every channel
• 1046 Routing Modules: Class-A Discrete, 6 group buses, 4 pre/post auxes, Pan Defeat, 48V phantom, Opto Silent Mute
• Flip-able monitor fader on every channel strip
• 8-channel sections: D-Sub 25 connectors on all I/O (Mic In, Line In, Direct Out, Insert, DAW In, DAW Mult)
• Exquisite Trim: 1.5" solid hardwood, Top Grain leather armrest
• Fully custom hand-built to order (50% non-refundable deposit required)

TECHNICAL SPECIFICATIONS

• Input channels: 24
• Monitor paths: 32
• Power supply: 1x Powerbar PSU
• Signal path: fully discrete Class-A, transformer balanced throughout
• Frequency response: 8 Hz – 120+ kHz (flat)
• Signal-to-noise ratio: better than 105 dB
• Stereo buses: 3 (Wunder, 1272, 312)
• Aux sends: 4 (pre/post switchable)
• Group buses: 6 (illuminated switches)
• 8-channel section connectors: D-Sub 25
• Transformers: Western Electric 618-style, NICO core (Ni/Fe/Co)
• Potentiometers: Vishay audio-grade conductive plastic (1,000,000 cycle rated)
• Switches: custom Greyhill
• Trim: 1.5" solid hardwood (Oak / Walnut / Roasted Coffee Bean Birch), Top Grain leather
• Options: internal patchbay (8x 19"), Cinema Display section 27"/32", Insert Enable/Defeat panel, Stereo Bus Inserts, Black Hammerite stand (12–36 ch version)
