Wolff Audio ProPatch 64

Wolff Audio

Wolff Audio ProPatch 64

€3.677,10

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 58503
Quantity:
In stock

Contact

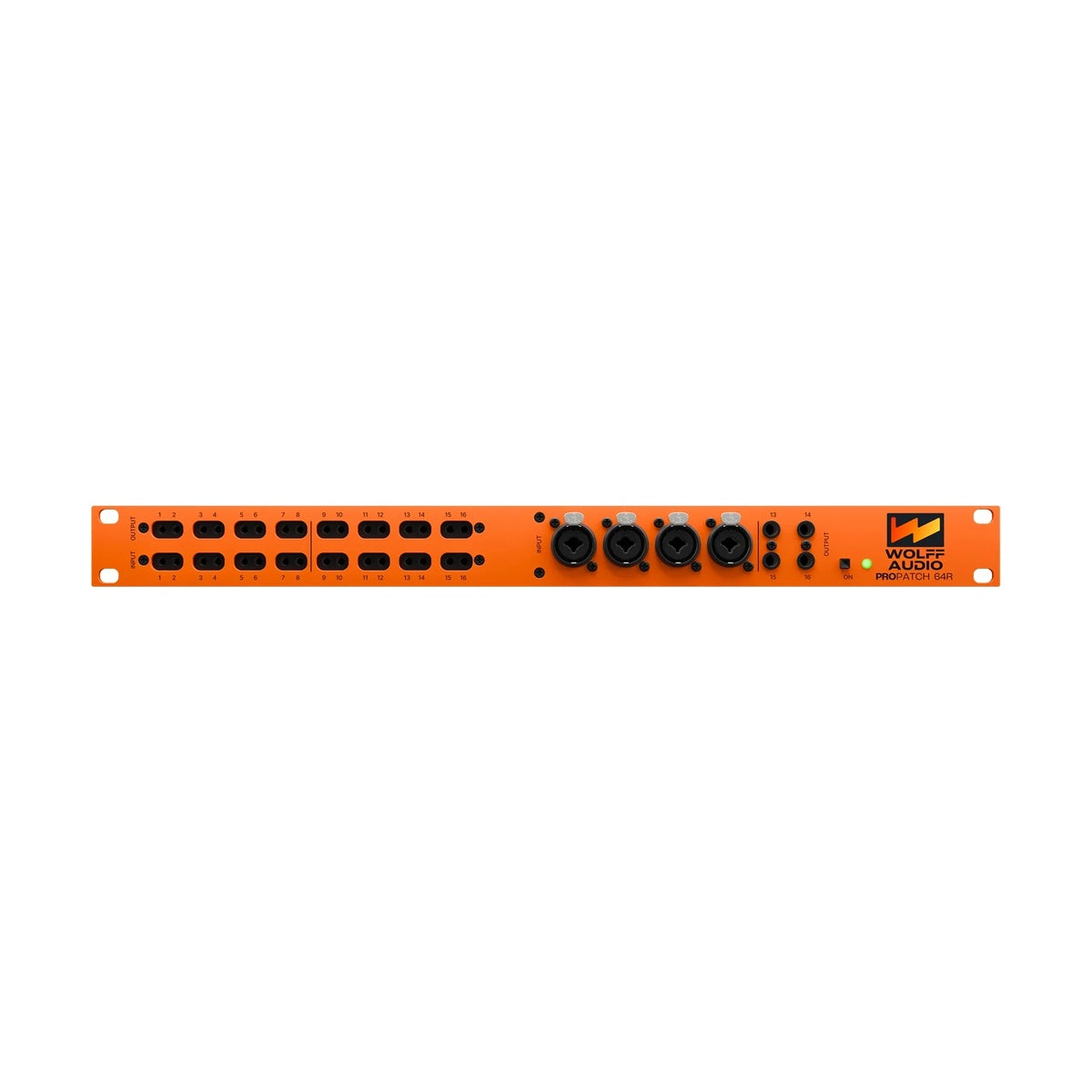

Wolff Audio ProPatch 64R – the next generation of software-controlled analog patch bays, featuring 64 patch points with relay technology for absolute signal transparency.

The ProPatch 64R is a revolutionary solution for the modern studio, eliminating the need for manual cable patching. At its heart is a matrix of relays that acts as a "straight wire," ensuring zero distortion and no active electronics in the signal path. This makes the ProPatch fully transparent and safe for any signal type – from mic level (passing 48V Phantom power) and line level to control voltage (CV), MIDI, and timecode.

Connection management is handled via an intuitive app (Mac, Windows, iPad) that allows for the creation of complex signal chains using "drag-and-drop," A/B configuration testing, and instant preset recall. The unit occupies just 1U of rack space, generates no heat, and integrates seamlessly with classic systems thanks to rear DB25 connectors and front-facing TT points and Combo jacks.

KEY FEATURES

  • 32x32 I/O: 64 patch points with "Any-to-Any" routing capabilities.
  • Relay Technology: No FET chips or active electronics – a pure, pristine signal path.
  • Software Control: App for creating chains, mults, and A/B groups with session recall.
  • Signal Versatility: Supports Audio, CV, MIDI, Timecode, and passes 48V Phantom power.
  • Hybrid Connectivity: Rear DB25 connectors plus 32 front TT points and XLR/TRS Combo jacks.
  • Non-Volatile Memory: The last configuration auto-loads instantly upon power-up.
  • Silent Operation: Fanless design that generates no heat.

TECHNICAL SPECIFICATIONS

  • Type: Digitally Controlled Analog Patchbay
  • Patch Points: 64 (32 Inputs / 32 Outputs)
  • Input Connectors: Analog DB25, TT, XLR Combo Jack TRS
  • Output Connectors: Analog DB25, 1/4" TRS, TT
  • Height: 1U (19-inch Rack)
  • Frequency Response: DC to limit of test equipment (0% distortion)
  • Computer Connection: Ethernet, USB-C, Wi-Fi
  • Power: External power supply (included)
  • Included: ProPatch 64R unit, power supply
