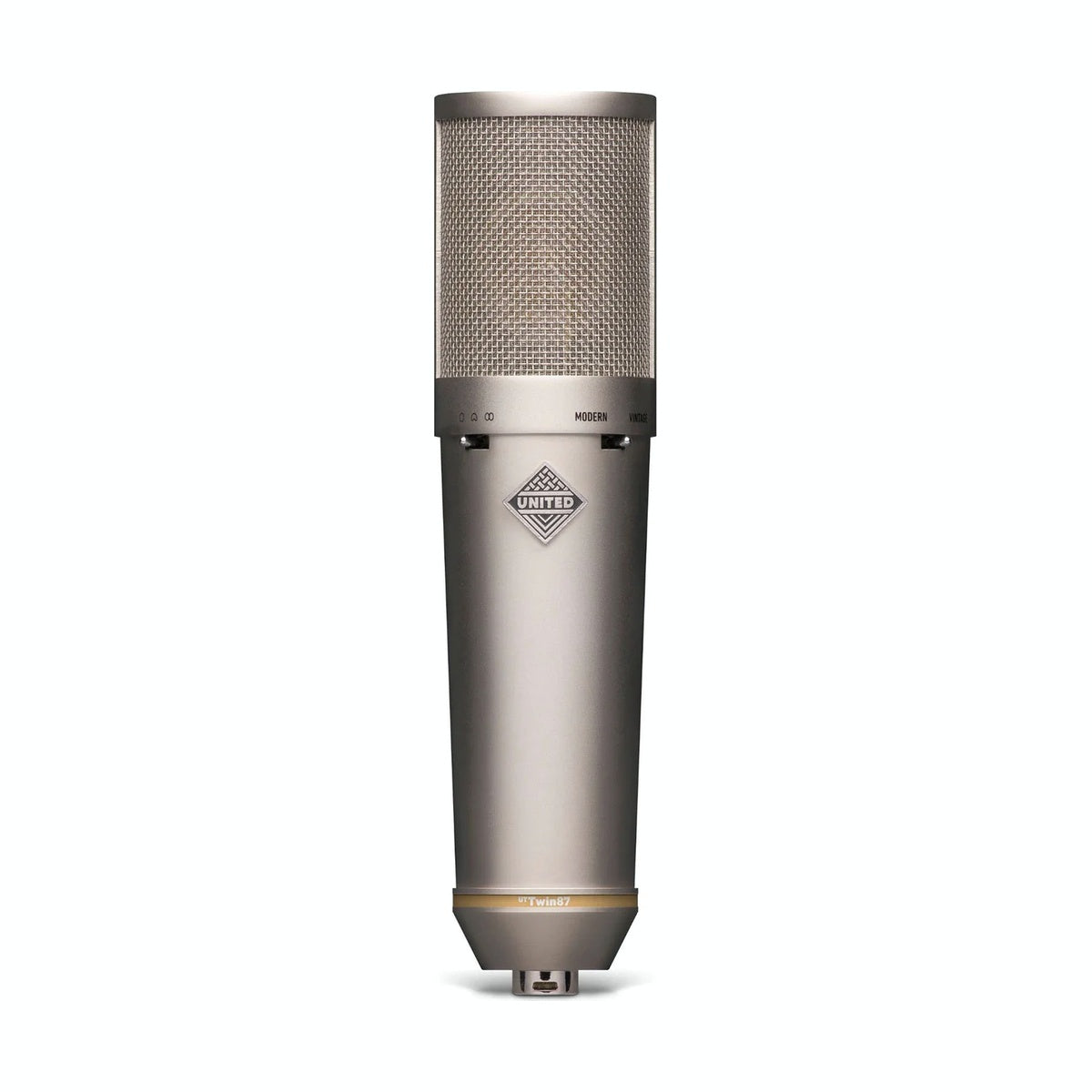

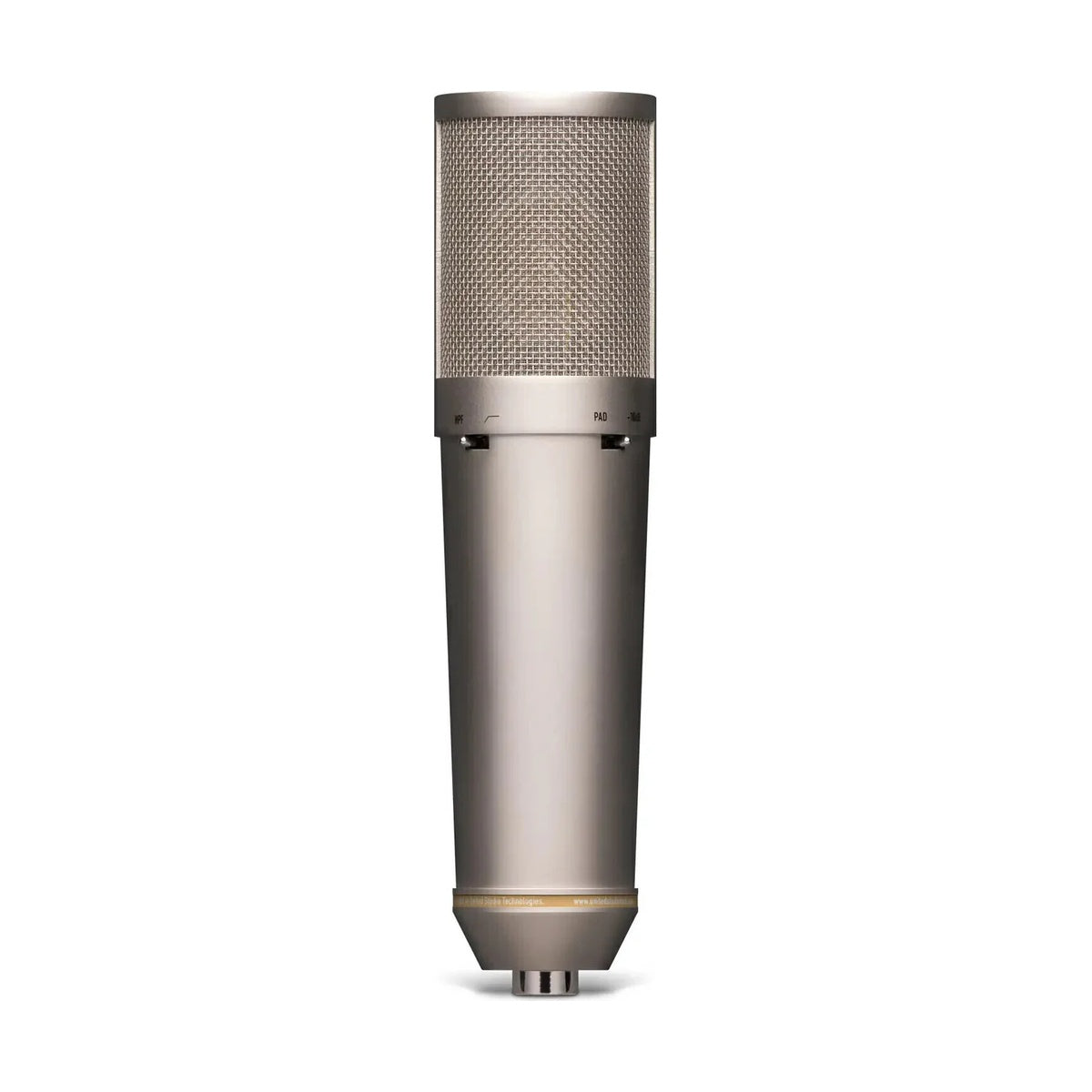

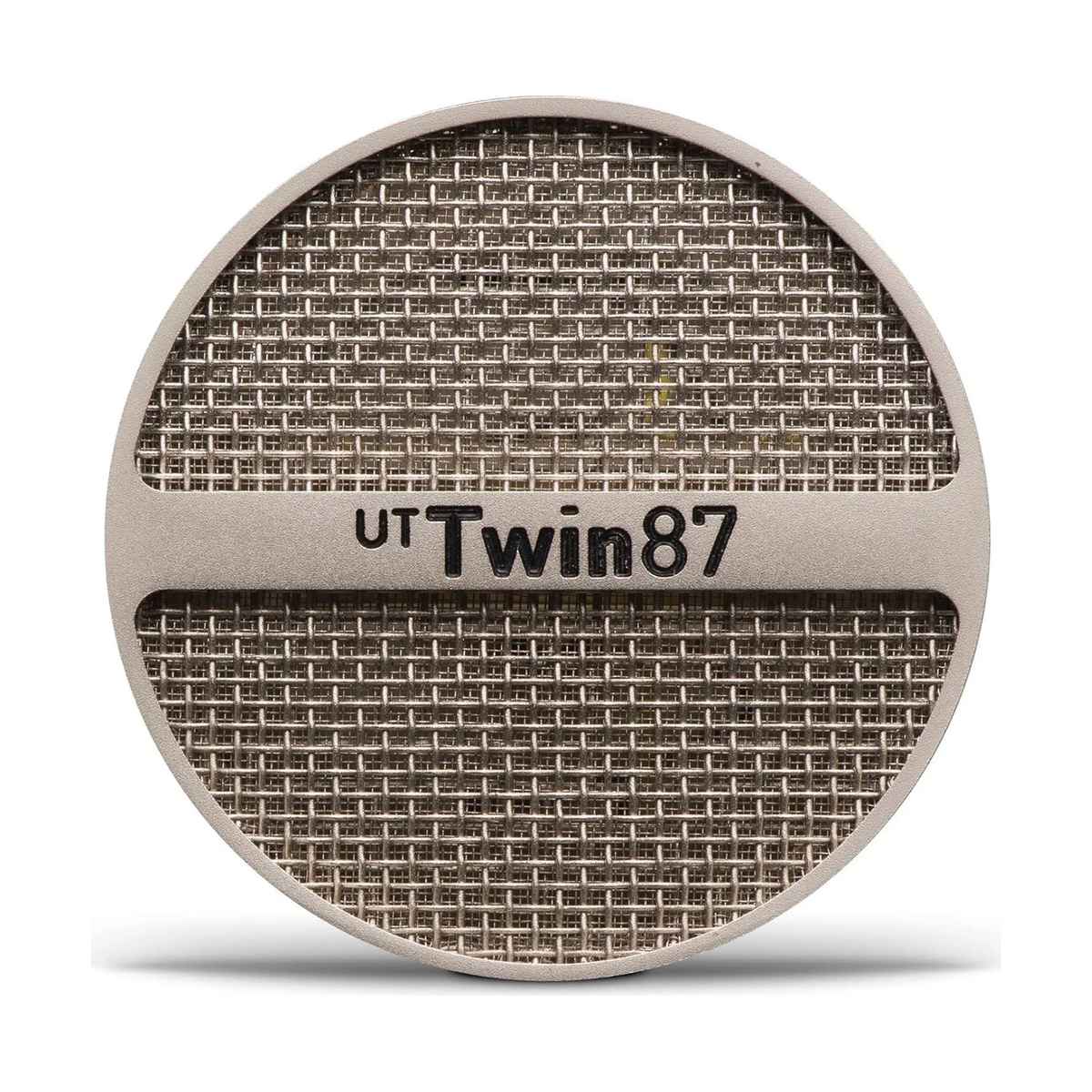

United Studio Technologies UT Twin87 is a large-diaphragm studio condenser microphone featuring dual operation modes — Vintage and Modern — along with a -10 dB pad and 80 Hz high-pass filter. Designed as a faithful homage to both early and later incarnations of the iconic Neumann U87, it delivers the warmth of classic recordings and the clarity of contemporary productions in one versatile body.
The UT Twin87 features a custom large-core output transformer made in the USA and a proprietary dual 34 mm capsule with 24-karat gold-sputtered diaphragms. Its circuitry physically switches between two distinct circuit topologies modeled on the “golden era” 87 schematics — not through digital modeling, but via real analog design differences. This ensures true tonal authenticity whether in Vintage or Modern mode.
In Vintage mode, the capsule is polarized directly by the phantom power supply, just like in the earliest U87 models, resulting in a smoother, warmer tone. In Modern mode, the capsule is polarized at a higher voltage using a FET-based circuit, delivering a hotter signal and a slightly brighter, more detailed response. With three selectable polar patterns (cardioid, omni, and figure-eight) and robust nickel-plated brass construction, the UT Twin87 stands as a powerful and elegant studio tool for vocals, instruments, and broadcast work.
KEY FEATURES
- Dual-mode operation: Vintage and Modern — true analog circuit switching
- Recreates both early and late versions of the classic U87 sound
- Custom 34 mm dual-diaphragm K87-style capsule with 24K gold sputtering
- Custom UT-series output transformer with large-core winding (Made in USA)
- Three polar patterns: cardioid, omnidirectional, and figure-eight
- Switchable -10 dB pad and 80 Hz high-pass filter
- Nickel-plated brass body for superior durability and shielding

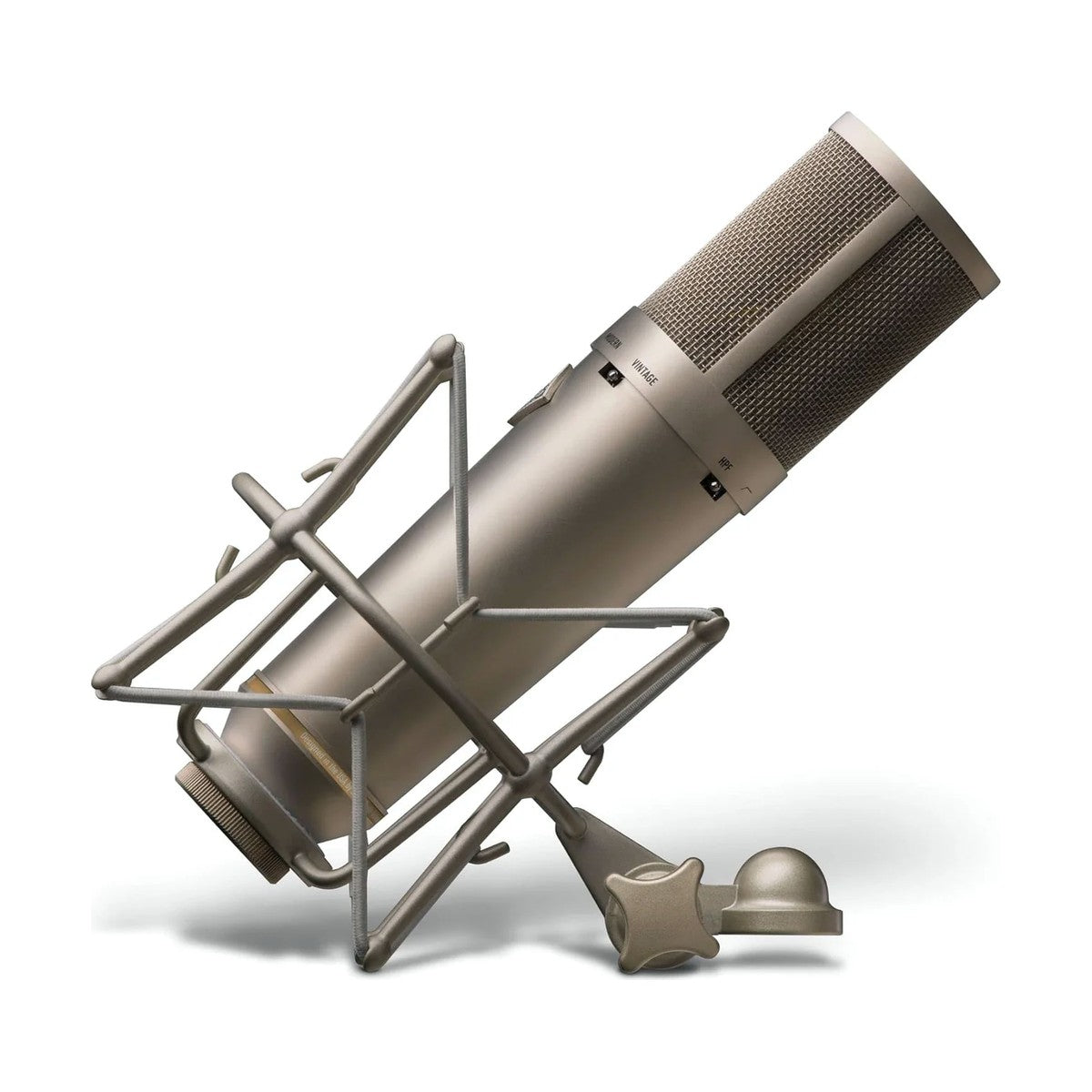

- Includes shock mount and protective case
TECHNICAL SPECIFICATIONS
- Microphone type: Condenser
- Diaphragm: 34 mm dual diaphragm, 6 μm Mylar, 24K gold-sputtered
- Polar patterns: Cardioid, Figure-8, Omnidirectional
- Pad: -10 dB
- High-pass filter: 80 Hz
- Transformer: UT-series, custom-wound in the USA
- Body material: Nickel-plated brass
- Dimensions: 220 × 55 mm
- Included accessories: Shock mount
