Two Notes
Two Notes Torpedo Captor - 4 ohm

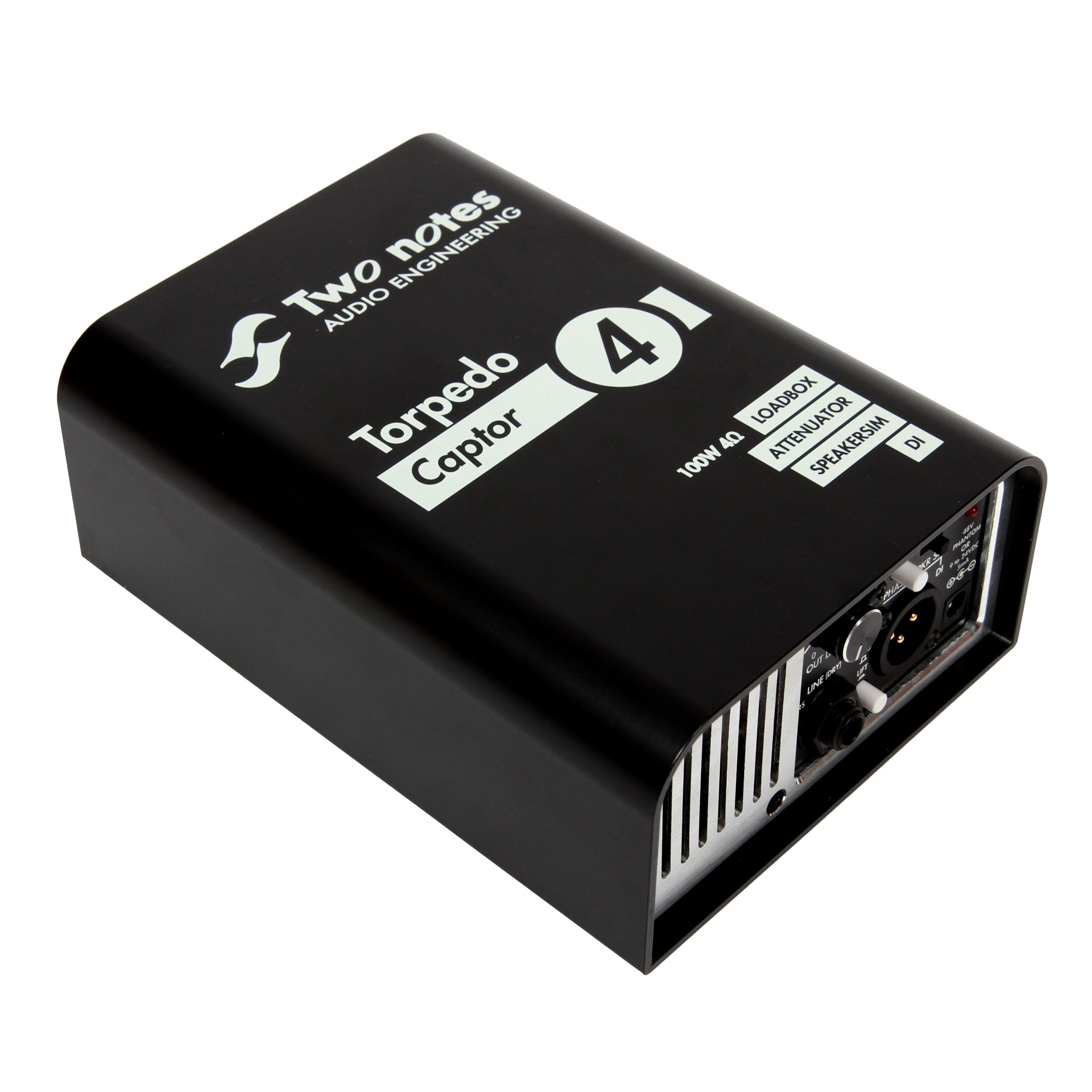

The Torpedo Captor 4 is a compact, all-Analog Reactive Load Box, Attenuator and Amp DI and speaker emulation of electric and bass amplifiers (4 ohm), designed to unleash the full potential of your favorite tube amp in any setting. This versatile device sits between your amp head and speaker cabinet, acting as a power attenuator and cabinet simulator, all in a convenient DI-sized enclosure.
The Torpedo Captor 4 is an easy-to-use reactive Loadbox, perfect for unleashing your favorite tube amp in a variety of modern applications and venues. Designed to be placed between your amp head and speaker cabinet, it acts as a power attenuator and cabinet simulator, all packaged in a super-convenient DI-sized enclosure.
Featuring a superior arsenal of connectivity options as well as the Two notes GENOME plug-in software, complete with 16 stand-out virtual cabinets to choose from, the Torpedo Captor 4 allows you to use your amp at full potential at home, in the studio, or live.
6 Reasons why you need Captor 4 in your Life!- Save space, weight and volume on stage
- Easy and fast recording
- Use your favorite loud amp at reasonable volume or silently
- Choose between 16 famous virtual cabinets within the GENOME plug-in
- Available in 4, 8, or 16 Ohms models
- Use your amp and play securely
The Torpedo Captor allows you to capture a rich sound for direct recording without having to mic your speaker. Used without a speaker, it allows you to use your amp head in silent mode without any risk. If you wish to keep using a cabinet, the Torpedo Captor features a direct speaker THRU or ATT output which sends either the full volume of the amp to the cabinet or a fixed -20dB attenuation. It also offers a balanced XLR active DI output with selectable guitar or bass simulation taken from Two notes critically acclaimed Le-series preamps, as well as a balanced line output with adjustable output level and polarity.
Includes a Free Lifetime License for GENOMEIntroducing GENOME, the carrier class software ecosystem engineered to deliver the pinnacle in end-to-end tone shaping. Fusing an ever-growing roster of amplifiers, pedals, class-leading virtual cabinets and essential STUDIO FX, GENOME is your first - and final - destination for the ultimate in-the-box or hybrid backline. Better yet, every bundled DynIR cabinet with your Two notes Hardware Purchase is available for use in GENOME post product registration!
Included DynIR CabinetsTorpedo Captor is a 100 Watt RMS Reactive Load Box available in 4, 8 or 16 Ohms. Register your Torpedo Captor hardware to claim your 16 free DynIR cabinets and your GENOME lifetime license.
- PinnacleHG : Inspired by Dr. Z ® “Z-Best®” Thiele Ported 2×12 with v30’s.
- Voice30Blue : Inspired by the Vox® AC30® loaded by the famous Celestion® Blue AlNiCo®.
- TangerFat : Inspired by PPC412HP© 4×12 Orange® with Celestion® Heritage G12H (55Hz)
- Burn It : Inspired by Brunetti® Dual Cab XL 2×12 half back with Eminence® The Governor.
- Recto Over : Inspired by a Mesa Rectifier 4 x12 Cabinet. Equipped with a Celestion® Vintage 30.
- BigBaby K100 : Inspired by Zilla® FatBaby, 1×12 Closed Back. Equipped with a Celestion® G12K-100.
- Studio ZG12H : Inspired by Zilla® Studio Pro, 2×12 Closed Back. Equipped with V30 and G12H Creamback 75.
- BrownyBack : Inspired by a 4×12 perfect for “the Brown Sound”, equipped with Celestion® Greenbacks.
- Brit1935 : Inspired by a Marshall® 4×12, dating from 1971. Equipped with OG Celestion® “Rola” speakers.
- Fried30 : inspired by Friedman® 4×12 Vintage equipped with Celestion® V30.
- Ferret : Inspired by Suhr® Badger 2×12” OB equipped with Warehouse® Veteran30.
- BoGreen : Inspired by Bogner® 4×12 equipped with Greenbacks G12M25 Reissue at 16ohms.
- Fridge 9 : Inspired by Ampeg® V.9 9×10”.
- NewYork : Inspired by Markbass® 4×6” equipped with 4×6″ Neodymium speakers custom made by B&C®.
- WGrandBlvd : Inspired by Ampeg® B15N 1×15” CB equipped with Jensen® C15N, Vintage Ceramic Speaker.
- Fat Mama : Inspired by Ampeg® SVT-410HE 4×10 equipped with Eminence® Speakers.
Key Product Features
- All-Analogue Control of your Amp!
- Compact Analog Reactive Load Box, Attenuator & Amp DI
- Premium, compact 100W reactive load box – 8-Ohm Variant. Attenuator, silent stage solution for guitar and bass
- 16 DynIR virtual cabinets via the GENOME plug-in (included); Built-in analog cab sim x 2, individually voiced for guitar and bass
Torpedo Captor 4 Ohm Specifications

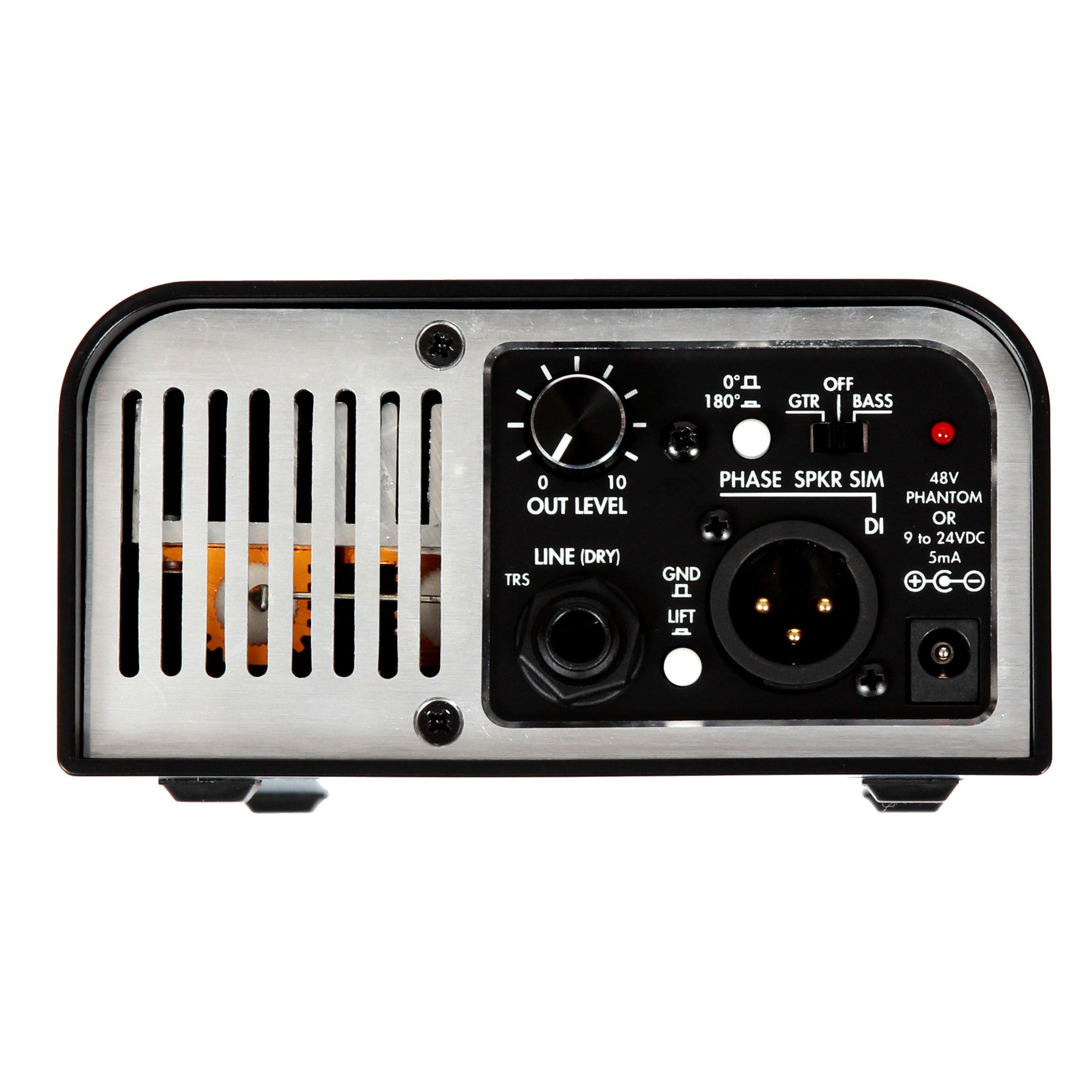

Input/Output
Speaker input: 1/4″ jack unbalanced (TS)
Speaker Attenuated Output: 1/4″ jack unbalanced (TS)
Speaker Thru: 1/4″ Jack unbalanced (TS) - Directly connected to Speaker Input (Loadbox disconnected when in use)
Line Output:
- 1/4″ Jack balanced (TRS)
- Impedance: 1000 Ohms
- Phase switch
- Ground lift (Without speaker simulation).
DI Output
- XLR balanced
- Impedance: 600 Ohms (With or without speaker simulation)
Analog speaker sim
- Guitar : based on Brit VintC DynIR Cabinet, Dyn57 Microphone
- Bass : based on Fridge DynIR Cabinet – Cnd87 Microphone
Load box
- Impedance: 4 Ohms
- Max admissible power: 100W RMS
- Safety system: Temperature-controlled fan / Active thermal safety
Dimensions & weight
- Width x Depth x Height: 12.6cm x 17.5cm x 6.2cm – 4.9″ x 6.7″ x 2.4″ (Including connectors and knobs)
- Weight: 1000 g / 2.2 lbs
Power
- Input voltage: Phantom power or 9-12V DC jack, 2.1×5.5mm, negative center
- Current draw: 5mA
- Power input connector: DC connector, 2.1mm x 5.5mm, center negative (Power is required only for the XLR DI output and analog speaker sim)
