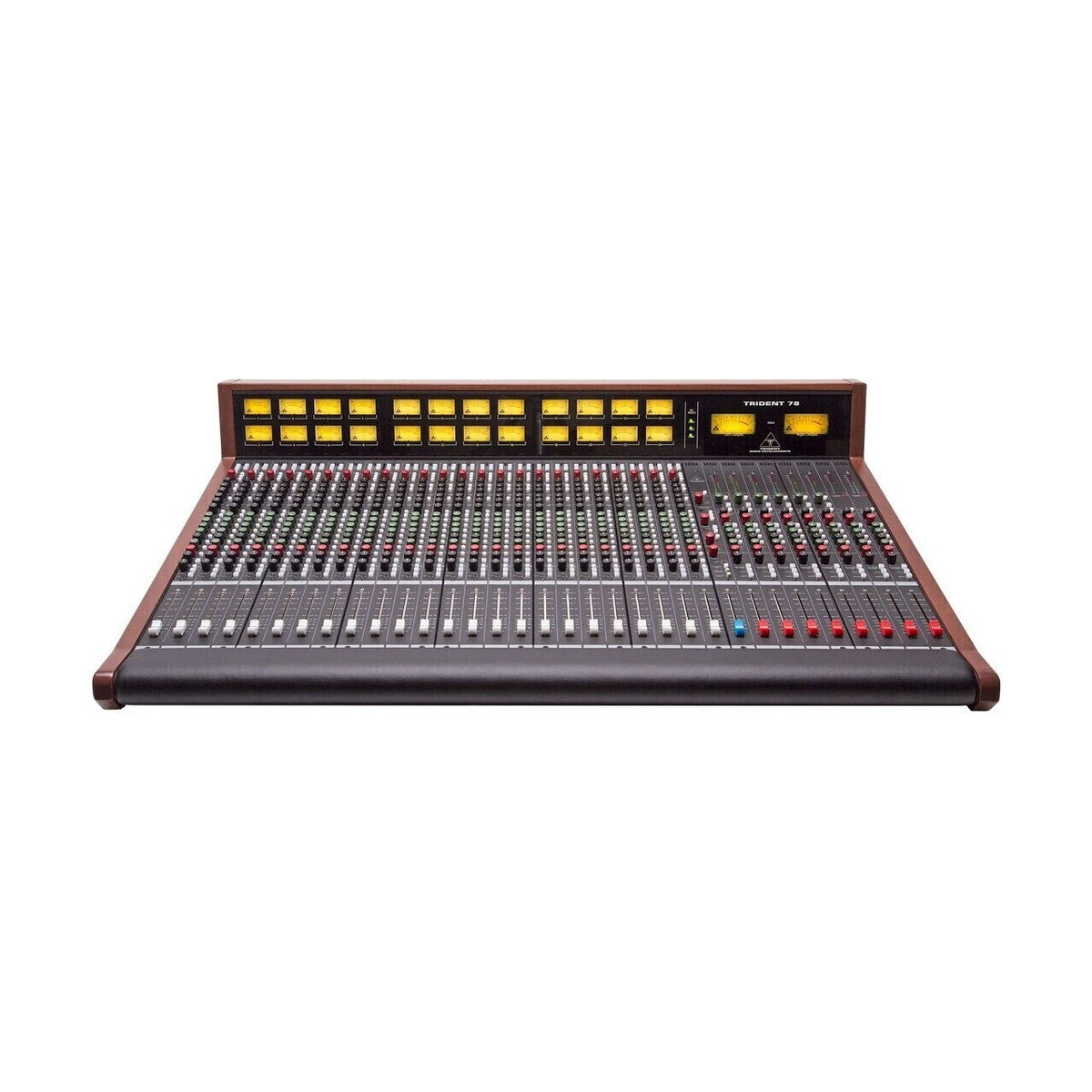

Trident 78 - 32 Channel VU Meter Bridge Option

Trident 78 - 32 Channel VU Meter Bridge Option is a factory meter bridge option for the 32-channel Trident 78 console, fitted with ballistic VU meters across all channels. The Trident 78 draws on the design philosophy of classic Trident consoles from the 1970s — the VU bridge completes that character: needle meters with 300 ms ballistics are not just a measurement tool but an integral part of the analog workflow, where levels are read peripherally rather than by staring at a screen.

VU metering on the Trident 78 — a readout matched to the console's character

The Trident 78 is a console with a defined sonic character — an analog signal path with its own saturation curve and coloration. VU meters with 300 ms ballistics show sustained signal energy, which combined with the Trident 78 analog path gives a readout that is complementary to how the console processes signal: the engineer sees where the energy of the mix is, not where its instantaneous peaks reach. With 32 meters running in parallel throughout the session, level overview across the full project is immediate and requires no interruption to the work at the console surface. This is particularly important during tracking, where level decisions are made in real time with no opportunity to revisit them.

Factory integration with the Trident 78

The bridge is electrically and mechanically matched to the Trident 78 frame in 32-channel configuration — it installs directly above the master section without internal wiring modification or signal path intervention. As a factory option it guarantees metering accuracy across all 32 channels per Trident's measurement specification. For studios running the Trident 78 as their primary console without a separate external metering system, the VU bridge turns the desk into a fully self-contained working environment with complete level visibility directly on the console surface.

KEY FEATURES

• Factory VU meter bridge option for the Trident 78 — 32-channel configuration
• Ballistic VU meters — RMS-weighted readout aligned with perceived loudness
• 300 ms attack and return constant per VU standard
• Simultaneous level overview across all 32 channels
• Factory electrical compatibility with Trident 78 internal measurement nodes
• Direct-mount to console frame — mechanically and aesthetically integrated

TECHNICAL SPECIFICATIONS

• Type: VU meter bridge (factory option)
• Compatibility: Trident 78, 32-channel configuration
• Meter count: 32 (one per channel)
• Meter type: ballistic VU, needle display
• Ballistic constant: 300 ms attack / 300 ms return (VU standard)
• Installation: direct-mount to Trident 78 console frame
