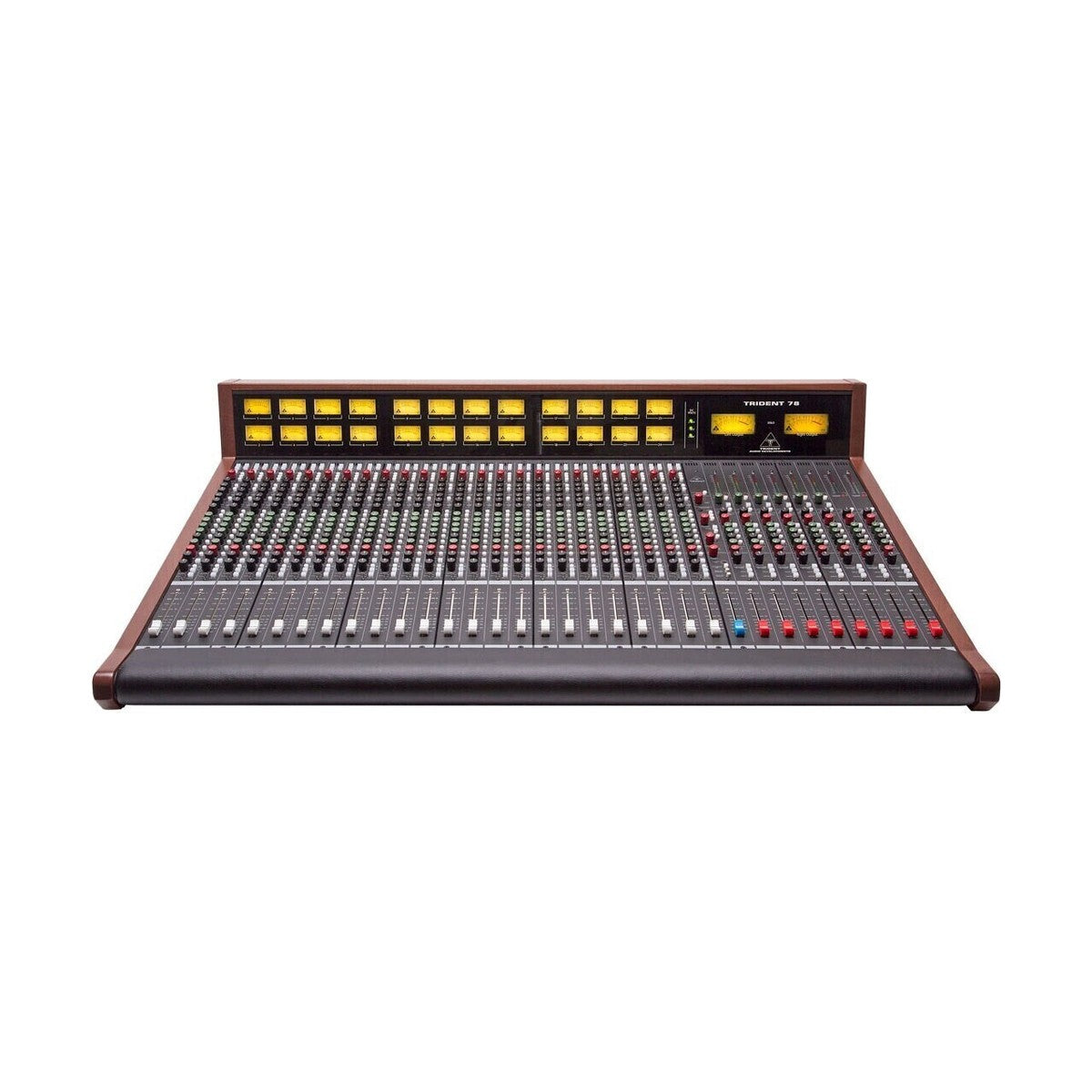

Trident 78 - 16 Channel VU Meter Bridge Option

Trident 78 - 16 Channel VU Meter Bridge Option is a factory meter bridge option for the 16-channel Trident 78 console, fitted with ballistic VU meters across all channels. The 16-channel Trident 78 is the compact entry point into this console's ecosystem — the VU bridge in this configuration delivers continuous analog level readout across all channels without external metering hardware, closing the console into a fully self-contained working environment.

VU in a smaller configuration — why it is not a compromise

Sixteen channels with simultaneous VU level visibility is a configuration that works particularly well in studios running sessions with smaller ensembles — trios, quartets, vocal recordings with orchestration, electronic productions with a heavy analog outboard setup. VU ballistics at 300 ms show the sustained energy of each source, which across 16 channels allows the engineer to assess the level balance of the full ensemble in a single glance without interrupting the session. On a console with a defined sonic character like the Trident 78 — with its own saturation curve and analog path coloration — the VU meter is a tool that reads signal the same way the ear hears it: through the lens of energy rather than peaks, which is the information that actually drives gain decisions in an analog mixing environment.

Factory integration and console aesthetics

The bridge is electrically matched to the Trident 78 measurement nodes in 16-channel configuration — as a factory option it guarantees metering accuracy across all channels without on-site calibration. Direct-mount installation above the master section preserves the original panel geometry and the visual coherence of the unit. For studios that have chosen the 16-channel Trident 78 as their primary working tool, the VU bridge is an option that should be ordered with the console rather than added later — retrofit installation is possible, but factory fitting always guarantees better mechanical and electrical integration.

KEY FEATURES

• Factory VU meter bridge option for the Trident 78 — 16-channel configuration
• Ballistic VU meters — RMS-weighted readout aligned with perceived loudness
• 300 ms attack and return constant per VU standard
• Simultaneous level overview across all 16 channels
• Factory electrical compatibility with Trident 78 internal measurement nodes
• Direct-mount to console frame — mechanically and aesthetically integrated

TECHNICAL SPECIFICATIONS

• Type: VU meter bridge (factory option)
• Compatibility: Trident 78, 16-channel configuration
• Meter count: 16 (one per channel)
• Meter type: ballistic VU, needle display
• Ballistic constant: 300 ms attack / 300 ms return (VU standard)
• Installation: direct-mount to Trident 78 console frame
