Telegrapher Elephant Crow Black Active Analog Studio Subwoofer
Choose options
The Elephant is a sealed-enclosure subwoofer, deliberately built without a bass-reflex port, driven by a built-in 2x500W Class D amplifier running in a bridged configuration. A 20–300 Hz frequency response, an f3 of 41.7 Hz, and a peak SPL of 110.5 dB at 1 meter give a real, measurable bass foundation for critical work. A user-controllable analog crossover (30–300 Hz, second-order filter) with full 0–360° phase control allows precise tuning to any nearfield monitor pair, and XLR/RCA inputs with pass-through outputs make it easy to chain multiple units.
A sealed enclosure as a solution to uncontrolled bass
A common problem with ported subwoofers in critical listening: the port improves efficiency but introduces its own resonance and extends low-frequency decay, making it harder to judge a mix's true bass envelope. The Elephant sidesteps this with an airtight, sealed enclosure, giving faster transient response and more precise differentiation between individual bass notes — at some cost to output efficiency, but with a cleaner, more trustworthy low-end picture in return.
Full phase control as an integration tool for existing monitors
Adding a subwoofer to an already-tuned nearfield monitor pair often results in a dip or hump in the crossover region when the main speaker's and subwoofer's phase aren't aligned. The Elephant addresses this with full 0–360° phase adjustment, combined with a tunable crossover frequency, letting the sub be matched to any monitor model — from this manufacturer or elsewhere — without accepting a compromised transition between bands.
KEY FEATURES
- Sealed, active analog subwoofer in the Crow Black finish
- Built-in Class D amplifier, 2x500W in a bridged configuration
- Patented 32cm paper-sandwich driver with foam filling
- User-controllable analog crossover: 30–300 Hz, second-order filter
- Full phase control: 0–360°

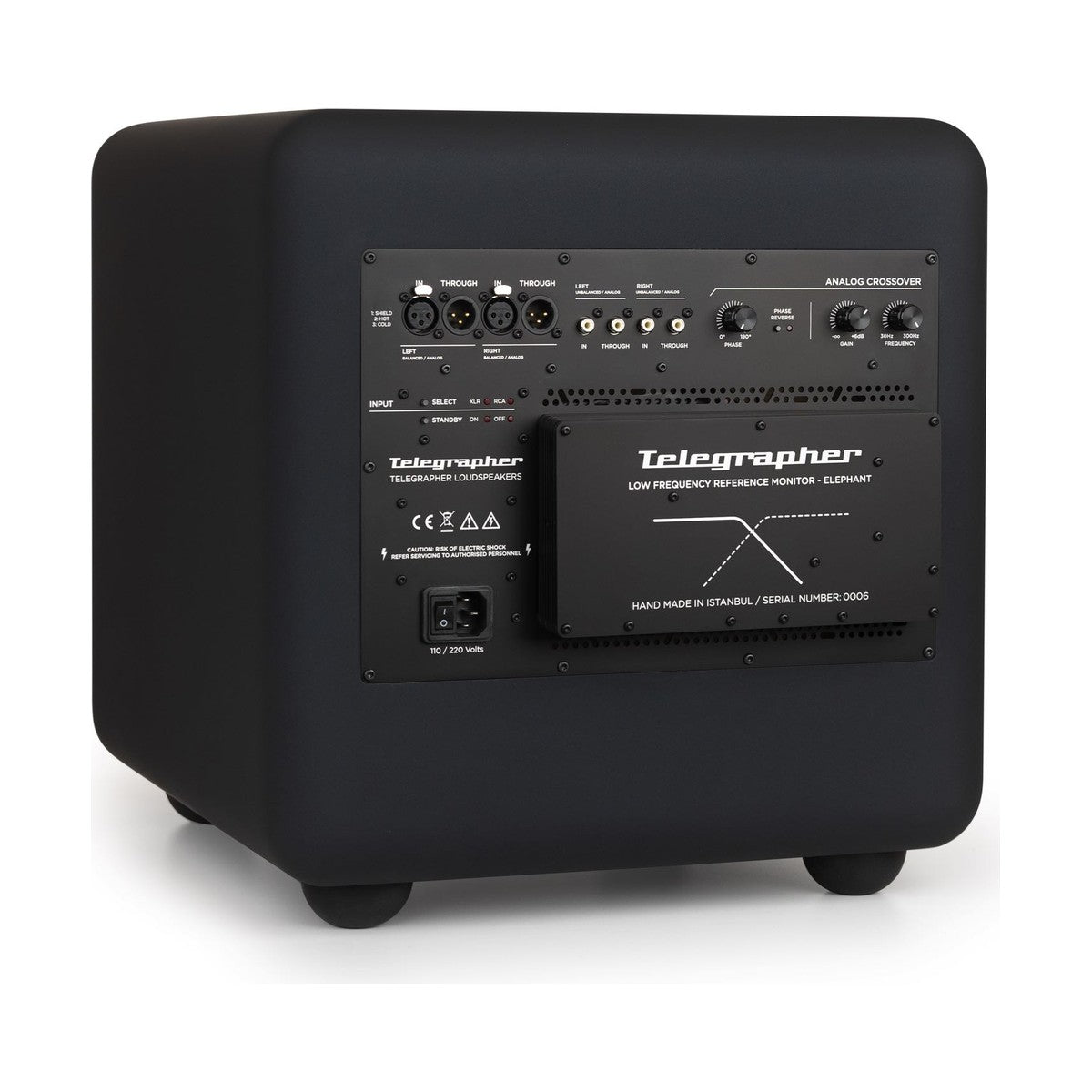

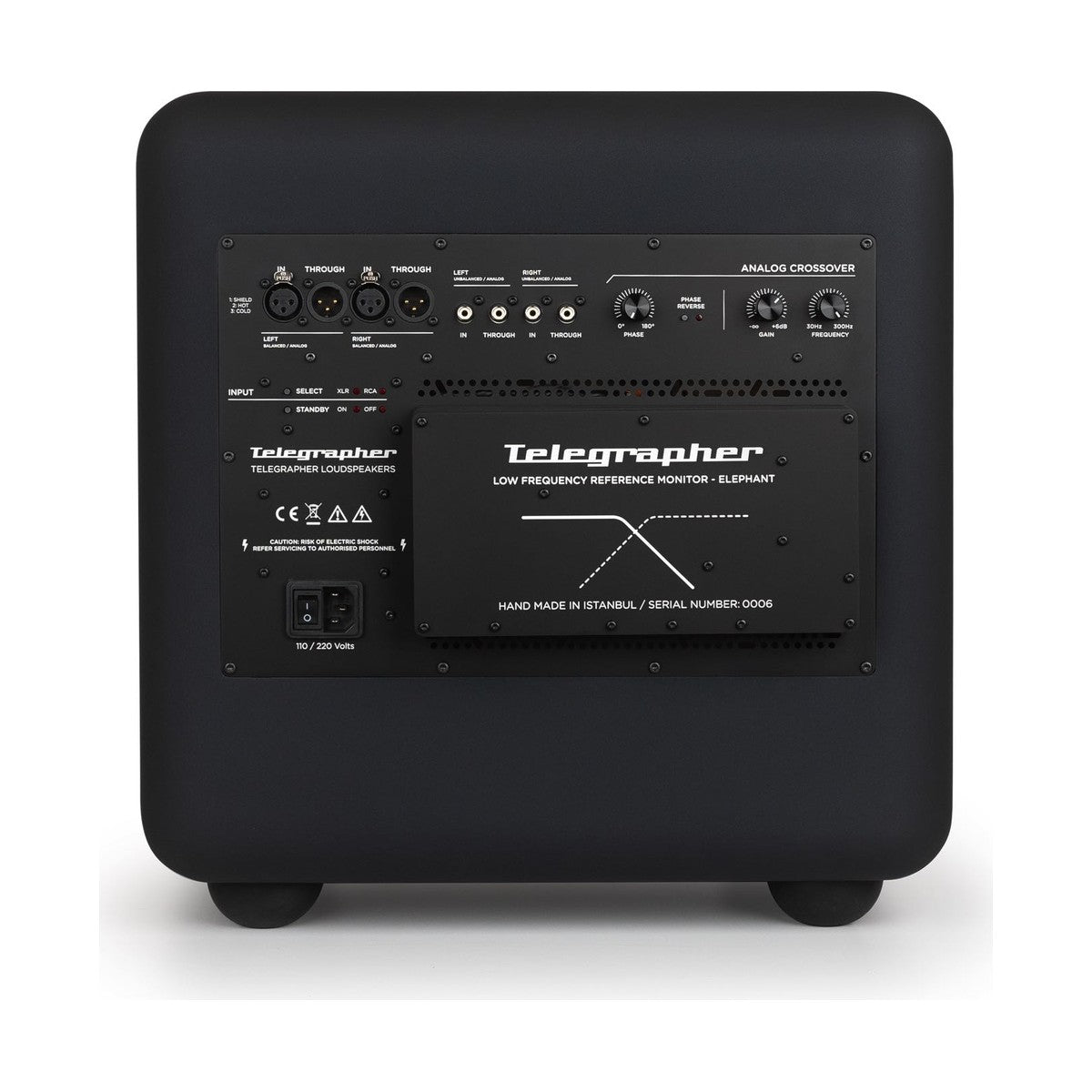

- XLR/RCA inputs with pass-through outputs for daisy-chaining units
- Thermal and overload protection with LED status indicators
- Matte, velvet-textured finish in Crow Black
TECHNICAL SPECIFICATIONS
- Frequency response: 20 - 300 Hz
- f3: 41.7 Hz / f6: 31.7 Hz
- Enclosure type: sealed
- Crossover: active, analog, 30–300 Hz (2nd order filter), phase 0–360°
- Peak SPL: 110.5 dB @ 1m
- Amplifier: 2x Class D (bridged), 2x500W, THD+N 0.0018%
- Power rating: 1200W (max) / 480W (RMS)
- Inputs: 2x balanced XLR or 2x unbalanced RCA (mono if both channels connected)
- Outputs: XLR or RCA pass-through
- Driver: 32cm / 12.5" paper sandwich cone with foam filling
- Dimensions: 43 x 44 x 52.5 cm (HxWxD)
- Weight: 38 kg
- Power: 110-240V AC ±10%, 47-63Hz, 3-pin IEC connector
