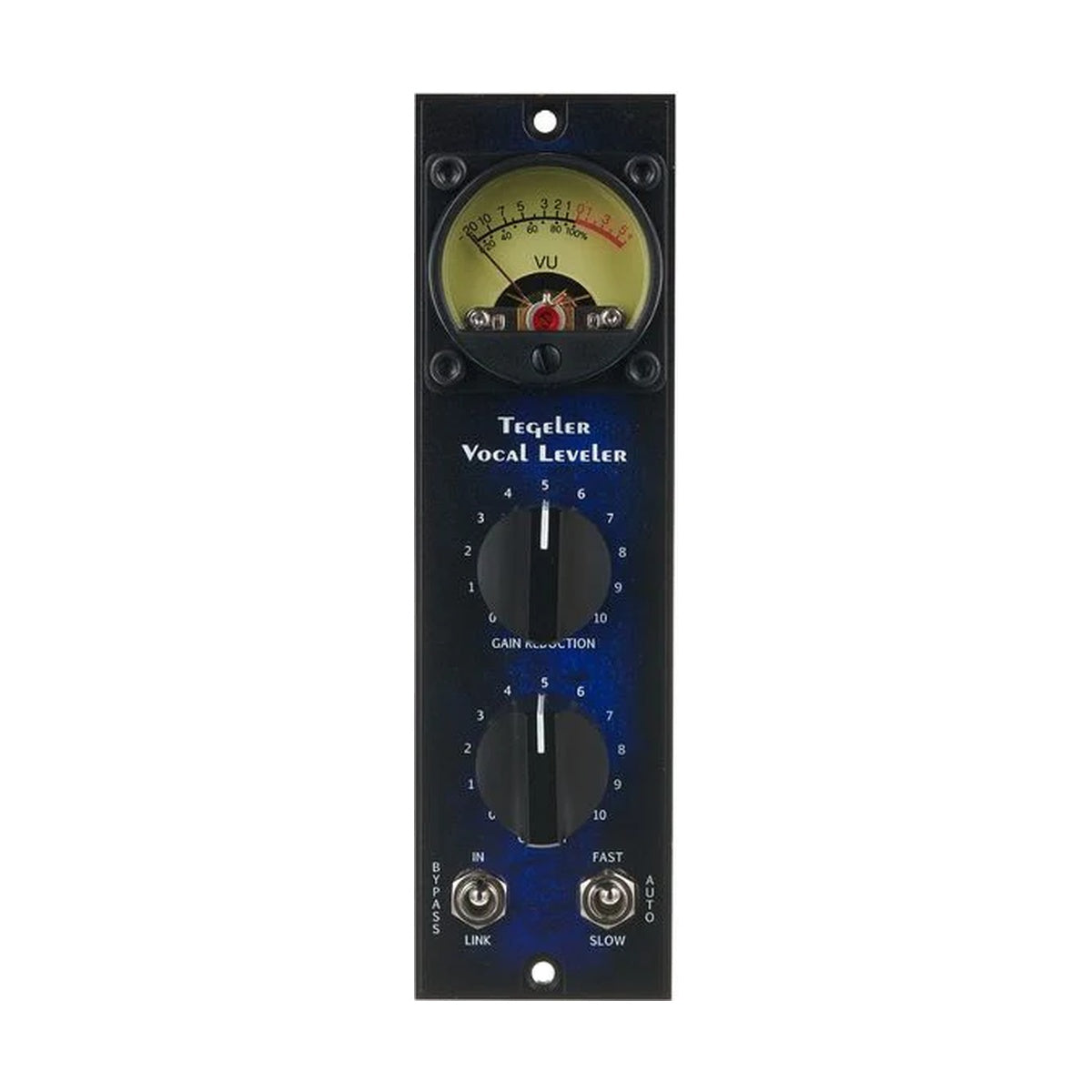

Tegeler Audio Manufaktur Vocal Leveler 500

Tegeler Audio Manufaktur Vocal Leveler 500 – 500 series optical compressor module from Vari Tube Recording Channel circuit. Simple two-knob design for gain reduction and output volume tames dynamics on vocals, bass, acoustic guitars. Preserves microdynamics with transparent, musical compression; protects against peaks.

Input transformer, opto compressor, FET for harmonic saturation and warmth. Toggle switches: In/bypass/link for stereo, attack/release (fast/auto/slow). Stepped pots for recall. Suitable for stereo processing.

Compact for 500 racks; ideal for fast, convincing results in studios.

MAIN FEATURES

• Classic opto compressor: Gain reduction/output knobs
• Link function for stereo
• Stepped potentiometers for recall
• Attack/release: Fast/auto/slow
• Input transformer for saturation
• FET for warm refinement
• Bypass switch
• Transparent even at higher levels

TECHNICAL SPECIFICATIONS

• Frequency Range: 20-22,000 Hz
• Max Input Level: +20 dBu
• Input Impedance: ≥2.4 kΩ
• Output Impedance: <600 Ω
• Operating Level: +4 dBu
• Max Output Level: +21 dBu
• Dynamic Range: 100 dB
• Max Gain Reduction: -12 dB
• Voltage: ±16V
• Power: 500 series slot, 80 mA max
• Dimensions: Standard 500 series module
• Weight: 540 g
• Included: Vocal Leveler 500 module
• Product Code: Vocal Leveler 500
