Teenage Engineering

Teenage Engineering OP-XY

Sale price€2.251,33
SPECIAL ORDER

Tax included. Shipping calculated at checkout

SKU: 55425
Quantity:

This item is available on a custom order basis only. Please contact us for more details. Contact us

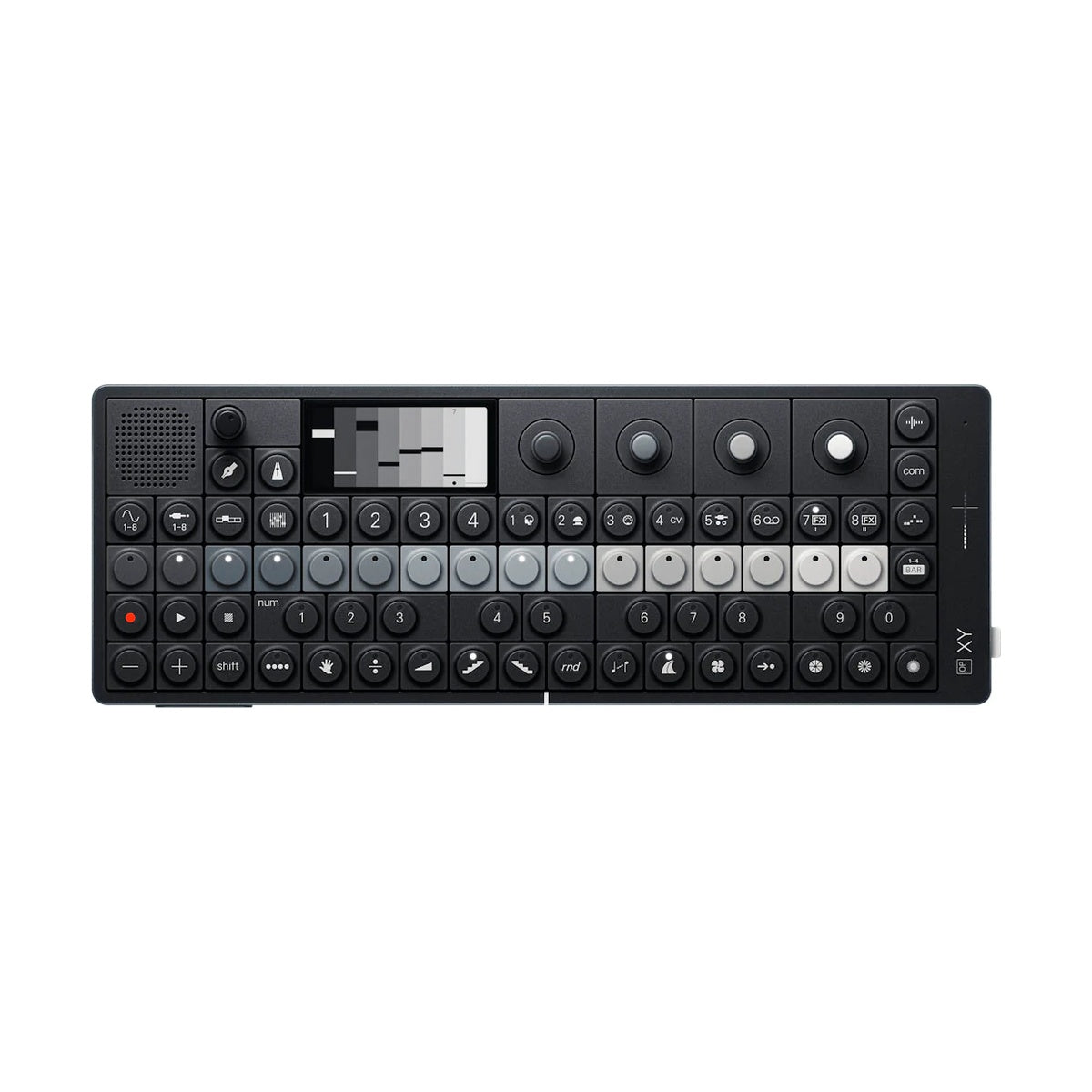

Teenage Engineering OP-XY is a sequencer, synthesizer, and sampler with 8 unique synth engines, built-in speaker, multi-out port, USB-C audio/MIDI host, and USB-C rechargeable battery.

OP-XY is equipped with 8 synth engines, a 64-step sequencer, and 16 programmable tracks for creating unique sounds. It features a chord progression function called "Brain," as well as a built-in gyroscope that allows users to control tracks by moving the device. The device supports 24-voice polyphony with the ability to save 9 templates per track and 99 scenes.

OP-XY has a built-in speaker, an anodized matte black aluminum casing, several unique synthesizer engines, a multi-sampler for drums and synthesizers, a dual-processor system for fast processing and extensive performance capabilities, as well as support for USB, MIDI, and a multi-out port that allows signal switching between 4 directions, including Eurorack, synthesizers, and pedals. One of the important features of OP-XY is the presence of a rechargeable lithium-ion battery that provides up to 16 hours of operation, as well as 8 GB of memory and 512 MB of RAM.

OP-XY Features

  • The new evolution of sequencing. OP–XY is a powerful sequencer, synthesizer, and sampler. Stack sounds on a 64-step grid, and create thousands of projects.
  • Tactile 24-key keyboard and a multi-out jack that lets you select one of four outputs.
  • 8 unique synth engines, two send effect slots, plus Brain for transposition—it’s a complete studio in the palm of your hand.
  • Sequencer, synthesizer, and sampler.
  • Built-in speaker for room-filling sound.
  • 16 hours USB-C rechargeable battery.
  • Multi-out port.
  • Thousands of user projects.
  • USB-C audio/MIDI host.

OP-XY Technical Specifications

Instrument tracks

  • 8 individually sequenceable instrument tracks.
  • 8 unique synth engines.
  • 3 samplers.
  • Independent send levels per track.

Step components: 14 unique step components for advanced step sequencing apply up to all 14 to every step.

Screen: 480 x 222px IPS TFT display.

Patterns: 9 patterns per track, up to 64 bars per pattern, spread across 4 pages, presets per pattern.

Effects: reverb, delay, chorus, distortion, lofi, phaser.

Hardware

  • Dual Blackfin processing cores.
  • Dual DDR memory.
  • Triple-core DSP co-processor.
  • 2x controller MCUs for wireless & low power IO domain.

Sensors: 6-axis IMU accelerometer.

Microphone: immediate, high-quality sampling with the built-in microphone.

Connectors

  • 3.5 mm stereo line-out with headset mic support.
  • 3.5 mm multi-out.
  • 3.5 mm MIDI in.
  • 3.5 mm stereo line-in.

Tactile input

  • 2 octave musical keyboard.
  • 68 ultra-low profile mechanical buttons.
  • Pressure sensitive pitch bend.
  • 4 x multi-purpose grayscale encoders.

USB

  • USB Type-C connector.
  • USB MIDI host & device.
  • USB audio host & device.

Dimensions and Weight

  • Dimensions: 288 x 102 x 29 mm | 11.4 x 4 x 1.2 in.
  • Weight: 900 g | 31.7 oz.
