Squarp Instruments xp32
Squarp Instruments xp32
Squarp Instruments xp32

Squarp Instruments

Squarp Instruments xp32

€545,66

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 58903
Quantity:
In stock
Pickup available at Warsaw Showroom

Squarp Instruments xp32

Warsaw Showroom

Pickup available, usually ready in 24 hours

Nowogrodzka 6
102
00-513 Warszawa
Poland

+48573580840

Contact

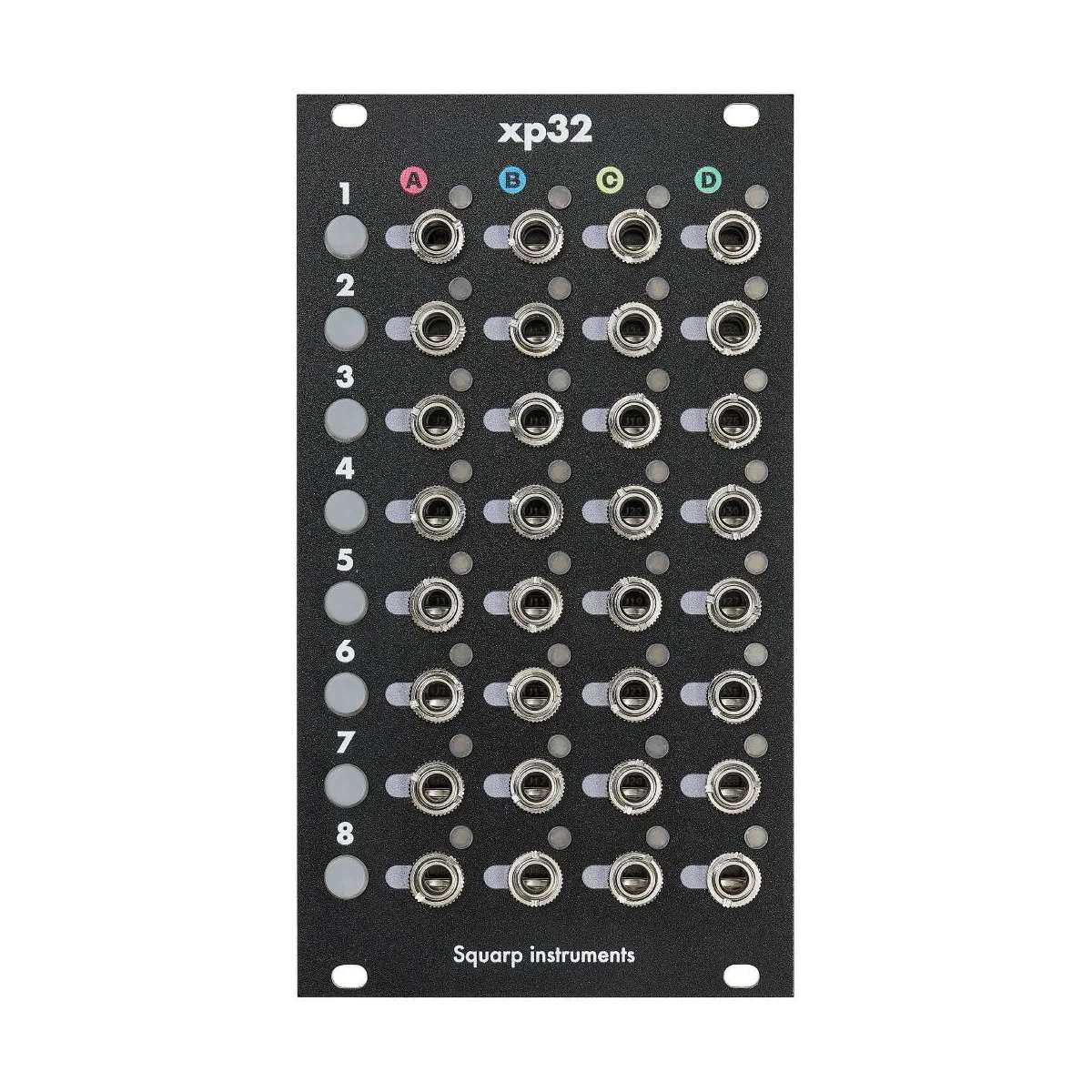

Squarp Instruments xp32 is a revolutionary output expander for the Hermod+ sequencer, unlocking 32 fully configurable CV or Gate outputs and radically amplifying the creative power of your entire system. Setup is instant and seamless—simply connect the included ribbon cable to the back of Hermod+, and the sequencer automatically recognizes the expander, making all 32 additional outputs immediately available without any configuration needed. With the xp32, Hermod+ transforms into a powerful 16-track CV/Gate sequencing hub, an expansive MIDI/USB-to-CV interface, or an advanced preset manager.

Each of the 32 output jacks on the xp32 is powered by a dedicated industrial-grade 16-bit DAC, ensuring the highest accuracy for all control voltage signals—from pitch to fine modulations. The wide output voltage range (-10V to +10V) guarantees compatibility with the broadest range of Eurorack modules. Every output can be freely configured as CV (pitch, velocity, aftertouch, modulation, LFO, envelope) or Gate (notes, triggers, clock). Eight dedicated buttons and 32 dual-color LEDs driven by a fully analog current-control circuit provide intuitive operation with zero digital noise.

KEY FEATURES

  • 32 fully configurable CV or Gate outputs for the Hermod+ sequencer
  • Dedicated industrial-grade 16-bit DAC per each of the 32 outputs
  • Wide output voltage range: -10V to +10V
  • Automatic recognition by Hermod+ (firmware 2.00 or newer required)
  • Each output freely configurable as CV (pitch, velocity, mod, LFO...) or Gate
  • Hermod+'s original 8 CV/Gate outputs remain fully untouched
  • 8 dedicated buttons for fast navigation and configuration
  • 32 bipolar LEDs with fully analog current-control (zero digital noise)
  • Configurations saved in Hermod+ memory and recallable as presets
  • Designed and manufactured in France

TECHNICAL SPECIFICATIONS

  • CV/Gate Outputs: 32 (fully configurable)
  • DAC Resolution: 16-bit (industrial grade)
  • CV Output Range: -10V to +10V
  • Compatibility: Squarp Hermod+ (firmware 2.00+)

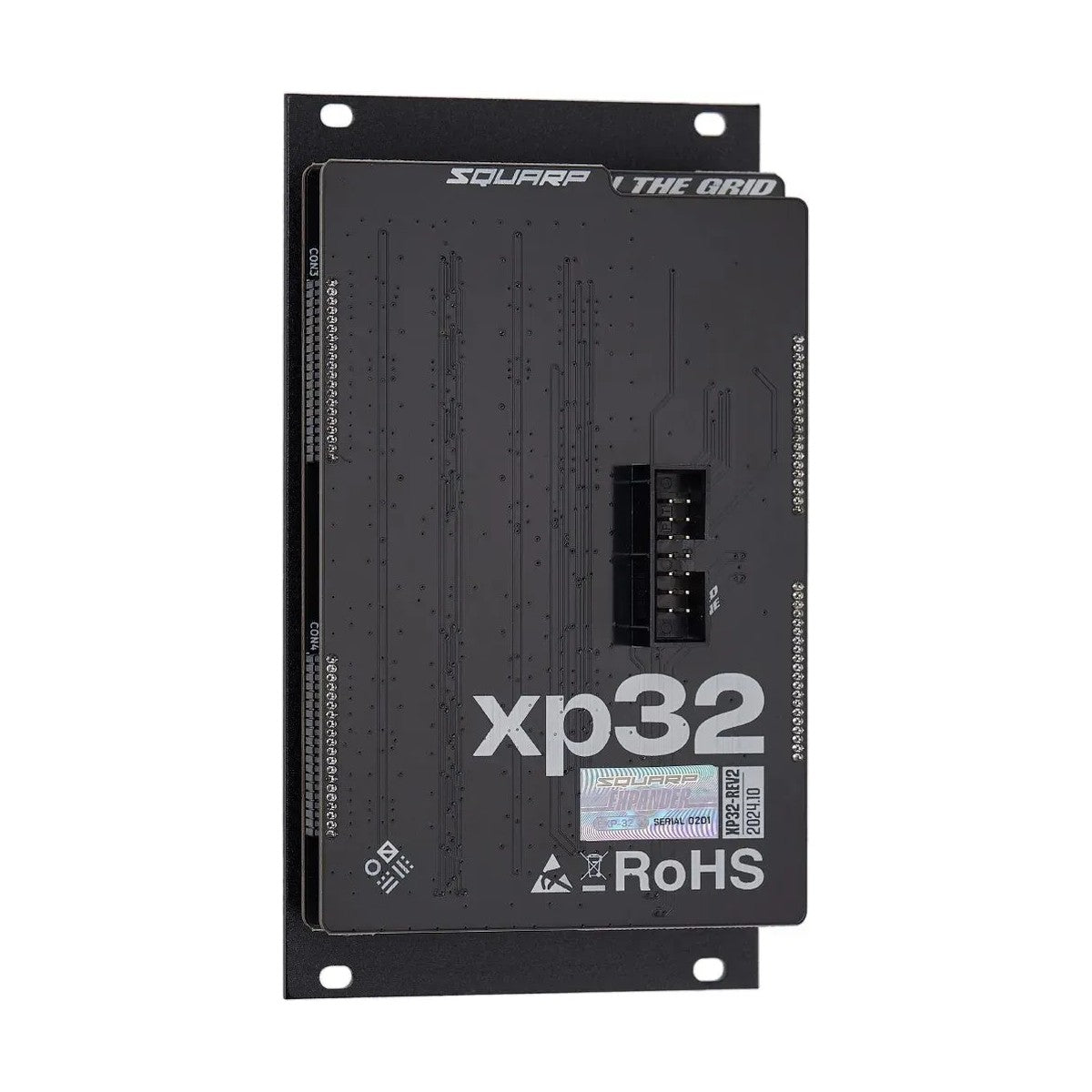

  • Connection to Hermod+: 14-pin ribbon cable (included)
  • Indicators: 32 bipolar LEDs (analog current control)
  • Buttons: 8 dedicated
  • Width: 14 HP
  • Depth: 33 mm
  • Height: 128.5 mm (3U)
  • Power: +12V / 80 mA, -12V / 70 mA, +5V / 20 mA
  • Weight: 170 g (0.37 lbs)
