Squarp Instruments Rample Turbo

Squarp Instruments Rample Turbo is a thoroughly redesigned mk2 version of the cult 4-voice Eurorack sampler, responding to the demands of the modular community. The most significant upgrade is a complete overhaul of the DAC, signal conditioning, and analog audio paths, resulting in a far more accurate and detailed sound—especially in the high frequencies—alongside a dramatically reduced noise floor. A new, faster SD card (16 GB) ensures quicker sample loading and lower latency between trigger input and sample playback. The updated black faceplate with red, yellow, green, and blue printing makes the Turbo easy to distinguish from its predecessor.

The core concept of Rample Turbo remains brilliantly simple yet powerful: each of the four voices plays .WAV files of any length, or a layer of up to 12 samples simultaneously. Each voice features five switchable effects—Pitch, Bit Crusher, Filter, Freeze, and Levels—controlled by a dedicated CV input, totaling up to 20 effects running simultaneously across the module. The audio outputs are DC-coupled, enabling playback of recorded control voltages such as LFO waveforms. Everything is packed into a compact 14HP enclosure with an LED matrix display and encoder for intuitive navigation.

KEY FEATURES

• 4-voice .WAV sampler of unlimited sample length in Eurorack format
• Completely redesigned DAC and analog audio paths (Turbo upgrade)
• Significantly reduced self-noise and improved high-frequency accuracy
• Up to 12 sample layers per voice with mute groups
• 5 effects per voice (Pitch, Bit Crusher, Filter, Freeze, Levels) = 20 simultaneously
• 4 Gate inputs (trigger) and 4 CV inputs for effect parameter modulation
• 4 DC-coupled mono audio outputs (capable of playing back CV signals)
• 1 mix output with volume control (unused audio outputs normalled to mix)
• MIDI In and MIDI Thru via 3.5 mm TRS connectors
• New 16 GB microSD card with over 200 samples included

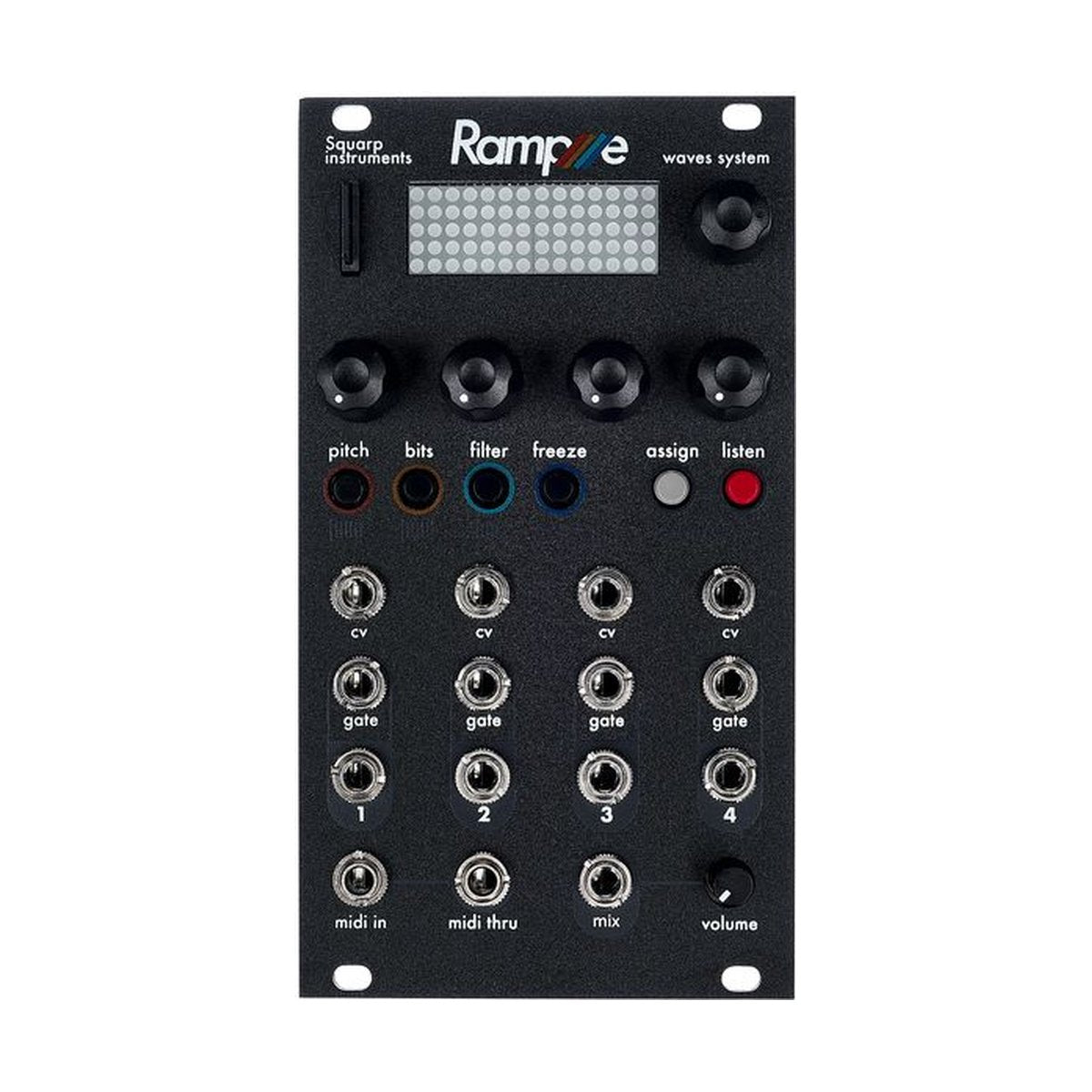

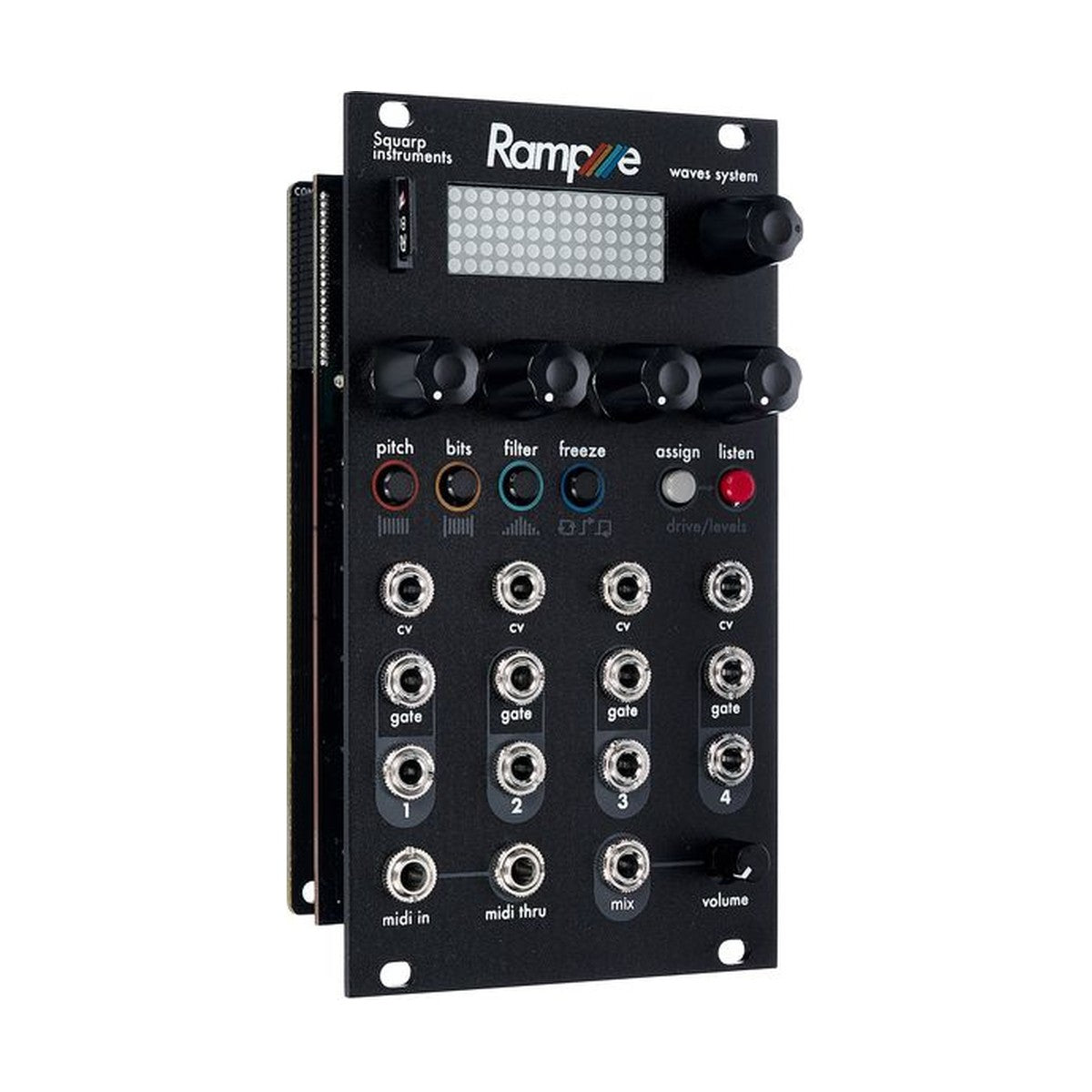

• New black faceplate with color-coded printing identifying the Turbo version

TECHNICAL SPECIFICATIONS

• DAC (audio outputs): 16-bit, 44.1 kHz
• ADC (CV inputs): 12-bit
• CV Input Range: -5V to +5V
• Audio Output Range: -5V to +5V
• Inputs: 4x Gate, 4x CV, 1x MIDI In (TRS 3.5 mm)
• Outputs: 4x Mono Audio (DC-coupled), 1x Mix Output, 1x MIDI Thru (TRS 3.5 mm)
• Storage: microSD (16 GB, included)
• Width: 14 HP
• Depth: 25 mm (with power ribbon cable)
• Power: +12V / 220 mA, -12V / 40 mA
• Weight: 170 g

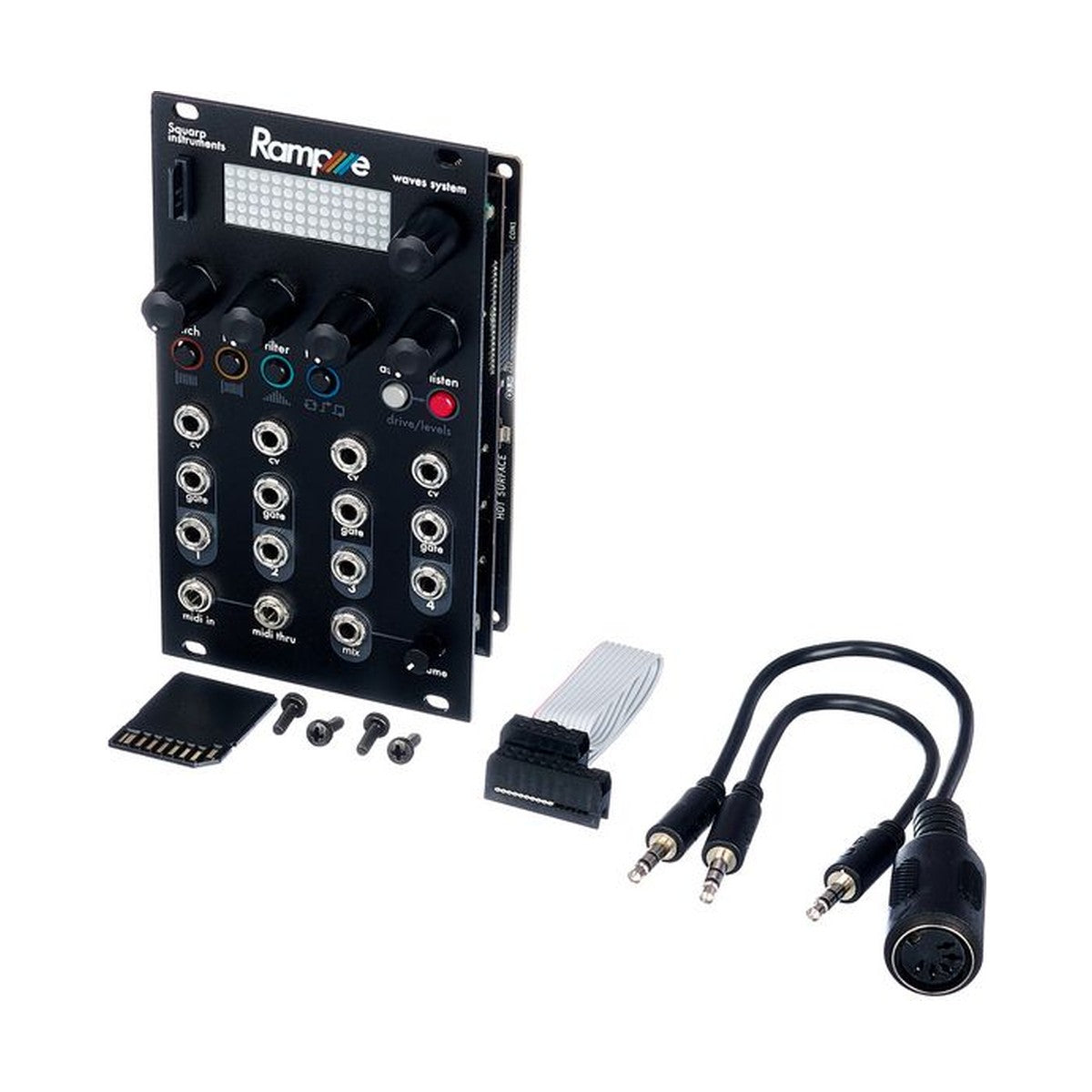

• Included: Jack-to-DIN adapter, Jack-to-Jack MIDI Thru cable, 16 GB microSD card
