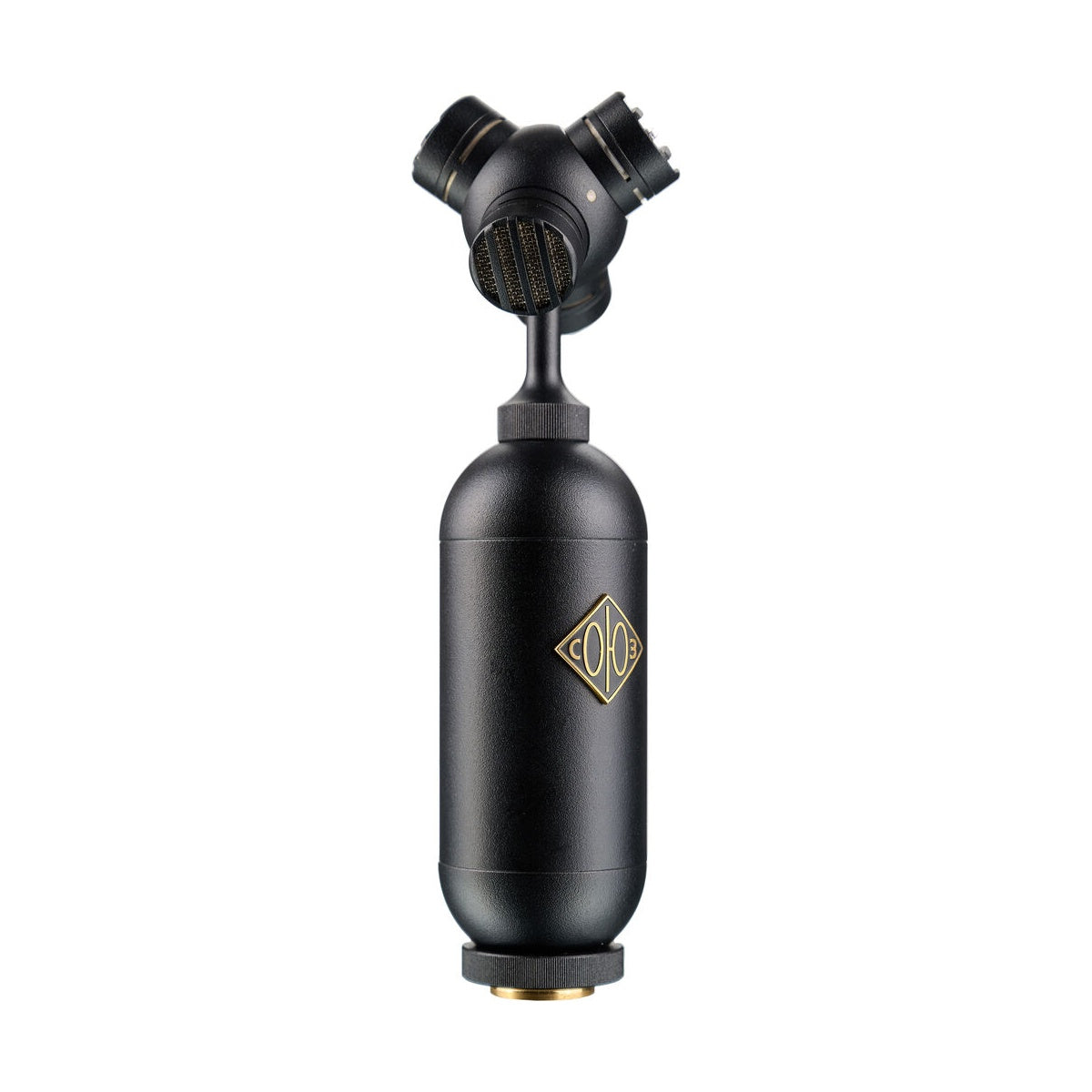

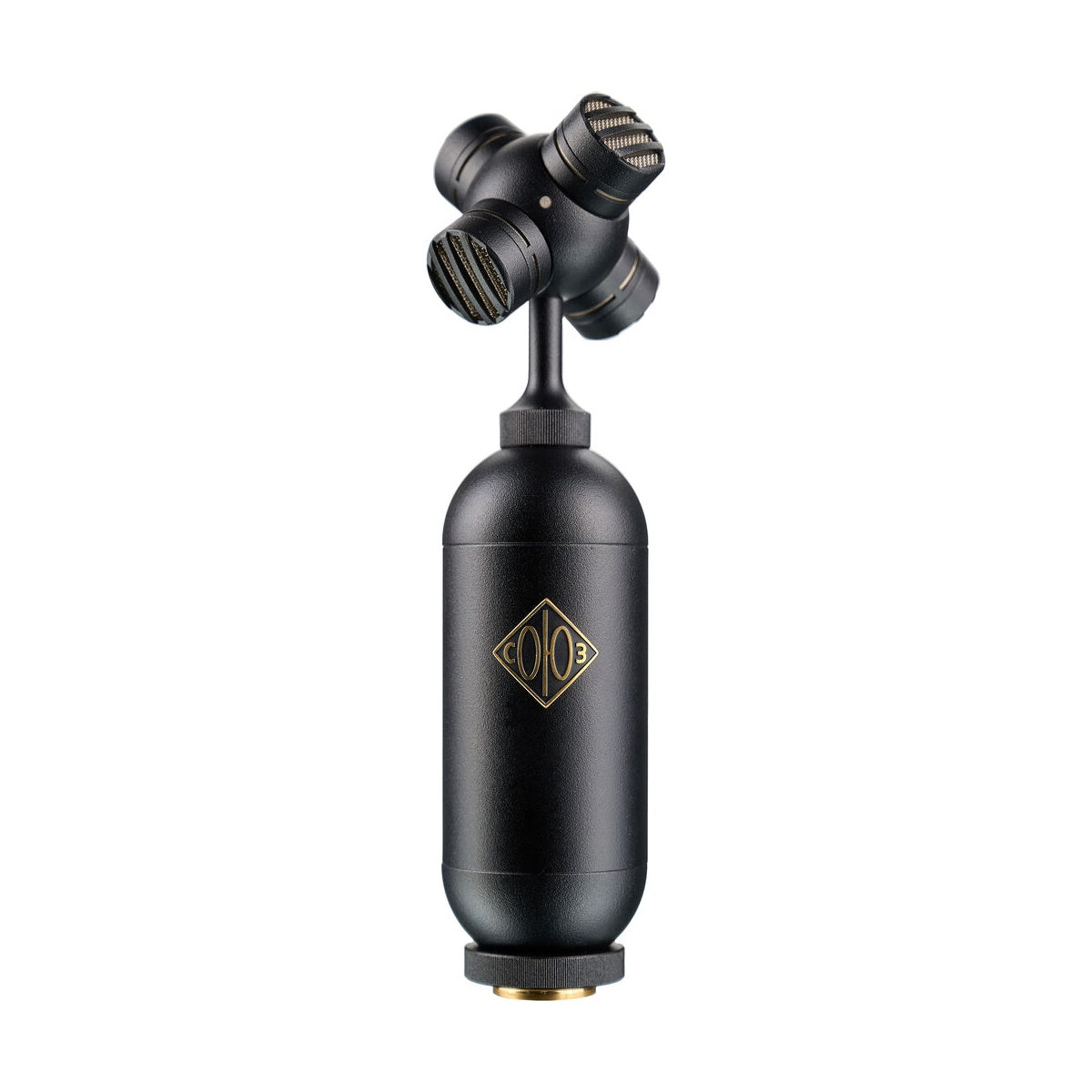

The 013 Ambisonic is a first-order ambisonic microphone - four phase-matched 25mm condenser capsules, each with its own Soyuz toroidal transformer, built into a single body styled after the 023 Bomblet housing. Instead of a multi-mic array for spatial recording, an engineer gets one device that captures the full sphere of sound in A-Format across four independent outputs on a breakout cable.
One device instead of a microphone array
Capturing a spatial sound field with conventional methods usually means several matched microphones, precise array geometry, and a separate signal path for each - a lot of gear, calibration, and floor space on a set or in a concert hall. The 013 Ambisonic replaces that with one factory-calibrated tetrahedral capsule array that just needs four identical preamps set to the same gain. Signal from the color-coded XLR connectors - red, yellow, green, and blue - arrives at the interface as ready-to-use A-Format material, without manually positioning separate microphones.
Changing perspective in the mix, not on set
A common problem with spatial recording is having to commit to a stereo direction and width during the session itself - the wrong call at capture time usually means going back to reshoot. The included Soyuz plugin bundle, developed with Audio Brewers, transcodes A-Format signal to B-Format with zero latency, and the decoder lets you rotate the sound field and shift its dominance during post-production. The same recording can be folded down to stereo, binaural headphones, surround, or Atmos without a second pass at capture.
KEY FEATURES
- First-order ambisonic microphone, four-channel A-Format output
- Four 25mm gold-sputtered condenser capsules, cardioid
- Four Soyuz toroidal transformers, one per capsule
- Tetrahedral capsule array for phase coherence
- Breakout cable with color-coded XLR connectors for the four outputs
- Included transcoder and decoder plugin bundle (VST3/AU/AAX)
- Compatible with stereo, surround, binaural, and Atmos workflows

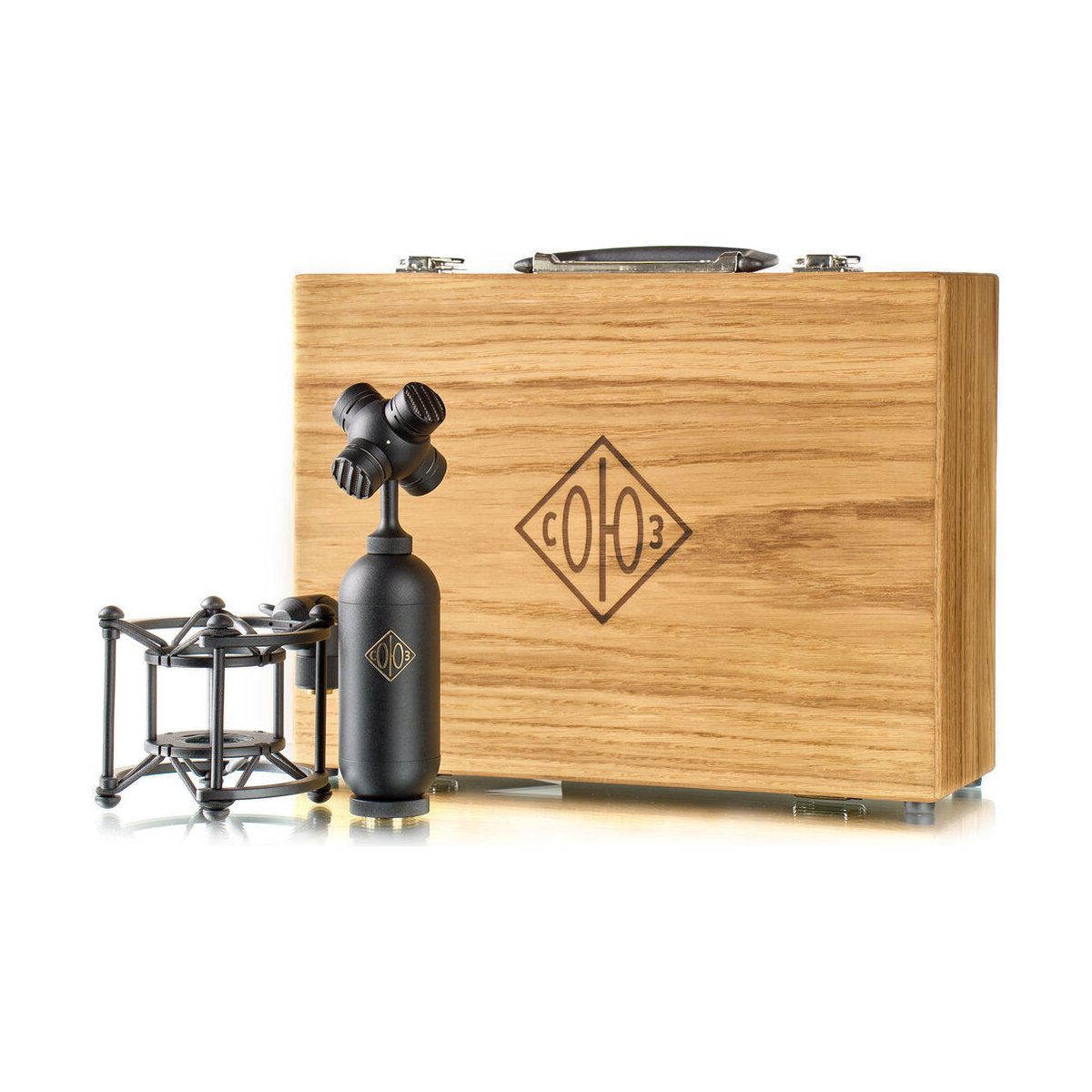

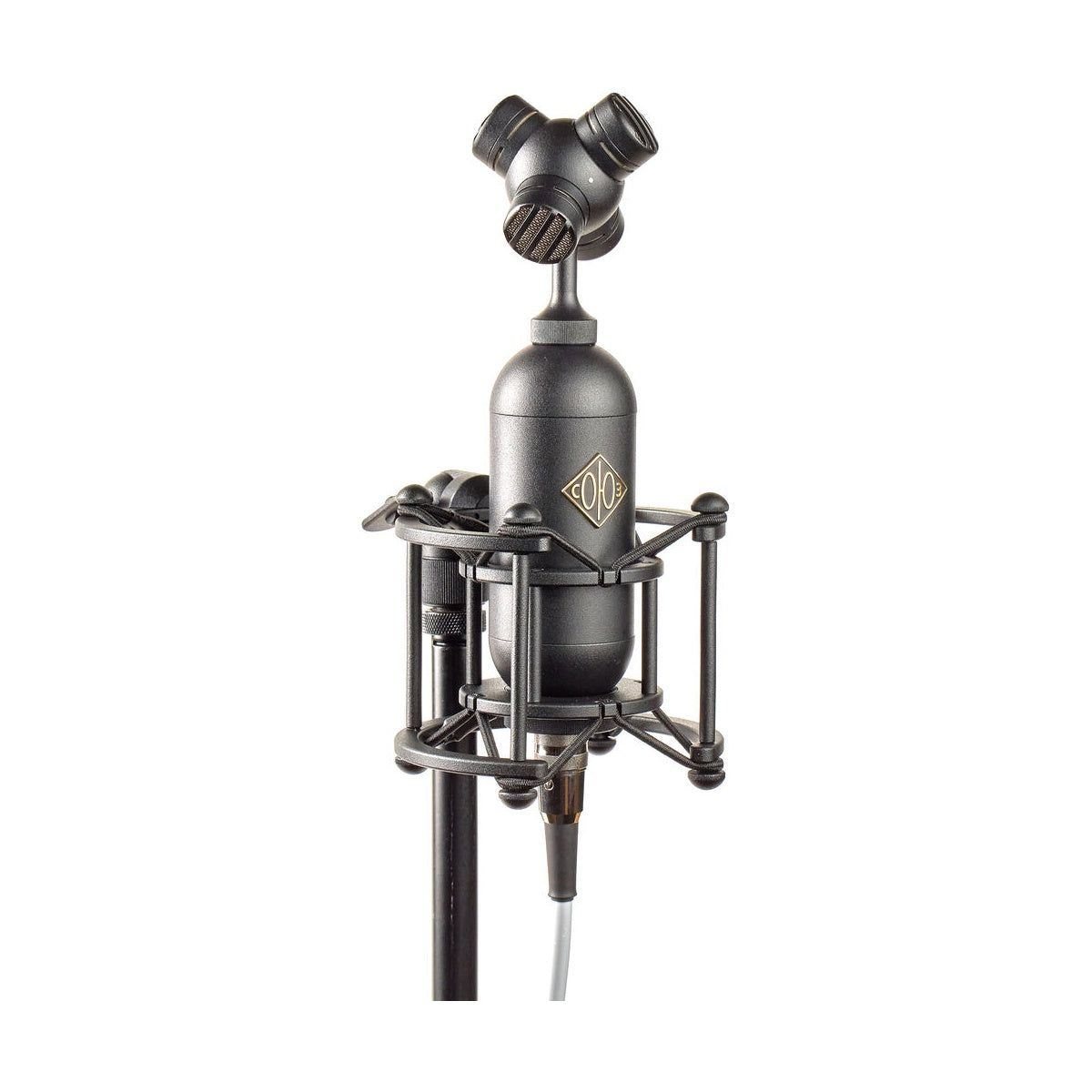

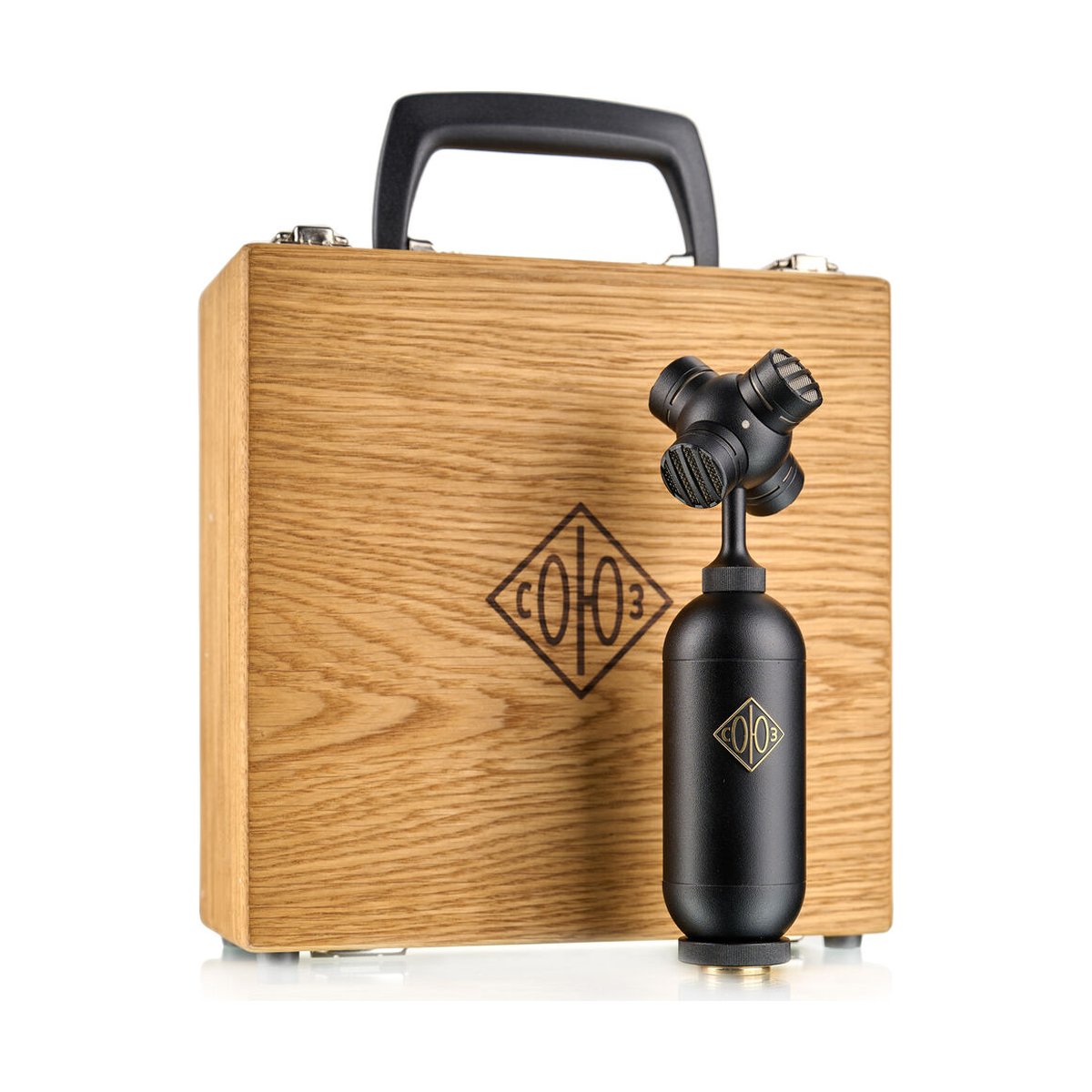

- Includes wooden case, hardmount, shockmount, and extension cable
TECHNICAL SPECIFICATIONS
- Type: first-order ambisonic microphone (4 channels)
- Capsules: 4x 25mm condenser, gold-sputtered, cardioid
- Transformers: 4x toroidal, Soyuz
- Sensitivity: 20mV/Pa
- Impedance: 150 Ohms
- Maximum SPL: 143dB per capsule
- Powering: 48V phantom
- Length: 207mm
- Diameter: 42mm
- Weight: 579g
- Outputs: breakout cable, 4x XLR (red, yellow, green, blue)

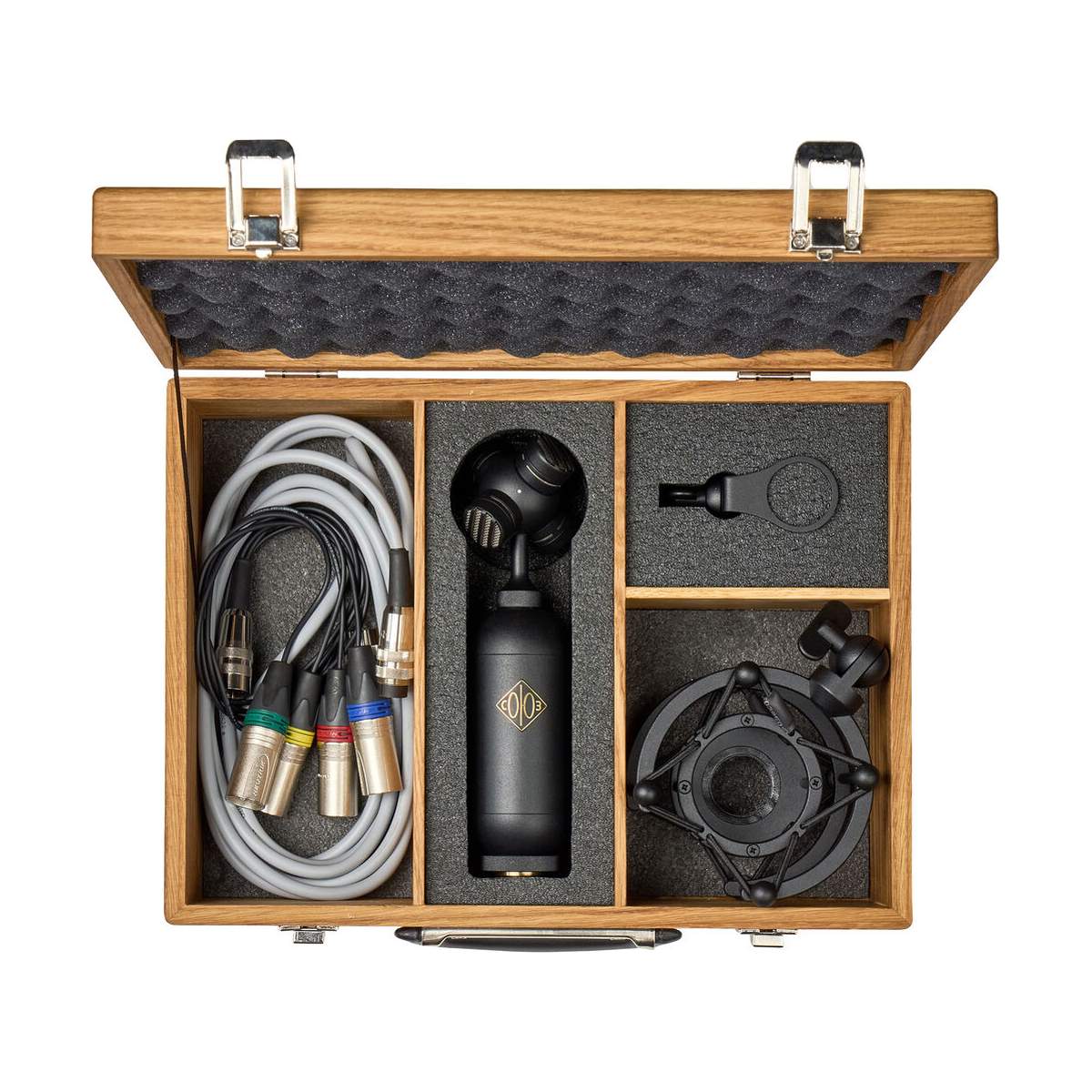

- Included accessories: wooden case, hardmount, elastic shockmount, breakout cable, 3m extension cable, plugin license
