Sontronics DM-1B
Sontronics DM-1B
Sontronics DM-1B

Sontronics

Sontronics DM-1B

€397,64
Sold out

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 48024

Contact

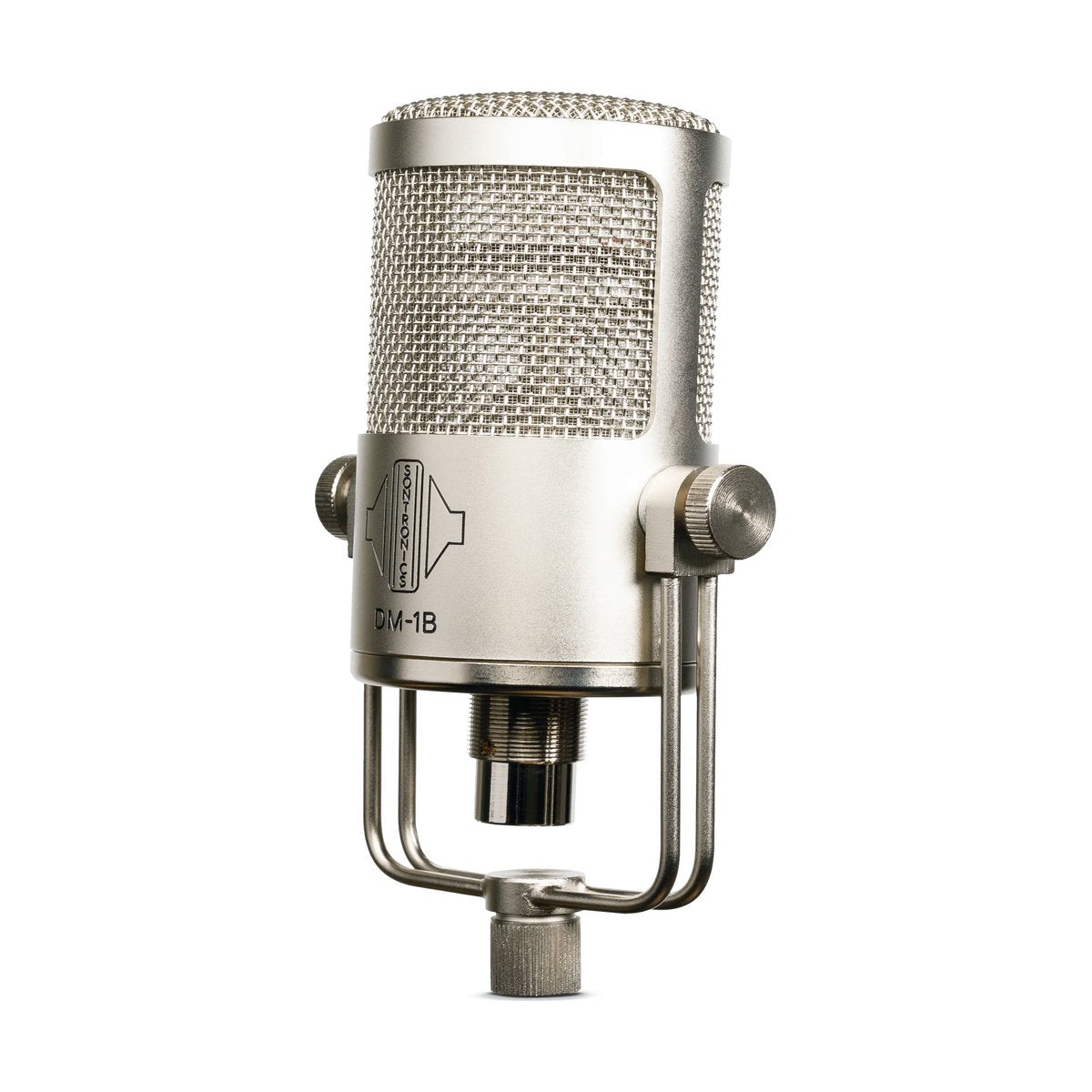

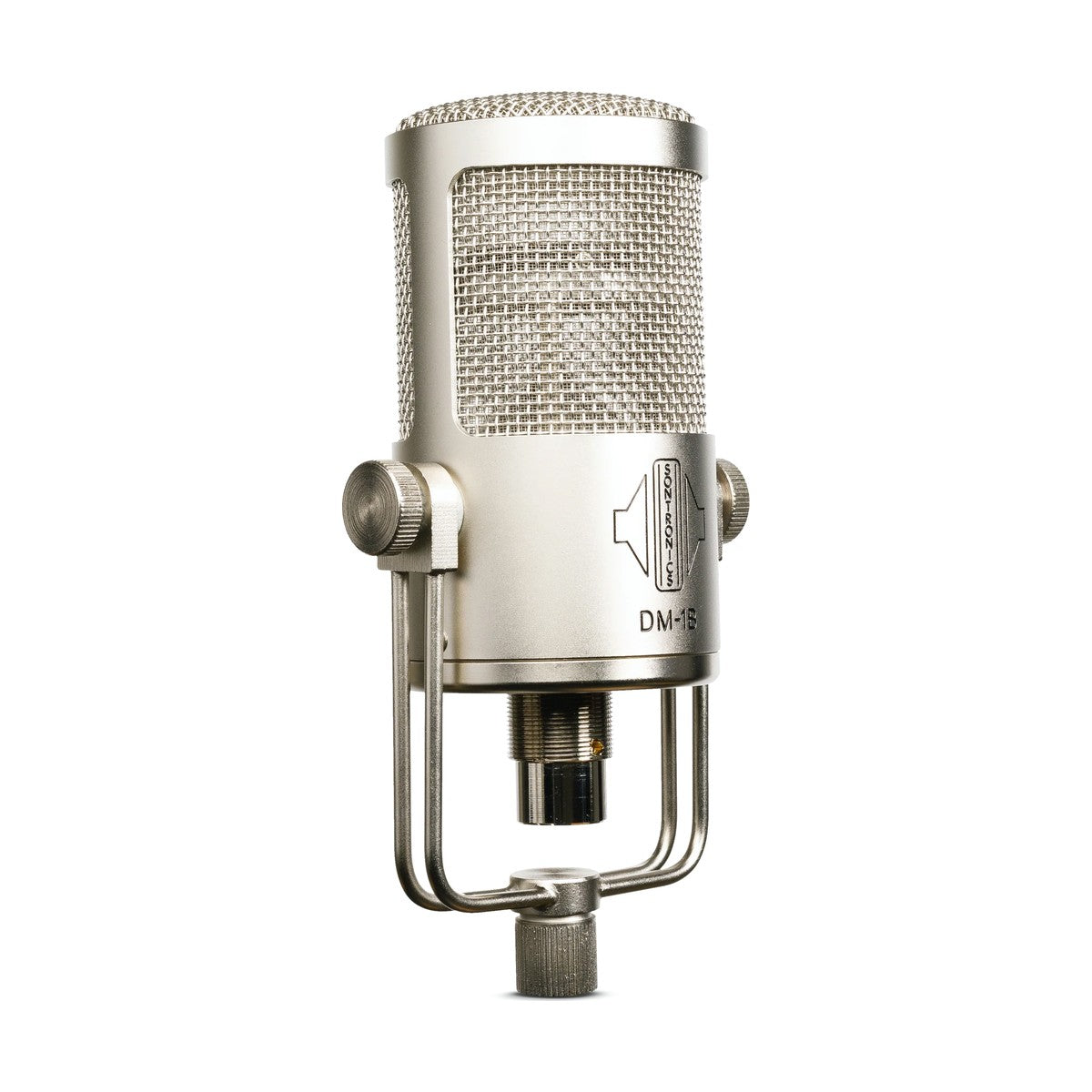

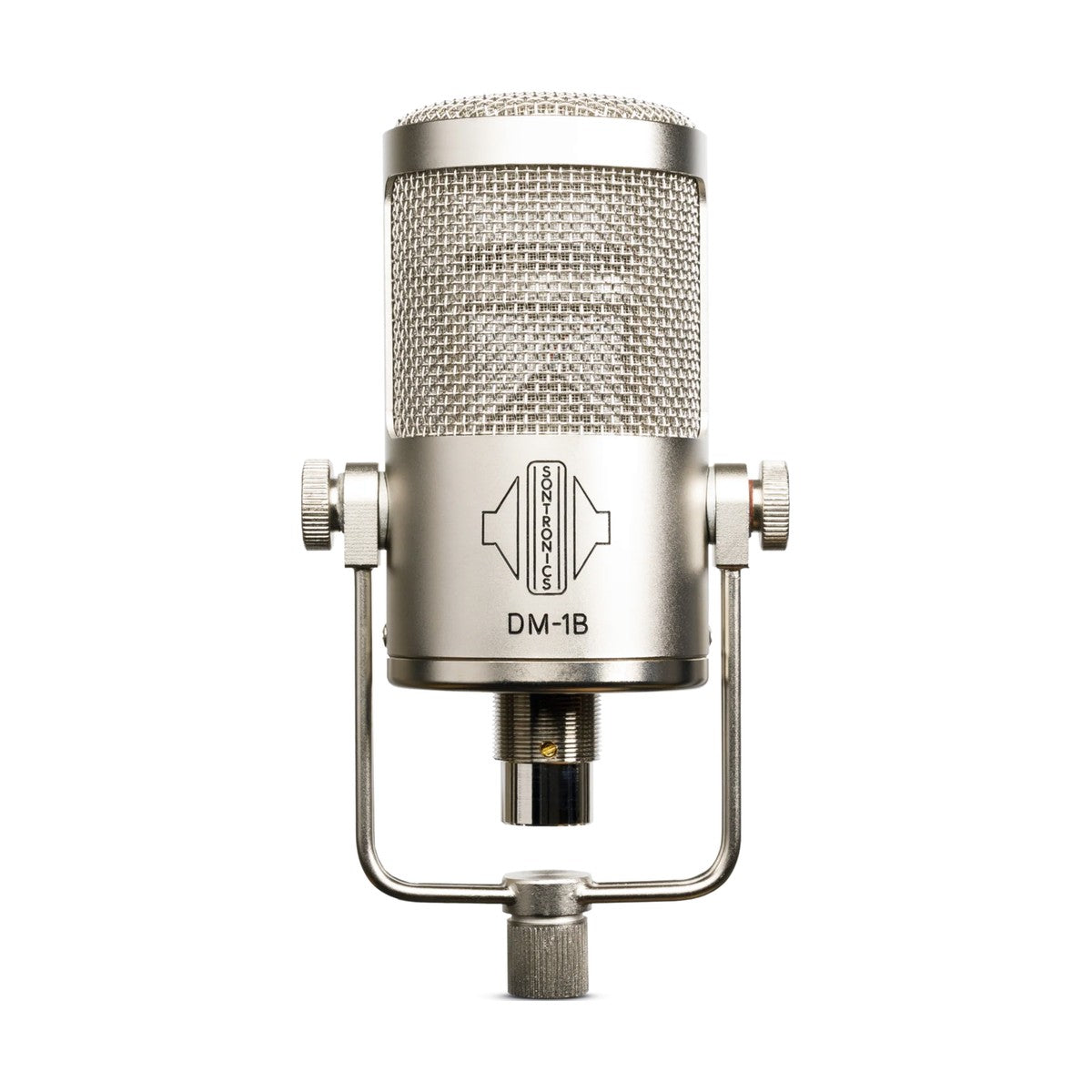

The Sontronics DM-1B is a specialized large-diaphragm condenser microphone, born from a rigorous three-year development process in collaboration with top producers, engineers, and drummers. Designed specifically for capturing the immense power of a kick drum and other bass-heavy sources, it features a unique end-fire design (where sound enters the top of the grille rather than the side). This makes it incredibly easy to position in tight spaces, allowing you to place it right up against the resonant head or even pushed inside the sound hole to capture maximum attack.

A standout feature of the Sontronics DM-1B is its phenomenal High-SPL handling capability. Equipped with a switchable -15dB attenuation pad, this microphone can effortlessly handle thunderous sound pressure levels up to 155dB without a hint of distortion. Its custom-tailored frequency response (20Hz to 20kHz) perfectly balances the deep, low-end thump of the shell with the sharp transient snap of the beater hitting the skin, delivering a massive, punchy, and mix-ready kick drum sound that requires little to no post-recording EQ.

While celebrated as a world-class kick drum mic, its fixed cardioid polar pattern and exceptional low-frequency reproduction make it a highly versatile studio workhorse. The DM-1B yields incredible results when placed in front of bass guitar cabinets, double bass, baritone saxophones, tubas, and bass clarinets. Housed in a robust, heavy-duty metal chassis designed to survive the harshest live touring environments, the microphone comes complete with an adjustable yoke mount and is securely packed in a premium aluminum flightcase.

KEY FEATURES

  • End-fire large-diaphragm condenser mic specifically designed for kick drum and bass
  • Incredible High-SPL handling capability, withstanding volumes up to 155dB without distortion
  • Switchable -15dB attenuation pad for safe recording of extremely loud transients
  • Custom frequency response curve captures both deep resonance and sharp beater attack
  • Fixed cardioid polar pattern effectively isolates the source and rejects stage bleed
  • Exceptionally low self-noise ensures pristine recordings in quiet studio environments
  • Highly versatile: also perfect for bass cabs, double bass, and low brass instruments
  • Rugged build quality designed for demanding daily studio use and live touring
  • Includes an integrated adjustable yoke mount and a sturdy aluminum flight case

TECHNICAL SPECIFICATIONS

  • Microphone Type: Large-diaphragm condenser (End-fire)
  • Polar Pattern: Cardioid
  • Frequency Response: 20 Hz to 20 kHz
  • Sensitivity: 6 mV/Pa (-45 dB ±2 dB, 0 dB = 1V/Pa @ 1 kHz)
  • Impedance: ≤ 200 Ohms
  • Maximum SPL (for 0.5% THD @ 1 kHz): 155 dB (with -15dB pad switched on)
  • Equivalent Noise Level: 14 dB (A-weighted)
  • Attenuation Pad: 0 dB, -15 dB
  • Power Requirements: 48V Phantom power required
  • Connector: 3-pin XLR
  • Microphone Dimensions: 144 × 72 × 72 mm
  • Microphone Weight: 0.8 kg
  • Packaged Weight: 1.61 kg
