Solid State Logic (SSL)
Solid State Logic SSL12
Solid State Logic SSL 12 – high-end USB audio interface with 12-in/8-out configuration, four mic preamps (62 dB gain), 4K switch for analog coloration, Hi-Z and line inputs, ADAT expansion, dual headphone outs, built-in talkback mic, 32-bit/192 kHz conversion, MIDI I/O, and the powerful SSL Production Pack – a professional recording hub for modern studios.

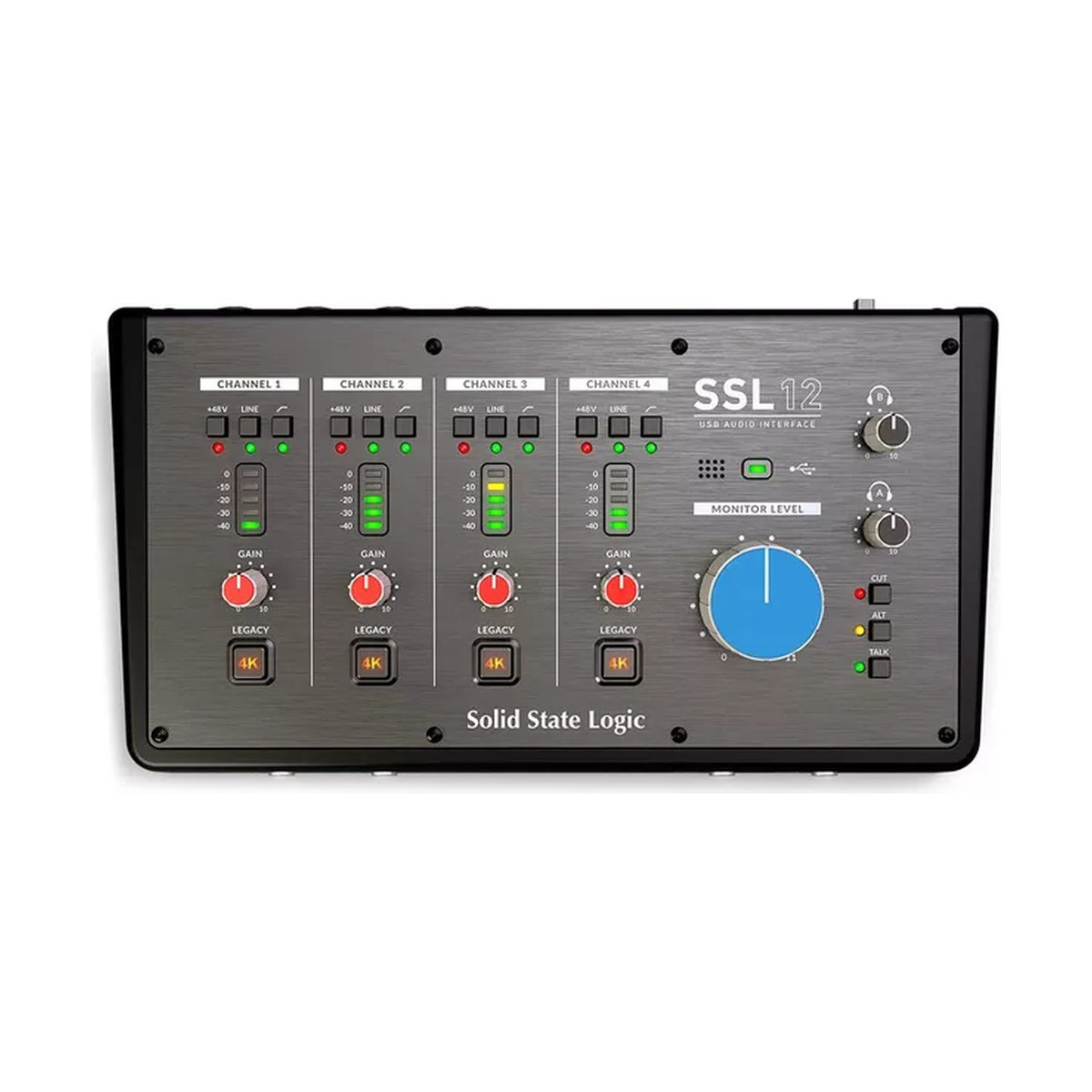

The SSL 12 brings flagship studio technology to a compact desktop format. It features four premium mic preamps with 62 dB of gain and phantom power, each equipped with the iconic “4K” switch inspired by SSL’s 4000 series consoles, adding subtle harmonic richness to your recordings. Two front-panel Hi-Z inputs replace the corresponding Mic/Line channels for direct instrument recording without DI boxes.

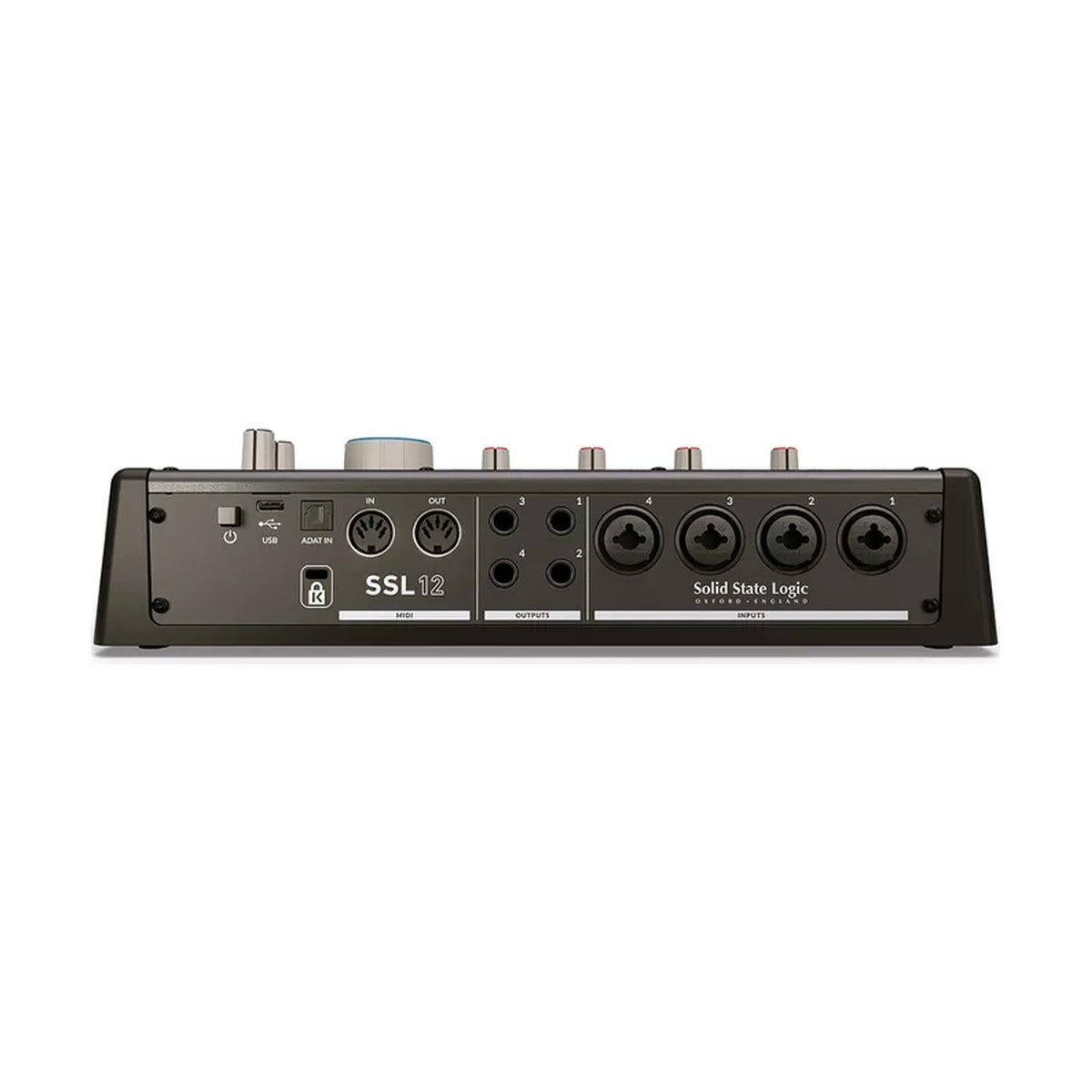

On the back, an 8-channel ADAT input expands your I/O count, while dual independently controlled headphone outputs double as additional line outs. The interface also includes a built-in talkback mic, MIDI I/O, five-segment LED meters per input, and three programmable function buttons (default: CUT, ALT, DIM). With high-end components like Neutrik connectors and Alps potentiometers, and conversion up to 32-bit/192 kHz, the SSL 12 ensures pristine audio and professional flexibility. The bundled SSL Production Pack adds essential software tools so you can start producing right away.
KEY FEATURES
- 12-in / 8-out USB audio interface
- 4 premium mic preamps with 62 dB gain and 48 V phantom power
- 2 front-panel Hi-Z instrument inputs
- “4K” legacy switches for analog-style enhancement
- Built-in talkback microphone
- 5-stage LED input meters
- 2 independent headphone outputs (can be used as line outs)
- 8-channel ADAT input
- MIDI In/Out
- 3 assignable front-panel buttons (CUT, ALT, DIM)
- 32-bit / 192 kHz AD/DA conversion
- Bus-powered via USB-C with on/off switch
- SSL 360° control software included
- SSL Production Pack (~€1000 value) with plugins and DAWs
TECHNICAL SPECIFICATIONS
- Total I/O: 12 inputs / 8 outputs
- Mic/Line inputs: 4 x combo XLR/TRS
- Line inputs: 6
- Instrument inputs: 2 x Hi-Z (front panel)
- Line outputs: 4
- Headphone outputs: 2 x TRS
- Phantom power: 48 V
- ADAT input: 8 channels
- MIDI I/O: Yes
- Word Clock: No
- Audio resolution: 32-bit / 192 kHz
- Power: Bus-powered via USB-C
- Connectivity: USB-C (USB 2.0 compatible)
- Dimensions: 286.7 x 154.9 x 58.6 mm
- Weight: 1.4 kg
- Compatibility: macOS / Windows
- Included: SSL 12 interface, USB cable, SSL Production Pack
