sE Electronics sE7
Choose options

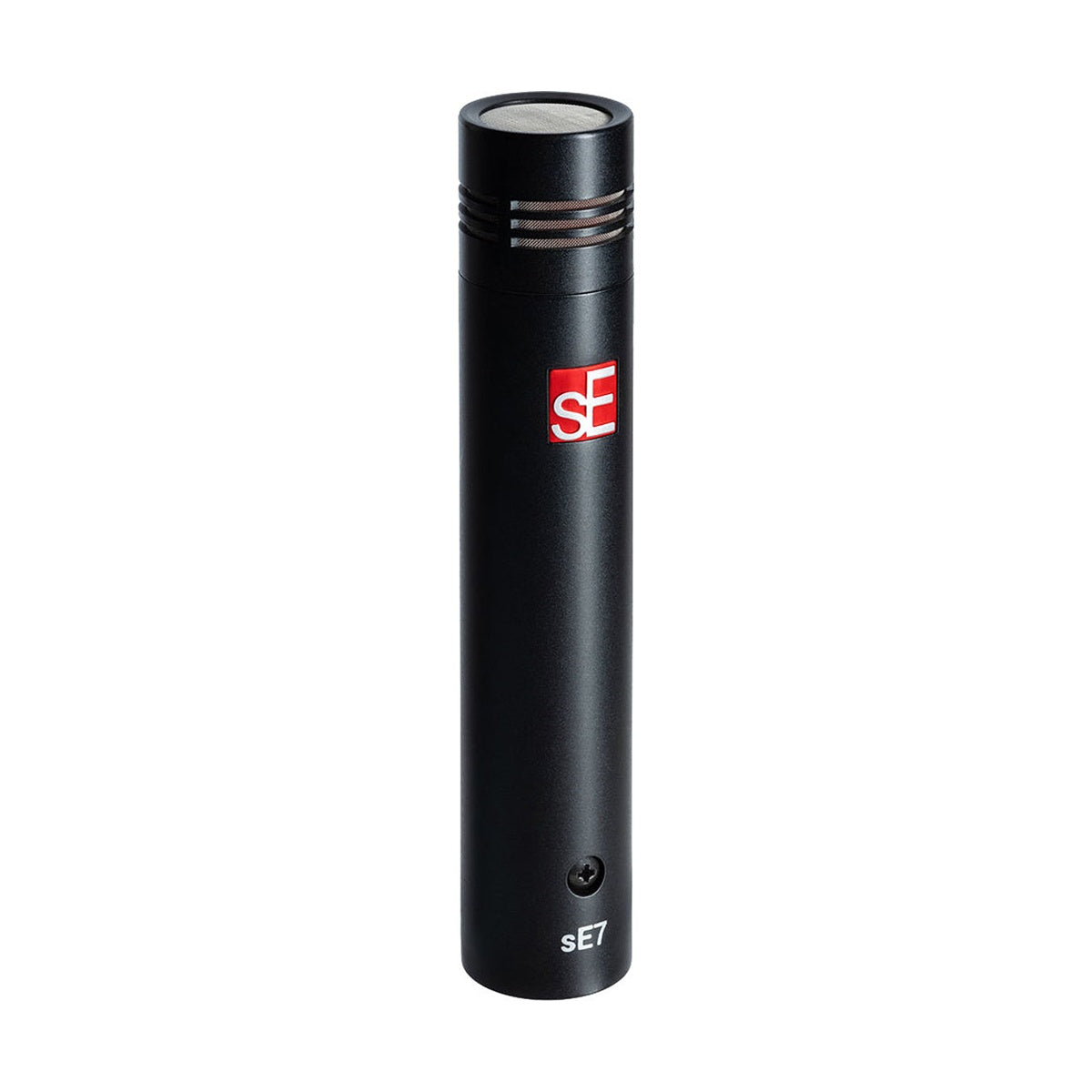

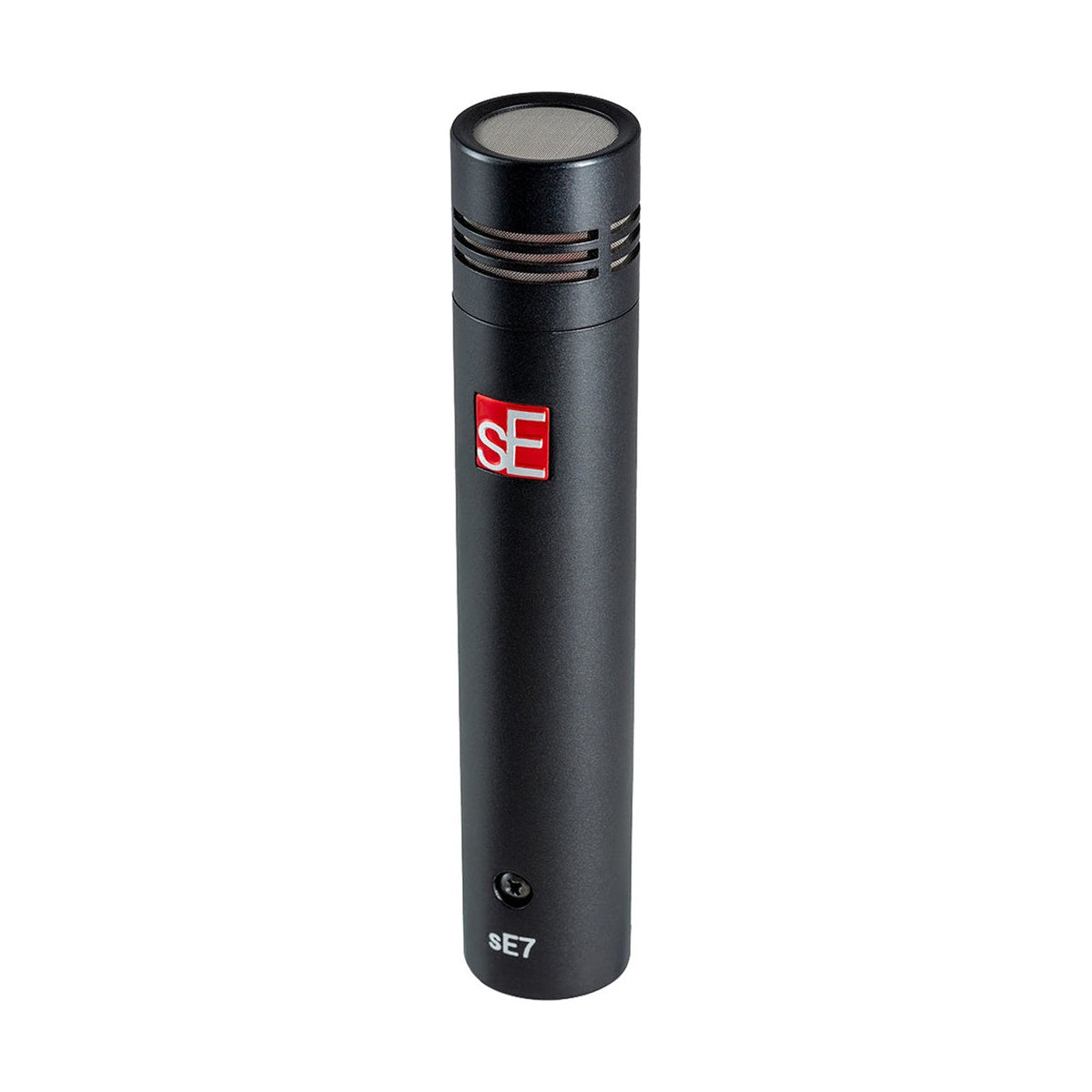

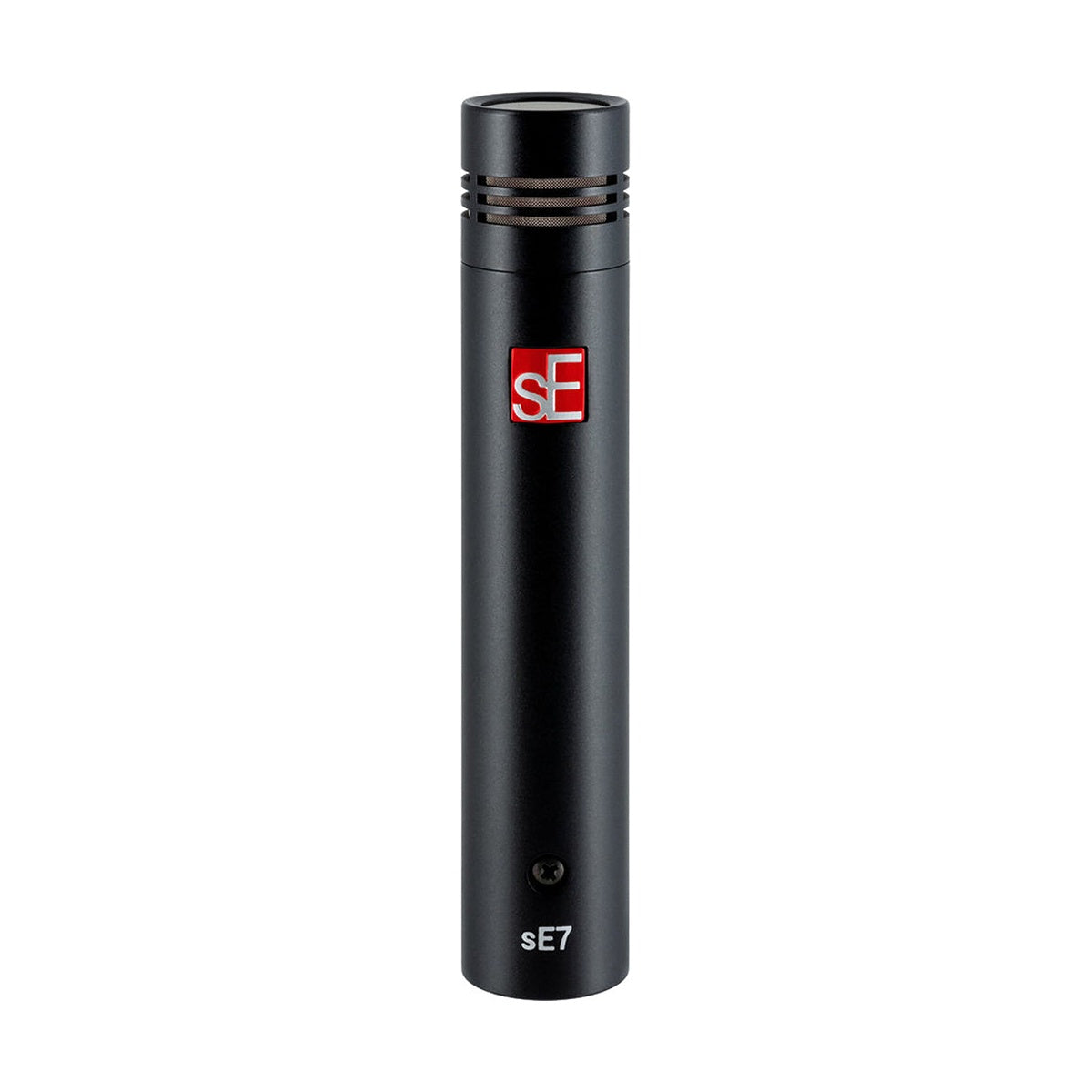

sE Electronics sE7 is a compact small-diaphragm back-electret condenser microphone designed for precise recording of acoustic instruments, drums, piano, and guitar cabinets. Featuring cardioid polar pattern, switchable -20 dB pad and 80 Hz high-pass filter, it delivers exceptional transient clarity and natural, balanced sound across the full frequency spectrum. Discrete Class A circuitry with ultra-low self-noise (16 dB-A) makes it perfect for both studio and live applications.
The sE7 excels with its ultra-thin 1/2" capsule diaphragm providing superior transient response, all-metal housing rejecting RF interference, and gold-plated XLR contacts ensuring loss-free signal transfer. Maximum SPL handling up to 156 dB (with pad) enables confident miking of loud sources without distortion. Versatile, reliable solution for engineers demanding precision and fidelity in compact form.
KEY FEATURES
- Compact 1/2" back-electret condenser capsule
- Cardioid pattern with excellent isolation
- Switchable -20 dB pad for loud sources
- 80 Hz HPF, 6 dB/oct roll-off filter
- Max SPL 136/156 dB (0/-20 dB pad)
- Ultra-low self-noise: 16 dB(A)

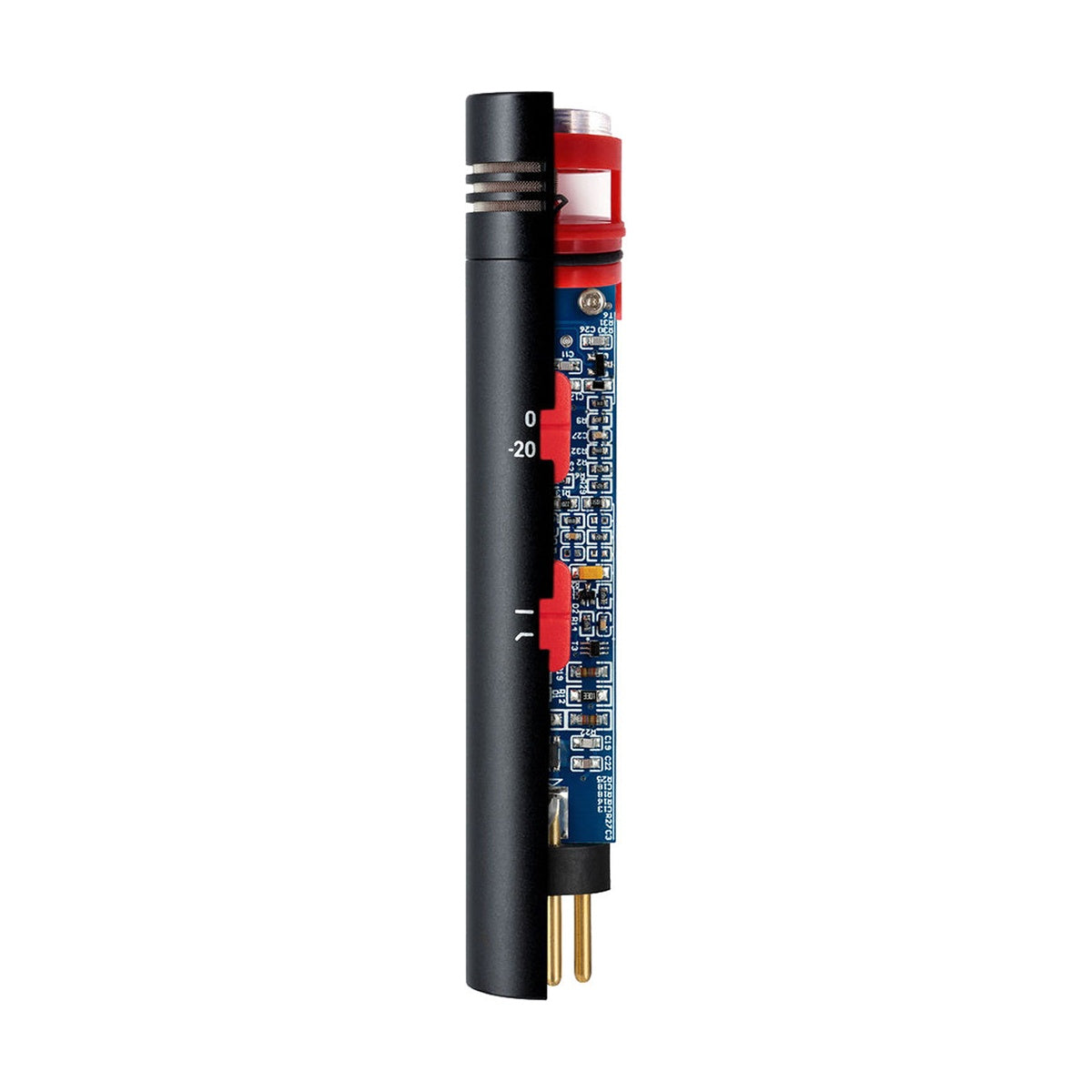

- Discrete Class A transformerless circuitry
- Gold-plated XLR contacts and metal housing
TECHNICAL SPECIFICATIONS
- Capsule Type: 1/2" back-electret condenser
- Polar Pattern: Cardioid
- Frequency Range: 20 Hz – 20 kHz
- Sensitivity: 19 mV/Pa (-34.5 dBV)
- Max SPL: 136 / 156 dB (0 / -20 dB pad)
- Dynamic Range: 120 / 140 dB
- Self-Noise: 16 dB(A)
- Signal to Noise Ratio: 78 dB
- Low-Cut Filter: 80 Hz, 6 dB/oct
- Attenuation Pad: -20 dB switchable
- Impedance: 200 Ohms
- Powering: 48V Phantom
- Current Consumption: 3 mA
- Diameter: 23 mm
- Length: 120 mm
- Weight: 128 g
