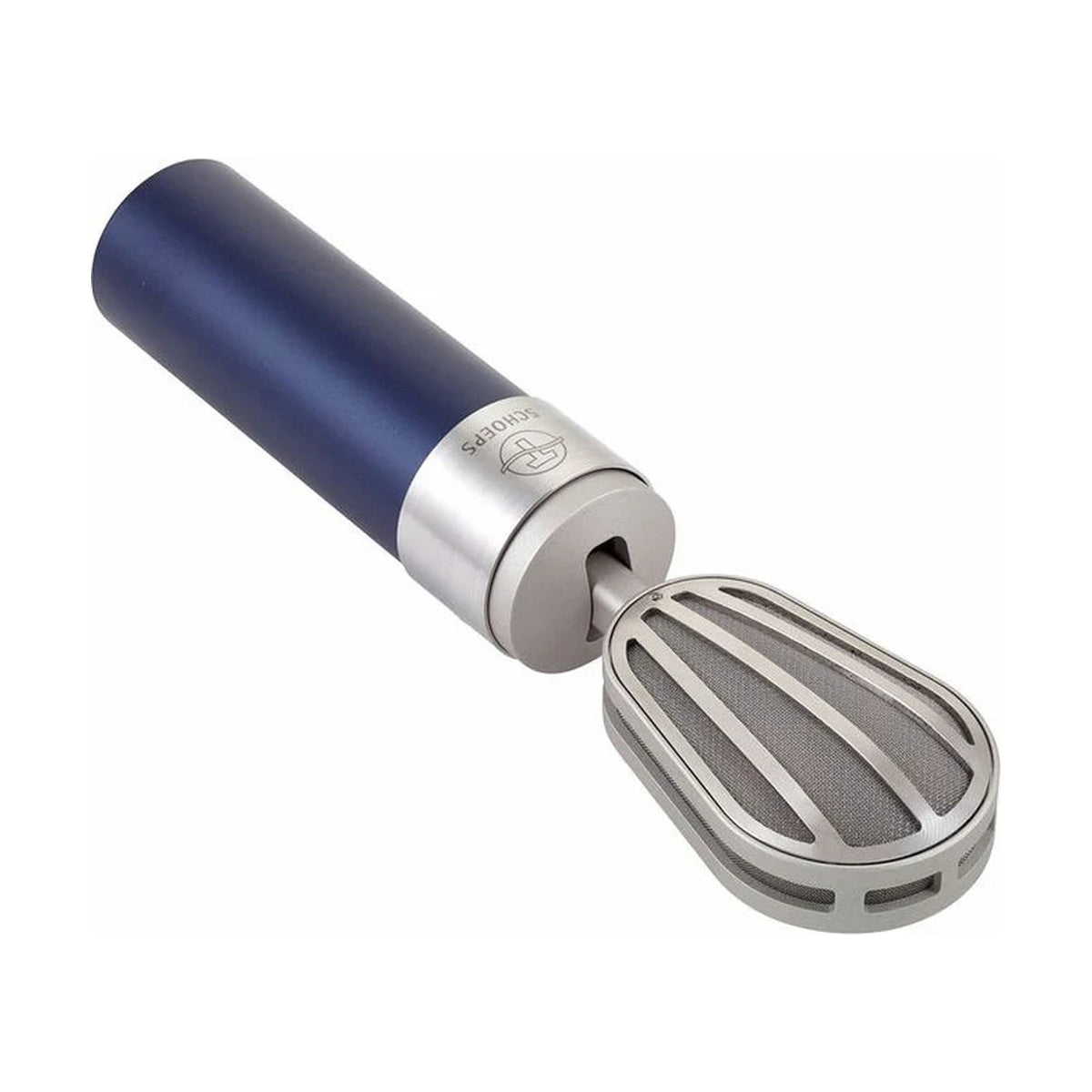

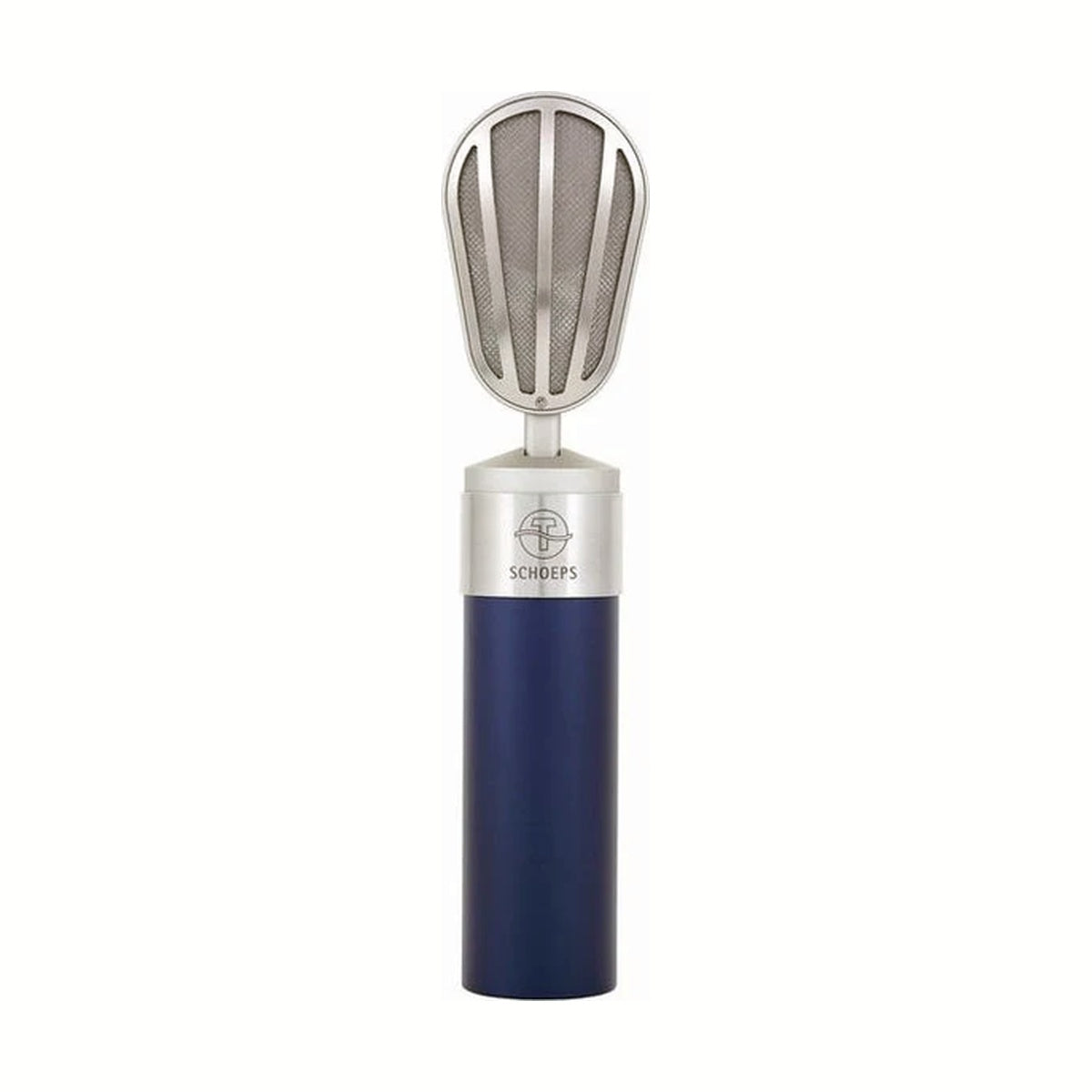

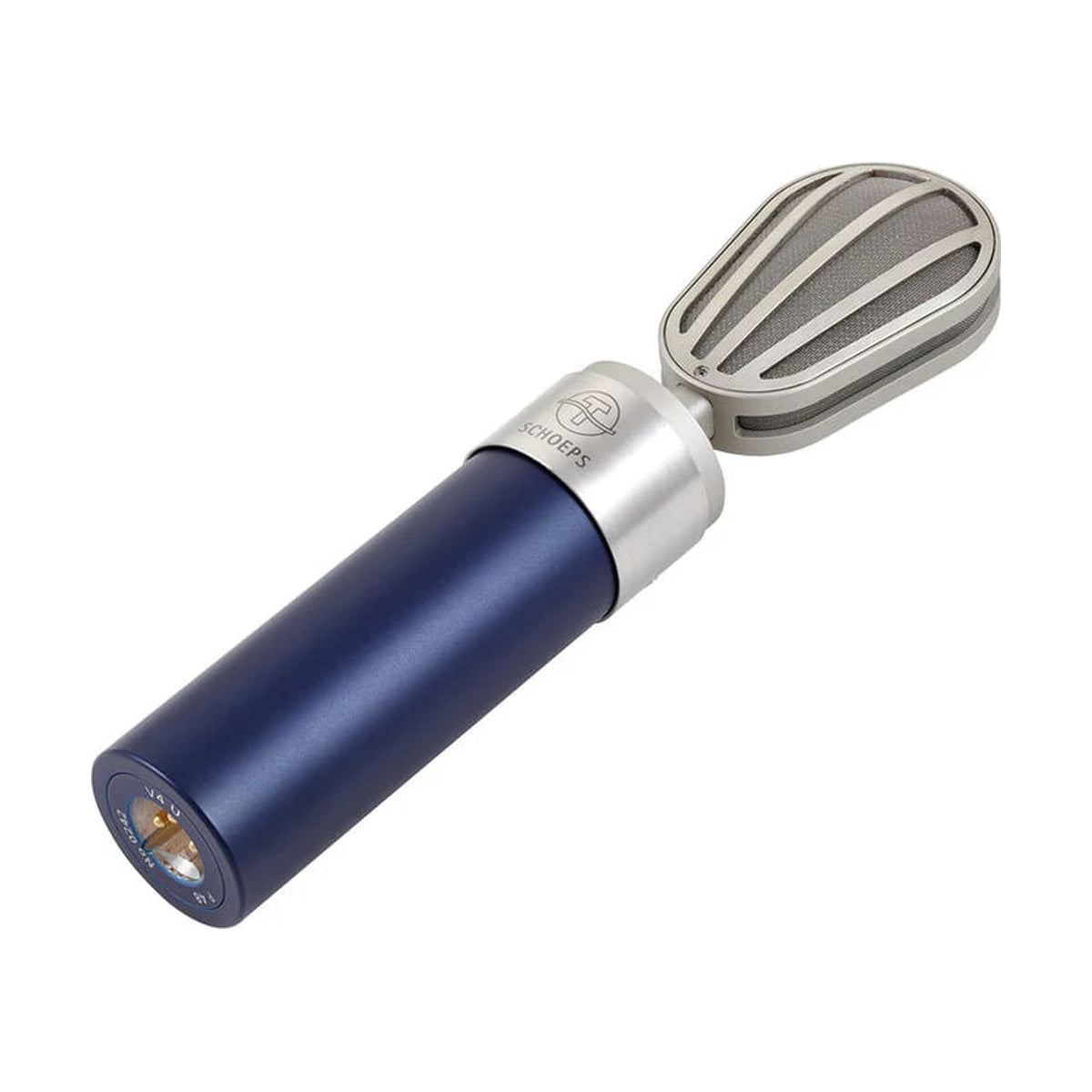

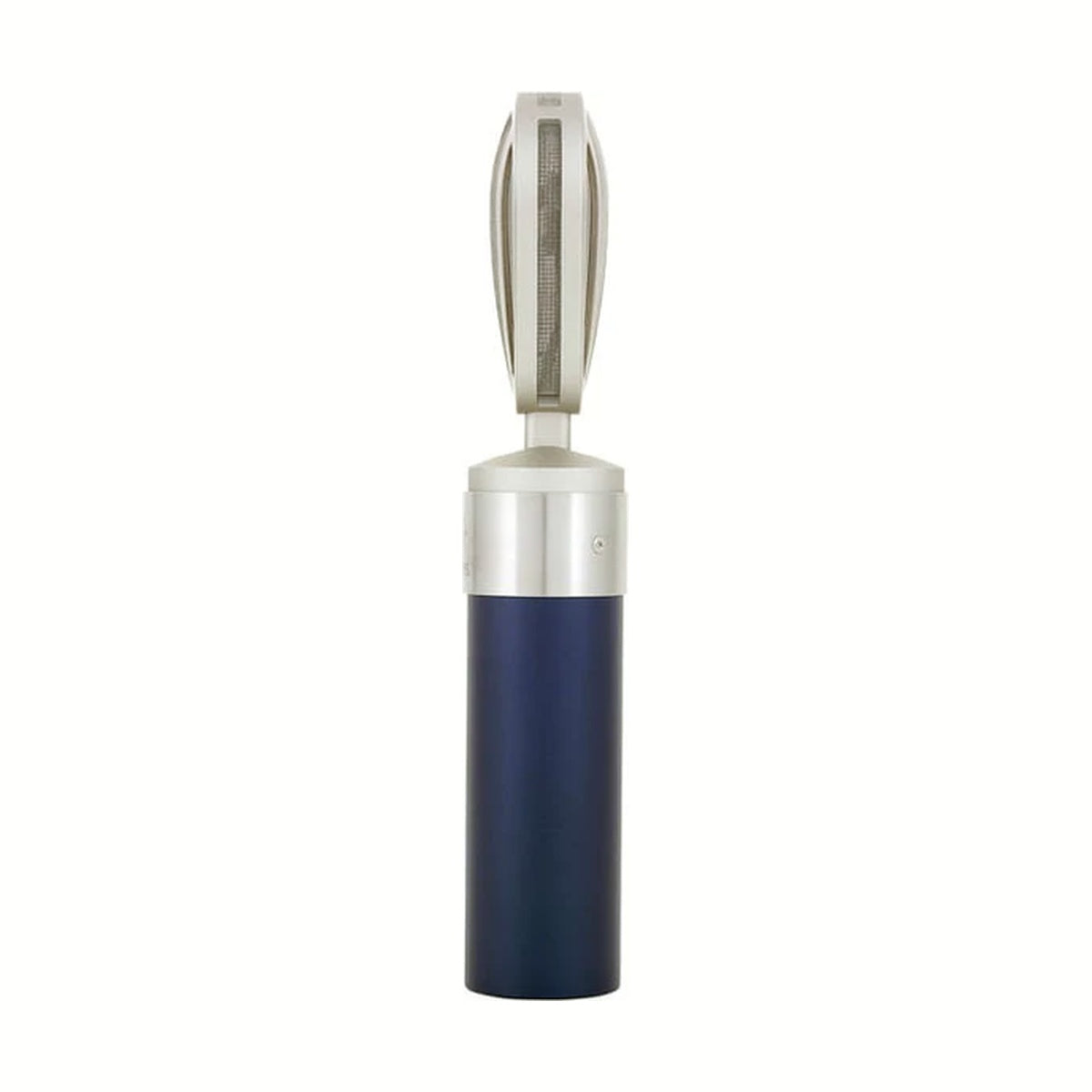

Schoeps V4 U is a premium studio vocal microphone that combines Schoeps’ renowned engineering precision with a timeless, classic aesthetic. Inspired by the vintage CM 51/3 model from 1951, the V4 U merges elegant design with cutting-edge acoustic and electronic technology, delivering pristine sound quality for professional vocal recording and studio applications.
At the heart of the V4 U lies a specially developed small-diaphragm capsule with a beveled 33 mm collar, designed to mimic the smooth directivity of large-diaphragm microphones while maintaining the linearity and accuracy characteristic of Schoeps’ small-diaphragm designs. The capsule is elastically suspended to minimize handling noise, offering a warm, clear tone with a refined high-frequency response and controlled off-axis behavior.
The electronics feature a fully symmetrical, transformerless output stage with extremely low output impedance and high immunity to interference. With a maximum SPL of 144 dB and exceptional signal-to-noise ratio, the V4 U performs equally well on vocals, acoustic instruments, and complex studio arrangements, preserving detail and dynamic integrity even at high sound pressure levels. Its tiltable capsule head allows flexible positioning and precise sound capture.
KEY FEATURES
- Studio vocal microphone with Schoeps’ signature precision
- Small-diaphragm capsule with beveled 33 mm collar for smooth directivity
- Warm, clear tone with gentle high-frequency roll-off
- Adjustable capsule head tilt (±20°) for optimal positioning
- Transformerless, balanced output with high electromagnetic immunity
- Extremely low distortion and high maximum SPL (144 dB)
- Superior interference shielding and RFI filtering
- Robust construction with timeless vintage-inspired design
TECHNICAL SPECIFICATIONS
- Directional pattern: Cardioid
- Frequency range: 50 Hz – 22 kHz
- Sensitivity: 16 mV/Pa
- Equivalent noise level (A-weighted): 15 dB(A)
- Equivalent noise level (CCIR): 25 dB
- Signal-to-noise ratio (A-weighted): 79 dB(A)
- Maximum SPL (0.5% THD): 144 dB SPL
- Maximum output voltage: 4.8 V
- Low-cut frequency: 40 Hz
- Power supply: 48 V phantom power
- Current consumption: 3.3 mA
- Length: 194 mm
- Diameter (body): 34 mm
- Capsule head width: 45 mm
- Head tilt range: ±20°
- Weight: 302 g
