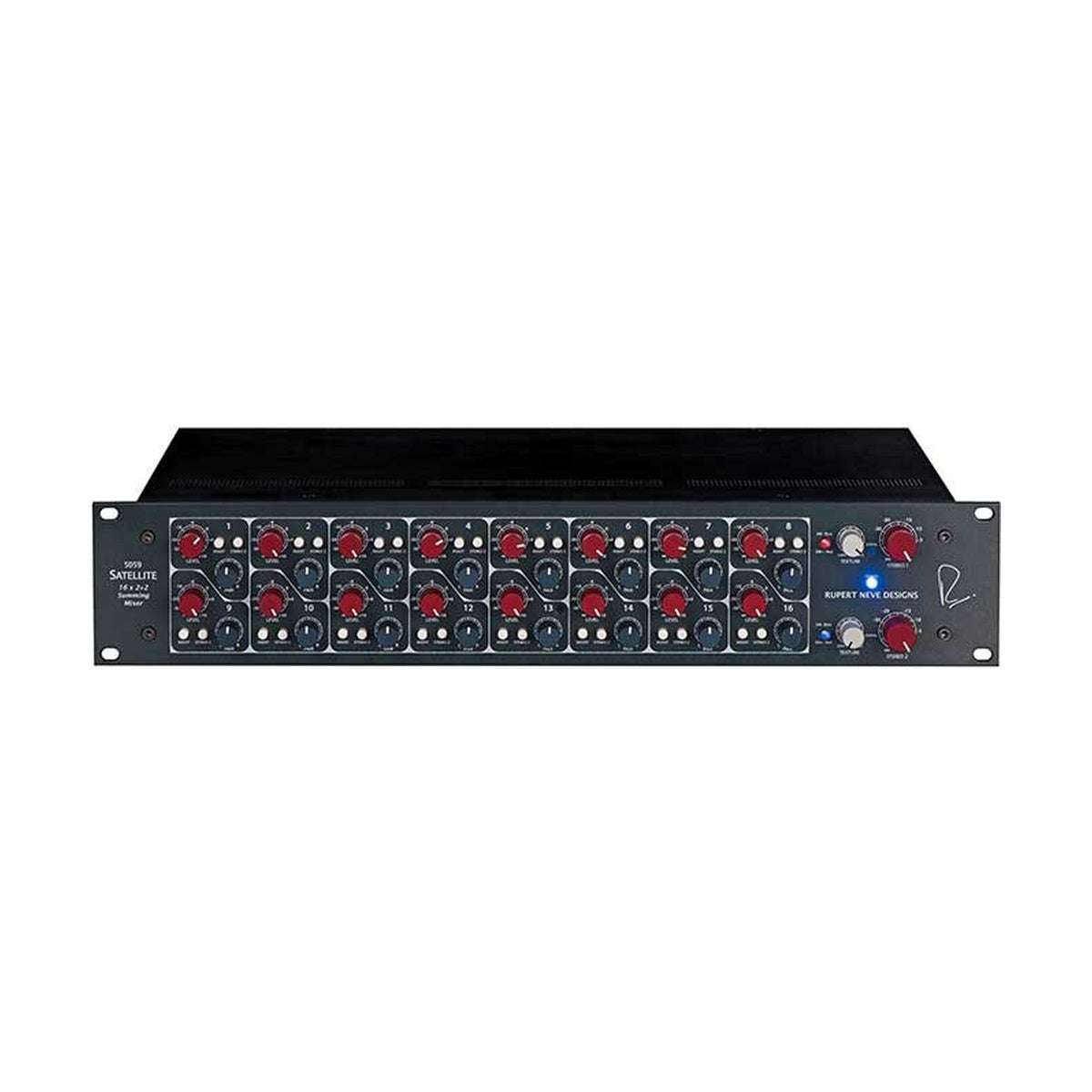

Rupert Neve Designs 5059 Satellite 16 x 2+2 Summing Mixer (Shelford Blue)

Rupert Neve Designs 5059 Satellite 16 x 2+2 Summing Mixer (Shelford Blue) – premium analog summing mixer delivering Rupert Neve console warmth in a 2U rackmount design. Features 16 channels with level, pan, inserts, and dual Stereo 2 sends for stem mixing. Custom transformers and Class-A amps provide galvanic isolation and rich harmonics. Silk/Texture circuit with Red/Blue modes adds vibrant saturation. Ideal for DAW enhancement, outboard integration, and professional studios.

Each channel offers continuous level (-∞ to +10dB), center-detent pan (3dB law), and insert sends/returns. Master controls include dual bus outputs with Silk/Texture for harmonic density. Stereo 2 bus enables simultaneous stem processing. High headroom (+26dBu) and low noise ensure pristine summing. Cascadable for expanded setups.

Rugged build suits fixed or mobile rigs, elevating digital mixes with analog depth and presence.

MAIN FEATURES

• 16 channels: individual level, pan, inserts, Stereo 2 sends
• Custom transformers for isolation and "larger-than-life" sound
• Class-A +/-24V amplifiers for minimal distortion
• Silk/Texture: Red (high/mid harmonics), Blue (low/mid thickness), variable control
• Dual summing buses with independent level (-∞ to 0dB)
• Always-on insert sends for outboard gear
• Cascadable: link units for 4 aux sends per channel
• High gain (up to +10dB) for instruments/keyboards
• Shelford Blue finish for classic aesthetic
• Balanced XLR I/O for pro connectivity

TECHNICAL SPECIFICATIONS

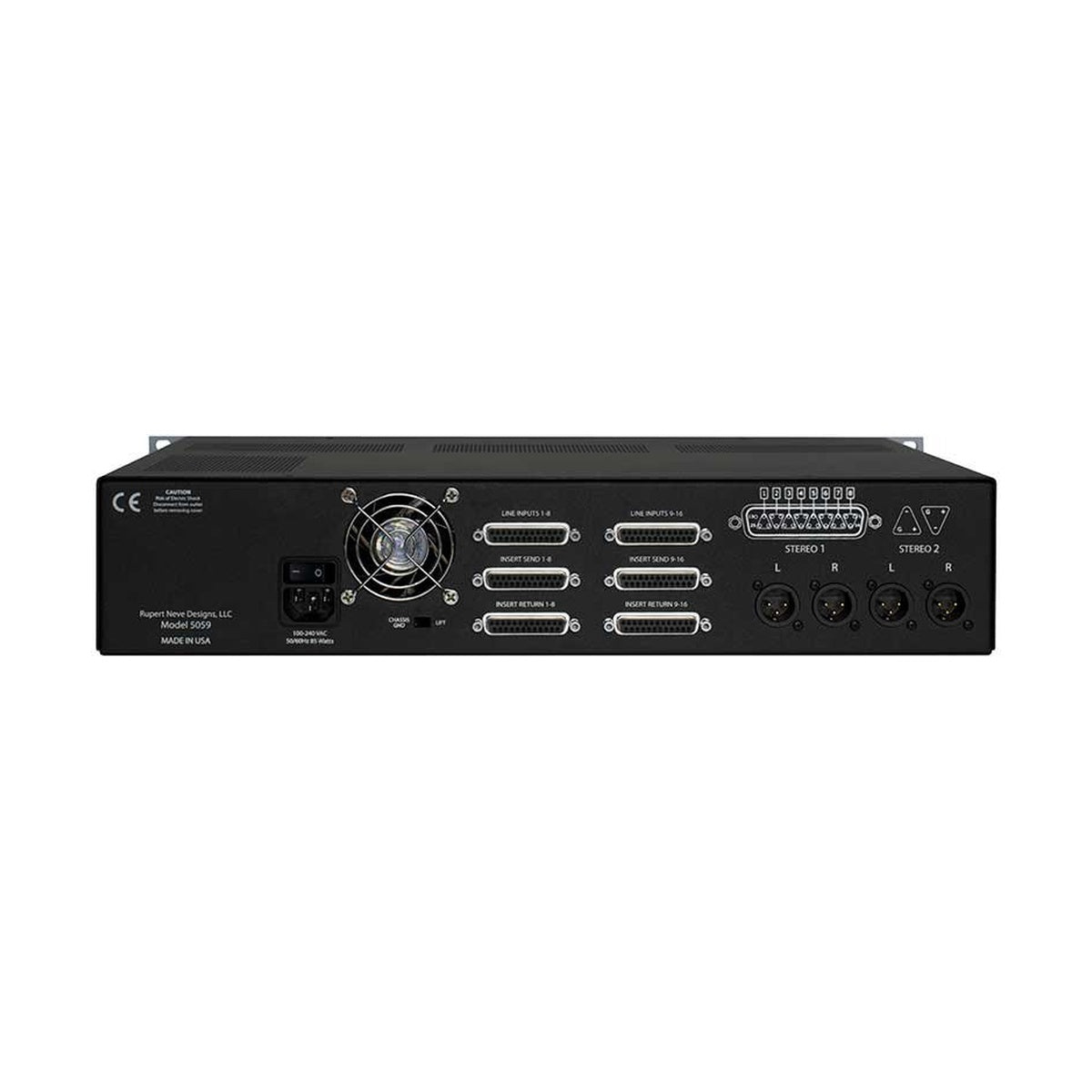

• Inputs: 16 x balanced XLR (via D-Sub), insert returns (TRS)
• Outputs: 4 x balanced XLR (2 main buses L/R + 2)
• Frequency Response: ±0.1 dB 20 Hz-20 kHz; -3 dB @ 3.5 Hz/185 kHz
• THD+N: <0.003% @ 1 kHz +20 dBu; <0.005% @ 20 Hz
• THD (Silk): Blue 0.2-0.65%; Red 0.1-0.35% @ 100 Hz +20 dBu
• Noise (Bus Outputs): -106 dBV (A-weighted); -100 dBV unweighted @ unity
• Signal-to-Noise: 119 dB (A-weighted +20 dBu)
• Max Output: +26 dBu (buses); +24.5 dBu (channel to bus)
• Crosstalk: <-90 dB @ 1 kHz (Bus 1 to 2)
• Power: 100-240V AC, 45W
• Dimensions (H x W x D): 3.5 x 19 x 8 in (2U rack)
• Weight: 23 lbs
• Included: 5059 Satellite, power cord
• Product Code: 5059-SAT-BLU
