Rode RodeCaster Video

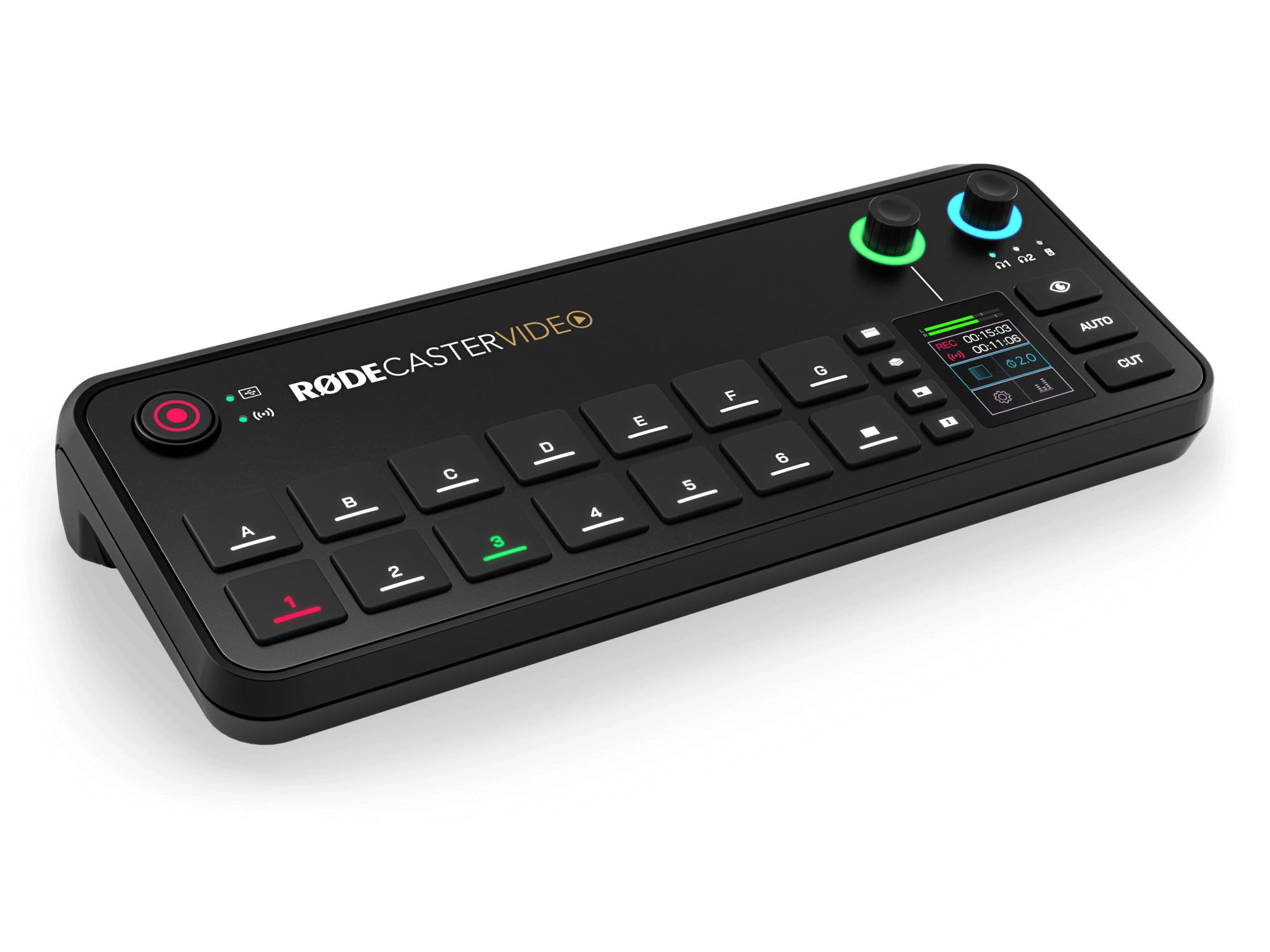

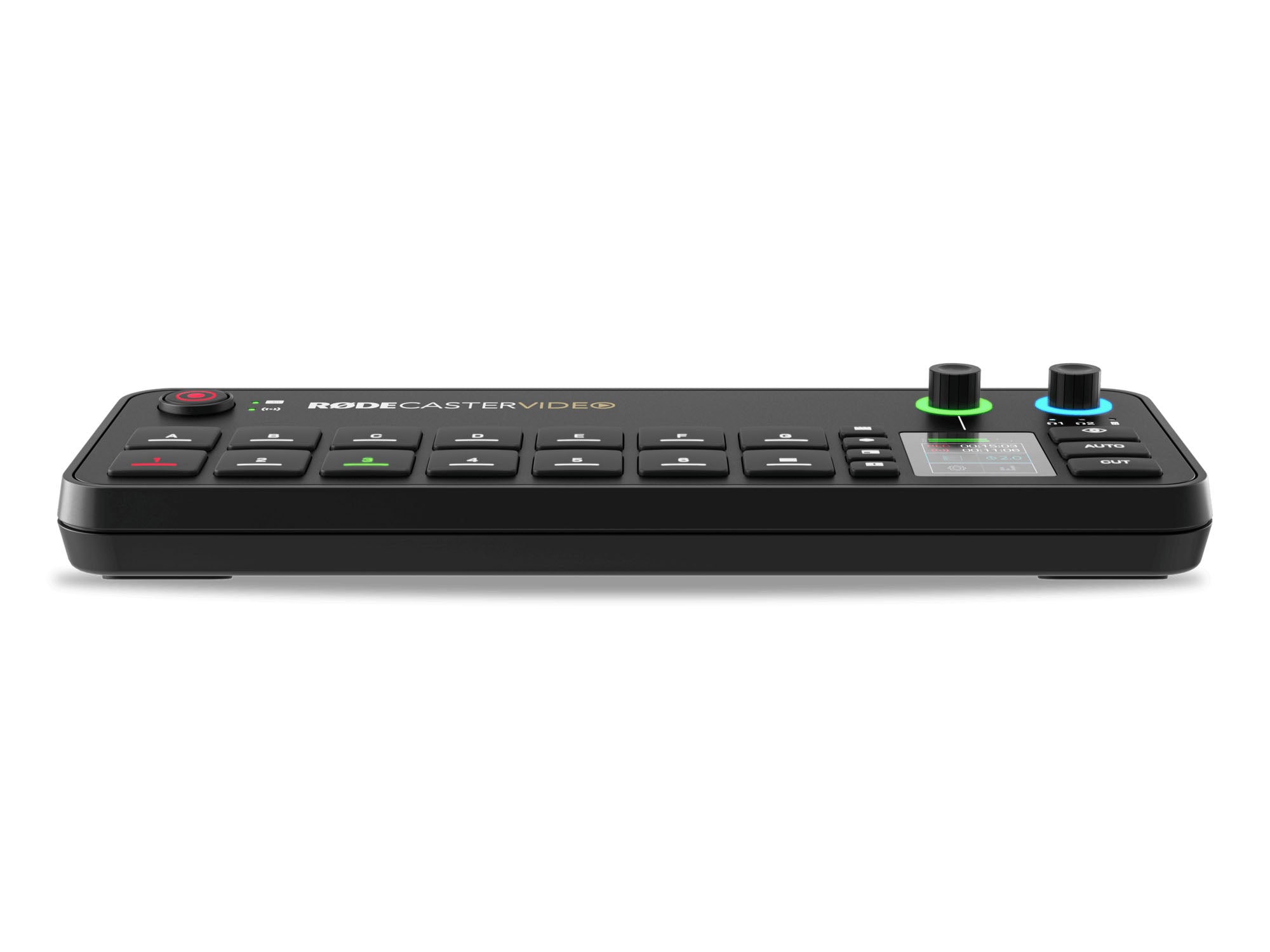

RODE Rodecaster Video is a capture card for working with video content, equipped with 2 x Combo XLR/TRS inputs with Revolution Preamps, 2 x 1/4" TRS balanced line outputs, 2 x 1/4" TRS headphone outputs, 4 x HDMI inputs, 2 x HDMI outputs, and 5 x USB-C ports.
Rodecaster Video is equipped with an octa-core processor for audio/video processing and allows switching between 6 different video channels with quick access to 7 customizable scenes. The capture card features 4 HDMI inputs (1080p) with automatic frame rate conversion, and 2 HDMI outputs for monitoring the user program, previewing, and multi-viewing channels.
Rodecaster Video has 2 USB-C ports for use in combination with various devices, including RODE USB audio devices and webcams, as well as external audio and video sources. The Rodecaster Video is equipped with 2 Revolution microphone preamps with outputs on combo XLR jacks. Additionally, it features a pair of wireless receivers compatible with RODE Series IV wireless microphones, as well as a range of built-in DSP audio processing effects from APHEX, including Aural Excitor, Compellor, and Big Bottom processors. All main operations can be performed using the main control panel with a touchscreen display and a rotary encoder.
RODECaster Video Key Features
- Switch between up to six video sources and seven fully customizable scenes at the press of a button.
- High-performance octa-core CPU video and audio processor.
- Four full HD (1080p) HDMI inputs with auto frame rate conversion and two configurable HDMI outputs for viewing program, preview, and multiview.
- Two flexible USB-C ports for connecting compatible webcams and RØDE USB audio devices to use as additional video and audio sources.
- Two studio-grade Neutrik® combo jacks with ultra-low-noise, high-gain Revolution Preamps™ for capturing pristine audio from XLR microphones, instruments, or any other audio source.
- Dual internal wireless receivers for connecting RØDE Series IV wireless microphones.
- Powerful APHEX® audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser, and the legendary Aural Exciter™, Big Bottom™, and Compellor™ effects.
- 2-inch high-resolution touchscreen and versatile rotary encoder for quick configuration and setting adjustment.
- Ability to create seven complex scenes with multiple layers of video, media, and graphics, which can be saved and triggered at the touch of a button.
- Automatic chroma keying for effortlessly replacing backgrounds with media or live video inputs.
- Media playback, graphic overlays, keying, transitions, and multi-source scene creation all accessible from the front panel.
- Innovative "Inspect" feature for quick-and-easy preview and configuration of any input or scene.
- Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs.
- Stream directly to all major platforms via Wi-Fi or Ethernet, or to streaming software via USB.
- Record directly to an external USB storage device, including isolated (ISO) recording for post-editing flexibility.
- Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via RØDE Central.
- Designed and made in RØDE’s state-of-the-art facilities in Sydney, Australia.
Rodecaster Video Specifications
Video
- Video Input Feeds: 6 simultaneous
- HDMI Inputs: 4 type-A (HDMI 1.4b)
- USB (UVC) Inputs: 2 multi-function USB-C for UVC video
- HDMI Outputs: 2 configurable – preview, program, multiview
- Video Input Frame Rates: 1920x1080p: 23.97, 24, 25, 29.97, 30, 50, 59.94, 60; (HDMI only) 1920x1080i: 25, 29.97, 30
- Video Output Frame Rates: 1920x1080p: 24, 25, 30, 50, 60
- Video Streaming Standards: 1920x1080p: 23.97, 24, 25, 29.97, 30, 50, 59.94, 60
- Video Engine Colour Space / Bit Depth: 4:4:4 RGB / 8-bit
- HDMI Input Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit
- USB Input Colour Space: 4:2:2 YUV, 4:2:0 YUV (NV12)
- HDMI Output Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV / 8-bit
- USB Output Colour Space / Bit Depth: 4:2:2 YUV / 8-bit
- Format and Frame Rate Converters: On all HDMI and USB inputs
Power and Mechanical
- Power Supply Requirements: USB-C PD 60W, 20V 3A
- Weight (grams): 1257
- Dimensions (millimetres)
- Length: 132.5
- Width: 305.9
- Height: 61.4
Streaming, Recording and Software
- Direct Streaming: Real Time Messaging Protocol; (RTMP/RTMP) over Ethernet or Wi-Fi
- Supported Platforms
- YouTube Live
- Twitch Live
- Facebook Live
- Twitter/X Live
- Custom server
- Network: Ethernet (10/100/1000 BaseT) and Wi-Fi 6 (2.4 and 5GHz) for streaming, configuration, remote control with computer and over-the-air updates
- Storage Media: External USB mass storage device (exFAT format) for recordings
- Video Recording: Program feed as H.264/AVC MP4 file with embedded AAC stereo mix
- Isolated (ISO) Video Recording: 6 video inputs and 1 Program feed as independent H.264/AVC files (up to 1080p30)
- Audio Recording: Stereo mix WAV audio file
- Multitrack Audio Recording: 9 independent stereo WAV audio files
- RØDE Central Companion Software
- Scene builder: advanced construction of scenes and remote control of device
- Auto-switching: configuration of automatic switching based on audio input
- Audio mixer: advanced configuration and control of audio sources, processing and routing
- Stream profiles: configuration for streaming settings and profiles
- Device configuration: advanced settings and customizations
- Compatible Operating Systems: macOS 11 or later, Windows 10 Version 1803 or later, Windows 11
Audio
- Analog Audio Inputs: 2 combo jacks (microphone, line or instrument) with Revolution Preamps
- Wireless Audio Inputs: 2 Series IV wireless receivers
- Digital Audio Inputs: USB 1-5
- Analog Audio Outputs: 2 headphone outputs (1/4-inch), 2 balanced line outputs (1/4-inch, L/R)
- Audio Mixer: 20 possible audio sources (9 stereo channels simultaneously)
- Audio Processing: APHEX VoxLab Processing, Advanced APHEX granular processing on each channel.
- Preamps:
- Frequency range: 20Hz – 20kHz
- Input gain: up to 76dB Input
- Equivalent Input Noise: -131.5dBV (A-weighted).
