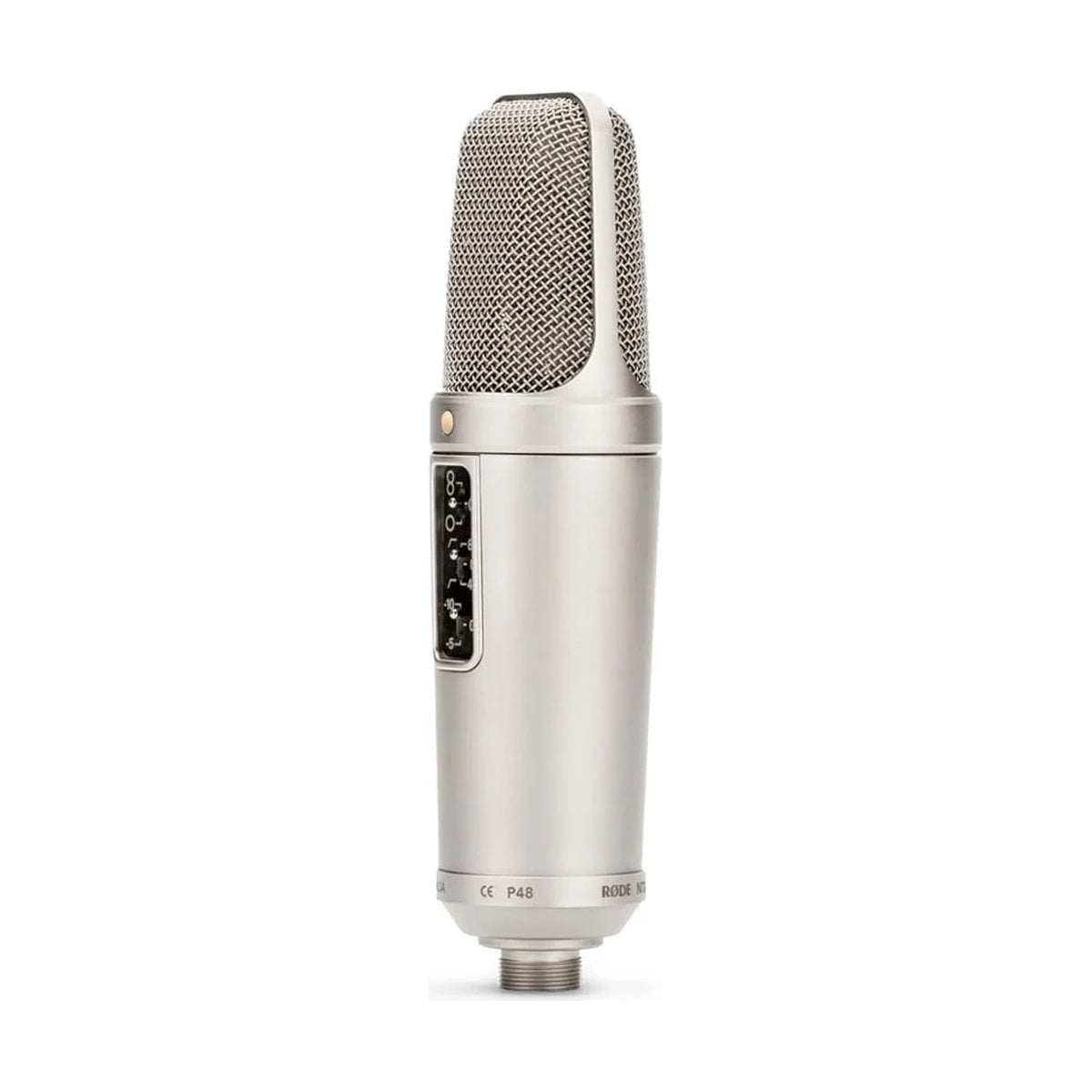

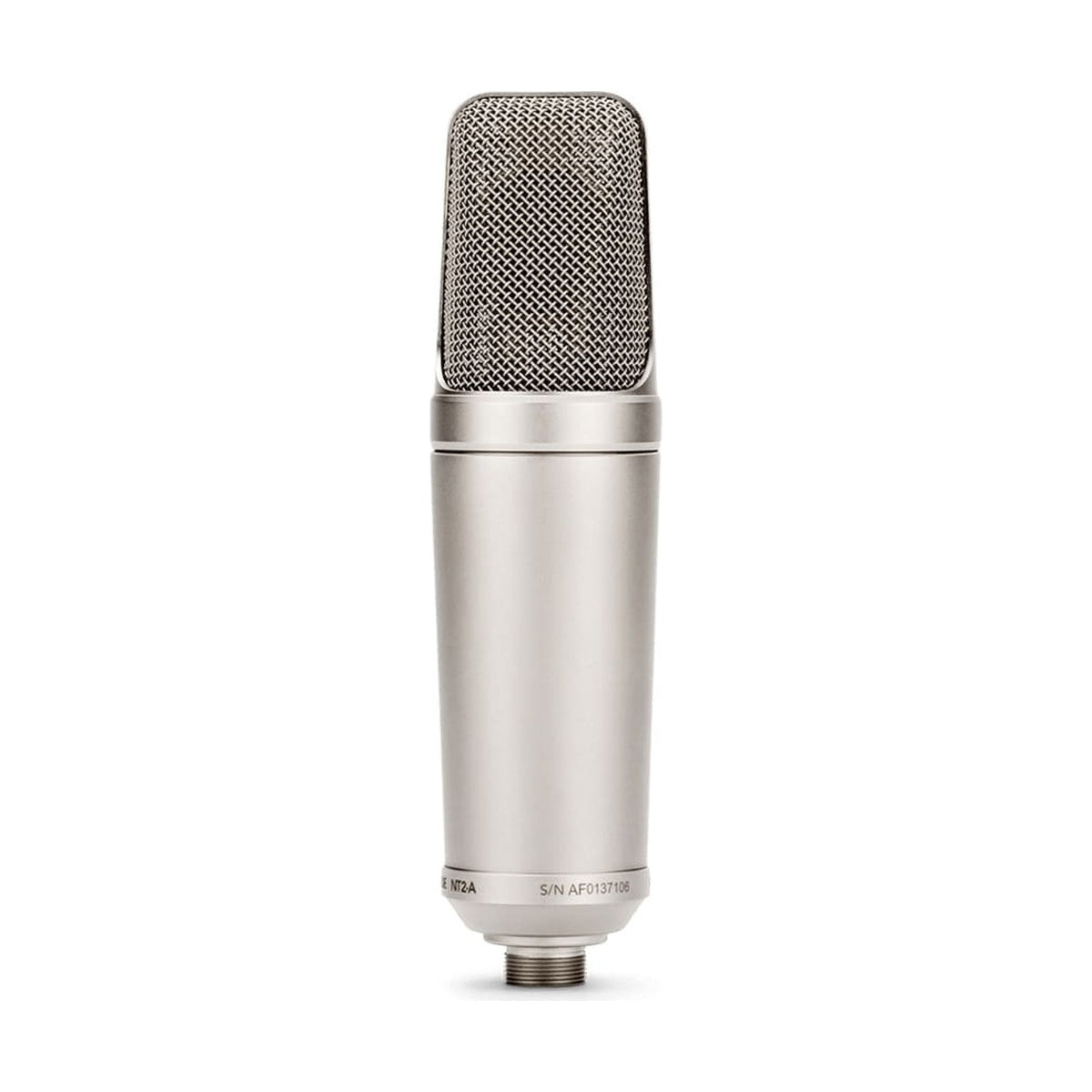

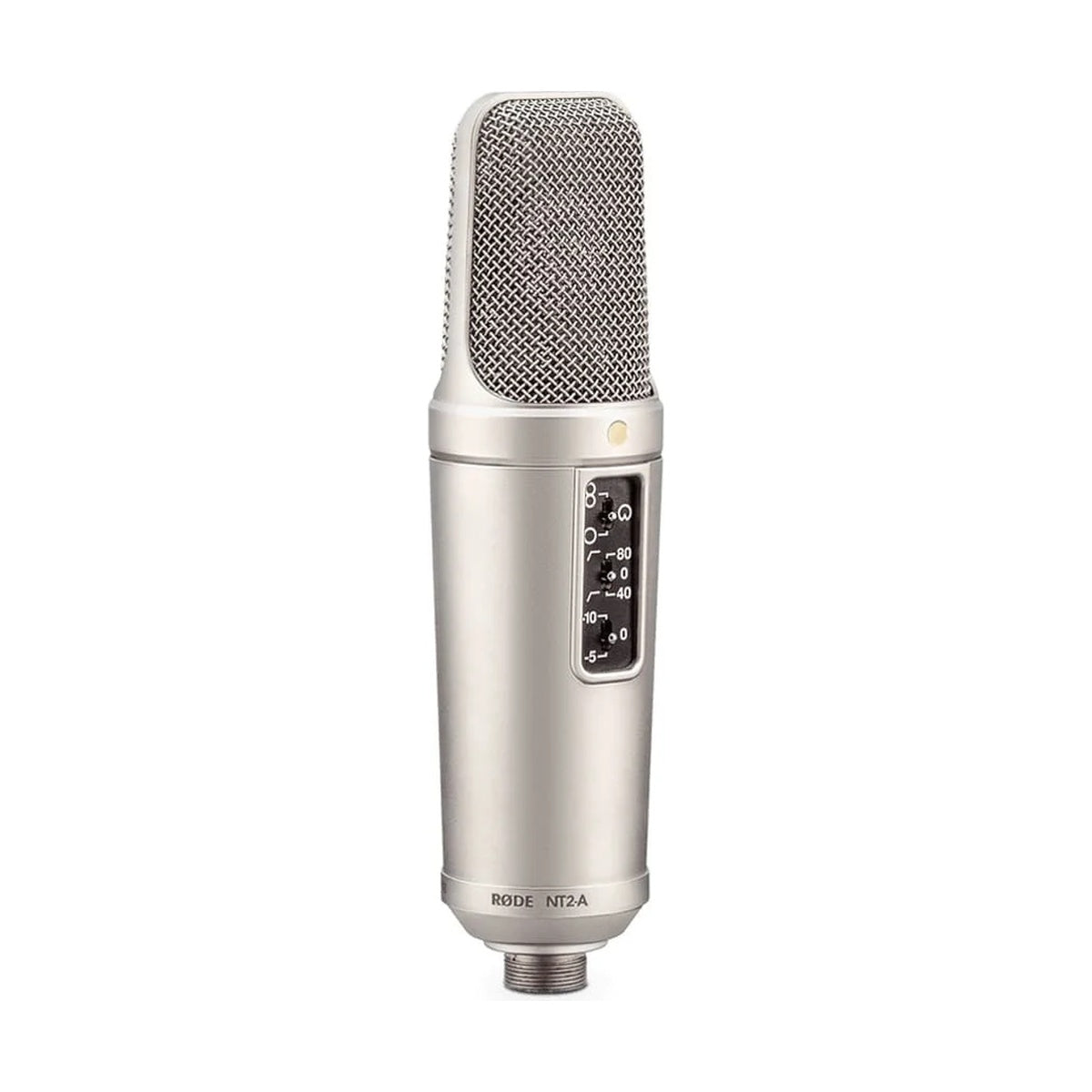

RODE NT2-A

RØDE NT2-A – a highly versatile multi-pattern large-diaphragm studio condenser microphone featuring a dual 1-inch gold-sputtered HF1 capsule with three selectable polar patterns (cardioid, omnidirectional, figure-8), ultra-low self-noise of 7 dBA, and exceptional maximum SPL handling up to 157 dB with pad engaged. Equipped with three-position pad (0dB, -5dB, -10dB), three-position high-pass filter (flat, 40Hz, 80Hz), and transformerless surface-mount circuitry. Includes SM6 shockmount with integrated pop filter, premium 6m XLR cable, dust cover, and exclusive training DVD.

The NT2-A is designed to offer pristine audio quality and flexibility in equal measure, making it ideal for all sorts of voice and instrument sources at home or in the studio. The heart of the microphone is the Australian-designed and manufactured TYPE HF1 dual-diaphragm capsule featuring 25mm edge-terminated design with gold-sputtered 5-micron membranes. The frequency and transient response has been voiced to complement today's modern recording techniques while evoking the silky smooth character of legendary microphones from the 1950s and 1960s.

Advanced transformerless JFET surface-mount circuitry delivers an ultra-low noise output of just 7 dBA while maintaining maximum signal gain, resulting in an impressive 87 dB signal-to-noise ratio and incredible 140 dB dynamic range. The microphone achieves a spectacular 147 dB maximum SPL without pads, extending to 157 dB with the 10 dB pad engaged – providing exceptional headroom for the loudest sources. Internal capsule shock mounting minimizes handling noise and vibrations. Three control switches on the microphone body provide complete versatility: polar pattern selection between cardioid, omnidirectional, and figure-8; high-pass filter with flat, 40Hz, or 80Hz settings to eliminate low-frequency rumble; and pad settings at 0dB, -5dB, or -10dB for recording high-SPL sources. The circuit has been engineered to eliminate switch noise, with pattern, pad, and filter changes causing brief output level drops but no pops or transients. Heat-treated steel mesh head protects the capsule while the solid cast metal body features machined, polished, and nickel-plated finish for professional durability. Compatible with standard 24V or 48V phantom power. Designed and manufactured in RØDE's Sydney, Australia facilities with 10-year extended warranty available upon registration.

KEY FEATURES

• Large 1-inch (25mm) HF1 dual-diaphragm gold-sputtered capsule
• Three selectable polar patterns: cardioid, omnidirectional, figure-8
• Ultra-low self-noise: 7 dBA SPL
• Exceptional maximum SPL: 147 dB (157 dB with -10dB pad)
• Outstanding signal-to-noise ratio: 87 dB
• Wide dynamic range: 140 dB
• Three-position pad: 0dB, -5dB, -10dB
• Three-position high-pass filter: flat, 40Hz, 80Hz
• Transformerless surface-mount circuitry
• Internal capsule shock mounting
• Full frequency response: 20 Hz to 20 kHz
• High sensitivity: -36 dB re 1V/Pa (16 mV @ 94 dB SPL)
• Maximum output level: +16 dBu
• Switch-noise elimination in circuit design
• Heat-treated steel mesh head
• Solid cast metal body with nickel-plated finish
• Standard 48V phantom power (24V or 48V compatible)
• Professional 3-pin XLR balanced output

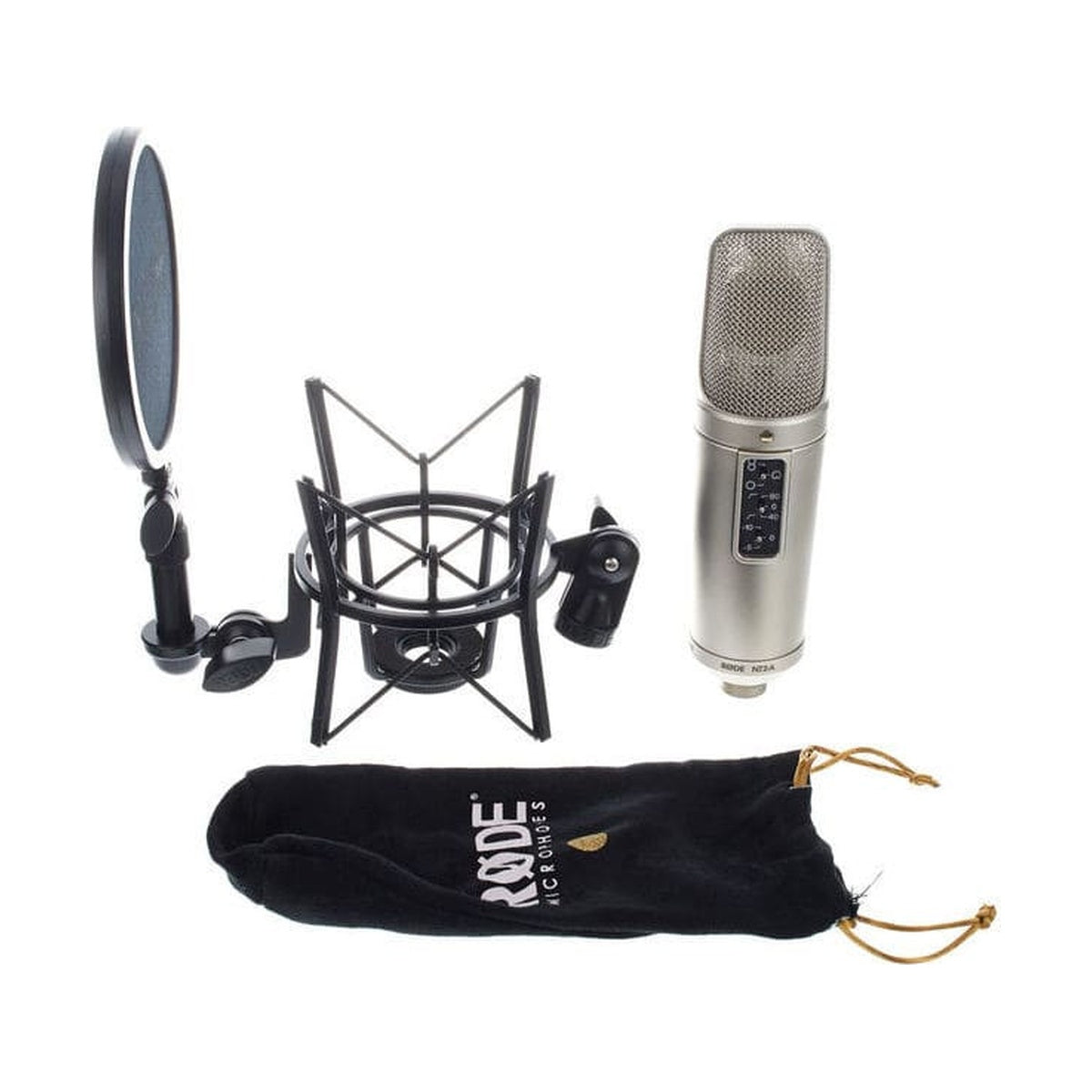

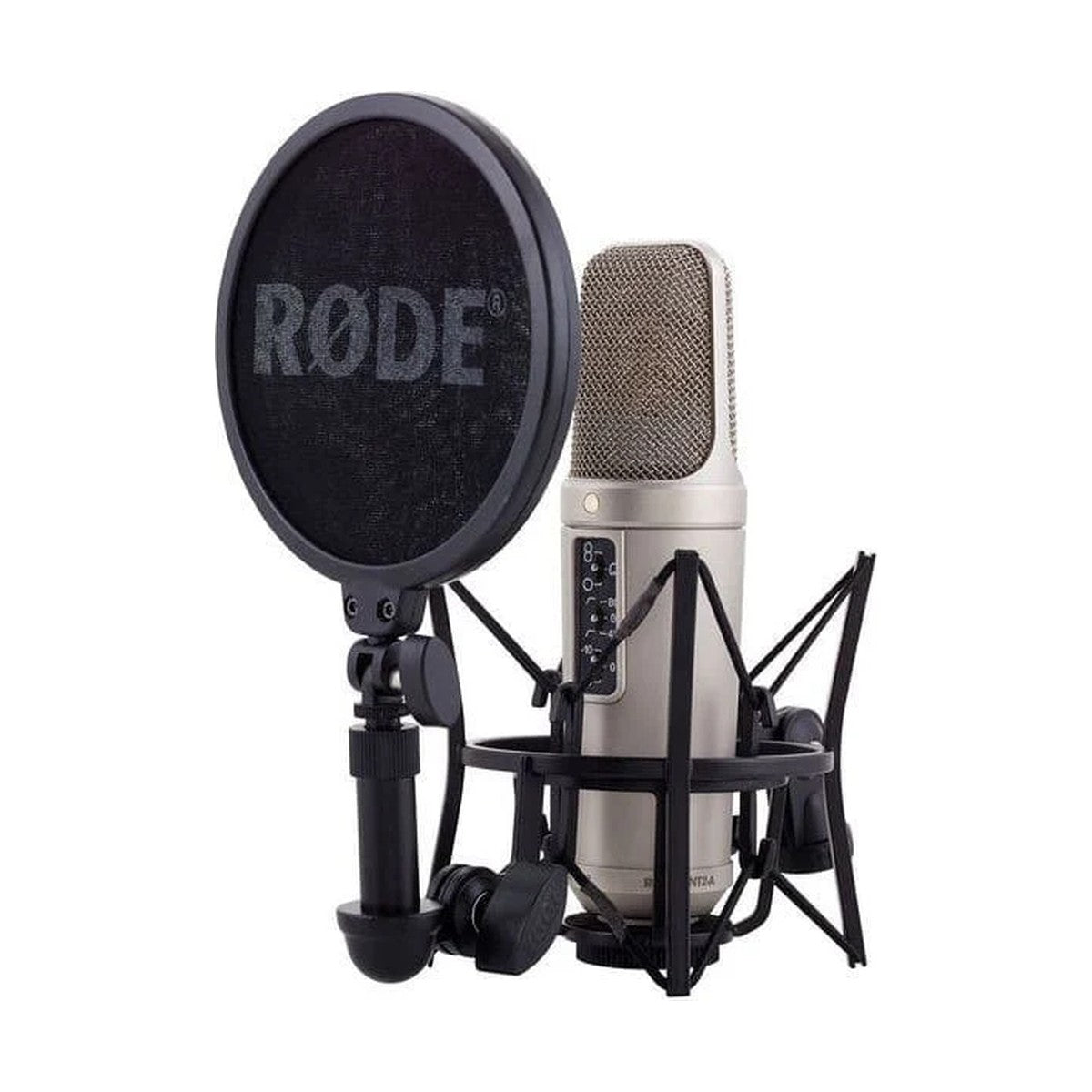

• SM6 shockmount with integrated pop filter included
• Premium 6m XLR cable included
• Microphone dust cover included
• Exclusive NT2-A training DVD by Grammy-nominated producer
• Designed and manufactured in Sydney, Australia
• 10-year extended warranty (with registration)

TECHNICAL SPECIFICATIONS

• Acoustic Principle: Pressure, pressure gradient
• Capsule Type: Dual 1-inch (25mm) gold-sputtered diaphragm
• Capsule Design: HF1 edge-terminated, 5-micron membranes
• Polar Patterns: Three-position variable
• Cardioid
• Omnidirectional
• Figure-8
• Frequency Response: 20 Hz to 20 kHz
• Sensitivity: -36 dB re 1V/Pa (16 mV @ 94 dB SPL) ±2 dB @ 1 kHz
• Output Impedance: 200 Ω
• Self-Noise (Equivalent Noise): 7 dBA SPL (per IEC651, IEC268-15)
• Signal-to-Noise Ratio: 87 dB @ 1 kHz (reference 1 Pa)
• Maximum SPL:
• 147 dB SPL @ 1% THD (no pad)
• 152 dB SPL @ 1% THD (-5dB pad)
• 157 dB SPL @ 1% THD (-10dB pad)
• Maximum Output Level: +16 dBu @ 1% THD
• Dynamic Range: 140 dB (per IEC651, IEC268-15)
• High-Pass Filter: Three-position variable
• Flat (no filter)
• 40 Hz
• 80 Hz
• Pad Settings: Three-position variable
• 0 dB (no pad)
• -5 dB
• -10 dB
• Active Electronics: JFET impedance converter with bipolar output buffer
• Circuitry: Transformerless surface-mount technology (SMT)
• Power Requirements: 24V or 48V phantom power (P48)
• Output Connection: 3-pin XLR balanced
• Pin 2: Positive (+)
• Pin 3: Negative (-)
• Pin 1: Ground
• Internal Features: Internal capsule shock mounting
• Construction:
• Solid cast metal body
• Heat-treated steel mesh head
• Nickel-plated finish
• Dimensions:
• Length: 209 mm (8.23")
• Diameter: 55 mm (2.17")
• Weight:
• Net weight: 860 g (1.89 lbs)
• Shipping weight: 1 kg (2.2 lbs)
• Warranty: 10-year extended warranty (registration required)
• Included Accessories:
• SM6 shockmount with integrated pop filter
• Premium 6m (20') XLR cable
• Microphone dust cover
• Exclusive NT2-A training DVD
• Zip-up protective pouch
• Compatible Accessories: SMR, WS2, SM6, Stereo bar
• Designed and Manufactured: Sydney, Australia
