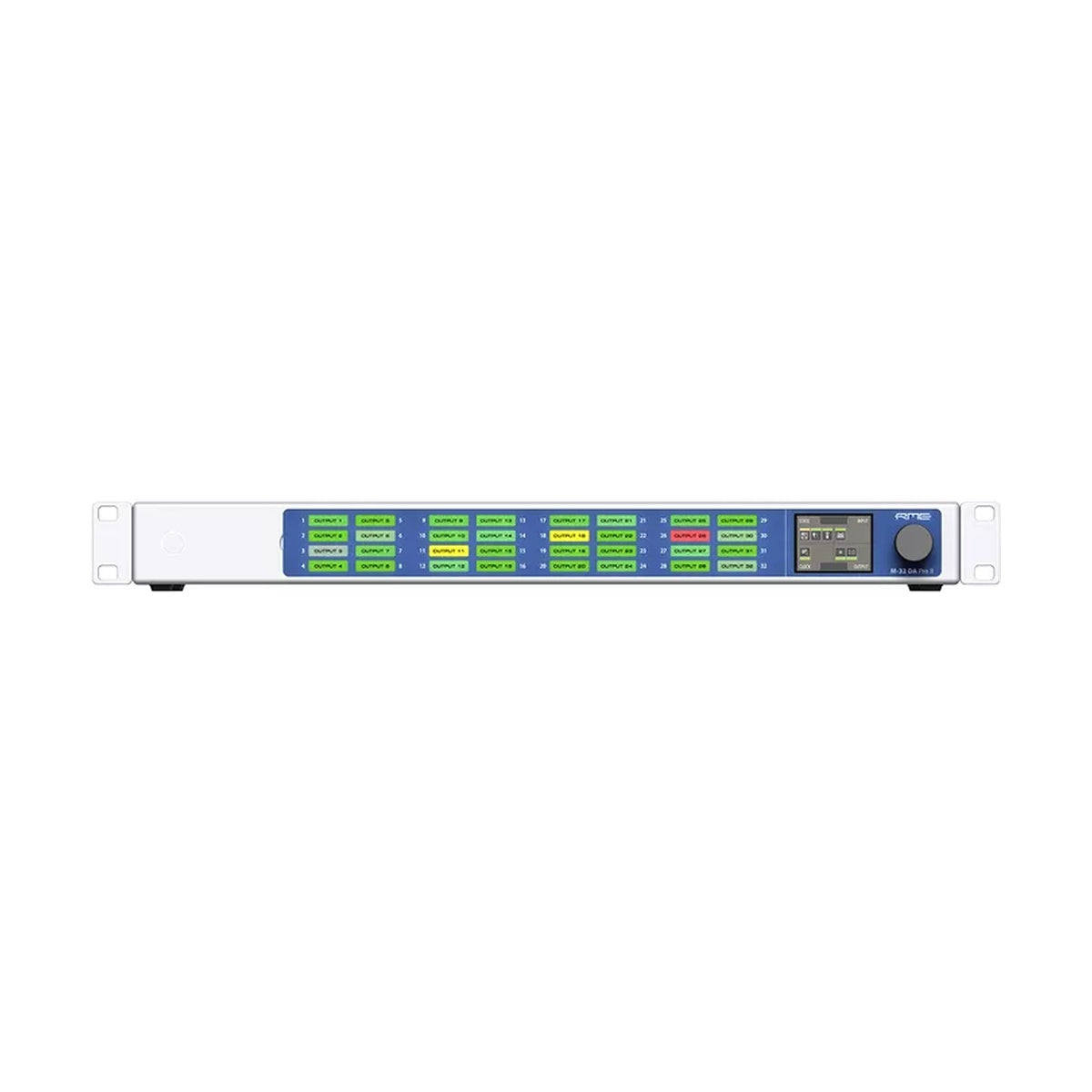

RME M-32 DA Pro II-D – 32-channel, 192 kHz Dante® + MADI D/A converter designed for high-end studios, broadcast, live sound and immersive audio installations. It offers thirty-two balanced analog line outputs via 4 × DB-25 connectors (levels up to +24 dBu, DC-coupled), dual redundant Dante ports (2 × RJ45, 64×64 channels), MADI I/O (coaxial BNC onboard plus optional optical SFP for up to 128 channels), Word Clock I/O, and USB 2.0 for remote control and firmware updates. With reference-grade conversion (120 dB(A) SNR, DA THD+N −111 dB), tri-color channel metering, front-panel 2″ display with push-encoder, and full networked remote control (web UI, HTTP/JSON, MIDI over MADI), it sets a new benchmark for reliable large-scale audio distribution. Dual monitored internal power supplies ensure redundancy in critical environments.
KEY FEATURES
- 32 analog line outputs on 4 × DB-25 connectors, fully balanced, DC-coupled, up to +24 dBu
- 2 × Dante Gigabit Ethernet (redundant), up to 64 channels
- MADI I/O: onboard coaxial BNC plus optional optical SFP (up to 128 channels)
- Word Clock I/O (BNC) with SyncCheck® and SteadyClock FS for ultra-stable jitter suppression
- Front-panel 2″ display with rotary encoder for setup and metering
- Tri-color illuminated channel fields with custom labeling and Peak/RMS metering
- Remote control via web interface, HTTP/JSON API, USB or MIDI-over-MADI
- Dual redundant internal PSUs with monitoring and auto-failover
- Reference-class conversion: 120 dB(A) dynamic range; THD+N down to −111 dB
TECHNICAL SPECIFICATIONS
- Conversion: 32-channel D/A, 24-bit, up to 192 kHz
- Analog outputs: 32 × balanced line outputs, 4 × DB-25; max level +24 dBu @ 0 dBFS
- Digital I/O: 2 × Dante (RJ45, redundant); 1 × MADI coaxial I/O; 1 × optional MADI optical SFP I/O; Word Clock I/O (BNC); USB 2.0 (remote control)
- Performance: SNR 120 dB(A); THD+N −111 dB (DA)
- Controls: front-panel display + encoder; 15 user presets; lock & dark mode
- Dimensions: 19″ rackmount, 1U height
- Power: dual redundant internal PSUs, 100–240 V AC auto-ranging
