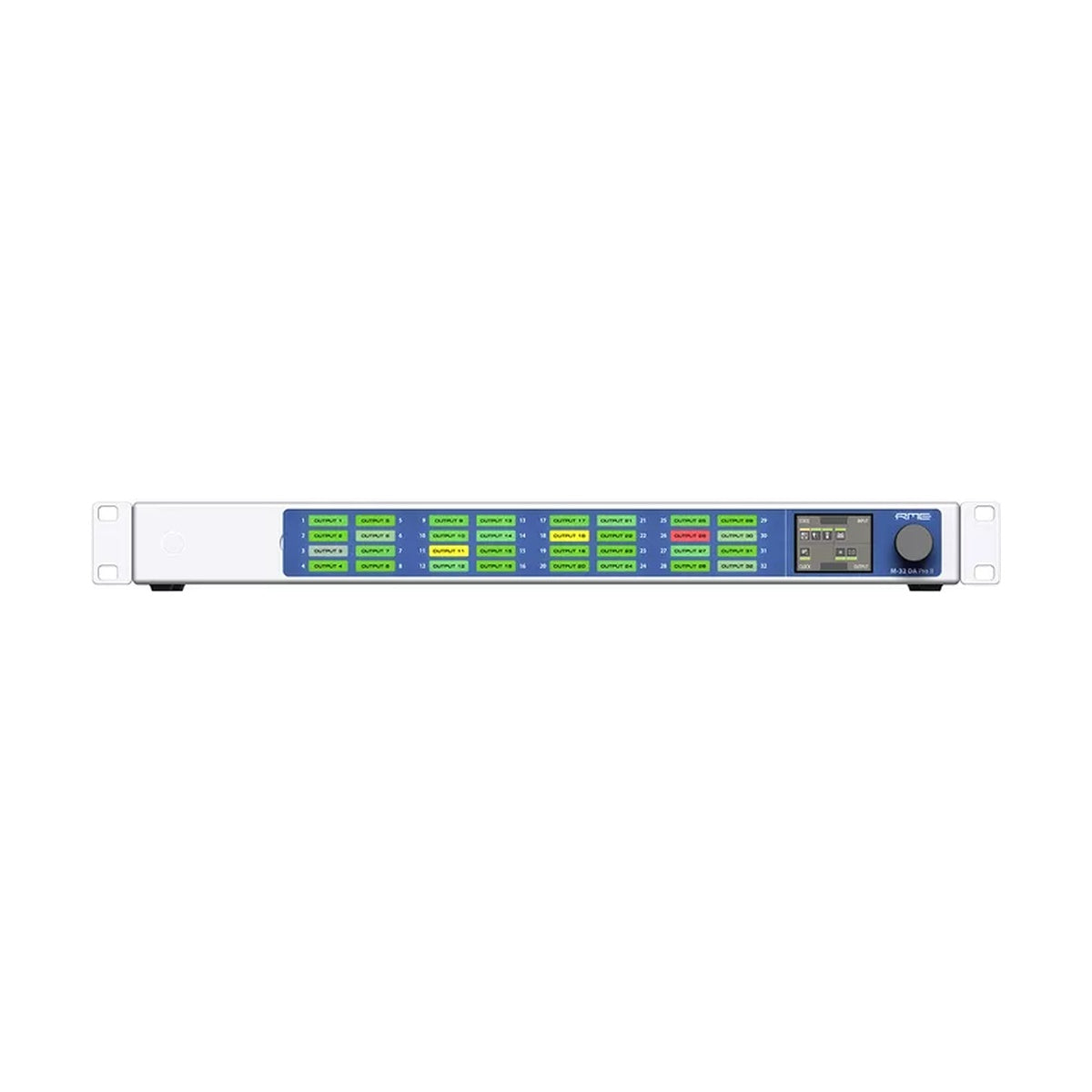

RME M-32 DA Pro II – 32-channel, 192 kHz MADI D/A converter for premium studio, broadcast and live installations. It provides thirty-two balanced analog line outputs via 4 × DB-25 connectors (selectable reference levels up to +24 dBu, DC-coupled), MADI I/O (coaxial BNC onboard plus optional optical SFP, up to 128 ch), Word Clock I/O, and USB 2.0 for remote control and firmware. A 2″ color display with push-encoder, tri-color backlit channel labeling/meters, and comprehensive network/USB control (web UI, HTTP/JSON, MIDI-over-MADI; optional legacy MIDI) streamline setup and operation. Dual monitored internal PSUs deliver true redundancy for mission-critical use, while SteadyClock FS and SyncCheck® ensure rock-solid clocking and ultra-low jitter. Converter performance is reference class, with up to 120 dB(A) dynamic range and DA THD+N down to −111 dB.
KEY FEATURES
- 32 balanced analog line outputs on 4 × DB-25, DC-coupled; reference levels up to +24 dBu
- MADI I/O: onboard coaxial BNC plus optional optical SFP (up to 128 channels)
- Word Clock I/O (BNC), SteadyClock FS jitter suppression, SyncCheck®
- 2″ front-panel color display with encoder; Peak/RMS metering per channel
- Tri-color illuminated channel fields with user labels; magnetic label cover
- Remote control via web interface (HTTP/JSON), USB, and MIDI-over-MADI
- 15 user presets, lock & dark mode, extensive status LEDs
- Dual redundant internal PSUs with monitoring and auto-failover
TECHNICAL SPECIFICATIONS
- Conversion: 32-ch D/A, 24-bit, up to 192 kHz
- Analog outputs: 32 × balanced line on 4 × DB-25; max level +24 dBu @ 0 dBFS
- Digital I/O: 1 × MADI coaxial BNC; 1 × optional MADI optical SFP; Word Clock I/O (BNC); USB 2.0 (remote)
- Clocking: SteadyClock FS; SyncCheck®
- Performance: dynamic range up to 120 dB(A); THD+N (DA) as low as −111 dB
- Control/UI: 2″ display + encoder; web/HTTP/JSON; MIDI-over-MADI; optional legacy MIDI
- Form factor: 19″ rack, 1U
- Power: dual internal PSUs, 100–240 V AC auto-ranging
