RME M-32 AD Pro II
RME M-32 AD Pro II

RME

RME M-32 AD Pro II

€3.567,10

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 55889

Contact

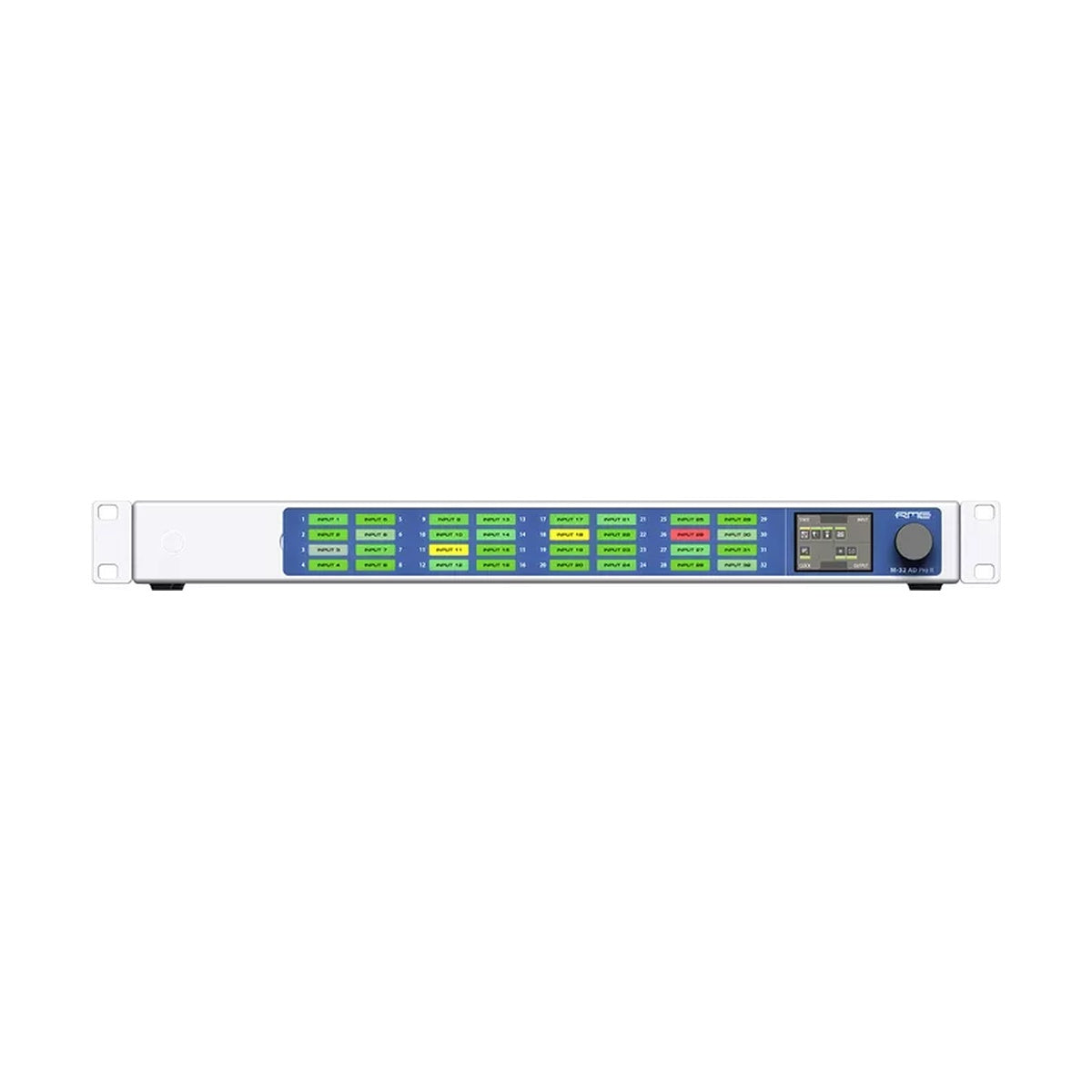

RME M-32 AD Pro II – 32-channel, 192 kHz MADI A/D converter for premium studio, broadcast and live installations. It provides thirty-two balanced analog line inputs via 4 × DB-25 connectors (DC-coupled; selectable reference levels up to +24 dBu), MADI I/O (coaxial BNC onboard plus optional optical SFP, up to 128 ch), Word Clock I/O, and USB 2.0 for remote control and firmware. A 2″ color display with push-encoder, tri-color backlit channel labeling/meters, and comprehensive remote control (web UI, HTTP/JSON, MIDI-over-MADI; optional legacy MIDI) streamline setup and operation. Dual monitored internal PSUs add true redundancy, while SteadyClock FS and SyncCheck® ensure ultra-stable clocking. Converter performance is reference-class, with up to 123 dB(A) dynamic range and AD THD+N down to −120 dB.

KEY FEATURES

  • 32 balanced analog line inputs on 4 × DB-25, DC-coupled; reference levels up to +24 dBu
  • MADI I/O: onboard coaxial BNC plus optional optical SFP (up to 128 channels)
  • Word Clock I/O (BNC) with SteadyClock FS jitter suppression and SyncCheck®
  • 2″ front-panel color display with encoder; Peak/RMS metering per channel
  • Tri-color illuminated channel fields with user labels; magnetic label cover
  • Remote control via web interface (HTTP/JSON), USB, and MIDI-over-MADI
  • 15 user presets, lock & dark mode, extensive status LEDs
  • Dual redundant internal PSUs with monitoring and auto-failover

TECHNICAL SPECIFICATIONS

  • Conversion: 32-ch A/D, 24-bit, up to 192 kHz
  • Analog inputs: 32 × balanced line on 4 × DB-25; max reference level +24 dBu @ 0 dBFS
  • Digital I/O: 1 × MADI coaxial BNC; 1 × optional MADI optical SFP; Word Clock I/O (BNC); USB 2.0 (remote)
  • Clocking: SteadyClock FS; SyncCheck®
  • Performance: dynamic range up to 123 dB(A); THD+N (AD) as low as −120 dB
  • Control/UI: 2″ display + encoder; web/HTTP/JSON; MIDI-over-MADI; optional legacy MIDI
  • Form factor: 19″ rack, 1U
  • Power: dual internal PSUs, 100–240 V AC auto-ranging
