RME M-1620 Pro D

RME

RME M-1620 Pro D

€3.181,07

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 54609

Contact

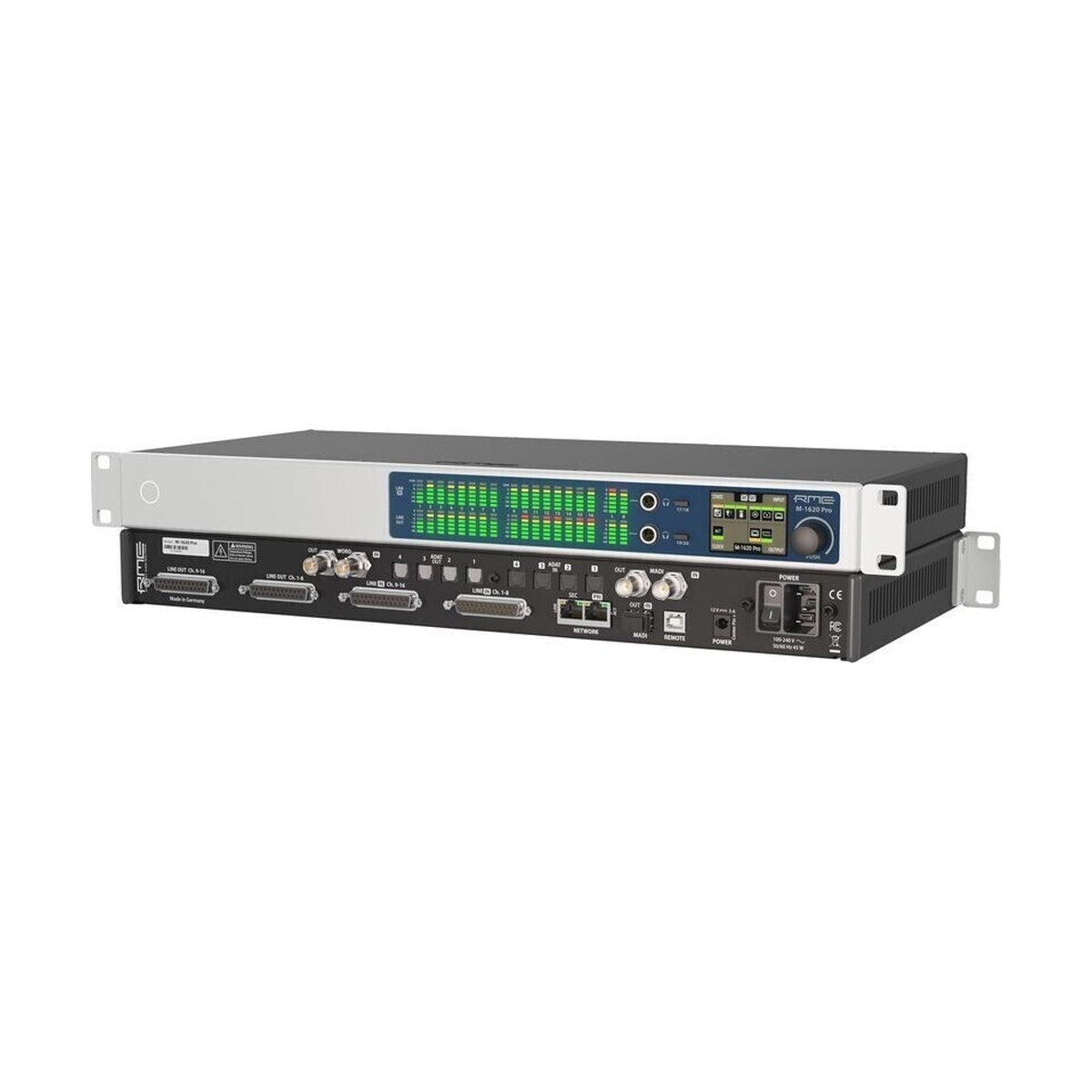

RME M-1620 Pro D – professional 16-channel A/D and 20-channel D/A converter with ADAT, Dante, and MADI connectivity, designed for studio, live, and broadcast applications. Featuring a newly developed front panel with LED level meters, a display, and two independent headphone outputs for monitoring, all in a compact single-height 19-inch rack device. It converts 16 analog line-level signals (switchable up to +24 dBu per channel) to and from MADI, ADAT, and Dante network technology, offering state-of-the-art converters and a flexible internal routing matrix for audio networks. Built-in redundancy includes dual network and dual MADI connections, a monitored DC input, and an internal AC power supply, ensuring seamless operation with full stand-alone capability for direct device settings adjustments and preset recalls. It integrates 64-channel Dante connectivity for direct links to other audio devices via standard Ethernet switches and supports recording and playback of up to 64 channels using Audinate’s Dante Virtual Soundcard™ (license not included). The device allows manual configuration of aliasing filters, jitter reduction with SteadyClock FS, and easy integration into existing infrastructure with separate Word Clock BNC and coaxial MADI connectors, with optional optical MADI via an SFP module.

The device stands out with high-quality conversion, low noise and distortion levels, making it ideal for professional audio environments requiring precision and reliability. Redundant power and network sources ensure uninterrupted operation even in live conditions, while advanced routing options allow flexible signal management. The compact design and intuitive control make the M-1620 Pro D a versatile solution for sound engineers.

MAIN FEATURES

  • 16 x Line Input, 16 x Line Output, 2 x Phones Output
  • 4 x ADAT I/O, 1 x MADI Optical SFP (optional), 1 x Redundant PSU (optional)
  • 1 x Word Clock I/O, 1 x MADI Coaxial I/O, 2 x Gigabit Ethernet (802.3 compliant)
  • DC-coupled Outputs, USB for firmware & remote control
  • 64 channel Dante connectivity for direct links and daisy-chaining
  • Built-in redundancy: dual network, dual MADI, monitored DC input
  • Full stand-alone capability for direct settings adjustments and preset recalls
  • Manual configuration of aliasing filters and jitter reduction with SteadyClock FS
  • Control via front panel, network (incl. Wi-Fi), USB, JSON based API, and SysEx MIDI commands
  • Integrated routing matrix for single channel routing across all I/O

TECHNICAL SPECIFICATIONS

  • Line In 1-16: Resolution AD: 24 bit; Input level switchable per channel: +24 dBu, +19 dBu, +13 dBu @ 0 dBFS; Inputs: AC coupled, fully symmetrical signal path (servo-balanced); Input Impedance: 9.5 kΩ; SNR @ +24 dBu, 44.1 kHz: 117.0 dB RMS unweighted, 120.7 dBA; SNR @ +19 dBu: 116.3 dB RMS unweighted, 119.9 dBA; SNR @ +13 dBu: 114.7 dB RMS unweighted, 118.3 dBA; Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.5 kHz; THD @ -1 dBFS: < -111 dB, < 0.00029%; THD+N @ -1 dBFS: < -108 dB, < 0.00039 %; Channel separation: > 110 dB
  • Line Out 1-16: Resolution DA: 24 bit; Output level switchable per channel: +24 dBu, +19 dBu, +13 dBu @ 0 dBFS; Outputs: DC coupled, fully symmetrical signal path ("truly balanced"); Output impedance: 200 Ohm balanced, 100 Ohm unbalanced; SNR @ +13 dBu: 119.2 dB RMS unweighted; SNR @ +19 dBu: 119.7 dB RMS unweighted; SNR @ +24 dBu: 119.9 dB RMS unweighted; Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.3 kHz (Sharp Filter, default); @ 96 kHz: 0 Hz – 30 kHz (Slow Filter, default), 0 Hz – 44.1 kHz (Sharp Filter); @ 192 kHz: 0 Hz – 60.5 kHz (Slow Filter), 0 Hz – 85 kHz (Sharp Filter); THD @ +19 dBu: < -120 dB
  • Phones Out: Max output level @ 32 Ohm: +22 dBu; @ 100 Ohm: +18 dBu; @ 600 Ohm: +7 dBu; Output impedance: 30 Ohm; SNR @ +19 dBu: 117.2 dB RMS unweighted, 120.7 dBA; Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.2 kHz; THD @ +19 dBu: < -100 dB
  • Digital Connectivity: 4 x ADAT Out (up to 192 kHz with SMUX/4), 1 x ADAT Optical In; 1 x MADI coaxial I/O, 1 x MADI optical SFP (optional module); 2 x Gigabit Ethernet (Dante); 1 x Word Clock In/Out (BNC); USB 2.0 for firmware and control
  • Power Supply: Internal AC PSU; Optional redundant DC 12V
  • Dimensions: 19" rack, 1U (442 x 44 x 210 mm)
  • Weight: Approx. 3 kg
  • Supported Formats: Up to 192 kHz, 64 channels Dante/MADI/ADAT
