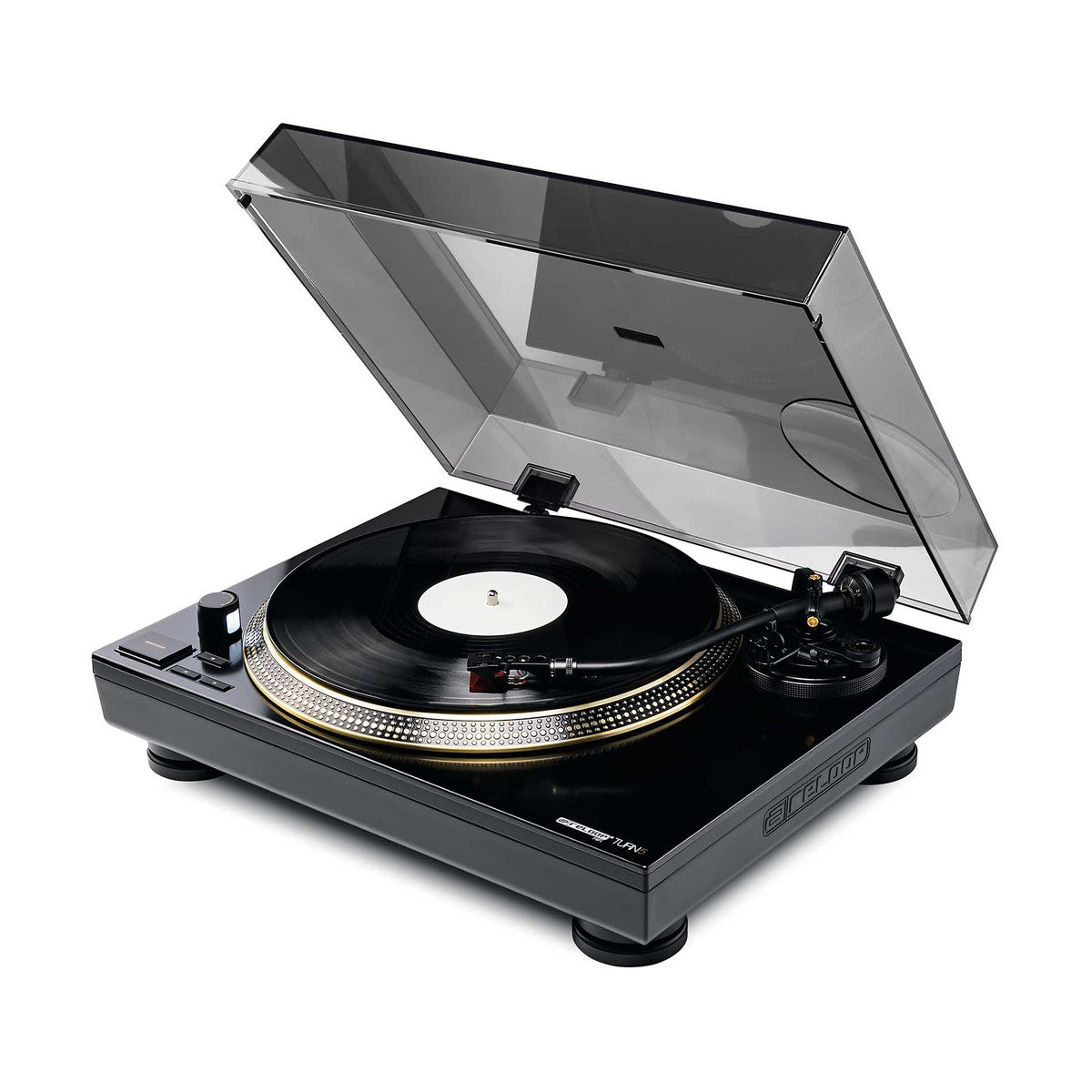

Reloop TURN 5 – HiFi turntable with direct drive, precision-cast aluminum platter, S-shaped tonearm with adjustable height (VTA), and a factory-installed Ortofon 2M Red cartridge. It offers three playback speeds, gold-plated RCA outputs, detachable cables, and a solid metal construction resistant to vibrations.
The TURN 5 is an advanced turntable designed for demanding vinyl enthusiasts. Its brushless motor with quartz control ensures smooth platter rotation, while effective damping of vibrations and resonances provides clean sound reproduction. The statically balanced S-shaped tonearm is equipped with a hydraulic lift, anti-skating adjustment, and height adjustment at the base. With the SME headshell socket, cartridge replacement is quick and easy. The TURN 5 stands out with its elegant black finish, gold-plated platter, and durable build quality, making it ideal for both home and professional use.
KEY FEATURES
- HiFi turntable with quartz-controlled direct drive
- Brushless 16-pole, 3-phase motor
- Precision-cast aluminum platter with vibration damping
- Statically balanced S-shaped tonearm with VTA adjustment
- Ortofon 2M Red cartridge pre-mounted on headshell
- Supports 3 speeds: 33 1/3, 45, and 78 RPM
- Universal SME-type headshell socket
- Gold-plated phono outputs with separate grounding
- Detachable RCA and power cables
- Heavy metal construction with anti-vibration feet
- Elegant black finish with gold-plated platter
TECHNICAL SPECIFICATIONS
- Drive: direct drive, quartz-controlled
- Motor: 16-pole, 3-phase, brushless
- Speeds: 33 1/3, 45, 78 RPM
- Starting torque: 4500 g/cm
- Start / change RPM: < 0.2 s
- Wow and flutter: 0.01% WRMS
- S/N Ratio: >55 dB (DIN-B)
- Braking system: electronic
- Tonearm: S-type, effective length 230 mm, VTA range 0–6 mm
- Cartridge weight range: 3.5–8.5 g (with headshell 13–18 g)
- Anti-skating: 0–3 g
- Effective tonearm mass: 30 g
- Platter: aluminum, diameter 332 mm, weight approx. 1.8 kg
- Power supply: AC 115/230 V, 60/50 Hz (EU/US), AC 100 V (JP)
- Power consumption: 9 W
- Dimensions: 458 × 368.3 × 162.4 mm
- Weight: 12.8 kg
- Outputs: 1 × PHONO (gold-plated), 1 × GND (ground)
