Pultec EQH-2 Program Equalizer
Choose options

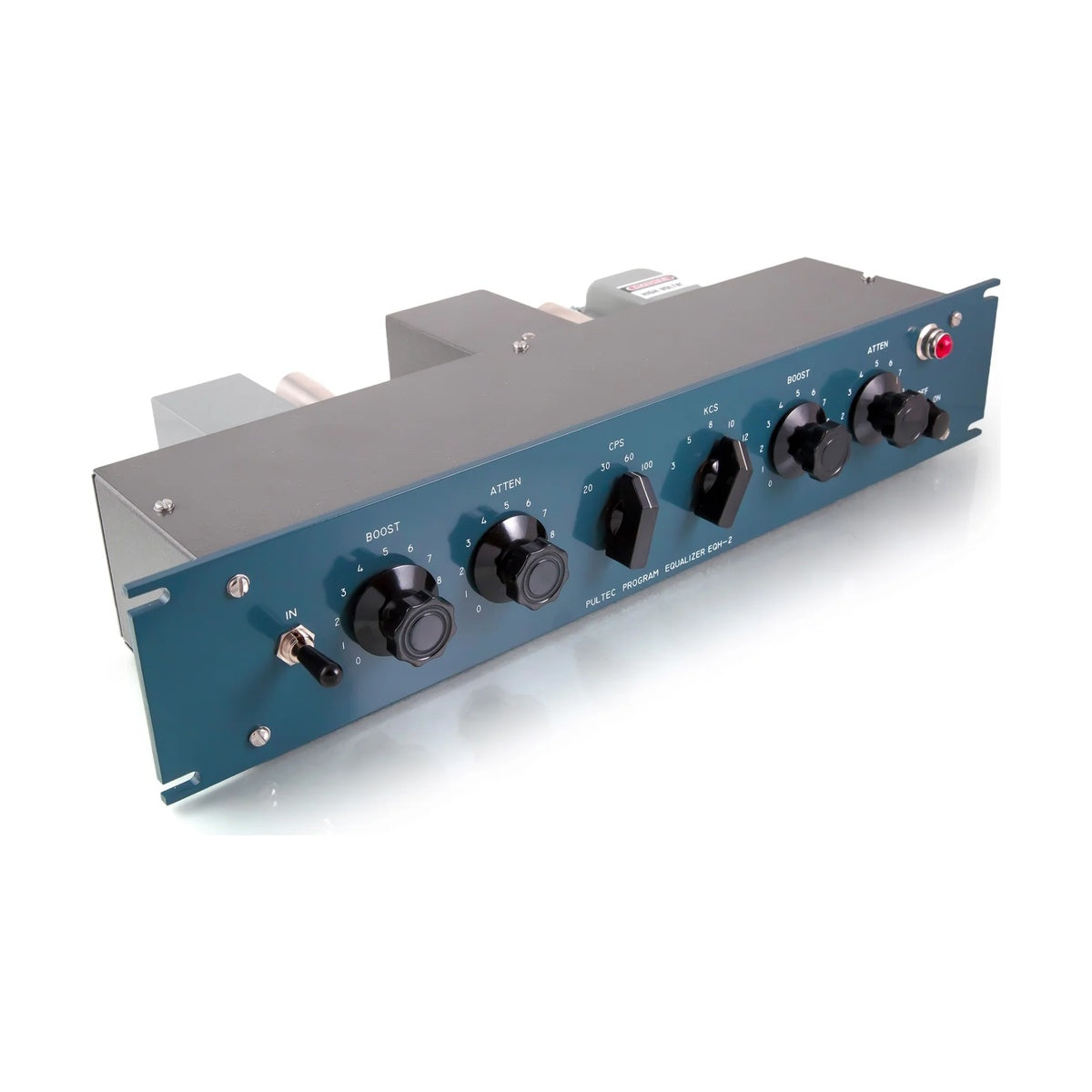

Pultec EQH-2 Program Equalizer appeared in 1956 as a compact alternative to the 3U EQP-1 and remains the simplest unit in the tube Pultec line. Its low-frequency curves are identical to the EQP-1A and its high peak centres are comparable. The difference lies in what the EQH-2 deliberately leaves out: bandwidth adjustment and a choice of high-frequency attenuation corner. Instead of the wide-bandwidth amplifier of the 1A family, it uses the same minimalist class A stage found in the MEQ-5.
Fewer knobs, faster decisions
Bandwidth is fixed at the factory and high attenuation works on a fixed 10 kHz corner. In practice that leaves three decisions instead of five: which low centre, how much boost and cut, and which high peak centre. On a tracking session, where the equalizer sits in an insert and the sound has to be found in a handful of moves, fewer variables genuinely shortens the work. Recall benefits too: fewer settings mean fewer things to write down when the session has to be rebuilt.
A shorter signal path and a more transparent sound

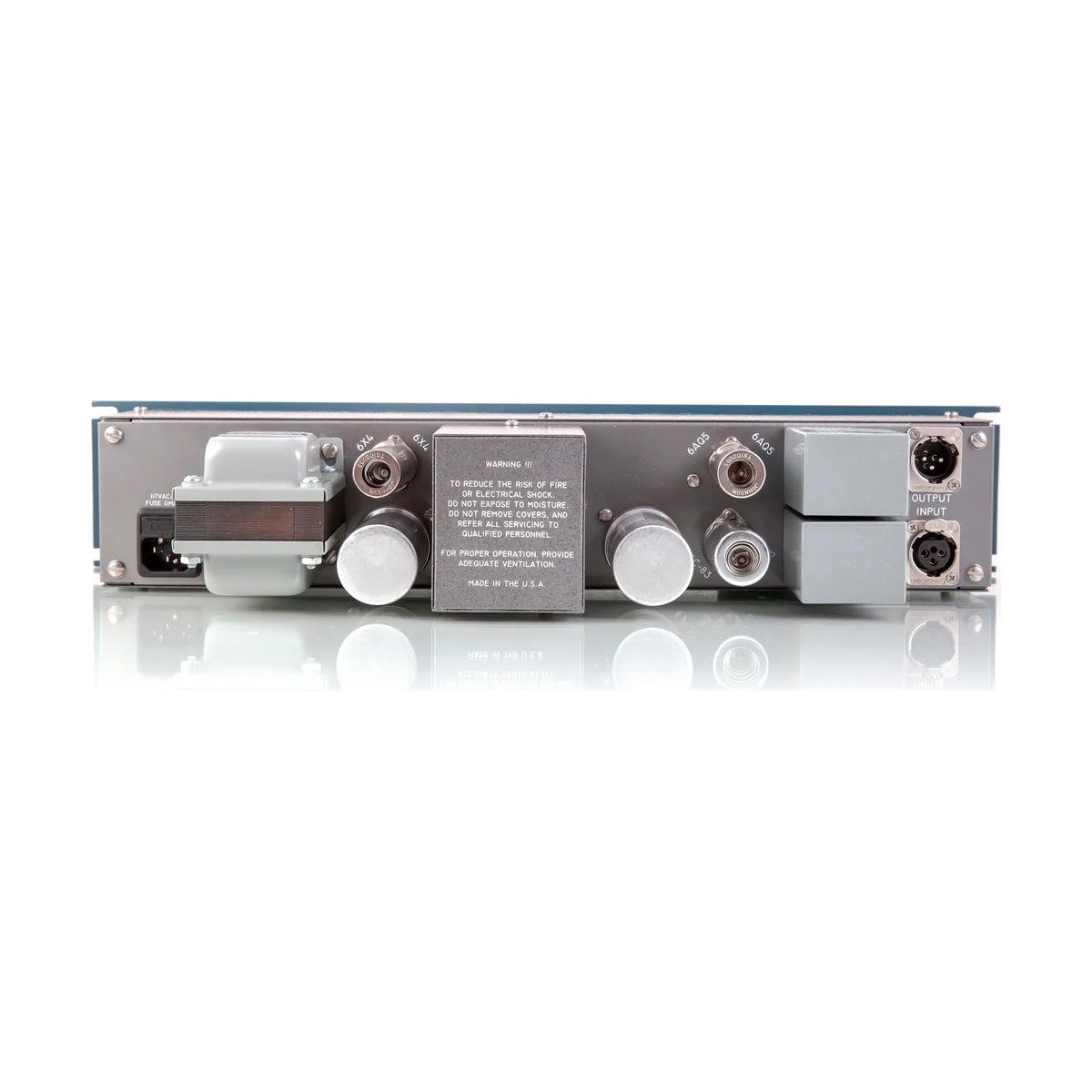

The EQH-2 uses the same minimalist class A output stage as the MEQ-5, on 12AX7, 6AQ5 and 6X4 tubes, with 600 Ohm transformers at input and output. A number of engineers, among them Dave Cobb and Michael Dumas, consider it more transparent than the EQP-1A and EQP-1A3. So the choice is a deliberate one between the character of the 1A family's wide-bandwidth amp and a lighter footprint on the signal. The low section keeps simultaneous boost up to 13.5 dB and cut up to 17.5 dB at the same frequency, the setting people buy a Pultec for in the first place.
KEY FEATURES
- Passive equalization network with a minimalist class A tube stage
- The same output amplifier as the MEQ-5, regarded as more transparent than the 1A family
- Low-frequency curves identical to the EQP-1A: 20, 30, 60 and 100 Hz
- Simultaneous low-frequency boost and attenuation at the same frequency
- Five high-frequency peak centres at fixed bandwidth
- High-frequency attenuation on a fixed 10 kHz corner

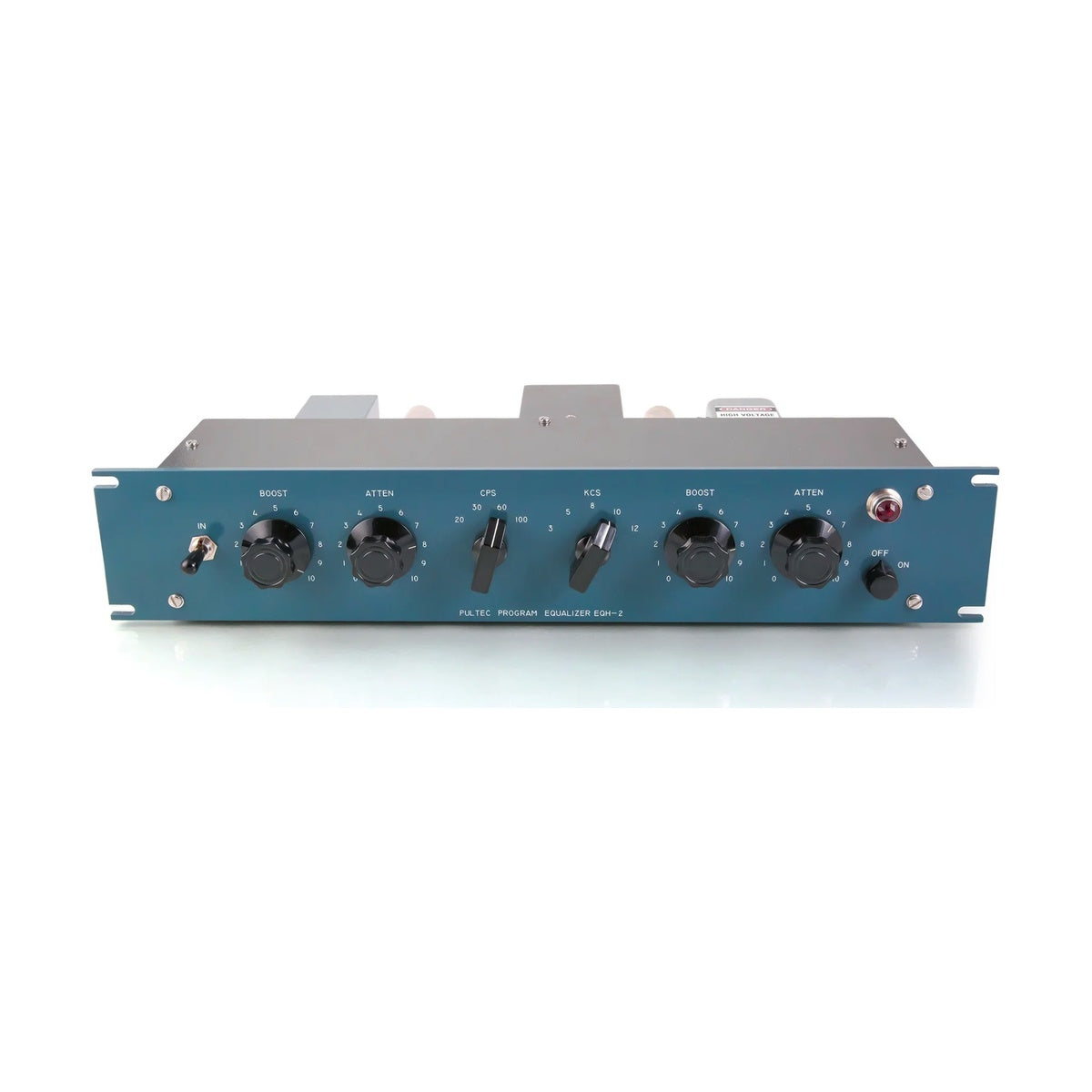

- Simplified panel with fewer settings to recall
- 600 Ohm input and output transformers
TECHNICAL SPECIFICATIONS
- Type: passive program equalizer with tube line amplifier
- Low shelf boost: 20, 30, 60, 100 Hz, 0-13.5 dB
- Low shelf attenuation: 20, 30, 60, 100 Hz, 0-17.5 dB
- High peak boost: 3, 5, 8, 10, 12 kHz, 0-18 dB, fixed bandwidth
- High shelf attenuation: 10 kHz, 0-16 dB
- Input transformer: 600 Ohms
- Output transformer: 600 Ohms
- Noise: below -75 dBm
- Distortion: 0.15% max at +10 dBm into 600 Ohms
- Amplifier response: 20 Hz to 20 kHz, +0 / -1 dB ref 1 kHz
- Tubes: 12AX7, 6AQ5, 6X4 (one each)
