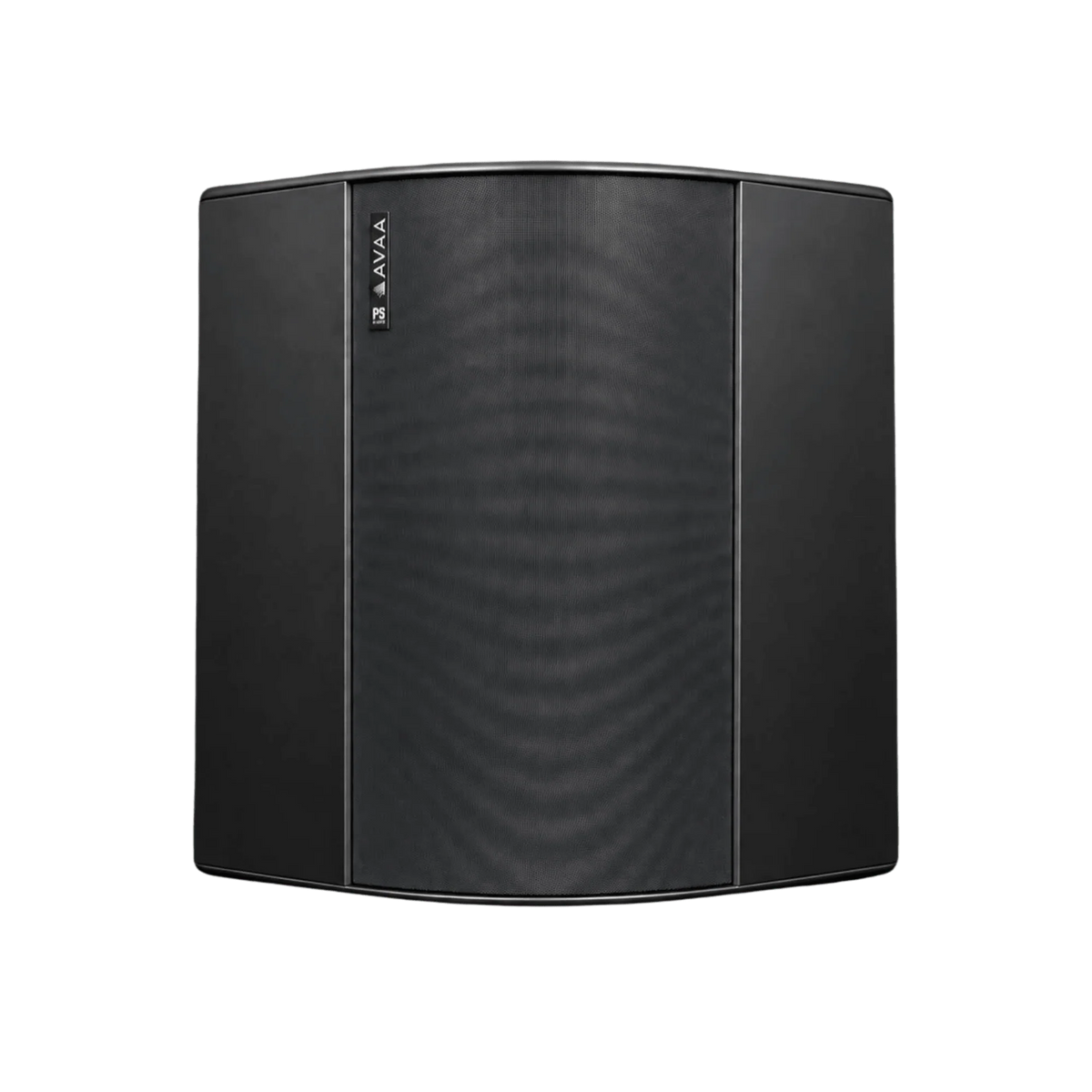

PSI Audio AVAA C225

PSI Audio AVAA C225 is a high-power active bass trap designed to reduce low-frequency room modes in home cinemas, professional studios, small clubs, screening rooms, and other environments operating at high sound pressure levels. Working across the 12–130 Hz range, it controls excessive bass energy without changing the audio signal or requiring a connection to the loudspeaker system.

Two 10-inch membranes allow the AVAA C225 to remain effective at sound pressure levels of up to 135 dB SPL. It reduces the long decay of room resonances, helping bass transients remain powerful, controlled, and clearly defined even in systems capable of producing very high low-frequency energy.

Active bass absorption instead of electronic correction

AVAA stands for Active Velocity Acoustic Absorber. A built-in pressure sensor continuously monitors low-frequency acoustic pressure around the unit, while the active control system responds in real time and absorbs excessive energy before it develops into a persistent room resonance.

The AVAA C225 is not a subwoofer and does not use conventional noise cancellation. It does not produce an audible anti-signal and does not modify the source, loudspeaker response, or direct sound. Instead, it changes the acoustic impedance around its installation point, behaving like a highly efficient low-frequency absorbing surface.

Controlled bass at up to 135 dB SPL

The C225 was developed for rooms in which smaller active bass traps can reach their operating limits. Its two 10-inch membranes absorb low-frequency pressure at levels of up to 135 dB SPL, making it suitable for powerful home cinema systems, club installations, demonstration rooms, immersive monitoring systems, and studios working at elevated playback levels.

By shortening the decay of room modes, the C225 helps prevent kick drums, explosions, bass lines, and low-frequency effects from turning into an indistinct rumble. The result is tighter impact, improved definition, and more reliable low-frequency perception throughout the room.

Broadband operation without tuning

Unlike membrane or Helmholtz resonators that must be tuned to a narrow frequency, the AVAA C225 operates across the entire 12–130 Hz range. No measurement-based calibration or individual room-mode tuning is required. Position the unit near a low-frequency pressure maximum — typically close to a rigid wall or corner — connect power, and adjust its operation using the compatible control application.

High efficiency in a practical format

PSI Audio states that the AVAA C225 can provide absorption comparable to a conventional porous absorber approximately 40 times its size. This makes it possible to control deep bass without filling the room with extremely thick passive treatment, which is especially valuable in home cinemas, production rooms, and commercial spaces where usable floor area is limited.

Swiss development and individual calibration

The AVAA technology was developed by PSI Audio in Switzerland. Every AVAA C225 is manufactured to PSI Audio’s professional standards and individually calibrated in the company’s anechoic chamber before leaving the factory.

KEY FEATURES

• High-power active bass trap for home cinemas, studios, small clubs, and other high-SPL environments
• Active absorption of low-frequency room modes from 12 to 130 Hz
• Maximum operating sound pressure level of 135 dB SPL
• Two 10-inch absorbing membranes
• Continuous monitoring with an integrated low-frequency pressure sensor
• Real-time active absorption without audible anti-noise
• No connection to the loudspeaker or audio signal path required
• No room-mode tuning or measurement-based calibration required
• Efficiency comparable to a porous absorber approximately 40 times its size
• Control and adjustment through a compatible application
• Suitable for stereo, surround, home cinema, and immersive audio installations
• Manufactured in Switzerland
• Every unit individually calibrated in PSI Audio’s anechoic chamber

TECHNICAL SPECIFICATIONS

• Product type: active low-frequency absorber / active bass trap
• Operating principle: Active Velocity Acoustic Absorption
• Operating frequency range: 12–130 Hz
• Maximum operating level: 135 dB SPL
• Active membranes: 2 × 10 inches
• Acoustic detection: integrated low-frequency pressure sensor
• Setup: no measurement-based calibration or frequency tuning required
• Control: compatible application
• Equivalent absorption efficiency: comparable to a porous absorber approximately 40 times its size
• Recommended applications: high-performance home cinema, professional studios, small clubs, screening rooms, demonstration spaces, and high-SPL listening environments
• Finish: black
• Country of manufacture: Switzerland

AVAA C225 is an acoustic absorber, not a subwoofer or room-correction processor. It does not replace passive treatment for reflections in the midrange and high frequencies. For the best results, placement should be selected according to the locations of maximum low-frequency pressure in the room.
