PreSonus EarMix 16M

PreSonus EarMix 16M – a 16-channel AVB-networked personal monitor mixer with a 150 mW/channel headphone amplifier (at 60 Ω), stereo balanced TRS line outputs, 3-band EQ and limiter on every channel and the main mix, and Power over Ethernet (PoE) support. 24-bit/48 kHz, 115 dB dynamic range (A-weighted). Milan-certified AVB.

The EarMix 16M addresses a specific stage problem: musicians want personalized control over their own monitor mix without involving the FOH engineer at every adjustment. A single CAT5e/CAT6 Ethernet cable delivers 16 channels of audio and PoE power directly to the unit placed at the performer's feet or mounted on a microphone stand. Each musician independently controls levels, EQ, stereo linking and channel groups, while the FOH engineer retains full control over the main mix.

Per-channel EQ and limiter on every input

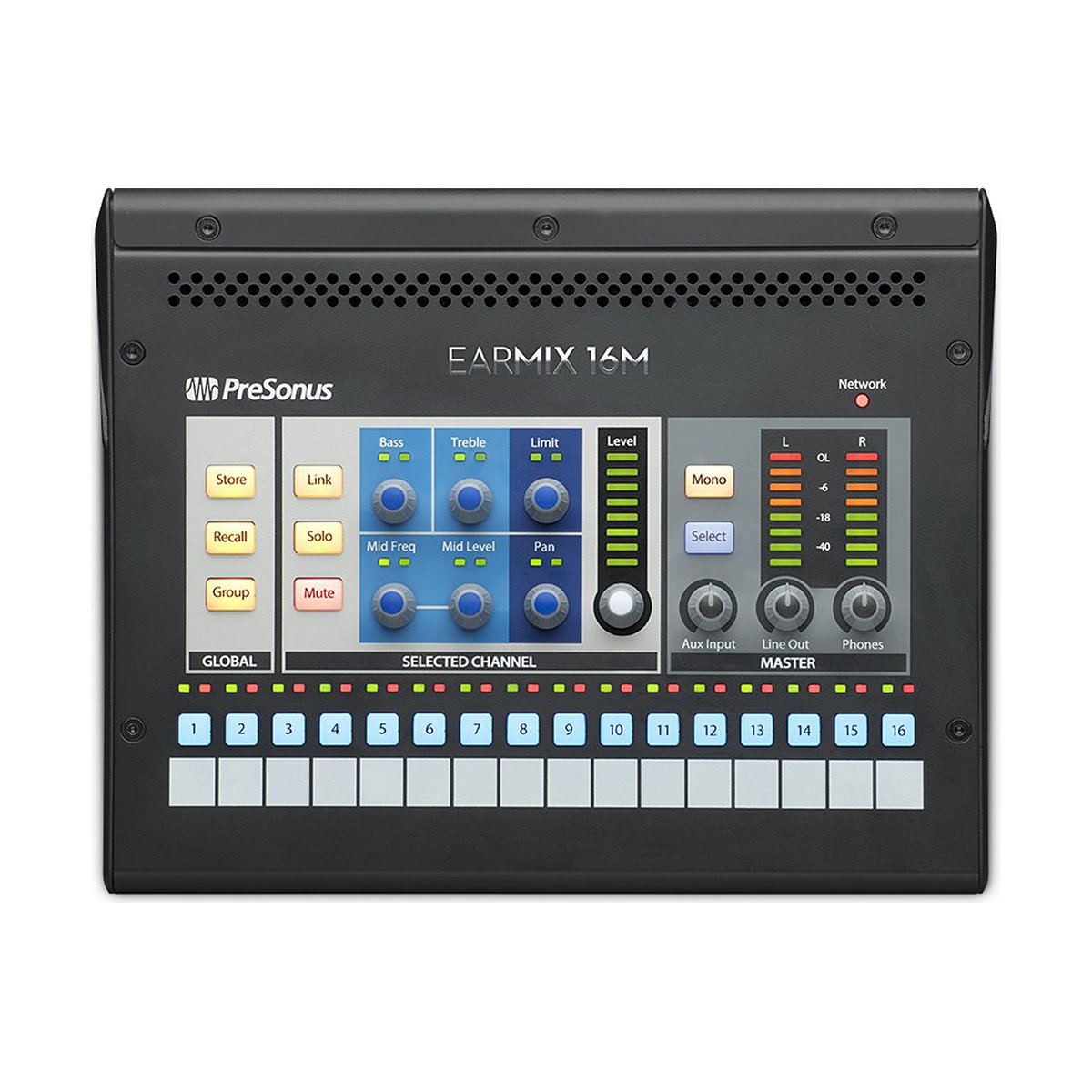

All 16 input channels carry a 3-band EQ with parametric mid and an individual limiter – the same processing is available on the main bus. A musician can build a mix precisely tailored to their needs: boost the bass of their own instrument, pull back an obtrusive drum, reshape the vocal EQ. The finished mix saves to one of 16 local scene memory slots – recall at the next show takes a few seconds. Channels 1 and 2 can be stereo-linked as a pair directly from the panel surface without going into software.

PoE, network topology and scalability

The EarMix 16M is powered either from the included 24 V DC external supply or via Power over Ethernet from a compatible switch – including the dedicated PreSonus SW5E. With PoE, a single Ethernet cable is sufficient to place the unit anywhere on stage without access to a mains outlet. Two RJ45 AVB ports support daisy-chaining multiple units or connection to an SW5E switch. Up to 24 EarMix 16M units can connect simultaneously to a single StudioLive Series III system. The onboard analog AUX input accepts a metronome or any external reference signal outside the AVB network.

KEY FEATURES

• 16 mono input channels via AVB network (Milan certified)
• 3-band EQ (parametric mid) and limiter on every channel and the main mix
• 16 local scene memory slots with onboard save and recall
• Stereo link, channel grouping and pan – directly from the panel surface
• Headphone amplifier: 150 mW/channel at 60 Ω, THD+N 0.01%
• Headphone frequency response: 20 Hz – 20 kHz (±0.05 dB)
• Line outputs: 2× 1/4" TRS balanced, max +18 dBu, output impedance 100 Ω
• Analog AUX input (metronome, external reference source)
• Digital dynamic range: 115 dB (A-weighted, 48 kHz)
• Power over Ethernet (PoE) – single RJ45 cable for audio and power

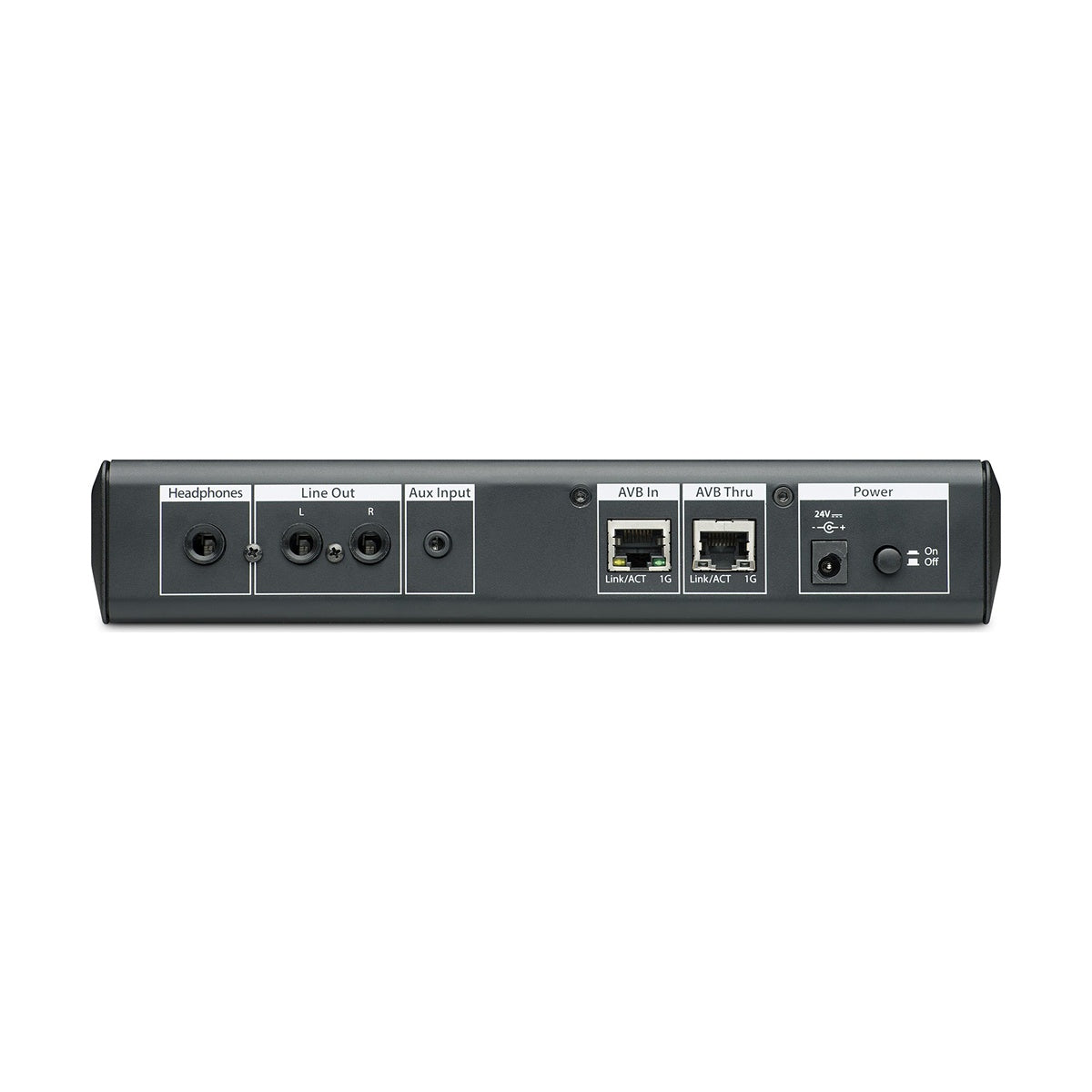

• 2× RJ45 AVB ports – daisy-chain and SW5E switch connection
• Up to 24 EarMix 16M units per StudioLive Series III network
• Optional microphone stand mount
• Power: 24 V DC or PoE

TECHNICAL SPECIFICATIONS

• Network inputs: 16 mono channels via AVB (Milan certified, RJ45)
• AUX input: analog (external source)
• Headphone output: 1/4" TRS, 150 mW/channel at 60 Ω
• Headphone frequency response: 20 Hz – 20 kHz (±0.05 dB)
• THD+N (HP, 1 kHz, max gain): 0.01%
• Line outputs: 2× 1/4" TRS balanced, max +18 dBu (±0.5 dBu), output impedance 100 Ω
• Digital dynamic range: 115 dB (A-weighted, 48 kHz)
• Sample rate: 48 kHz (44.1 kHz optional)
• AVB network: 2× RJ45, daisy-chain, up to 24 units per StudioLive Series III system
• Power: 24 V DC (supply included) or PoE
• Dimensions (W × D × H): 238 × 193 × 46 mm (9.4" × 7.6" × 1.8")
• Weight: 500 g
