PreSonus AVB-D16

PreSonus AVB-D16 – 16x16 AVB-to-Dante bridge with asynchronous sample-rate conversion, precision clock isolation, and plug-and-play functionality. It provides seamless audio networking, flexible integration, and support for multiple units. On board, there is a rugged metal chassis, etherCON ports, and extensive performance functions.

PreSonus AVB-D16 is an environment for sound creation designed for connecting AVB and Dante networks. It features 16 channels of bidirectional audio transfer, compatible with StudioLive Series III ecosystems and Dante-equipped devices like CDL-12 loudspeakers. Flexible sample rates and clock isolation enable a wide range of configurations – including new features for the PreSonus ecosystem.

Networking is deeply integrated: AVB and Dante ports with link/activity indicators, support for different sample rates on each network, daisy-chaining multiple units. The bridge allows real-time audio routing without dropouts – for automatic integration of sources. It offers front-panel reset, power indicators, and advanced compatibility options.

KEY FEATURES

• 16x16 AVB-to-Dante bidirectional bridge
• Asynchronous sample-rate conversion for precision clock isolation
• 1 AVB port on locking etherCON
• 2 Dante ports on etherCON (Primary and Secondary)
• Network Link/Activity indicators
• Support for 44.1 kHz and 48 kHz (AVB and Dante)
• Support for 88.2 kHz and 96 kHz (Dante)
• Use multiple AVB-D16 units to expand channel count
• Plug-and-play functionality with StudioLive Series III AVB ecosystem
• Compatible with Audinate Dante Controller and UC Surface
• Rugged metal chassis for durability

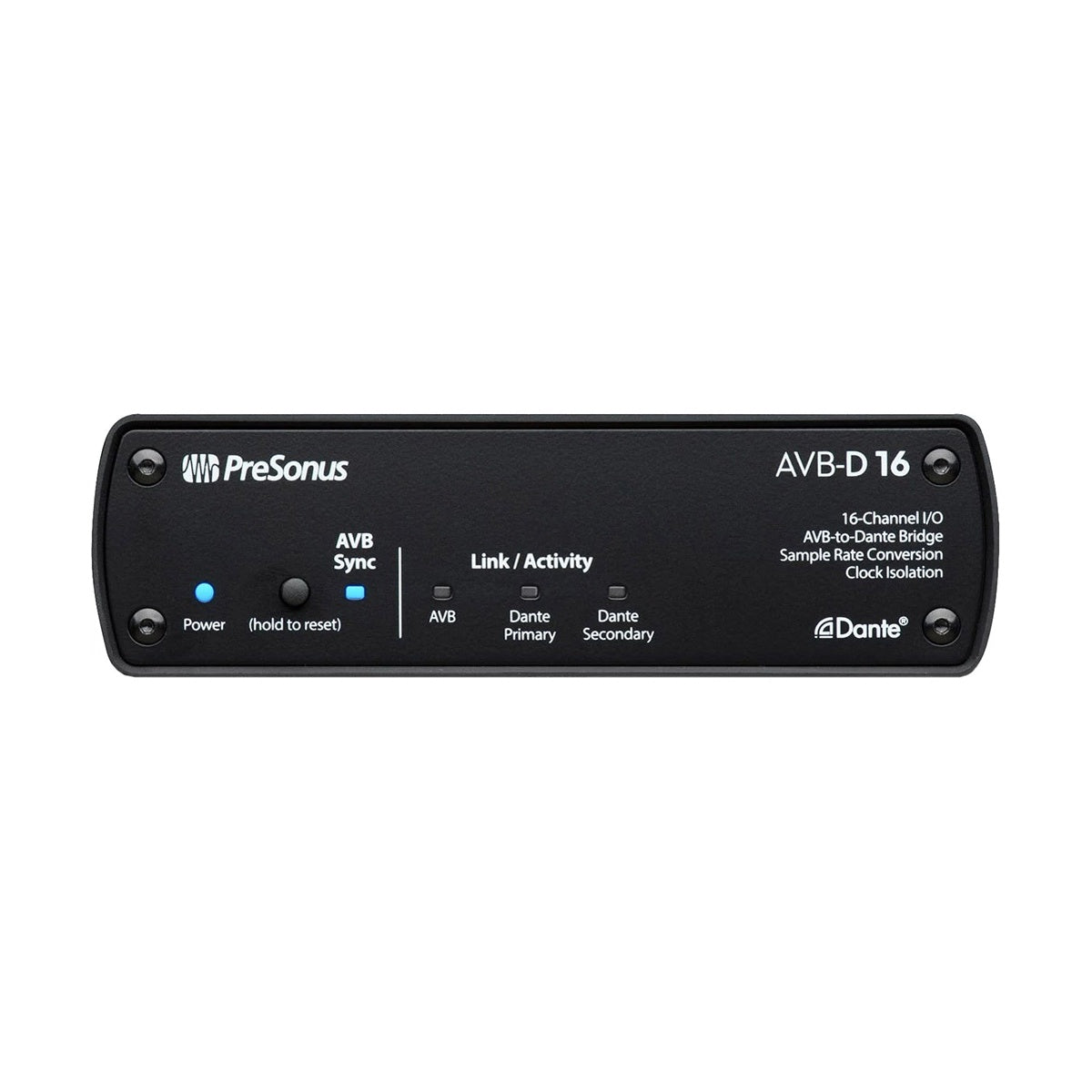

• Front-panel reset button and power indicator

TECHNICAL SPECIFICATIONS

• Type: AVB-to-Dante Network Bridge
• Channels: 16x16
• AVB Audio Network Port: etherCON
• AVB Sample Rates: 44.1 kHz, 48 kHz
• Dante Audio Network Ports: 2 x etherCON (Primary, Secondary)
• Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Power Input: 12 VDC
• Input Voltage Range: 100-230 VAC (+10%)
• Construction: Rugged metal chassis
• Height: 1.68" (43 mm)
• Width: 5.7" (145 mm)
• Depth: 5.9" (145 mm)
• Weight: 1.63 lbs. (0.74 kg)
