Peluso Microphone Lab SR 14
Peluso Microphone Lab SR 14

Peluso Microphone Lab

Peluso Microphone Lab SR 14

Sale price€1.399,00

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 50876
Quantity:
This item is available on a custom order basis only

Contact

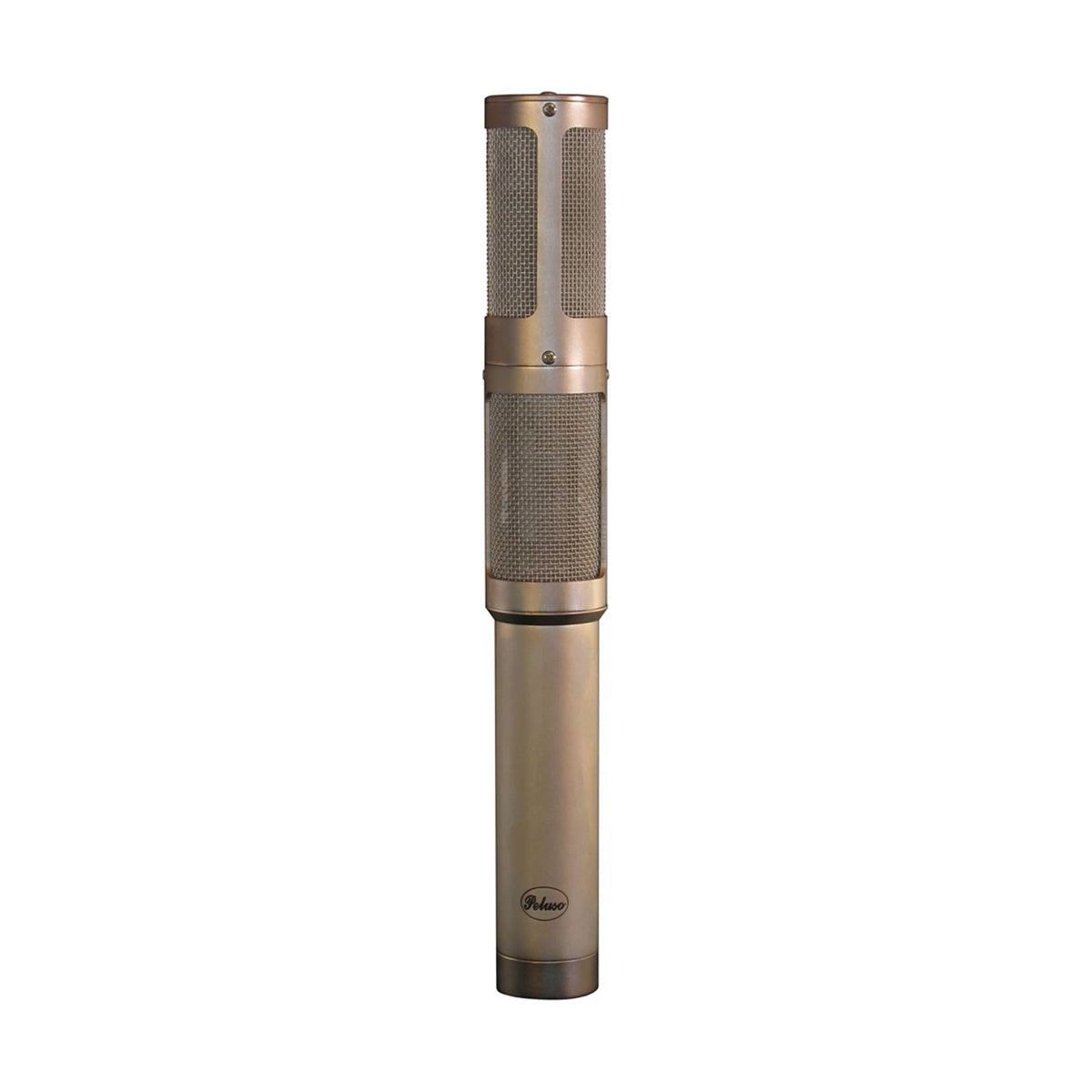

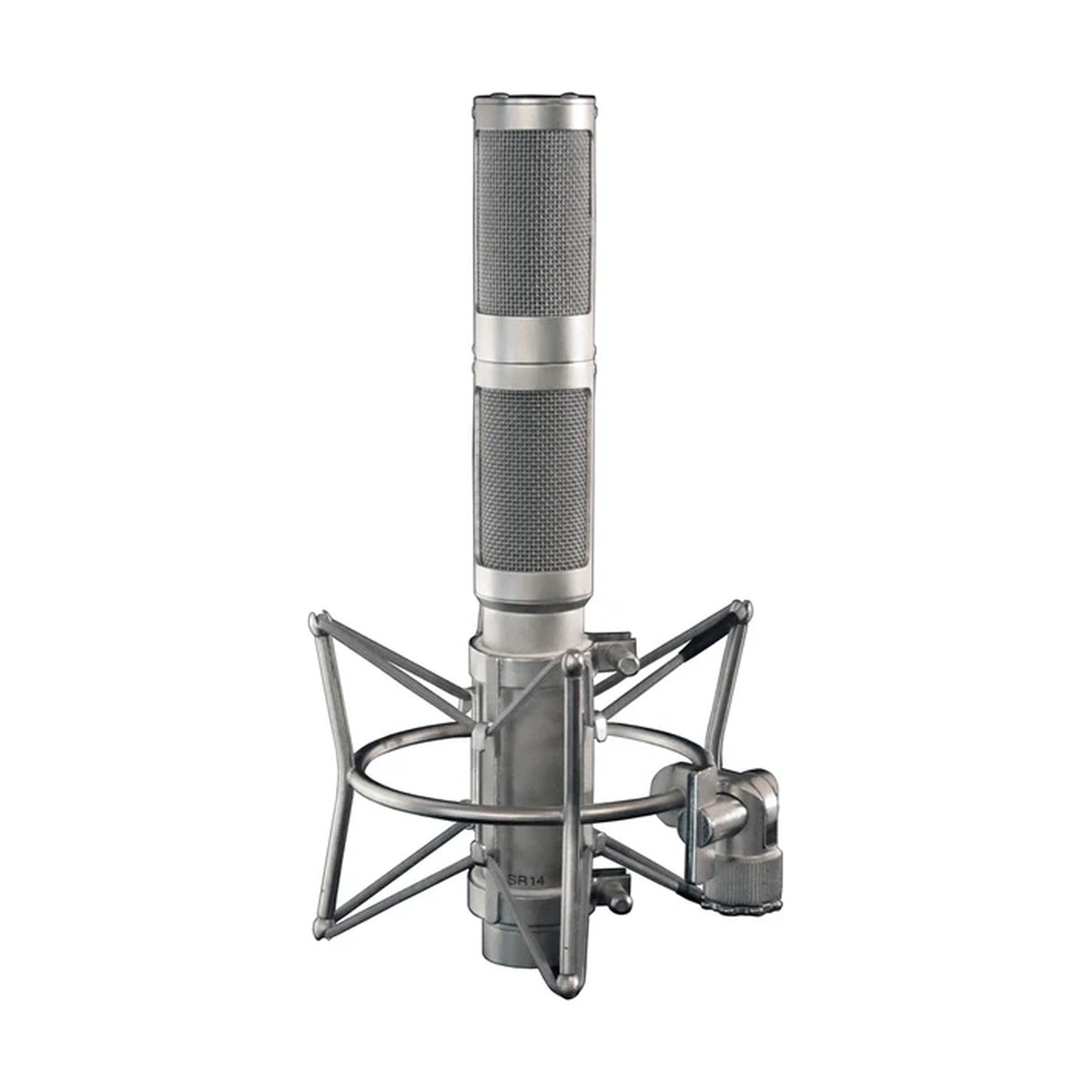

Peluso SR 14 houses two complete R 14 ribbon elements in a single body, forming a ready-made stereo microphone for Blumlein and Mid-Side techniques without pairing and positioning two separate stands.

Blumlein Without Two Stands and a Ruler

The upper ribbon element rotates up to 90 degrees relative to the lower one, letting you switch instantly between a classic Blumlein array and a Mid-Side setup — both ribbons share the same axis, eliminating the phase errors typical of manually positioning two separate microphones.

Two Independent Transformers in One Body

Two separate, hand-wound output transformers housed in isolated steel compartments inside the body deliver a clean, balanced signal on both channels simultaneously, routed through a single 7-pin cable to two XLR connectors.

Two isolated steel transformer compartments prevent crosstalk between channels — important for stereo techniques, where channel separation directly affects stereo width.

KEY FEATURES

  • Two complete R 14 elements in one body
  • Upper ribbon rotates up to 90° (Blumlein/Mid-Side)
  • Two independent output transformers
  • Figure-8 pattern on both channels
  • Passive microphone — no power required
  • Output: 7-pin cable to two XLR connectors

TECHNICAL SPECIFICATIONS

  • Frequency response: 30Hz-16kHz
  • Output impedance: 200 Ω (per channel)
  • Max SPL: 149 dB
  • Pattern: figure-8, both channels
  • Power: none required (passive microphone)
  • Transformers: 2x in isolated steel compartments
  • Power input: 7-pin cable
