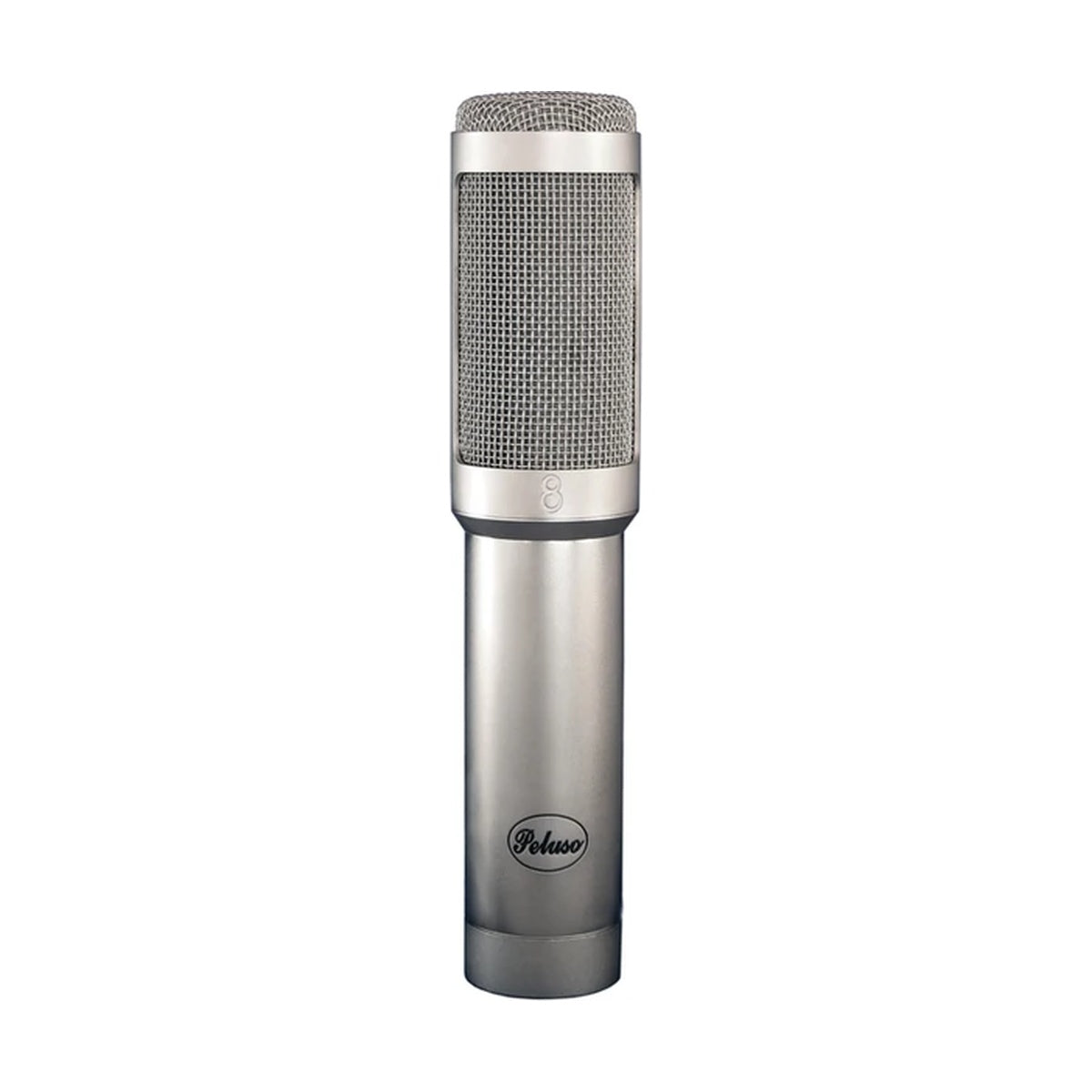

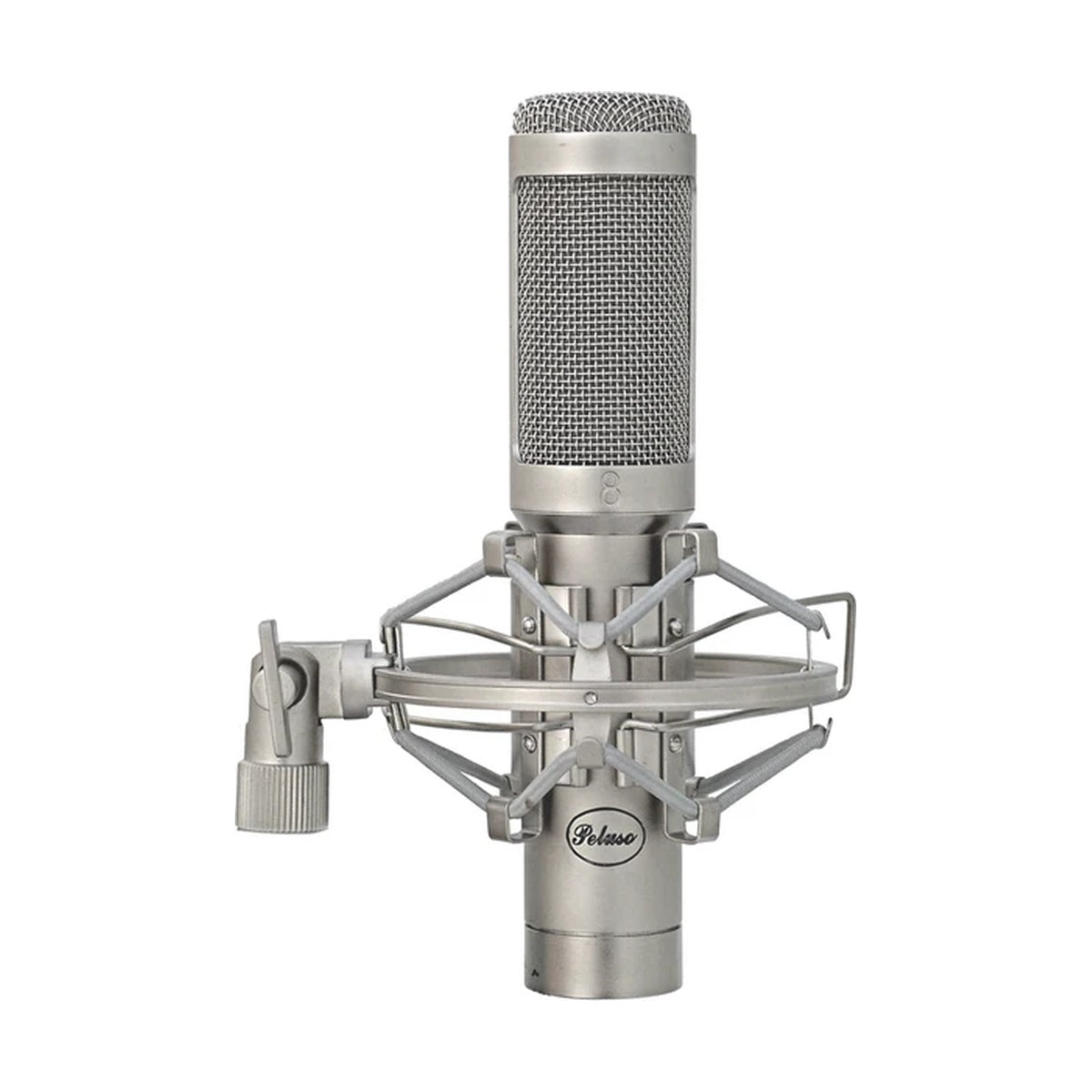

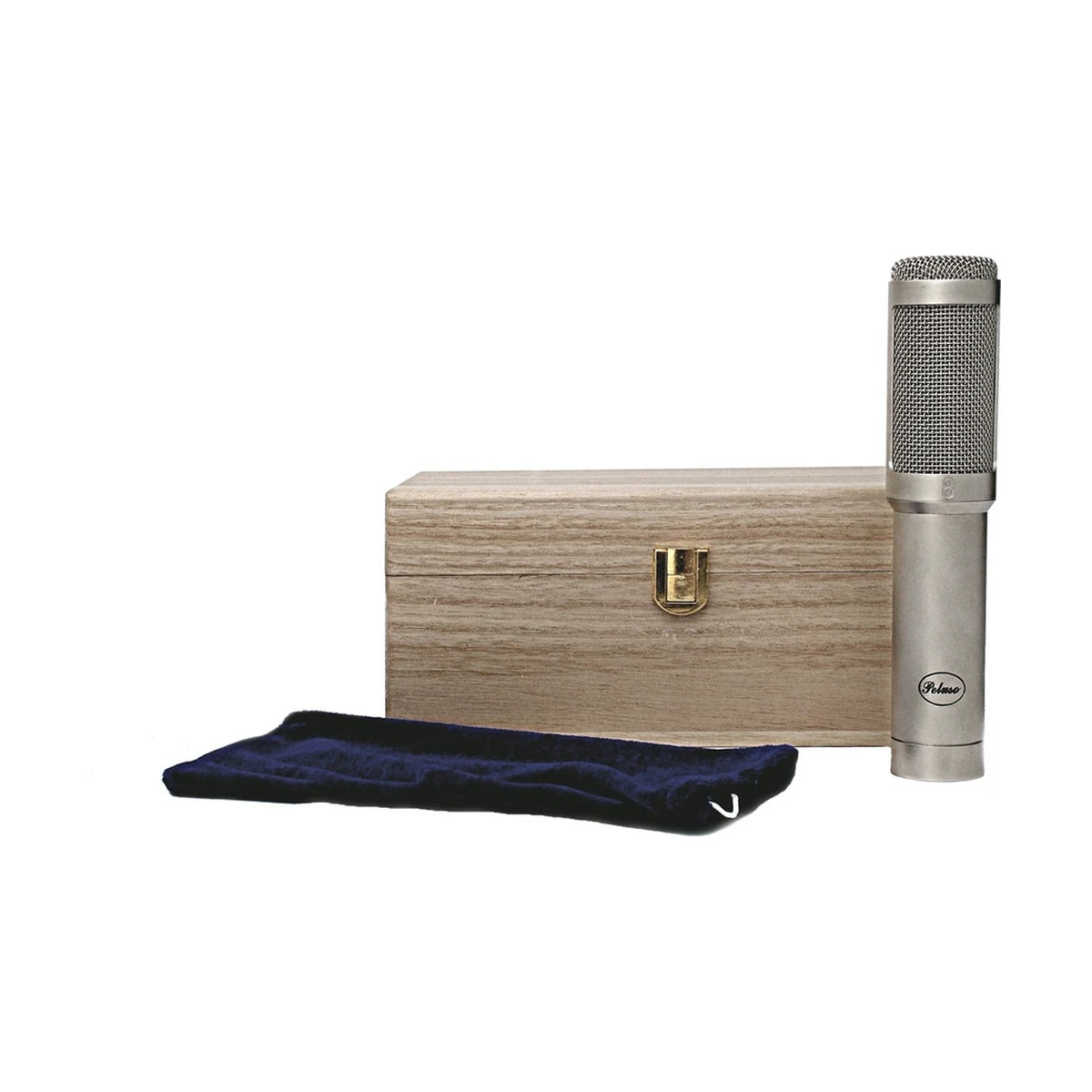

Peluso Microphone Lab R 14 Ribbon

Peluso R 14 is a passive ribbon microphone in the classic long-ribbon style of vintage RCA microphones — no electronics, no power required, delivering the natural, warm tone typical of the best ribbons from the mid-20th century.

Warmth Without Electronics to Power

A thin, corrugated aluminum ribbon suspended between two neodymium magnets generates signal purely through electrodynamic induction, with no transistors or tubes in the path — the approach closest to original ribbon designs, prized for a smooth top end and an absence of artificial brightness.

A Figure-8 Pattern for Natural Off-Axis Rejection

A bidirectional (figure-8) pattern with a long-geometry ribbon positioned slightly forward of the magnet's center produces a gentle low-end roll-off on the rear side — a useful effect for managing proximity effect on vocals or acoustic guitar.

With no active electronics at all, there's no battery to replace or power circuit to service — the only mechanical element requiring care is the ribbon itself.

KEY FEATURES

• Passive ribbon design — no power required
• Thin, corrugated aluminum ribbon
• Neodymium magnets
• Figure-8 (bidirectional) pattern
• Custom output transformer
• Long ribbon geometry in the classic RCA style

TECHNICAL SPECIFICATIONS

• Frequency response: 30Hz-16kHz
• Output impedance: 200 Ω
• Max SPL: 149 dB
• Sensitivity: -52 dBV (re 1V/Pa)
• Noise level: 0 dB(A)
• Power: none required (passive microphone)
• Power: none (fully passive microphone)
• Design: no active electronics in the signal path
