Ortofon Stylus Night Club E igła
This item is available on a custom order basis only. Please contact us for more details. Contact us

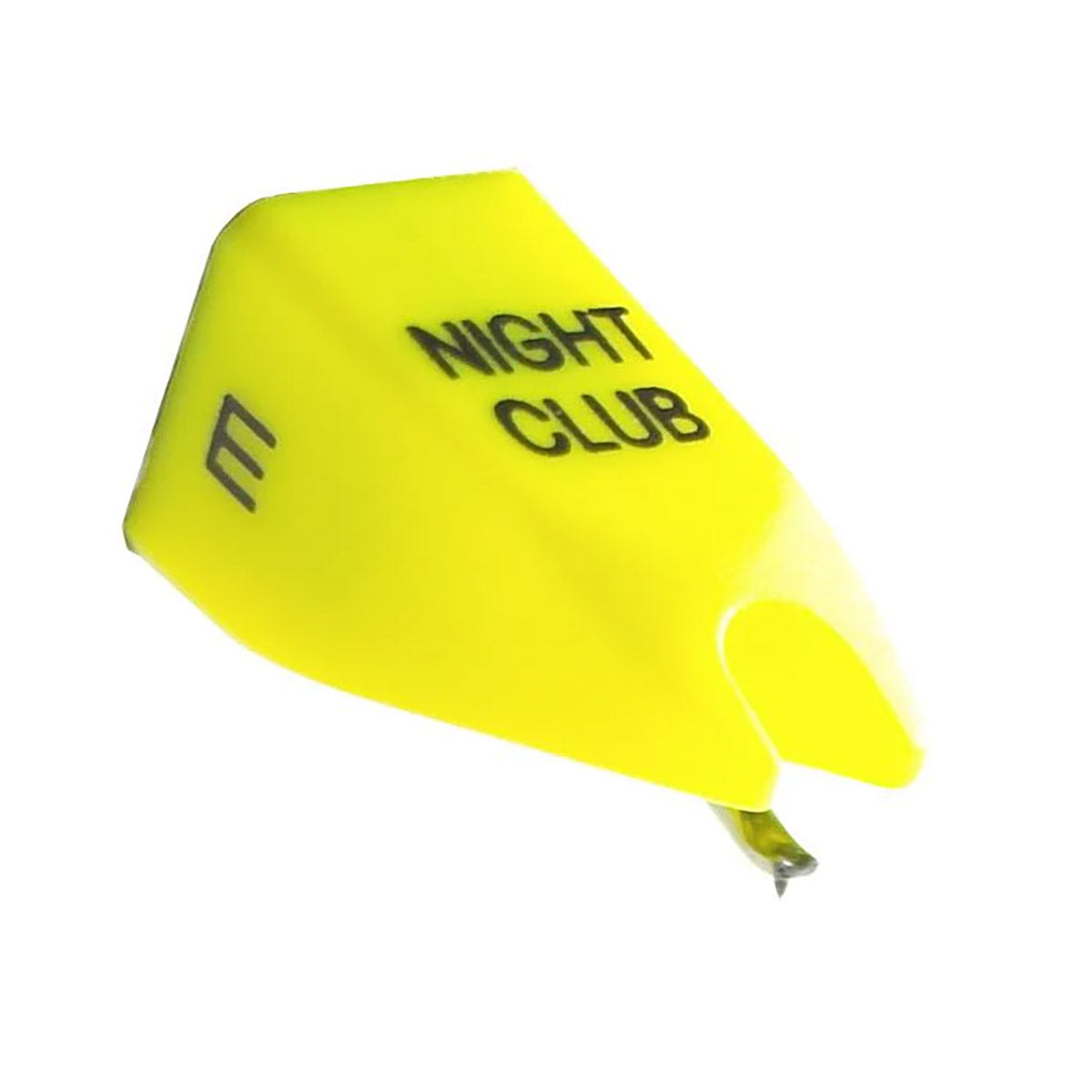

Ortofon Stylus Night Club E is a high-end replacement stylus featuring a special elliptical diamond, 8 mV output, suitable for club and studio use. This stylus offers superb sound quality with minimal scratching.
The Stylus Night Club E is a replacement stylus designed for demanding club and studio environments. This model is equipped with a Special Elliptical diamond stylus, which contributes to its exceptional audio performance. It is considered a high-end option by both club DJs and studio professionals. The Night Club E delivers a strong 8 mV output and possesses a frequency response that competes with audiophile-grade cartridges. The special elliptical stylus ensures sound reproduction with reduced scratching. This stylus provides high performance and exceptional musical capabilities.
Stylus Night Club E Features
- Special Elliptical diamond stylus
- Suitable for club and studio environments
- Superb sound quality
- High output of 8 mV
- Frequency response rivals audiophile cartridges
- Minimal scratching during playback
- High-end performance for demanding applications
Stylus Night Club E Specifications
- Channel balance at 1 kHz: 1.5 dB
- Output voltage at 1 kHz, 5cm/sec: 8 mV
- Channel separation at 1 kHz: 23 dB
- Frequency response: 20 Hz - 20 kHz (+/- 1.5 dB)
- Tracking ability at 315Hz: 65 μm
- Compliance, dynamic, lateral: 20 μm/m N
- Stylus type: Elliptical
- Stylus tip radius: r/R 8/18 μm
- Tracking force range: 2.0-5.0 g (20-50 mN)
- Tracking force, recommended: 3.0 g (30 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 1000 Ohm
- Cartridge weight: 18.5 g
- Recommended load resistance: 47 kOhm
- Internal inductance: 580 mH
- Recommended load capacitance: 200-600 pF
