Ortofon

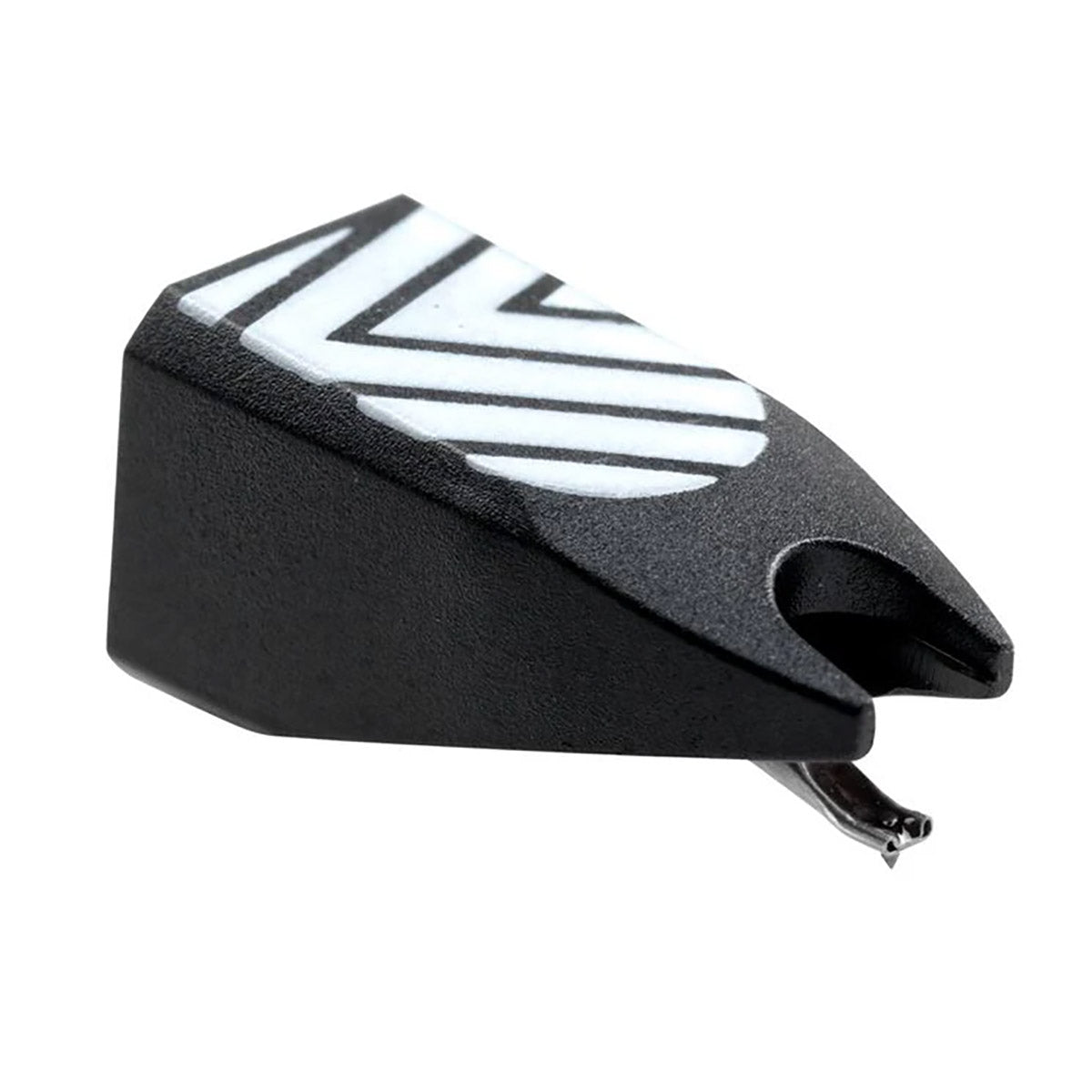

Ortofon Stylus Cocoon
This item is available on a custom order basis only. Please contact us for more details. Contact us
Ortofon Stylus Cocoon is the ultimate club cartridge, renowned for its superb sound quality. It features a special elliptical stylus, 8mV output, and a 2-5g tracking force range. Designed for club use withstanding heavy back-cueing.
The Stylus Cocoon is a cartridge designed for club environments, renowned for its robust build and exceptional audio fidelity. Developed in collaboration with the Cocoon club brand, this cartridge was introduced as a limited edition of 500 units at the Frankfurt Music Trade Show in 2013. It utilizes a special elliptical stylus, constructed to endure heavy back-cueing while ensuring a high output signal, optimized for delivery through a mixer or preamplifier. This design results in an exceptional listening experience, with a focus on clear, high-quality sound reproduction.
Stylus Cocoon Features
- High output
- Special Elliptical Stylus
- Withstands heavy back-cueing
- Premium sound quality
- Optimized for club use
- Developed in collaboration with Cocoon
Stylus Cocoon Specifications
- Channel balance at 1 kHz: 1.5 dB
- Output voltage at 1 kHz, 5cm/sec: 8 mV
- Channel separation at 1 kHz: 23 dB
- Frequency response: 20 Hz - 20 kHz +/-1.5 dB
- Tracking ability at 315Hz: 80 μm
- Compliance, dynamic, lateral: 7 μm/mN
- Stylus type: Special Elliptical
- Tracking force range: 2.0-5.0 g (20-50 mN)
- Tracking force, recommended: 3.0 g (30 mN)
- Cartridge weight: 1 g (stylus)
