Ortofon

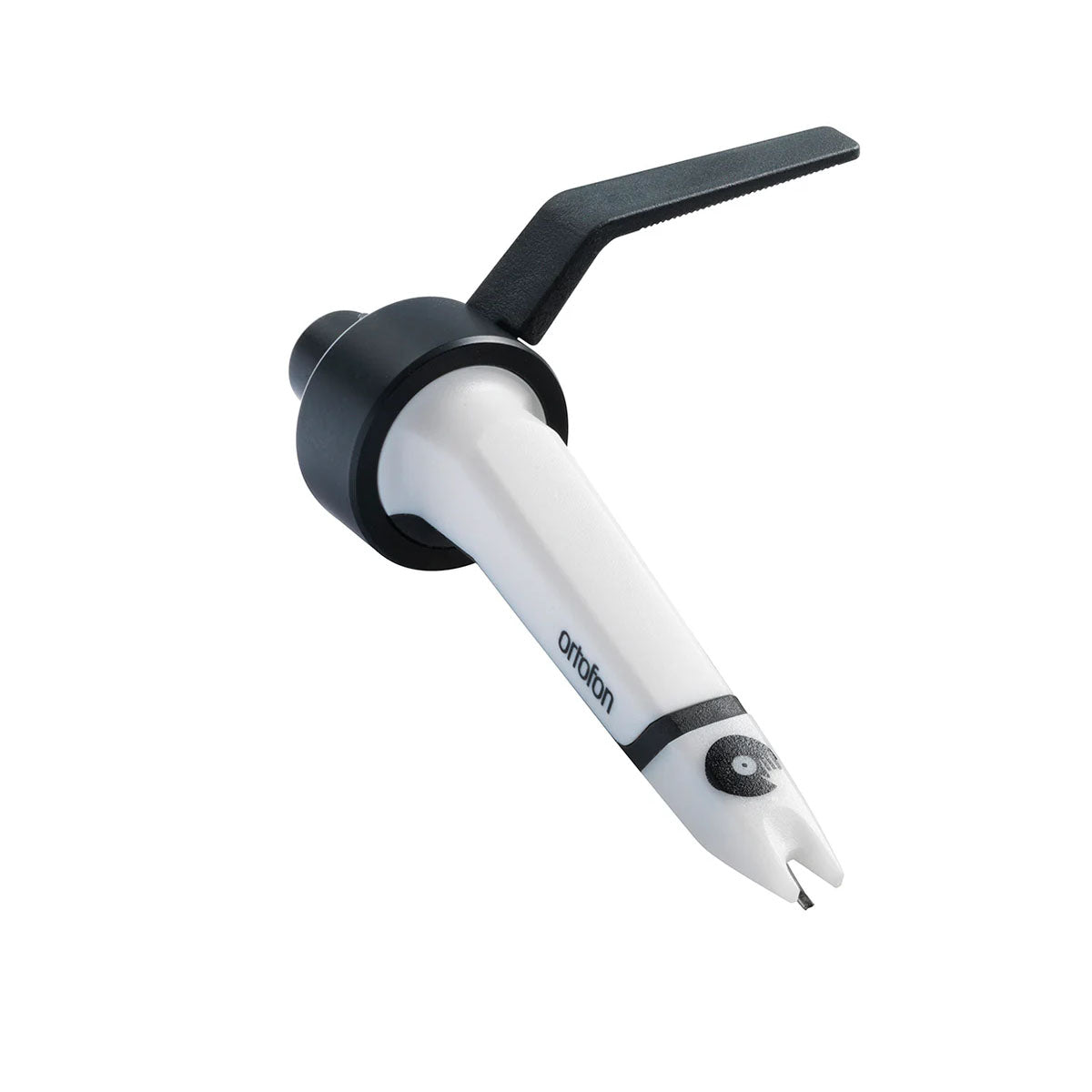

Ortofon Concorde Scratch MKII

Sale price€133,52
SPECIAL ORDER

Tax included. Shipping calculated at checkout

SKU: 544123
Quantity:

This item is available on a custom order basis only. Please contact us for more details. Contact us

The Ortofon Concorde Scratch MKII is a scratching and back-cueing cartridge featuring a spherical stylus, a tracking force of 3-5 grams, an output voltage of 10 mV, and a frequency response of 20 Hz - 18 kHz.

The Concorde MKII Scratch cartridge from studio and DJ equipment manufacturer Ortofon is designed for DJs who prefer scratching techniques. With a 10 mV output voltage, this cartridge is ideal for this technique, particularly suitable for signals with a high quantity of low frequencies.

Concorde Scratch MKII Features

  • Designed for Scratching and Back-Cueing: Specifically engineered for these DJ techniques.
  • Exceptional Tracking Ability: Maintains groove contact even during intense scratching.
  • High Output Voltage (10 mV): Delivers powerful, explosive sound, especially suitable for bass-heavy music.
  • Spherical Stylus: Preferred by DJs for scratch and back-cueing due to its groove preservation.
  • Durable Construction: Implied by its suitability for demanding scratching techniques.
  • Suitable for All Music Styles: Provides energetic sound across various genres.

Concorde Scratch MKII Specifications

  • Channel balance at 1 kHz: 1 dB
  • Output voltage at 1 kHz, 5cm/sec: 10 mV
  • Channel separation at 1 kHz: 22 dB
  • Tracking ability at 315Hz: 120 μm
  • Compliance, dynamic, lateral: 14 μm/mN
  • Cantilever material: Aluminium
  • Stylus type: Spherical diamond
  • Stylus tip radius: R 18 μm
  • Tracking force range: 3 - 5 g
  • Recommended tracking force: 4 g
  • Internal impedance, DC resistance: 1200 Ohm
  • Cartridge weight: 18.5 g
  • Recommended load resistance: 47 kOhm
  • Internal inductance: 850 mH
  • Recommended load capacitance: 200-400 pF
