Ortofon

Ortofon Concorde Club Twin MKII

Sale price€295,08
SPECIAL ORDER

Tax included. Shipping calculated at checkout

SKU: 544116
Quantity:

This item is available on a custom order basis only. Please contact us for more details. Contact us

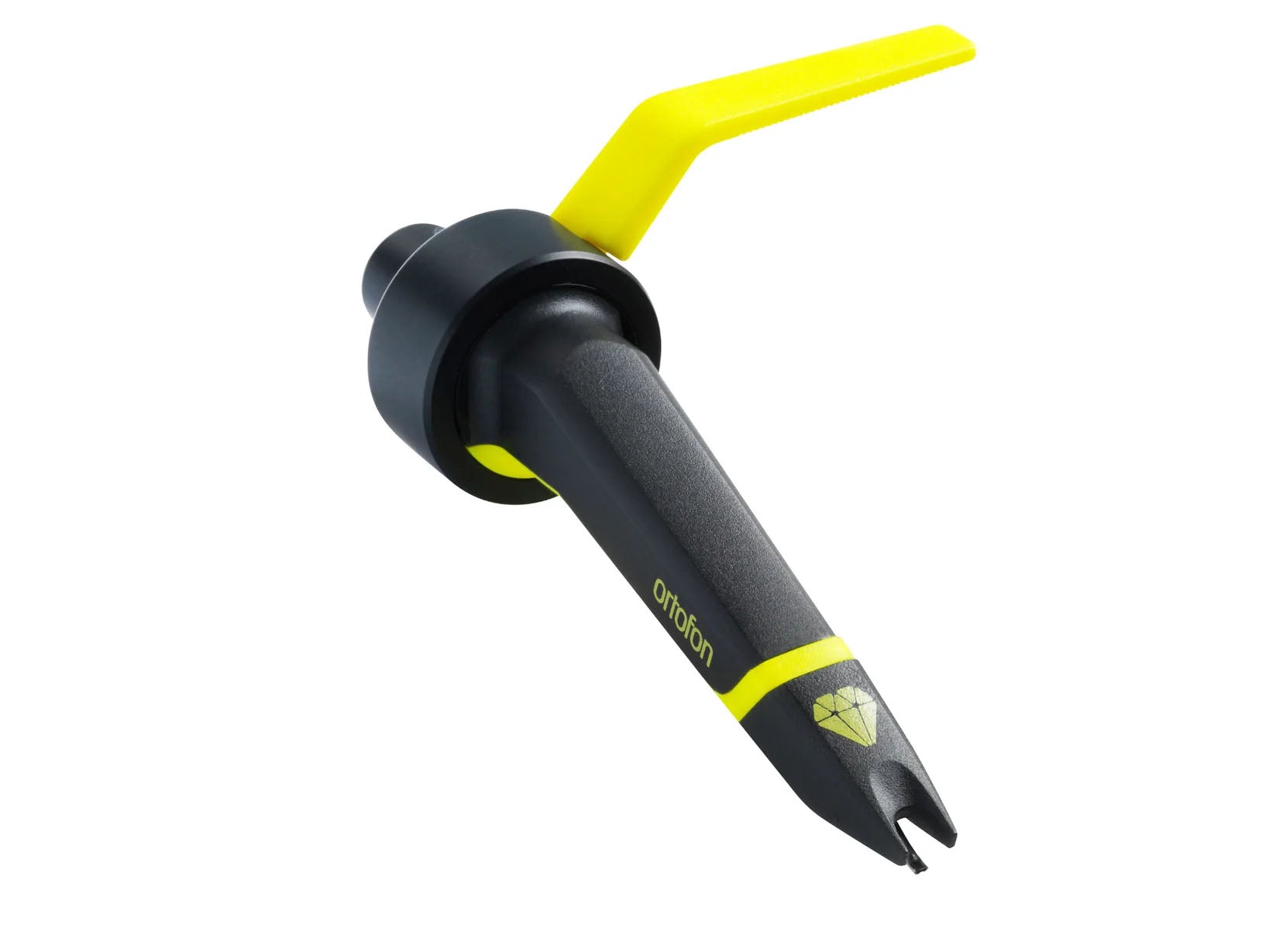

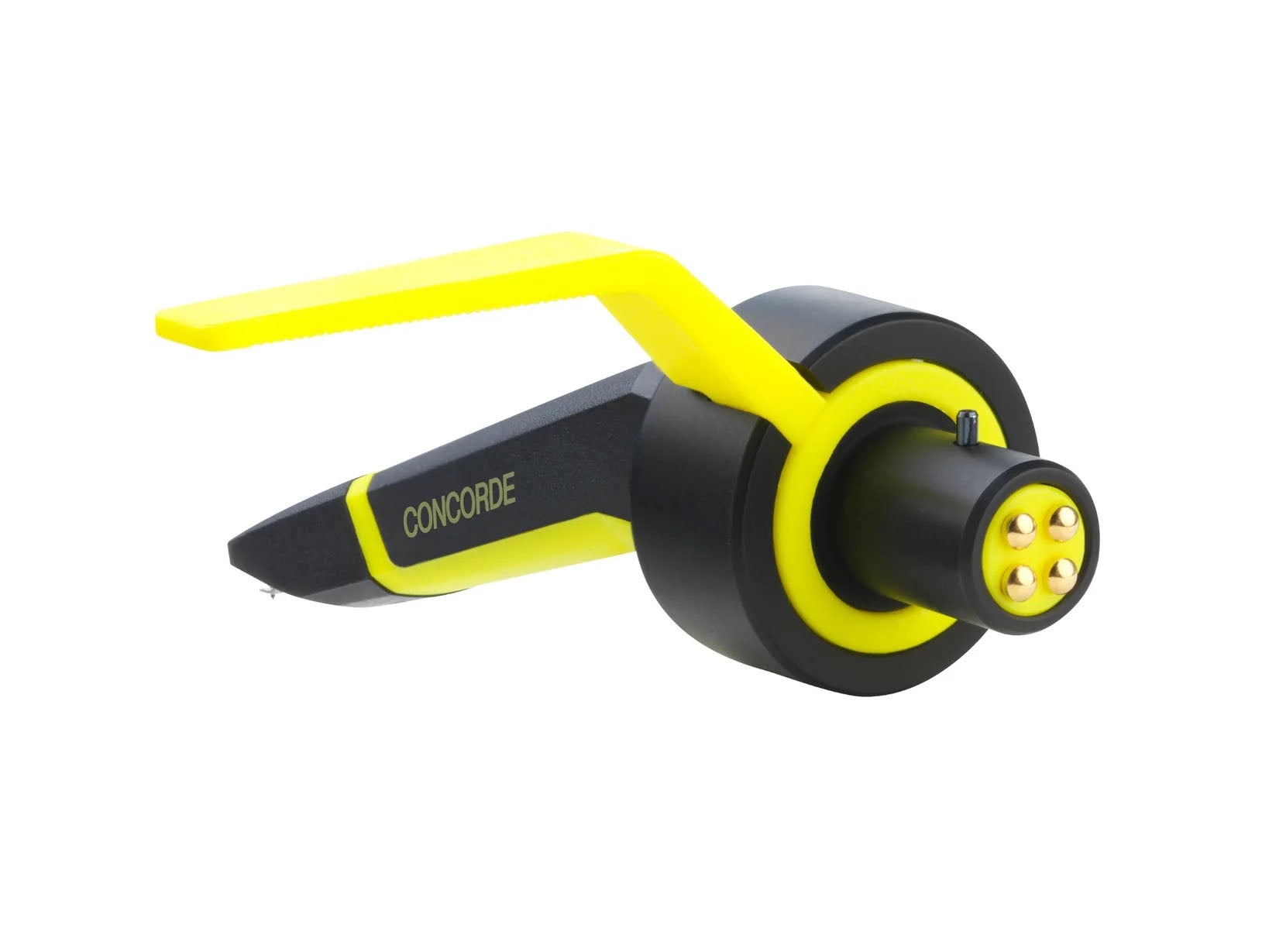

The Ortofon Concorde Club Twin MKII is a 2 x cartridge featuring a Special Elliptical stylus designed for sampling and recording. Key features include a special elliptical stylus, tracking force of 2-4 grams, an output voltage of 8mV at 5cm/sec, and a frequency response of 20Hz - 20kHz.

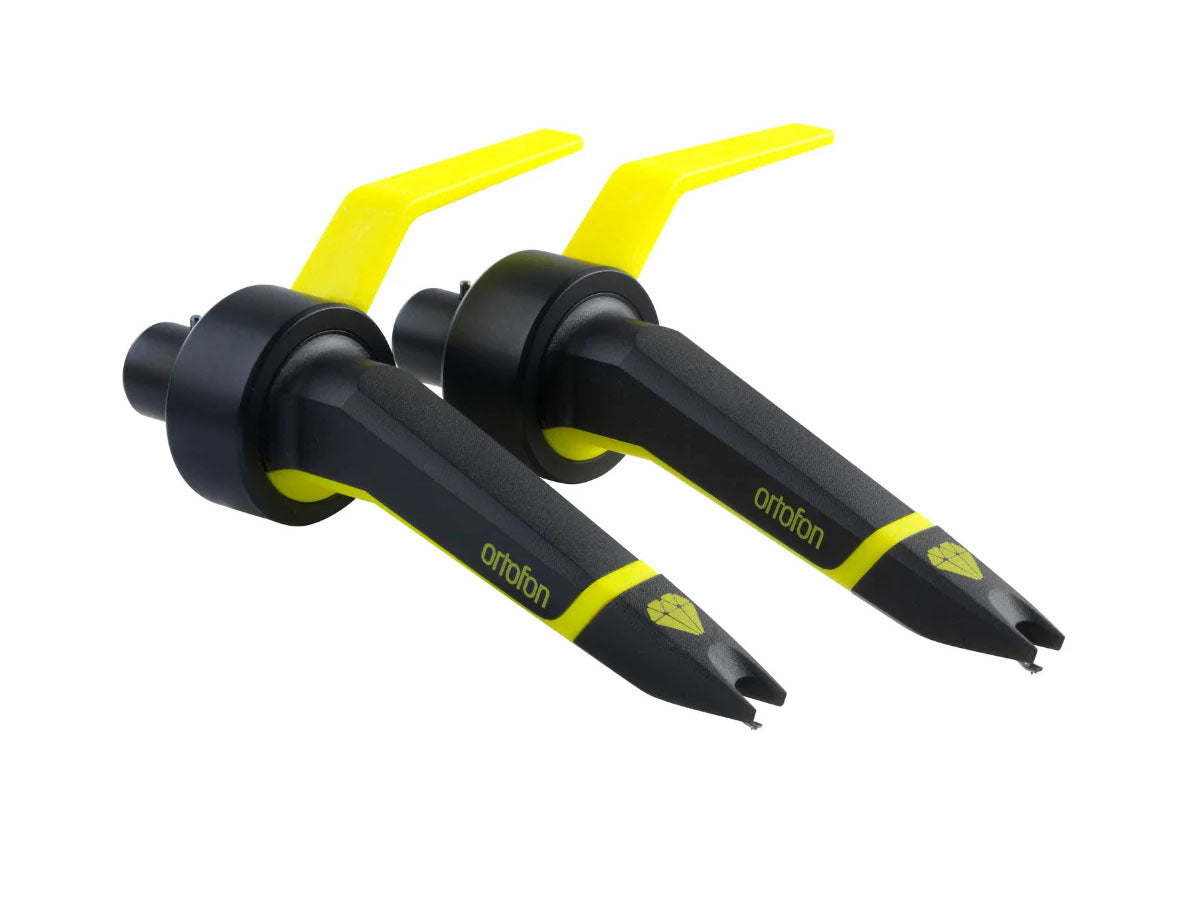

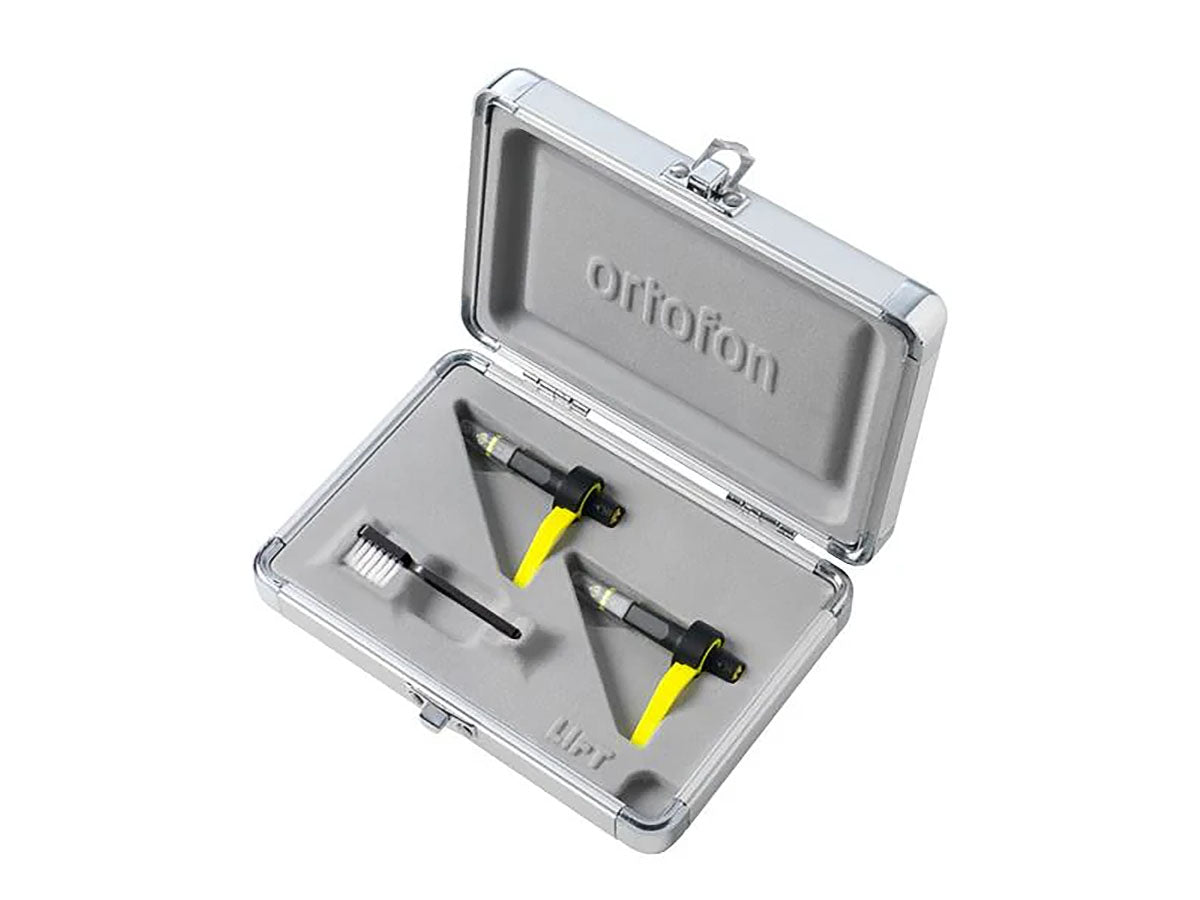

The Concorde MKII Club Twin MK2 package consists of 2 x Concorde MKII Club cartridges and offers an ideal price-performance ratio.

The Concorde MKII Club cartridge from studio and DJ equipment manufacturer Ortofon is the ideal choice for club DJs regardless of location – whether in the studio, club, or during radio/TV appearances. It's equipped with a special elliptical stylus that improves information retrieval due to deeper groove contact. With an 8mV output voltage, a high preamp gain isn't needed, resulting in more detailed signal reproduction and reduced feedback during live performances.

Concorde Club MKII Features

  • 2 x Concorde MKII Club
  • Exceptional Sound Quality
  • High Output Voltage (8mV)
  • Special Elliptic Stylus
  • Ideal for Club DJs
  • Reduced Feedback
  • Improved Detail Retrieval.

Concorde Club MKII Specifications

  • Channel balance at 1 kHz: 1 dB
  • Output voltage at 1 kHz, 5cm/sec: 8 mV
  • Channel separation at 1 kHz: 25 dB
  • Tracking ability at 315Hz: 100 μm
  • Compliance, dynamic, lateral: 14 μm/mN
  • Cantilever material: Aluminum
  • Stylus type: Special Elliptical diamond
  • Stylus tip radius: r/R 13/25 μm
  • Tracking force range: 2 - 4 g
  • Recommended tracking force: 3 g
  • Internal impedance, DC resistance: 1000 Ohm
  • Recommended load impedance: 200-600 pF
  • Cartridge weight: 18.5 g
  • Recommended load resistance: 47 kOhm
  • Internal inductance: 650 mH.
