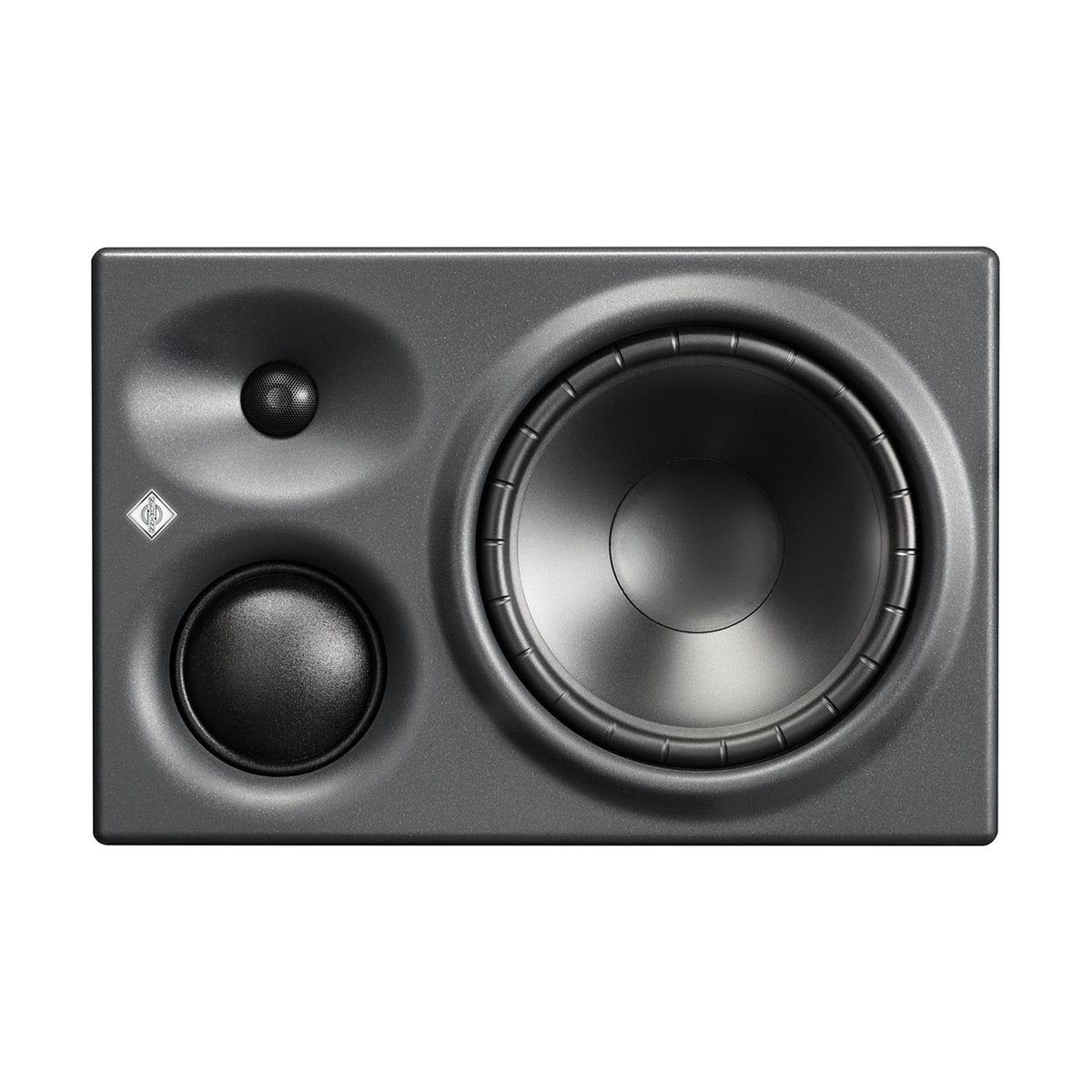

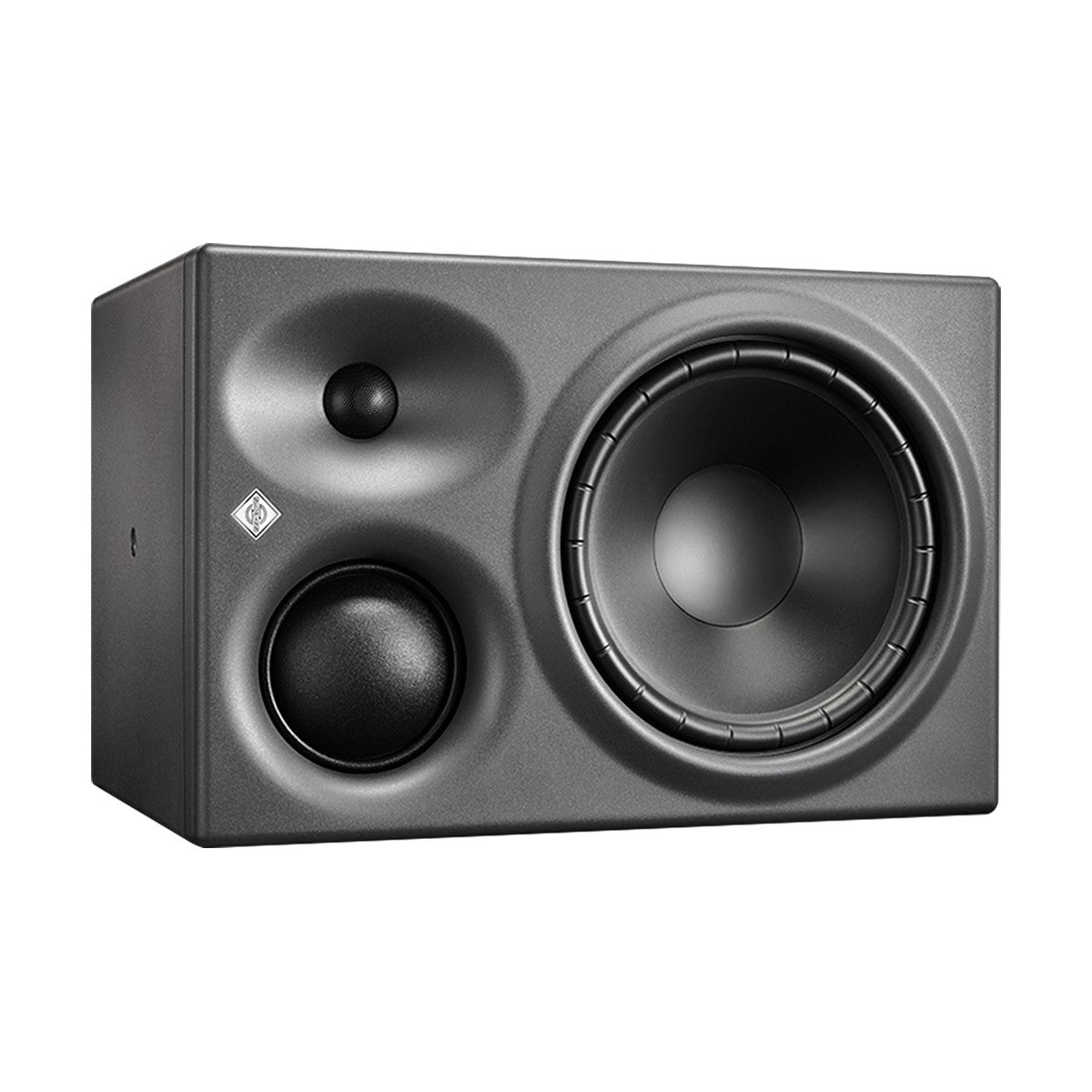

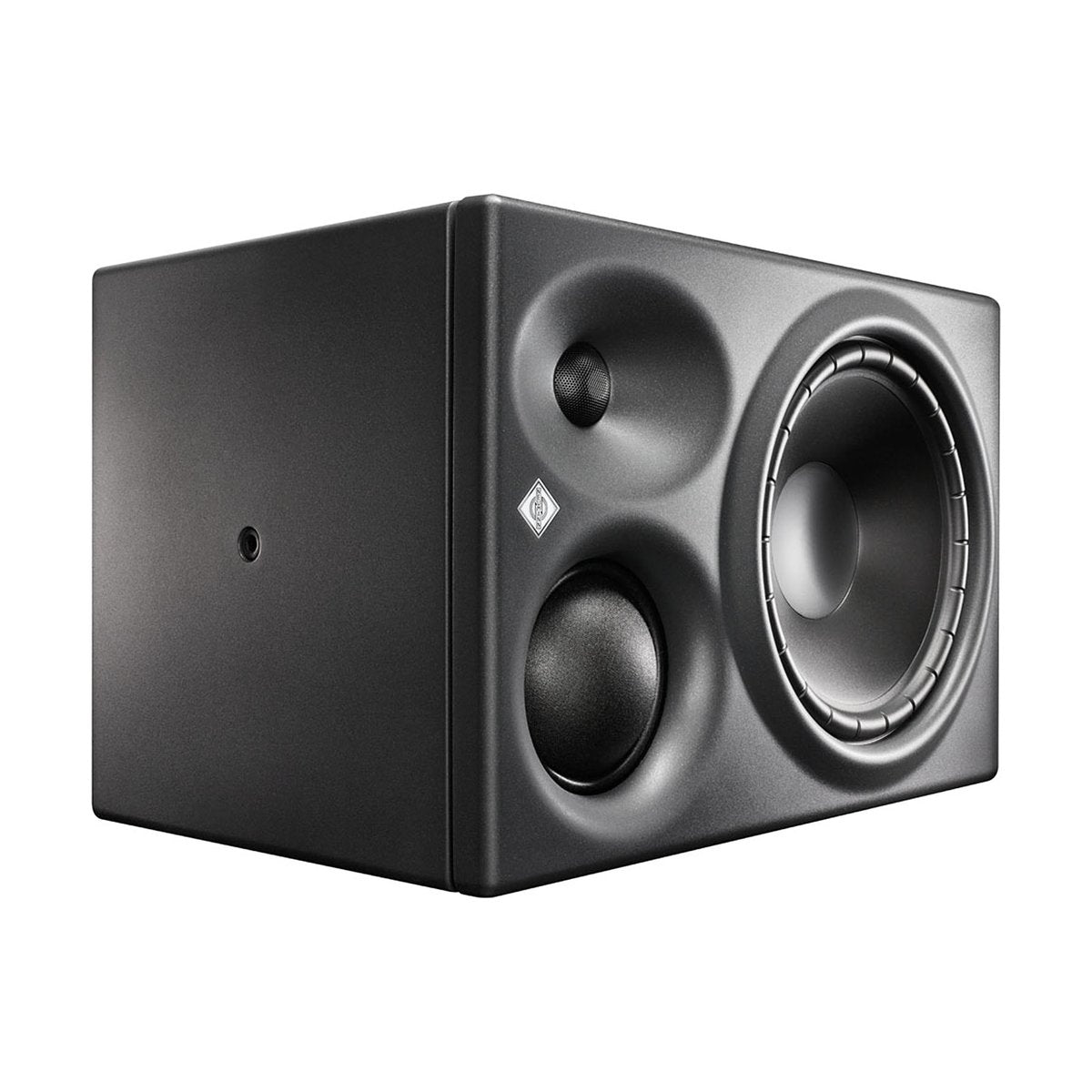

Neumann KH 310 A L G is a three-way, active near-field studio monitor (left channel version), delivering reference audio quality for professional recording studios, post-production, and broadcast applications. Technically identical to the right-channel model, it features three discrete Class AB amplifiers (210W woofer + 2x90W mid/high), achieving maximum SPL of 116.3 dB and bass extension to 34 Hz via a sealed cabinet with an 8.25" (210 mm) composite woofer. The Mathematically Modeled Dispersion™ (MMD™) waveguide ensures precise 90°x90° dispersion control, eliminating problematic reflections from work surfaces.
A dedicated 3" fabric dome midrange driver provides exceptional vocal and speech clarity, while the 1" MMD™ waveguide tweeter reproduces highs with ultimate precision. The monitor offers 4-position acoustic controls (Bass/Mid/Treble Gain), input attenuator (-12 dB), dimmable LED meters, and Ground Lift switch. Advanced multi-stage limiting (excursion, driver, thermal) protects the drivers from overload. Magnetic shielding enables seamless operation with video monitors, making the KH 310 A L G perfect for project studios, music production, and television environments.
KEY FEATURES
- Three-way active monitor (210W LF + 2x90W MF/HF Class AB)
- MMD™ waveguide technology (precise 90°x90° dispersion)
- 8.25" woofer, 3" fabric dome midrange, 1" MMD™ tweeter
- 4-position acoustic controls Bass/Mid/Treble (-3/+3 dB)
- Advanced limiting (excursion, driver, thermal protection)
- Magnetic shielding for video monitor compatibility

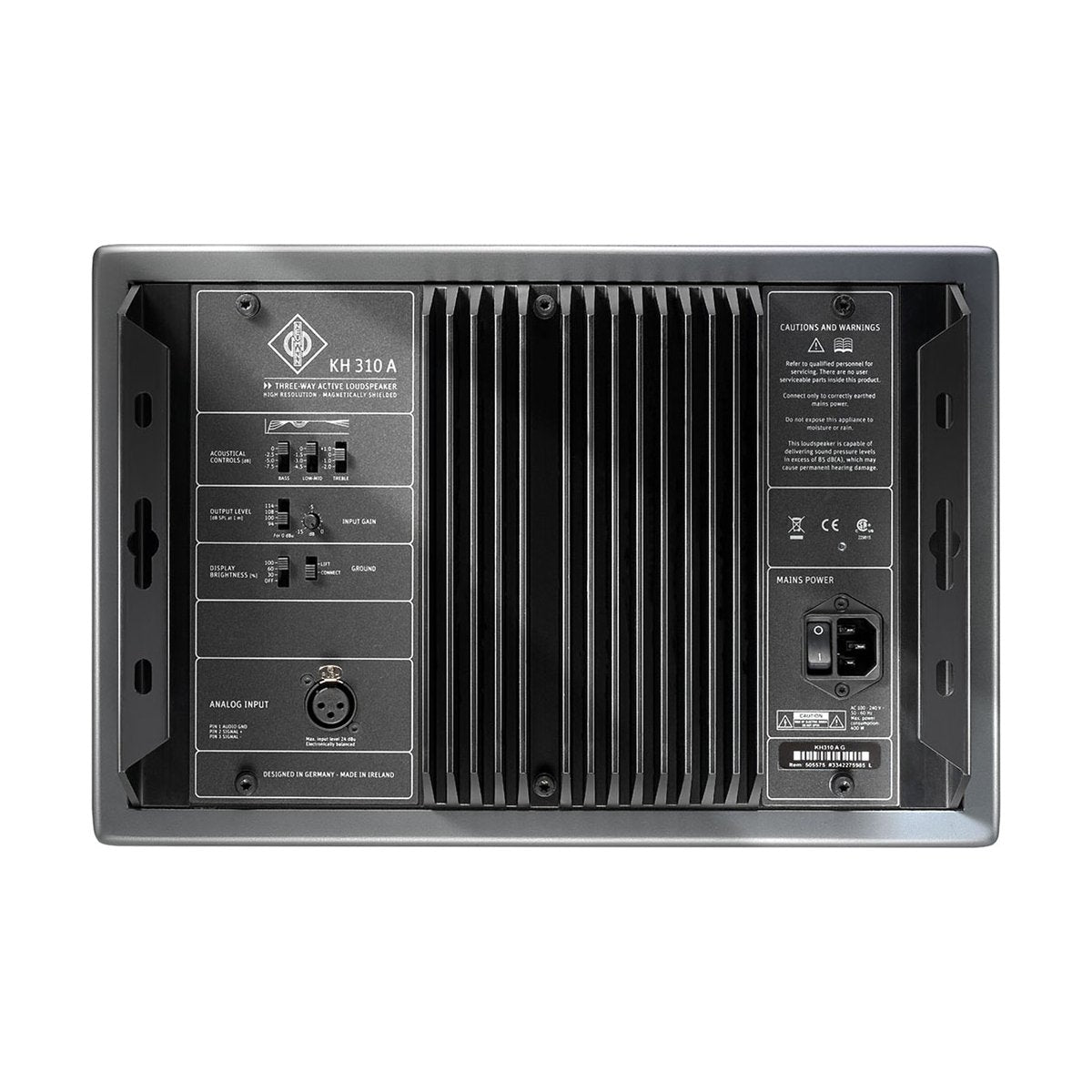

- XLR analog input (+14/+24 dBu), dimmable LED meters
- Sealed cabinet design (34 Hz - 21 kHz (-3dB))
TECHNICAL SPECIFICATIONS
- Configuration: 3-way active (tri-amplified) - LEFT
- Drivers: 210 mm woofer, 75 mm mid dome, 25 mm tweeter
- Frequency Response: 34 Hz - 21 kHz (-3 dB)
- Max SPL: 116.3 dB @ 1m (half-space averaged)
- Amplifiers: 210W LF + 90W MF + 90W HF (Class AB)
- Input: Balanced XLR analog (+14/+24 dBu selectable)
- Controls: 4-pos Bass/Mid/Treble, Input Gain, Output Level
- Dimensions: 253 x 383 x 292 mm (HxWxD), weight 13 kg
