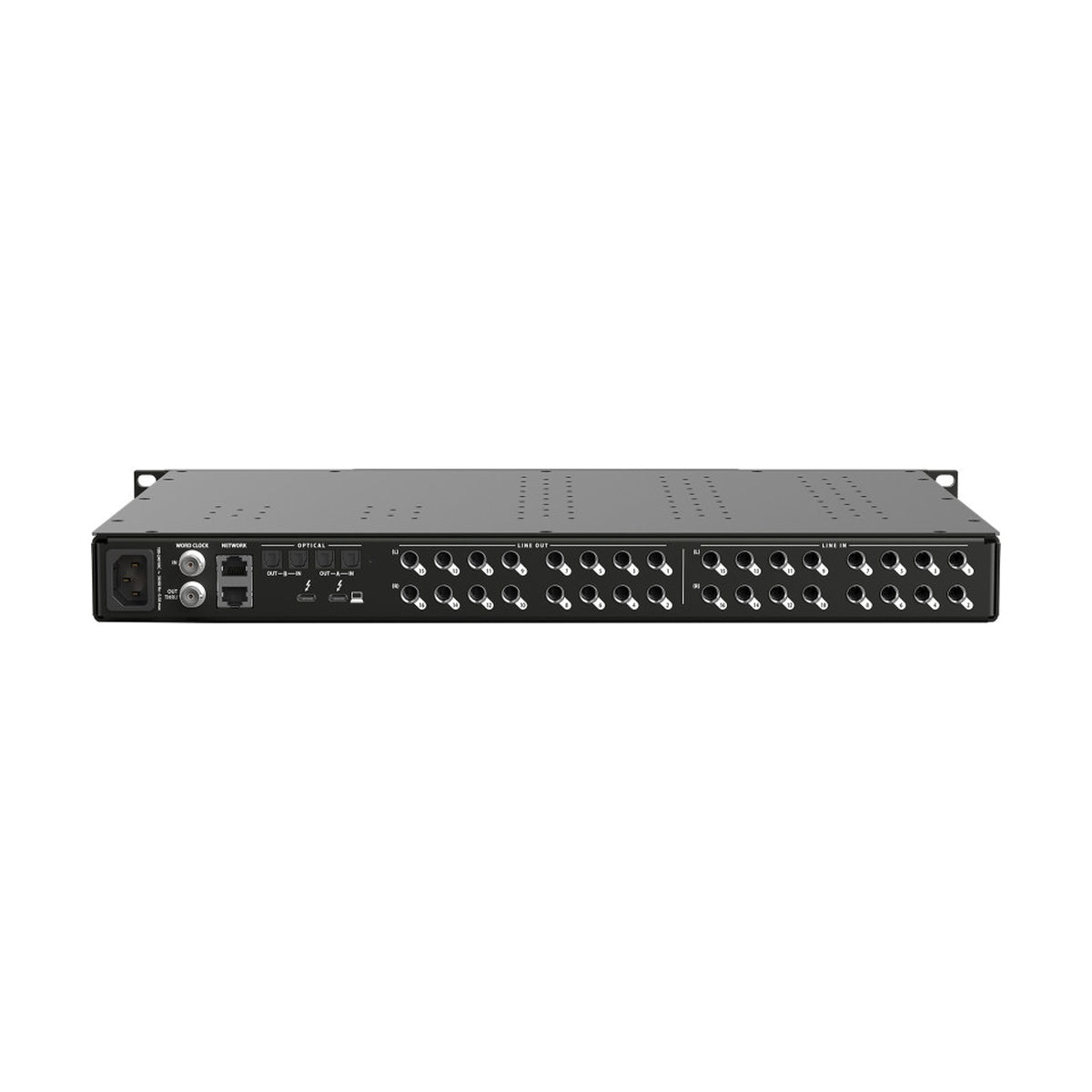

MOTU 16A – 32x34 audio interface with Thunderbolt 4 / USB4 connectivity, ESS Sabre32 Ultra converters, and AVB networking, in a 1U rack chassis.

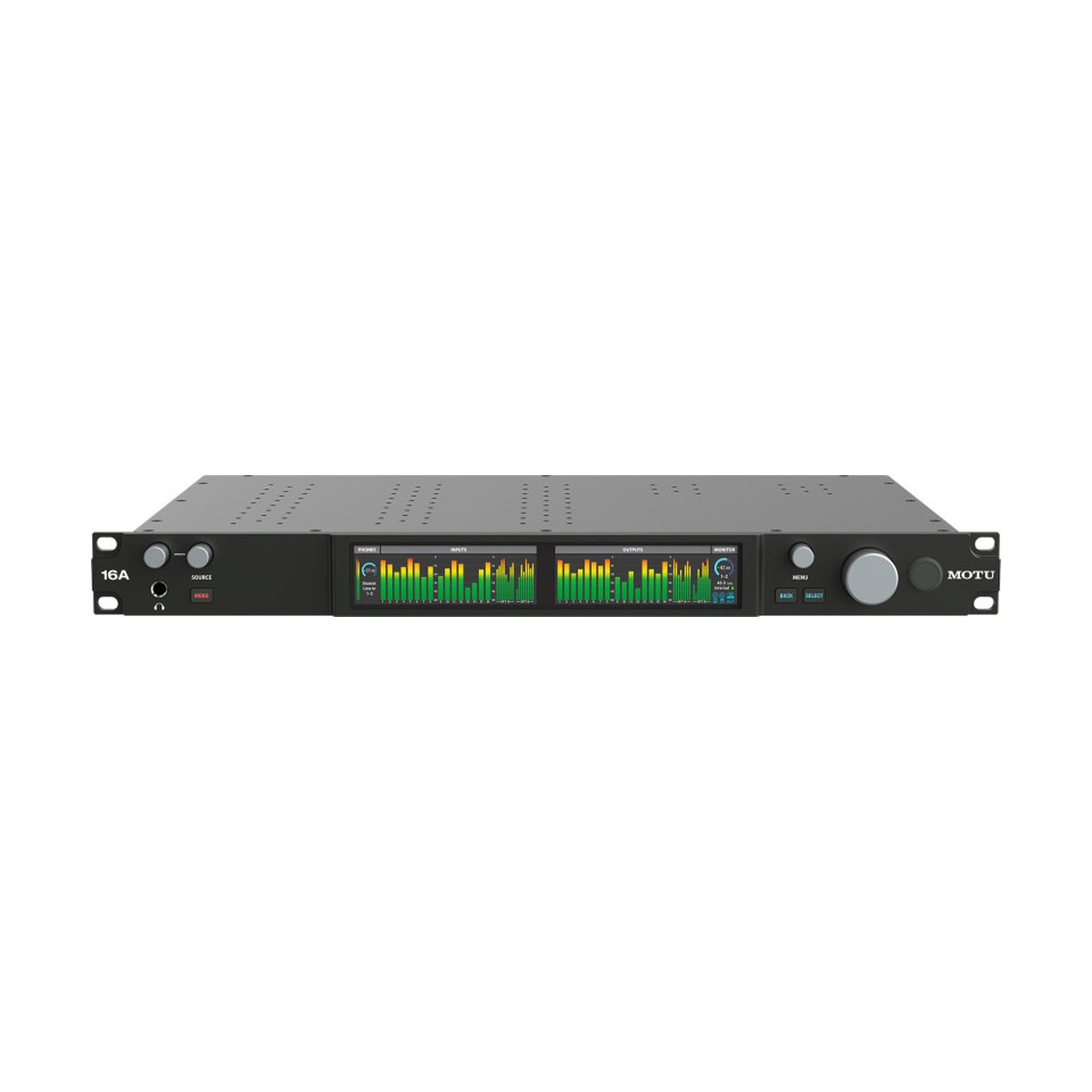

The unit combines 16 balanced TRS inputs and outputs, two 8-channel ADAT optical banks, and a separate headphone output, for a total of 66 simultaneous audio channels at sample rates up to 96 kHz. A built-in 64-channel DSP mixer running 32-bit floating point precision handles 32 aux busses and effects - reverb, four-band EQ, gate, and compressor - independently of the host computer's CPU load. Two 3.9-inch TFT displays show metering for every analog and digital input and output in real time, without needing to open software on the computer.
Universal connectivity without swapping computers
The Thunderbolt 4 / USB4 port negotiates the fastest available connection speed up to 40 Gbps, while staying fully backward compatible with Thunderbolt 3, USB3, and USB2, so the 16A connects to both a current computer with a USB-C port and an older workstation without extra adapters. That flexibility matters in studios handling varied client hardware or gradually rotating a fleet of computers without buying a new interface at every upgrade.Scaling the system without adding PCIe cards
Two Ethernet ports running AVB let you chain additional 16A units or other MOTU interfaces together with a standard network cable, instead of installing extra expansion cards in the computer every time channel count needs to grow. The built-in Milan AVB switch supports building a network across multiple devices and computer workstations with near-zero network latency, even over cable runs hundreds of meters long, which matters for fixed installations in larger venues.KEY FEATURES
- Thunderbolt 4 / USB4 connectivity with full backward compatibility
- 66 simultaneous audio channels (32 inputs, 34 outputs)
- 64-channel DSP mixer with reverb, EQ, gate, and compressor effects
- ESS Sabre32 Ultra converters with high dynamic range
- AVB networking over two Ethernet ports, built-in Milan switch
- Two RGB TFT displays for metering every input and output
TECHNICAL SPECIFICATIONS
- Device type: 32x34 audio interface, 1U rack chassis
- Computer connectivity: Thunderbolt 4 / USB4 (compatible with TB3, USB3, USB2)
- Analog input channels: 16 x balanced TRS
- Analog output channels: 16 x balanced TRS
- Digital I/O: 2 x 8-channel ADAT optical
- Dynamic range (outputs): 125 dB
- Internal mixer: 64 channels, 32 busses, 32-bit float processing
- Networking: 2 x Gigabit Ethernet port (AVB)
- Maximum sample rate: 192 kHz
- Control: CueMix Pro app (Wi-Fi or wired)
