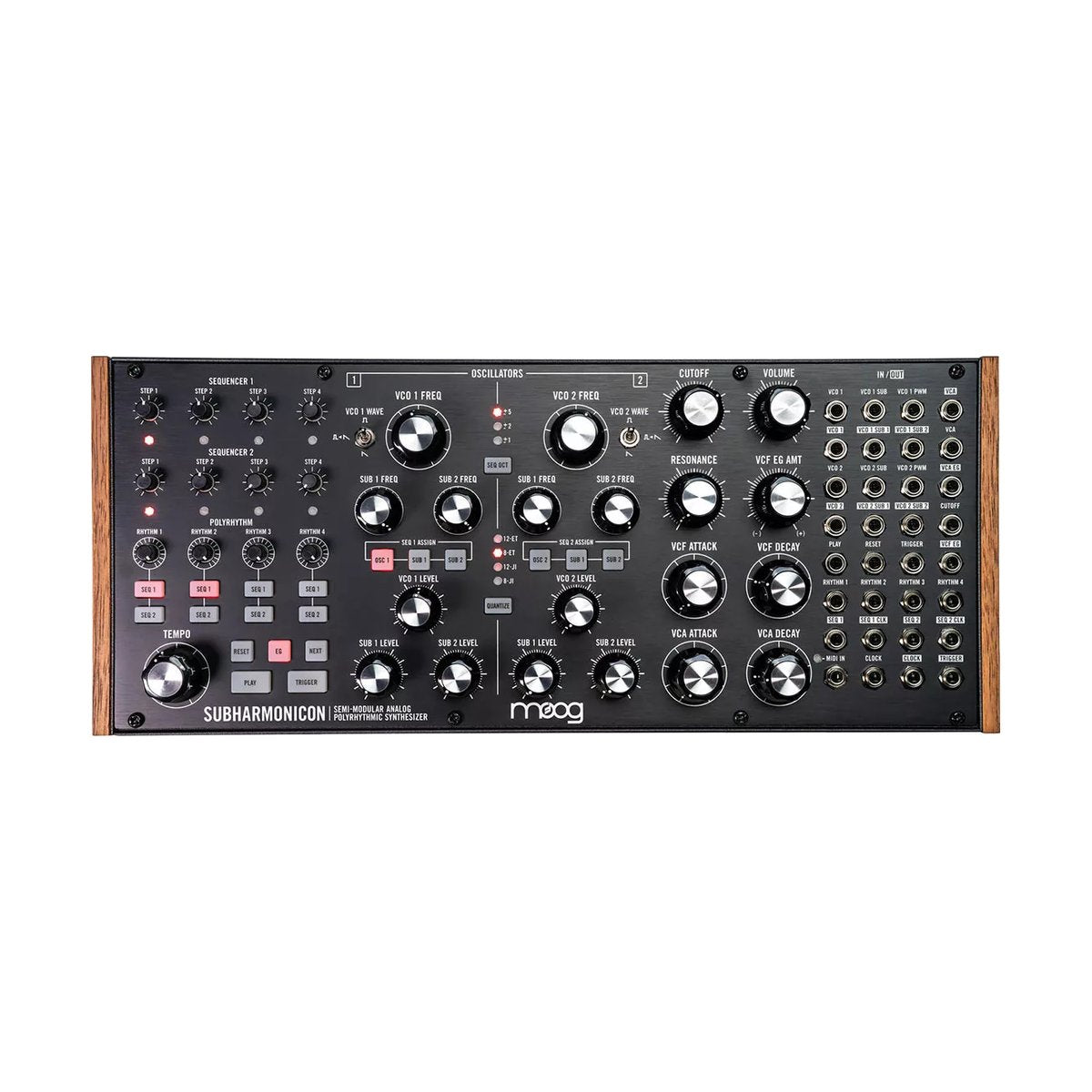

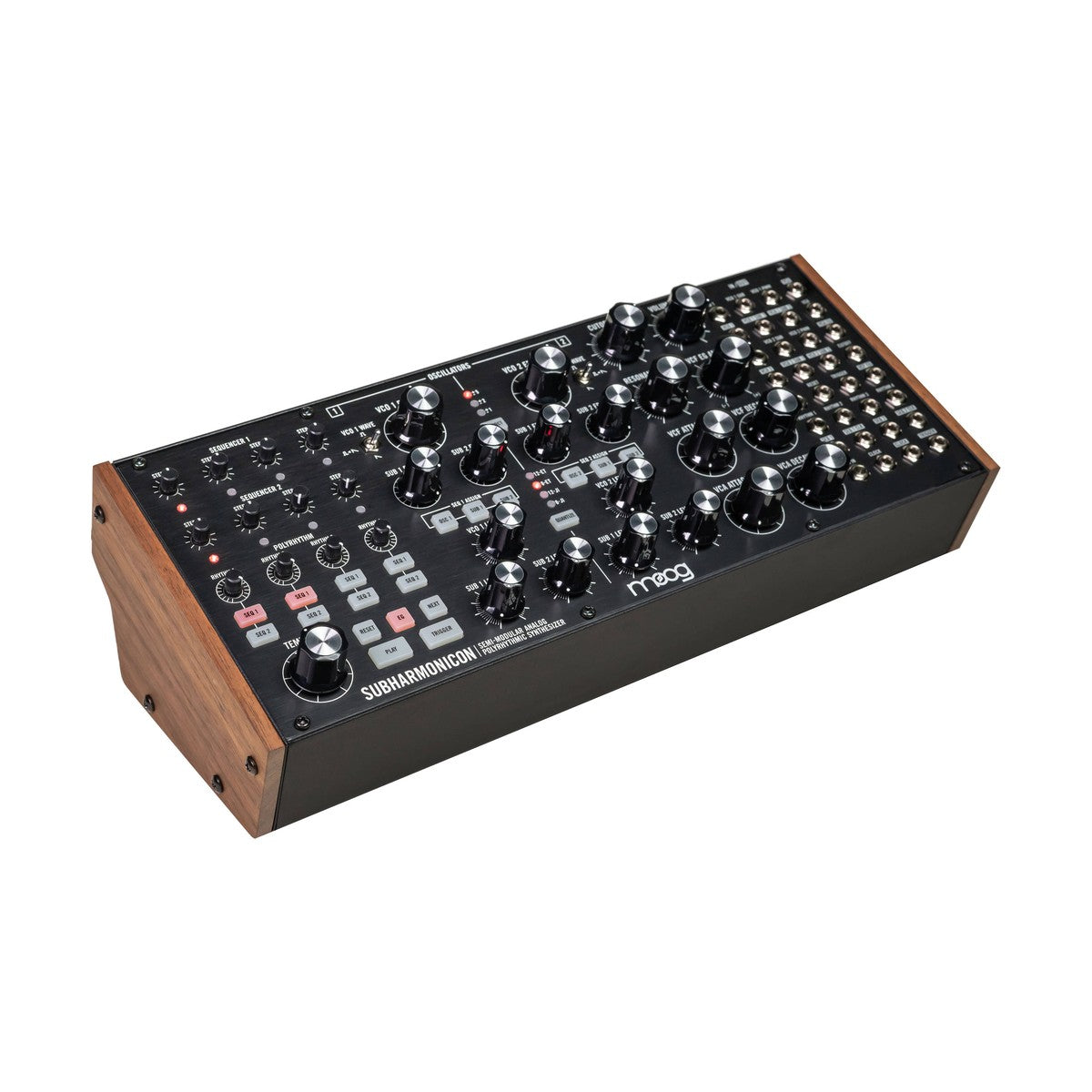

Moog Subharmonicon is a unique semi-modular analog synthesizer that opens the door to the world of subharmonic tones and polyrhythms. With its six-tone sound engine and multi-layered rhythm generator, this instrument allows you to explore the unique relationships between sounds and rhythms, offering endless compositional possibilities. Inspired by historical musical innovations, the Moog Subharmonicon blends rich tradition with modern features, providing an exceptional experience for every creator.
The distinctive sound of the Moog Subharmonicon is based on two main analog oscillators and four subharmonic oscillators, resulting in six powerful sound sources. The instrument enables the creation of polyrhythmic sequences with two four-step sequencers synchronized with rhythm generators. Additionally, the built-in 32-point patch bay allows unlimited modular experiments and integration with other Eurorack-compatible devices, such as the Mother-32 or DFAM.
Key Features:
- Six-tone sound engine: Two main oscillators and four subharmonic oscillators for rich and coherent chords.
- Polyrhythmic sequences: Two 4-step sequencers driven by four rhythm generators, allowing the creation of complex and inspiring rhythmic patterns.
- Moog ladder filter: Self-oscillating, low-pass, 4-pole filter (-24 dB/octave).
- Quantization options: Choose from Equal Temperament, Just Intonation, or no quantization at all.
- Modular patch bay: 32 connection points (3.5 mm) enable sound experiments and integration with Eurorack systems.
- Historically inspired: Based on concepts from the Mixtur-Trautonium and Rhythmicon, combining subharmonic tones and polyrhythms in a groundbreaking way.
Specifications:
- Sound engine: Analog
- Oscillators: VCO 1, SUB 1, SUB 2 / VCO 2, SUB 1, SUB 2
- Filter: Self-oscillating ladder filter, low-pass, 4-pole (-24 dB/octave)
- Envelopes: VCA EG (Attack, Decay); VCF EG (Attack, Decay)
- Sequencers: Analog (2), 4 steps each
- Patch bay: 32 points, Eurorack-compatible
- Power: +12V DC (adapter included), rack-mountable for Eurorack
