Modor DR-2 Drum Machine

Modor Music DR-2 – digital drum synthesizer with 6-voice polyphony and advanced sequencer.

The Modor DR-2 is a Belgian-made digital drum machine that stands out with its futuristic design and unique, raw sound character, distinct from classic analog units. At its core is a purely digital engine generating sound based on 18 synthesis algorithms, covering a spectrum from minimalist, dry hits to massive industrial and hardcore drums. Each of the six tracks can be freely assigned to any synthesis model, offering immense flexibility in kit design.

The DR-2 features a powerful sequencer designed for live performance. It offers up to 128 steps per pattern, Parameter Locks, a unique Reverse mode (reversing envelopes for specific steps), and advanced randomization options. The ergonomic front panel ensures intuitive control, and the 6 individual outputs can function as insert points for external effects, making the DR-2 a versatile tool for both studio and stage.

KEY FEATURES

• Digital drum synthesis with 18 unique algorithms (Bass Drums, Snares, Cymbals, Claps, Toms, Percussion)
• 6-voice polyphony with free assignment of algorithms to tracks
• Advanced sequencer: up to 128 steps, 96 patterns, 32 Songs
• Sequencer functions: Accent, Flam, Shuffle, Parameter Locks, Reverse Mode (per-step sound reversal)
• Random modes and Alpha/Beta sound variations for each track
• 6 individual audio outputs that can double as Insert points (send/return) for external effects

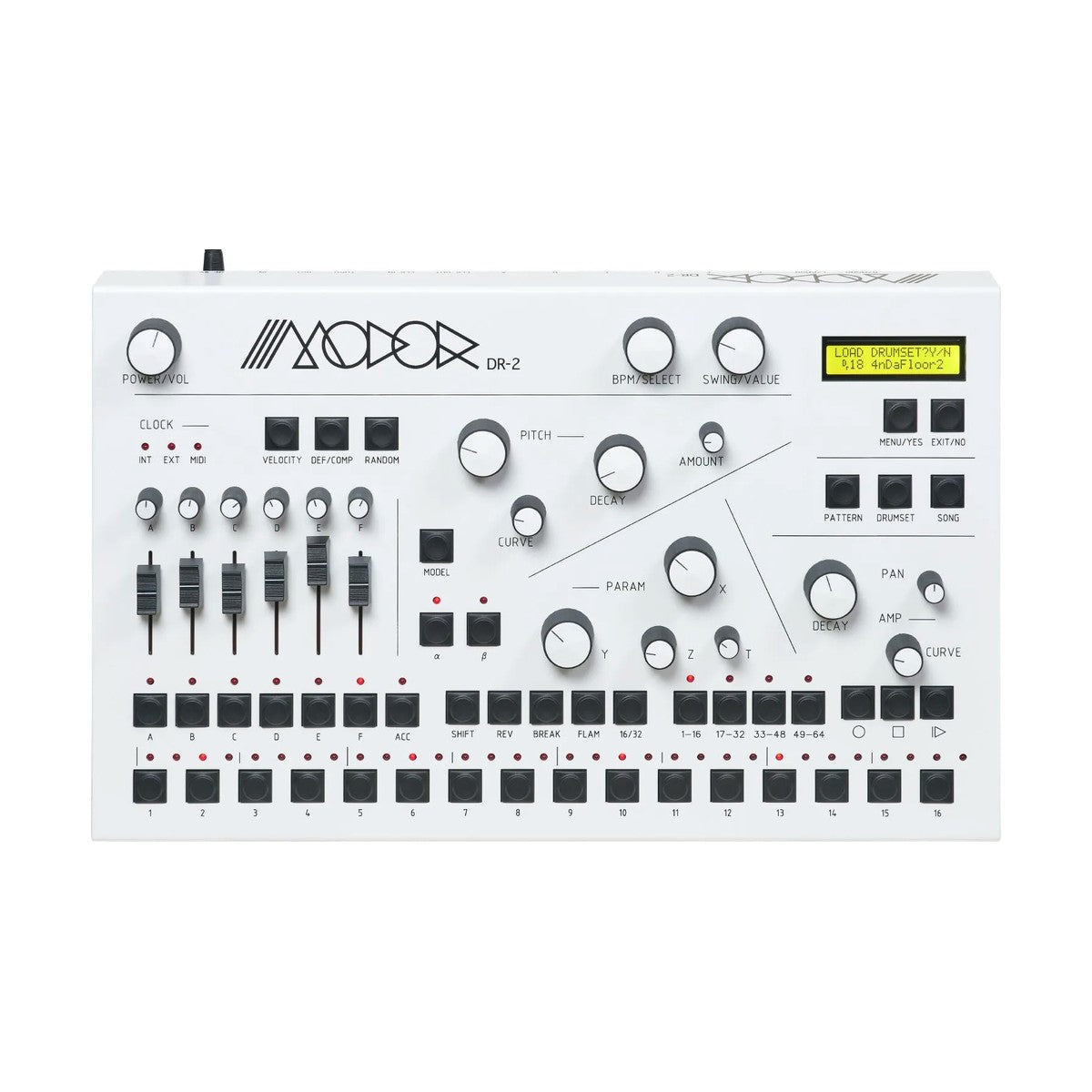

• Ergonomic interface with 6 volume faders and dedicated knobs for key parameters (Pitch, Amp, X, Y, Z, T)
• Memory for 64 Drumsets
• Full MIDI implementation and Clock I/O for synchronization
• 19" Rack mountable (6U) – rack ears included

TECHNICAL SPECIFICATIONS

• Sound Generation: Virtual Analog / Digital Algorithms
• Polyphony: 6 voices
• Algorithms: 18 (incl. Drive BD, Noise BD, Square BD, String BD, Basic Snare, Marching Snare, Analog/Electro Snare, HiHats, Ride, Crash, Claps, Toms, Rimshot, Rattle, Cowbell, Bottle)

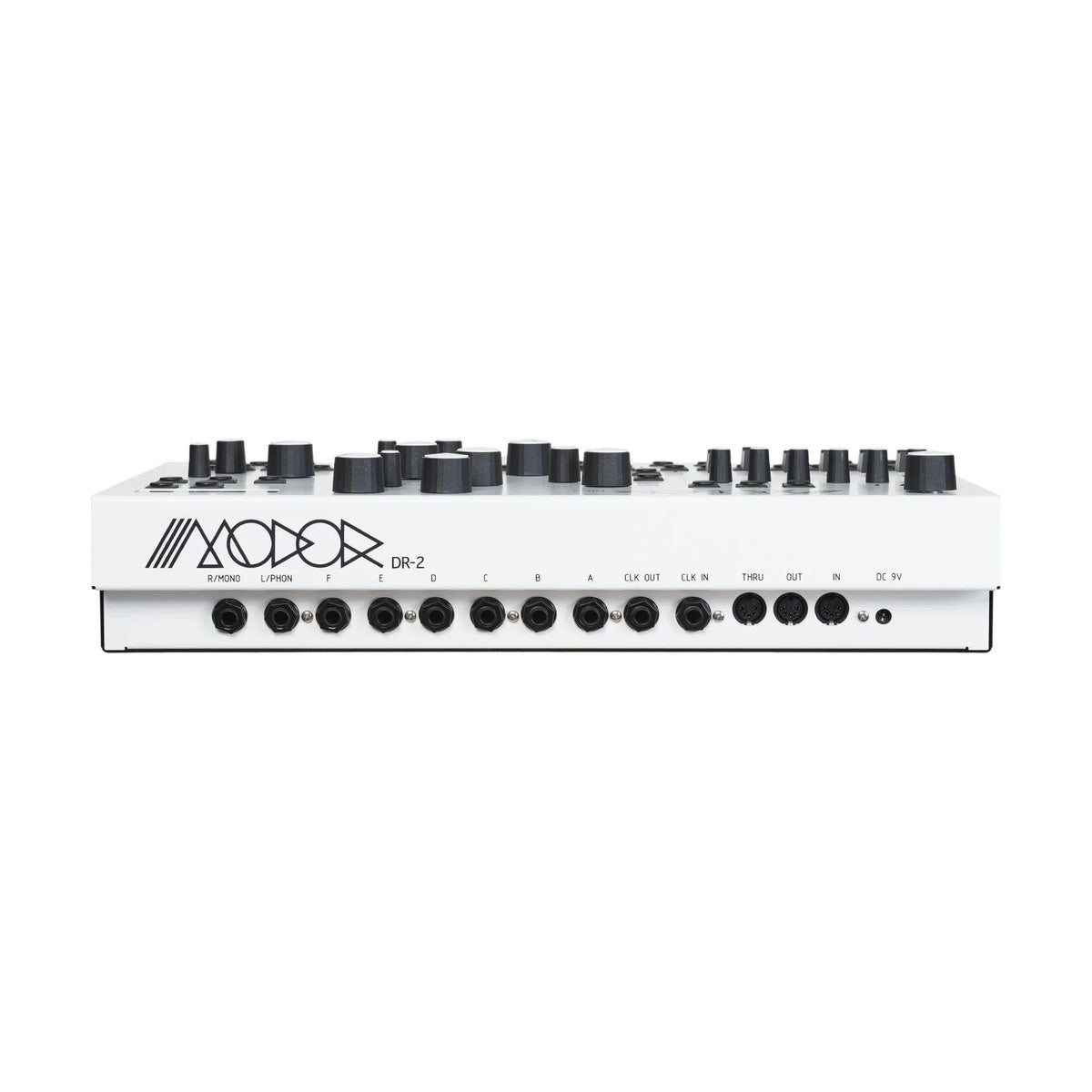

• Audio Outputs: Master Stereo (2 × 6.3 mm Jack), 6 × Individual Outputs/Inserts (6.3 mm Jack), Headphone Out
• MIDI: In, Out, Thru, USB-MIDI
• Synchronization: Clock In/Out
• Controls: 20 knobs, 6 faders, 46 buttons
• Power: External power adapter (included)
• Dimensions: 440 × 267 × 80 mm (19" Rack Format / 6U)
• Weight: 6.0 kg (13.2 lbs)
• In the Box: Power adapter, rack ears, wooden side panels (for desktop use)
