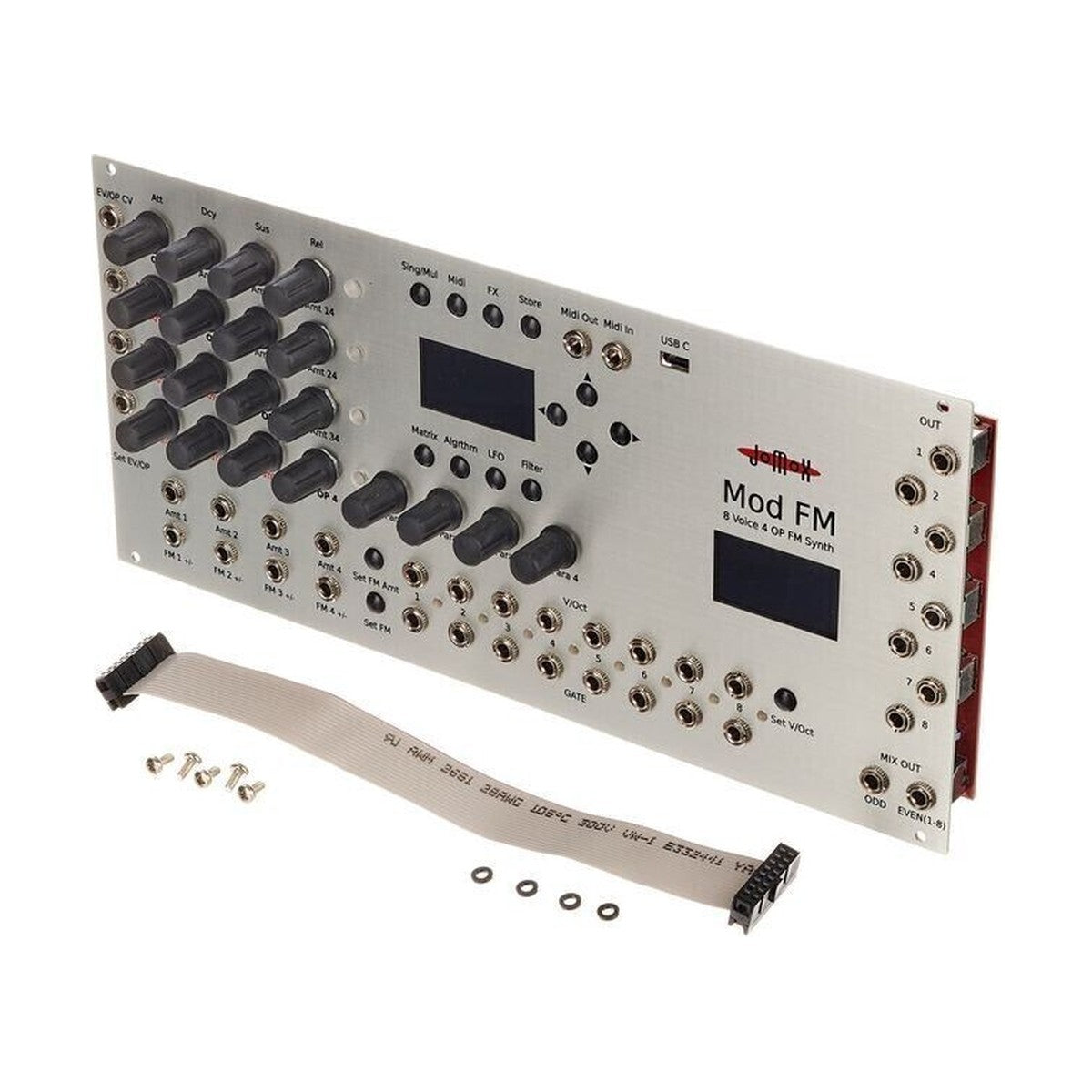

Jomox ModFM Eurorack Synth – 8-voice polyphonic Eurorack FM synthesizer with 4 operators per voice, modulation matrix, 2 LFOs/VCOs per voice, analog filters and VCAs. It offers advanced sound design, flexible CV/MIDI control, and multi-timbral modes. On board, there is a rich effects section with reverb and dual delay, overtone scaling, multi-mode filters, and extensive performance functions.
Jomox ModFM Eurorack Synth is an environment for sound creation designed for exploration. Each voice can operate with 4 sine operators interconnected via matrix, from simple FM tones to complex hybrid sounds with analog warmth. Flexible routing with individual voice outputs, stereo mix, and external CV inputs enables a wide range of configurations – including new features for the Jomox ecosystem.
Modulation is deeply integrated: full matrix with 26 algorithms, LFOs switchable to VCO mode with 64 waveforms, ADSR envelopes for pitch and volume. Control via MIDI CC, USB, or CV/Gate for external modulation. The module offers multi-mode with up to 8 single presets, voice allocation, and advanced triggering conditions.
KEY FEATURES
- 8 voices, fully multi-timbral FM synth
- 4 operators per voice (sine oscillators) with modulation matrix and 26 algorithms
- Overtone mode (0-6) for harmonic scaling
- 2 LFOs/VCOs per voice with 64 waveforms, octave range 0-6
- ADSR envelopes for volume and pitch per operator
- Analog multimode filters (24 dB/oct LP, 12 dB LP/BP/HP with continuous shape) and VCAs per voice
- Effects: Reverb (level, size, lowpass, highpass), 2x stereo delay (level, time with MIDI sync, feedback, speed ranges)
- Multi-mode with split options and voice allocation
- External CV modulation for operators, envelopes, and amounts
- MIDI In/Out/Thru, USB-C MIDI, CV/Gate per voice
- OLED display for navigation
- Individual balanced outputs for all 8 voices
TECHNICAL SPECIFICATIONS
- Type: Eurorack Module
- Voices: 8
- Operators: 4 per voice
- Modulation Matrix: Full, 26 algorithms
- LFO/VCO: 2 per voice
- CV/Gate: Per voice
- Outputs: 8 x balanced individual, stereo mix balanced
- Inputs: CV/Gate for pitch/trigger, CV for FM1-4, envelope, amounts
- Connectivity: MIDI In/Out/Thru (TRS/USB-C), CV/Gate (Eurorack standard)
- Signal Level: 10 Vpp (Eurorack)
- Power: +12V: 370 mA max, -12V: 170 mA max, total 6.5 W
- Dimensions: Width: 56 HP (284 mm), Height: 3 RU (129 mm), Depth: 40 mm
- Weight: Approx. 3 kg
- Controls: Encoders, buttons for workflow
- Audio Resolution: 16-bit/48 kHz internal
