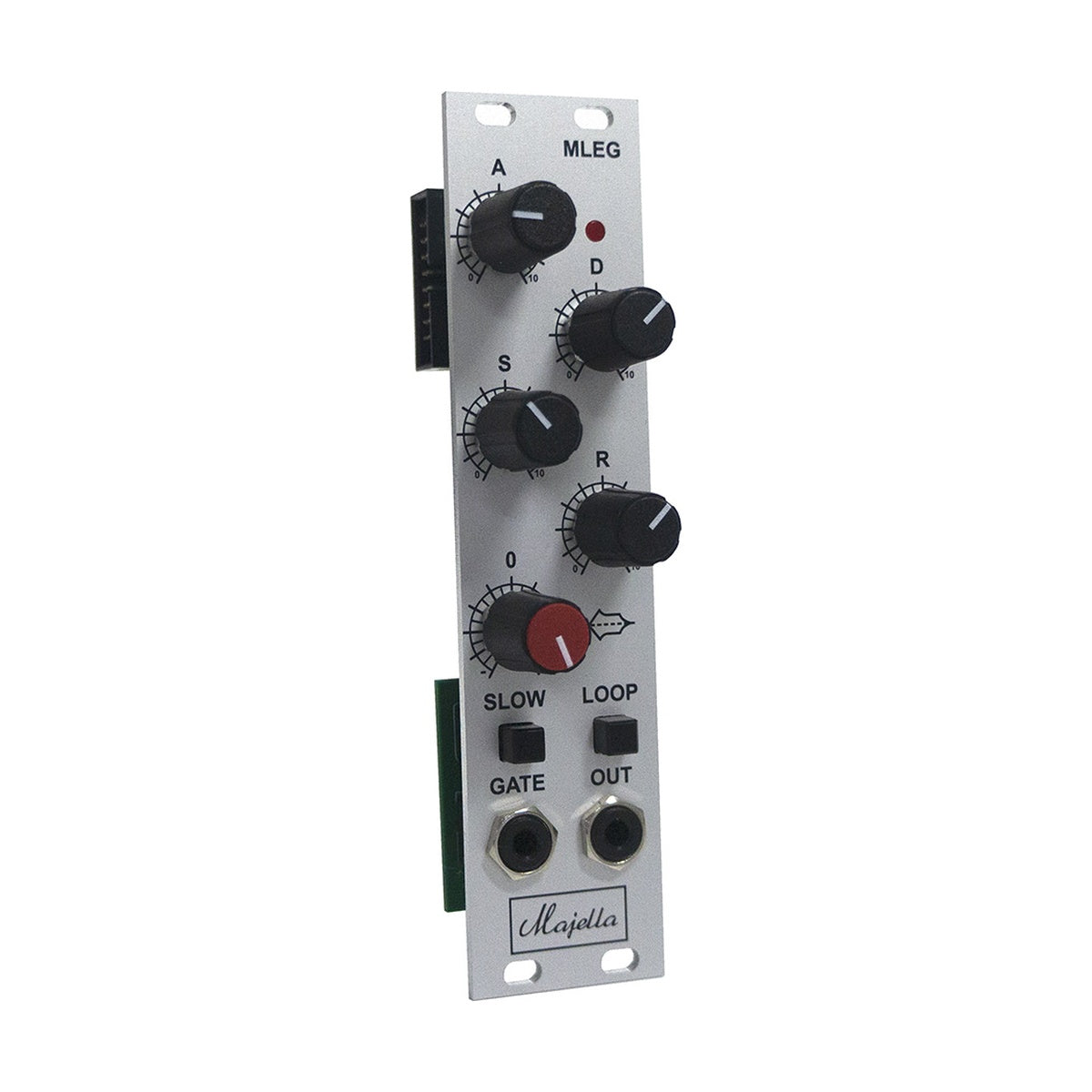

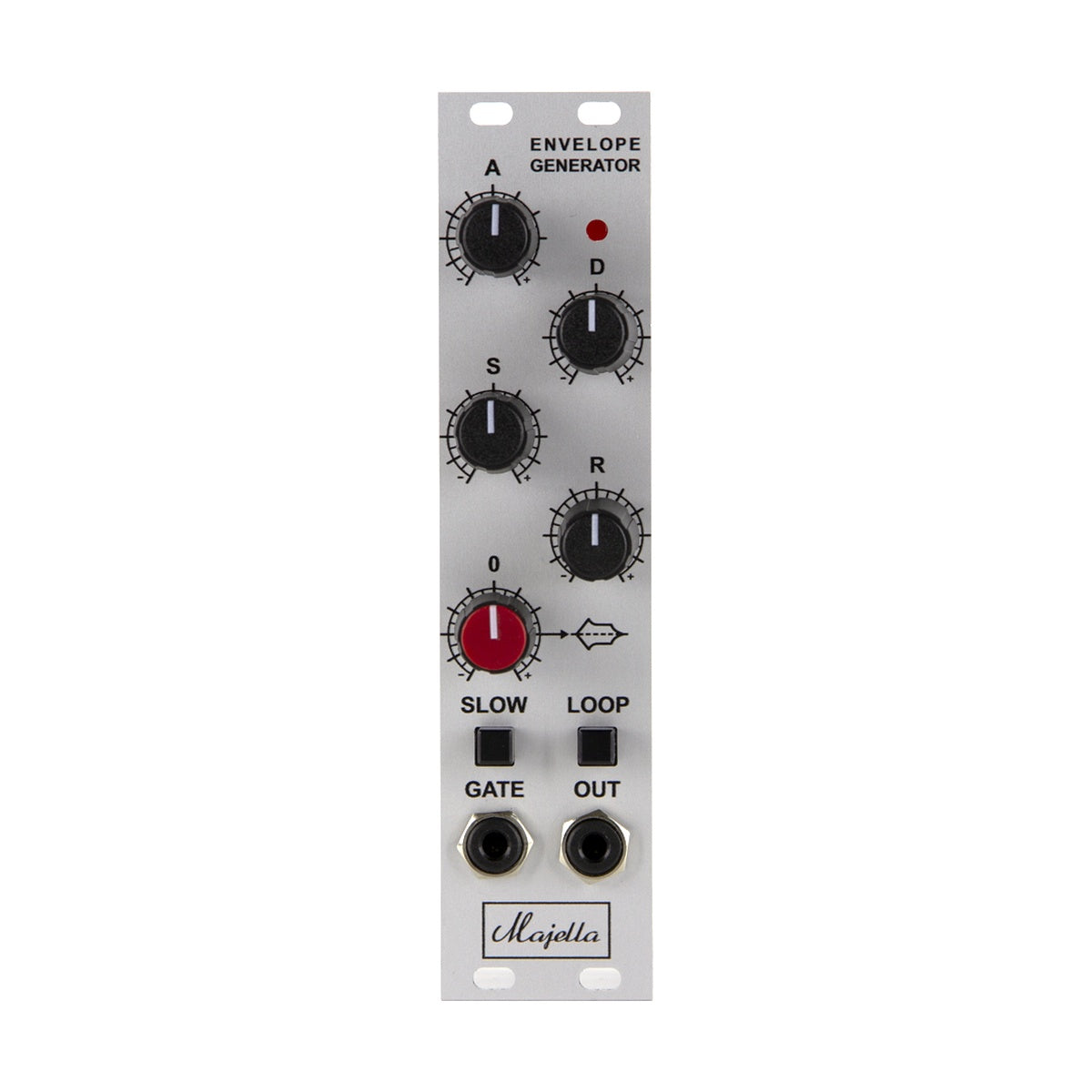

Majella MLEG

Majella MLEG is an analog ADSR envelope generator in a 6HP format that turns into an LFO via its loop function without leaving the module — one device instead of two separate ones in a small system.

From Slow Envelopes to Audio-Rate Modulation

A long/short mode switch takes you from extremely slow, stretched-out envelopes ideal for evolving soundscapes all the way to fast, snappy attacks and audio-rate modulation — one module covering a range that usually requires two separate generators.

A Polarizer Instead of a Separate Attenuverter

A built-in output polarizer lets you manually set the amount and polarity of modulation — without patching through an external attenuverter — and a gate input in loop mode triggers a cyclic envelope that behaves like an LFO, ready to modulate a filter, VCA, or pitch.

KEY FEATURES

• Analog ADSR envelope generator
• Loop mode turns the envelope into an LFO
• Built-in output polarizer (attenuverter)
• Long/short mode switch (for audio-rate modulation)
• Gate input triggers the loop
• 6HP format

TECHNICAL SPECIFICATIONS

• Format: 6HP (128.5 x 30 x 25 mm)
• Power: +12V (27mA), -12V (27mA)
• Output level: envelope peaks up to 8V
• Controls: Attack, Decay, polarizer, loop switch, long/short switch
• Input: Gate
