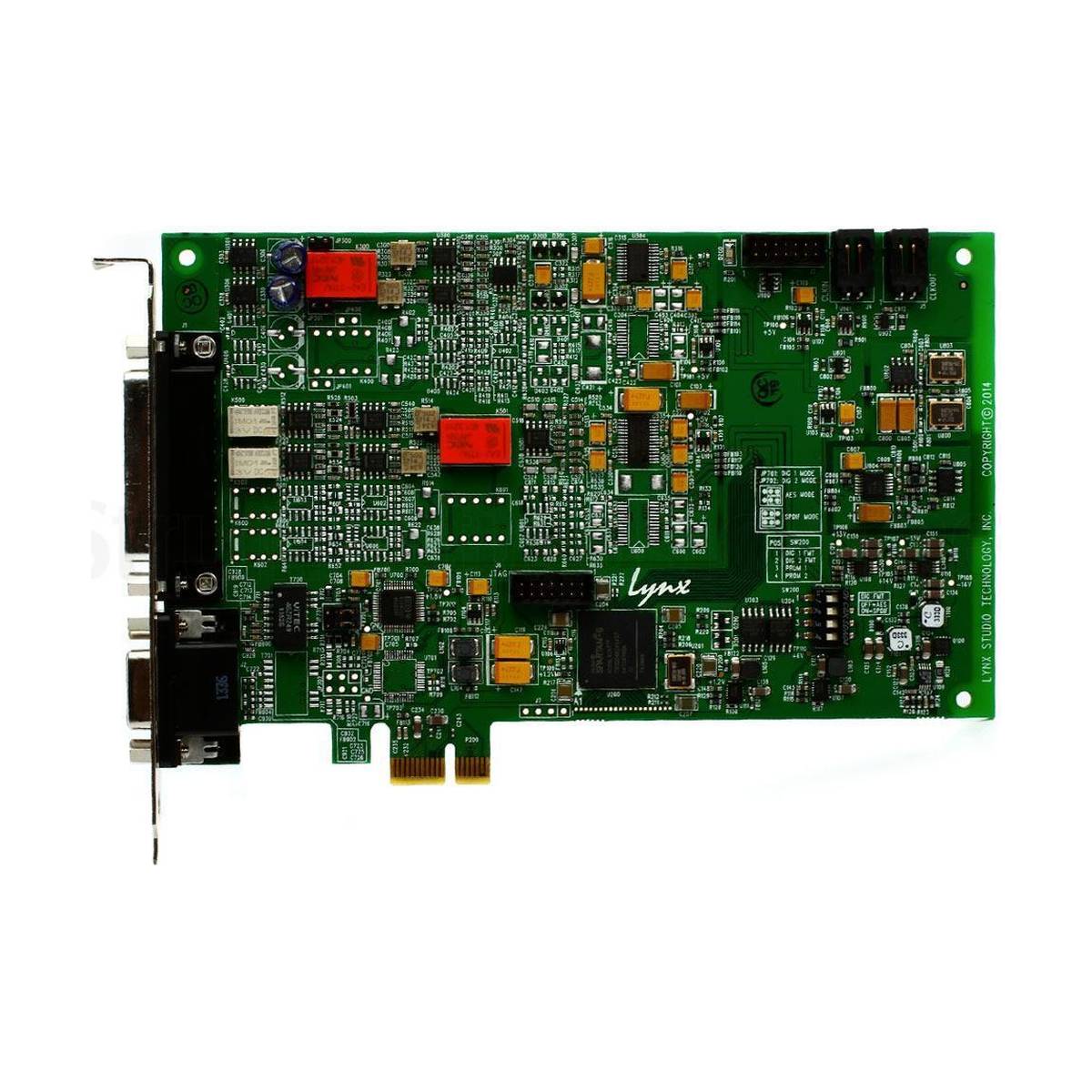

Lynx Studio E22

Lynx Studio E22 is a professional 2-channel PCI Express audio interface offering pristine AD/DA conversion up to 192 kHz and a hardware mixer powered by FPGA technology. Designed for critical recording, mastering, broadcast, and measurement applications, the E22 delivers exceptional transparency, stability, and low latency performance.

Based on the legendary LynxL22, the E22 sets a new standard for analog-to-digital and digital-to-analog performance on the PCIe bus. With carefully selected low-noise components, precision PCB layout, and advanced shielding, it ensures maximum signal clarity and reliability. The interface is ideal for high-resolution audio production, digitization of archival material, audiophile playback, and demanding medical, military, or industrial environments.

At the heart of the E22 is an advanced FPGA that enables a powerful 16x8 hardware mixer and Lynx’s second-generation DMA engine (V2), providing ultra-low latency and maximum throughput with minimal CPU load. The onboard SynchroLock clock generator ensures ultra-low jitter for high-precision synchronization. The card is compatible with both Windows and macOS, and supports Thunderbolt connectivity via appropriate PCIe adapters.

KEY FEATURES

• 2-channel analog input (ADC) and 2-channel analog output (DAC)
• 2 channels of digital I/O via AES3 or S/PDIF
• Sample rates up to 192 kHz
• Ultra-low jitter SynchroLock clock generator
• Selectable fixed or variable levels on all analog I/O
• Auto-mute on power-up and shutdown
• FPGA-based 16x8 hardware mixer
• DMA Engine V2 for ultra-low latency and high PCIe bandwidth
• Compatible with Windows 7–11, macOS, and Thunderbolt
• Includes Lynx Mixer software for flexible routing and control
• Designed and manufactured in the USA
• Cables sold separately

TECHNICAL SPECIFICATIONS

• High-performance PCI Express audio interface
• 2 analog inputs (ADC), 2 analog outputs (DAC)
• 2 channels of AES3 or S/PDIF digital I/O
• Supported sample rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
• SynchroLock word clock with ultra-low jitter
• FPGA-powered 16x8 hardware mixer
• V2 DMA engine with minimal CPU usage
• Auto-muting of outputs on power cycle
• Driver support for macOS and Windows 7–11
• Thunderbolt-compatible via PCIe adapter
• Made in the USA
