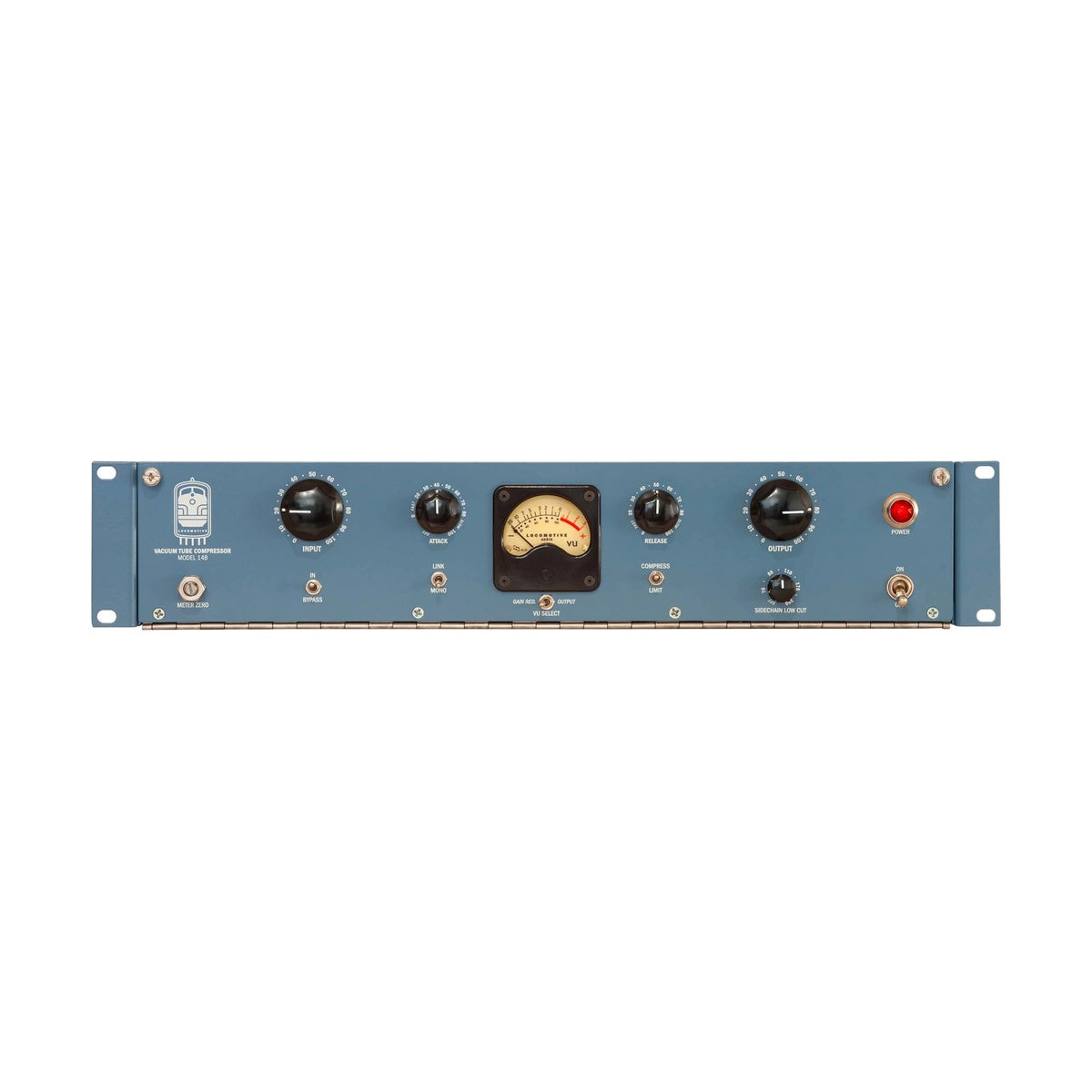

Locomotive Audio Model 14B is a single-channel vari-mu tube compressor/limiter in its own 2U rack chassis, designed by Eric Strouth as a hybrid of three classic circuits: an input stage close to the Universal Audio 175B/176 (with a slower attack), an output stage related to the Gates Sta-Level/RCA BA-6A, and influence from the Collins 26U. It's one of two standalone (non-500-series) compressors in the Locomotive Audio range, alongside the WT-Comp.

Two operating modes instead of one fixed ratio

A compress/limit switch changes the gain-reduction character from 4:1 in compress mode to 10:1 in limit mode, and disabling compression turns the unit into a pure tube line amplifier. Attack sweeps continuously from 300 microseconds to 20ms, release from 100ms to 2 seconds, covering everything from very fast transient catching to slow, musical dynamics leveling.

Sidechain filter and stereo-link built in

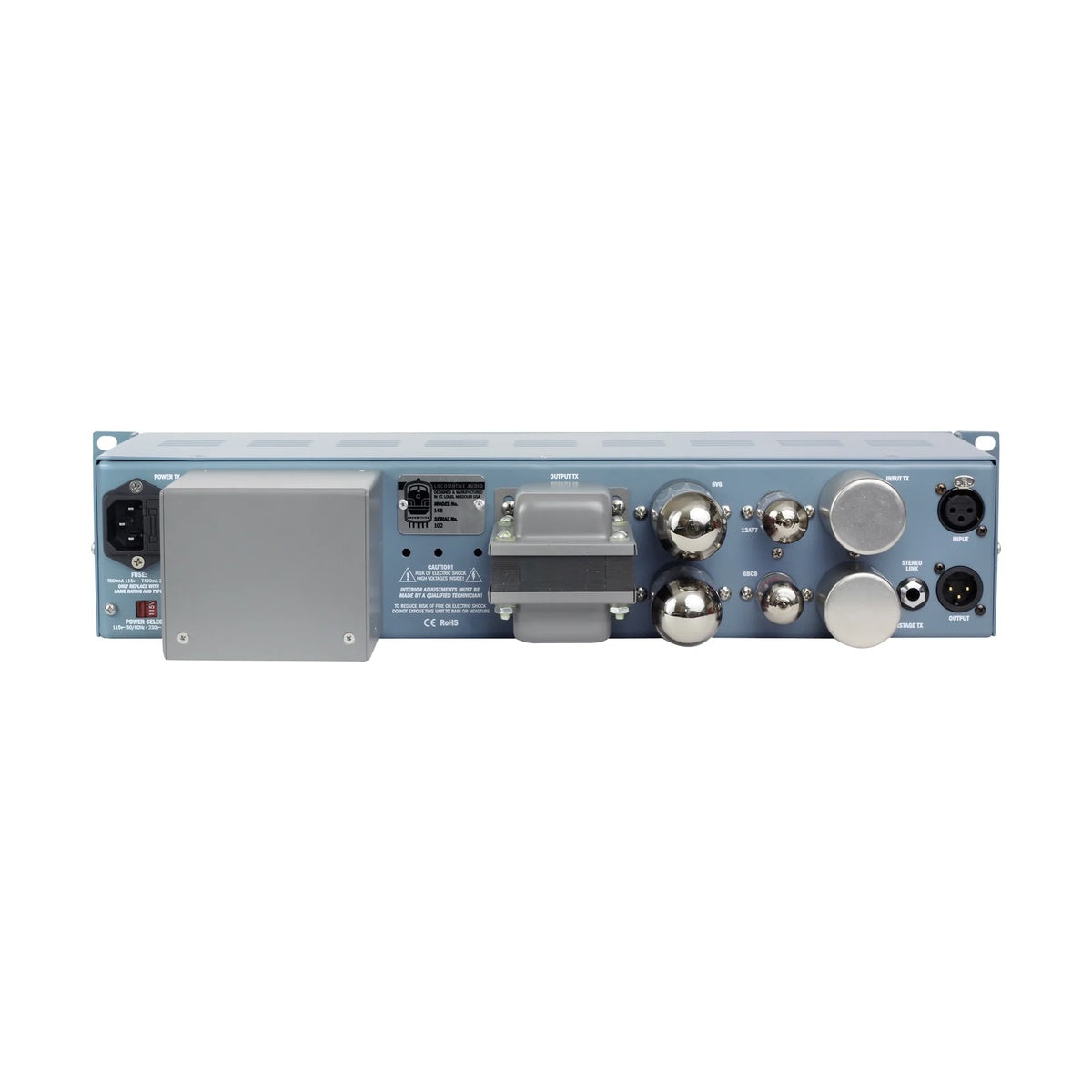

An adjustable sidechain high-pass filter (off, or continuously variable roughly 70-350Hz) keeps the compressor from reacting to the lowest frequencies, and a TRS stereo-link jack ties two 14B units together as a matched pair on a mix bus. Cinemag input and interstage transformers, plus a custom output transformer, round out a tube signal path built on a 6BC8, a 12AY7 and two 6V6 tubes in a push-pull output stage. The option to disable compression and run the 14B as a pure line amplifier adds flexibility for moments in a session where only the tube colour matters, not dynamics control.

KEY FEATURES

  • Single-channel vari-mu tube compressor/limiter
  • Compress (4:1) / limit (10:1) switch
  • Adjustable sidechain high-pass filter
  • TRS jack for stereo-linking two units
  • Compression-off mode — pure tube line amplifier
  • Hardwire bypass
  • VU meter: gain reduction / output level
  • Designed by Eric Strouth, built in the USA

TECHNICAL SPECIFICATIONS

  • Type: single-channel vari-mu tube compressor
  • Tubes: 6BC8, 12AY7, 2x 6V6 (push-pull)
  • Transformers: Cinemag input and interstage, custom output
  • Ratio: 4:1 (compress) / 10:1 (limit)
  • Attack: 300µs – 20ms
  • Release: 100ms – 2 seconds
  • Frequency response: 20Hz – 20kHz
  • THD+N: <1%, S/N: >70dB
  • Dimensions: 482 x 89 x 254mm (2U)
  • Power: 42W, 120/240V AC
