LEWITT B70AS
Choose options

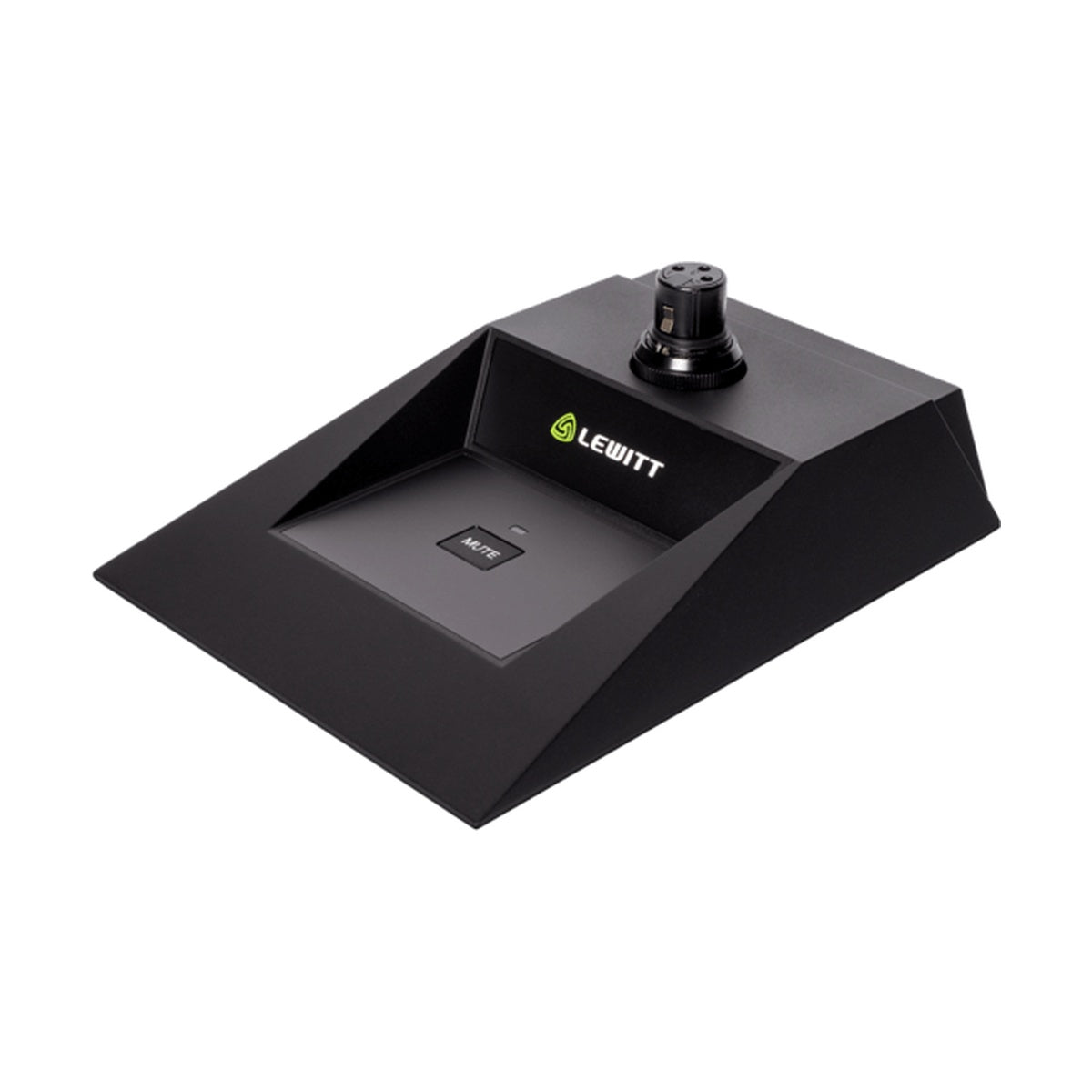

LEWITT B70AS — an analog table base for gooseneck microphones with a 3-pin XLR connector and a built-in mute button.
Built for conference rooms, courtrooms, broadcast studios, and boardrooms, where a gooseneck microphone (such as Lewitt's GN15X, GN35X, or GN35X2 series) needs a stable table mount and a speaker or operator needs fast, unambiguous mute control without reaching for the mixer. The rugged, all-metal construction of the B70AS avoids the usual weak points of plastic bases — vibration transmitted through the tabletop and unreliable mute switching.
Muting With Instant Visual Feedback for the Speaker
A common problem in conference rooms and broadcast studios is uncertainty over whether a microphone is live or muted, leading to accidental talking on a muted channel or the reverse. B70AS solves this with a mute button carrying clear, visible status feedback, so the speaker and the operator can both confirm the microphone's state at a glance, without verbal cross-checking or watching the console. The control signal passes through the XLR connector, allowing the mute status to integrate with the room's sound system.
Damping Noise Transmitted Through the Tabletop
Gooseneck microphones are especially prone to picking up vibration from the tabletop — a knock on the table, papers being shuffled, or a hand resting nearby all generate low-frequency noise that easily bleeds into the signal. The shape and mass of the B70AS base, combined with its rigid zinc die-cast housing, effectively damps this structure-borne noise before it reaches the capsule mounted at the end of the gooseneck, resulting in a cleaner signal without needing extra low-cut filtering at the mixer.
KEY FEATURES
- Analog table base for gooseneck microphones
- Mute button with clear visual status feedback
- Sturdy zinc die-cast housing
- Effective damping of structure-borne tabletop noise
- 48V phantom power
- 3-pin XLR input and output connectors (balanced)
- Matte, non-reflective black finish
- Compatible with Lewitt GN15X, GN35X, GN35X2 microphones
TECHNICAL SPECIFICATIONS
- Type: analog table base with mute button
- Connector: 3-pin XLR, input and output
- Power: 48V phantom power
- Finish: matte black, zinc die-cast
- Dimensions: 16 x 12.2 x 3.5 cm
- Compatibility: Lewitt GN15X / GN35X / GN35X2 gooseneck microphones
