Kerwax Replica Rev C

Kerwax

Kerwax Replica Rev C

Sale price€4.199,00

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 61001
Quantity:
This item is available on a custom order basis only

Contact

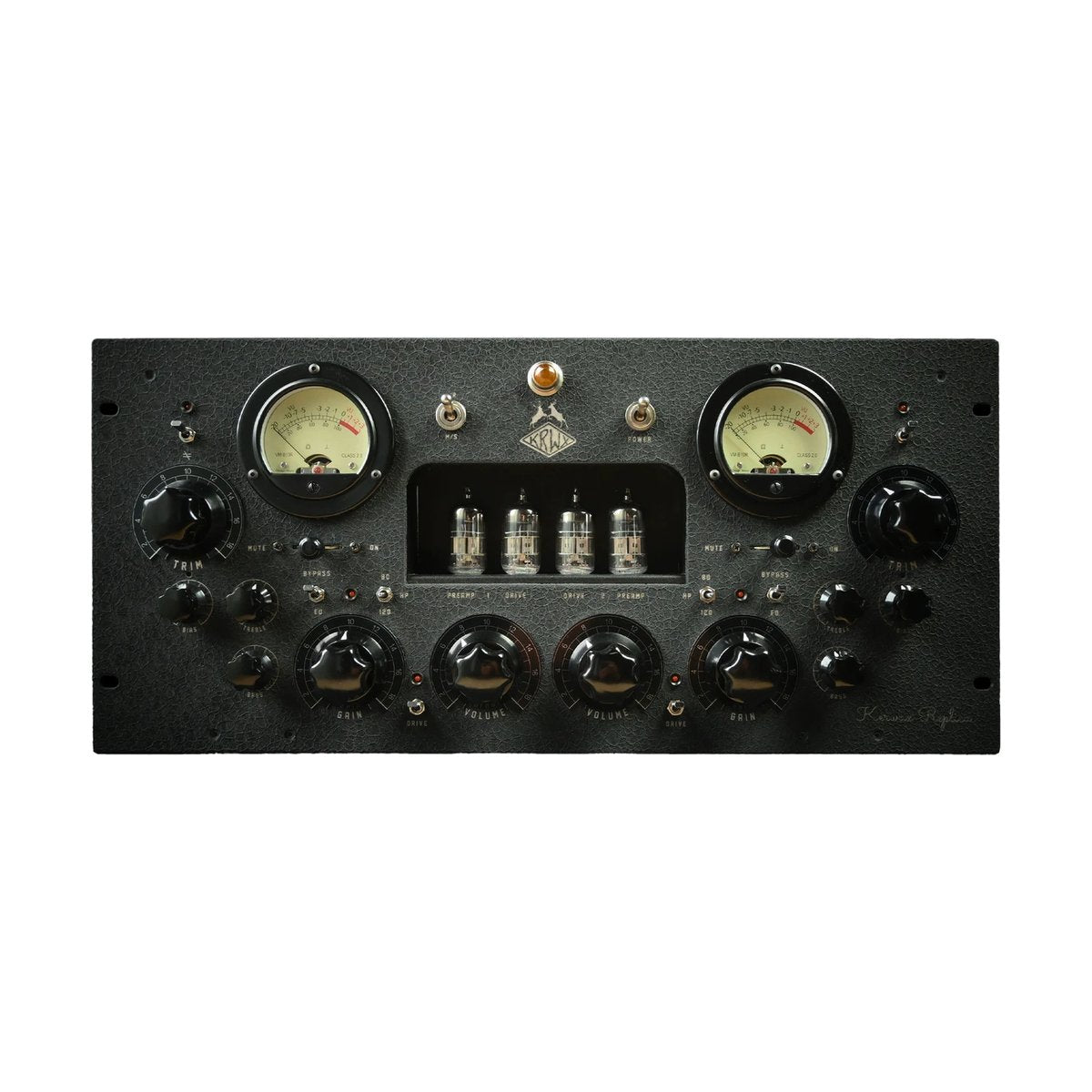

Kerwax Replica Rev C is a 2-channel tube line preamplifier with an M/S mode, built to add tube colour and harmonic saturation at line level rather than to boost a microphone signal. Unlike a standard mic preamp, it sits at +4 dBu nominal line level, so it works on a console send/return, a mix bus insert, or a mastering signal path. Within the Kerwax lineup, it's the only product operating at line level rather than mic level.

Tube colour where you'd normally only have a converter

Two 12AX7-type (ECC83/7025) tube stages per channel drive adjustable harmonic saturation, and a switchable L/R or M/S mode lets you colour the stereo bus differently from the mono centre and the sides, without a separate M/S encoder ahead of it. A ±10 dB shelving EQ on highs and lows, plus a switchable 80 Hz or 120 Hz high-pass filter at 6 dB/octave, give extra tone-shaping before the signal ever reaches an A/D converter.

A 5U chassis instead of the usual 1U box

Unlike most colour preamps housed in 1U or 2U enclosures, the Replica Rev C fills a full 5U of rack space, a consequence of the transformers and tube power supply built for extra headroom (maximum output level +20 dBu). It's designed and hand-built in France from locally sourced parts. It's a practical choice on a vocal or drum bus, where the priority is adding tube character quickly without patching through a separate stereo processor, and the large 5U format leaves room for future rack expansion.

KEY FEATURES

  • 2-channel tube line preamplifier
  • L/R or M/S mode for stereo processing
  • 12AX7 (ECC83/7025) tubes per channel
  • Adjustable high/low shelving EQ, ±10 dB
  • Switchable high-pass filter, 80 Hz / 120 Hz at 6 dB/octave
  • Independent gain and output control per channel
  • 5U rack format
  • Designed and hand-built in France

TECHNICAL SPECIFICATIONS

  • Type: 2-channel tube line preamplifier
  • Tubes: 12AX7 / ECC83 / 7025
  • Frequency response: 30 Hz – 27 kHz (-1.5dB)
  • Maximum output level: +20dBu
  • Nominal line level: +4dBu
  • I/O: 2x balanced XLR in, 2x balanced XLR out
  • Dimensions: 483 x 342.5 x 222mm
  • Weight: 10.6kg
  • Power: 115/230V AC, 27W draw
