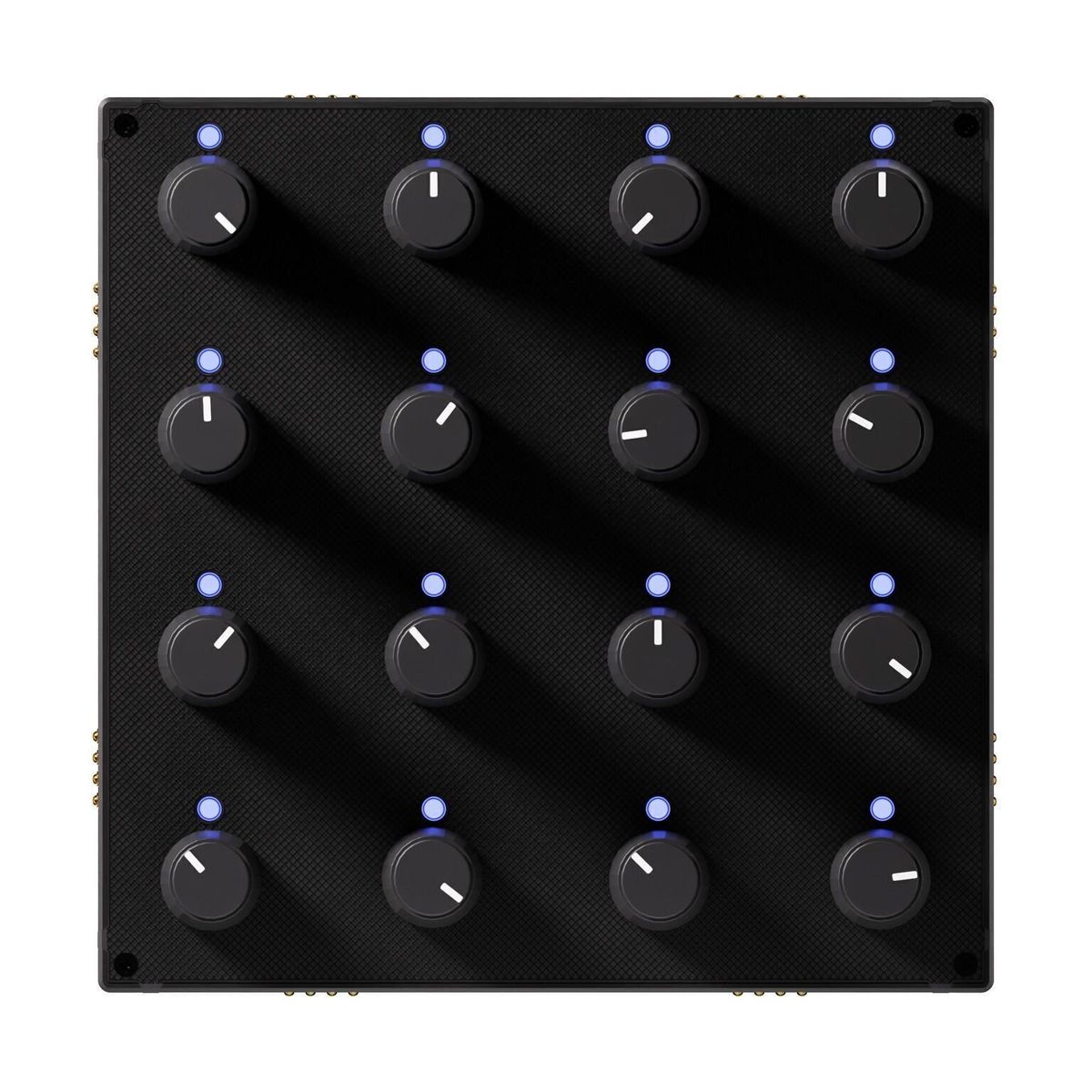

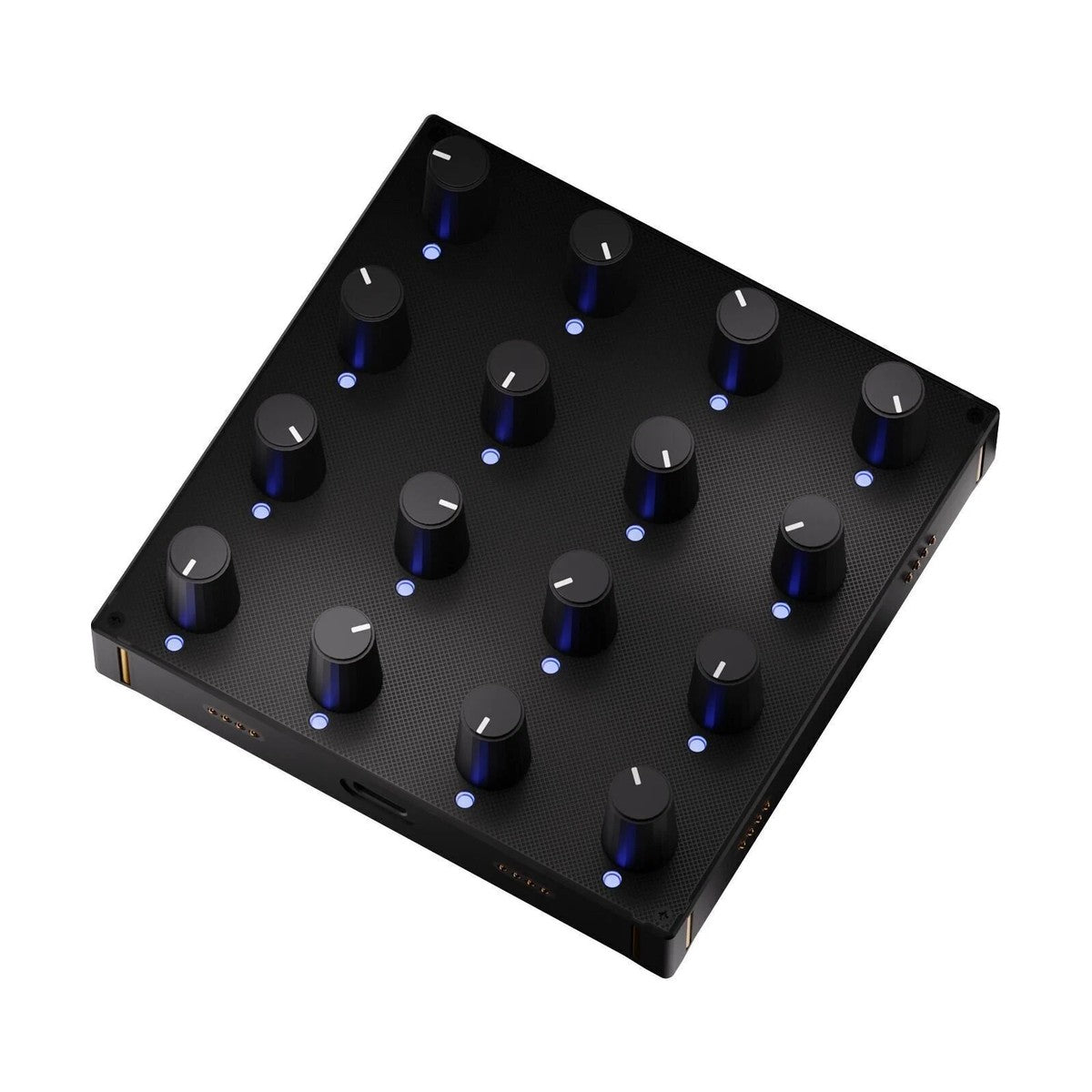

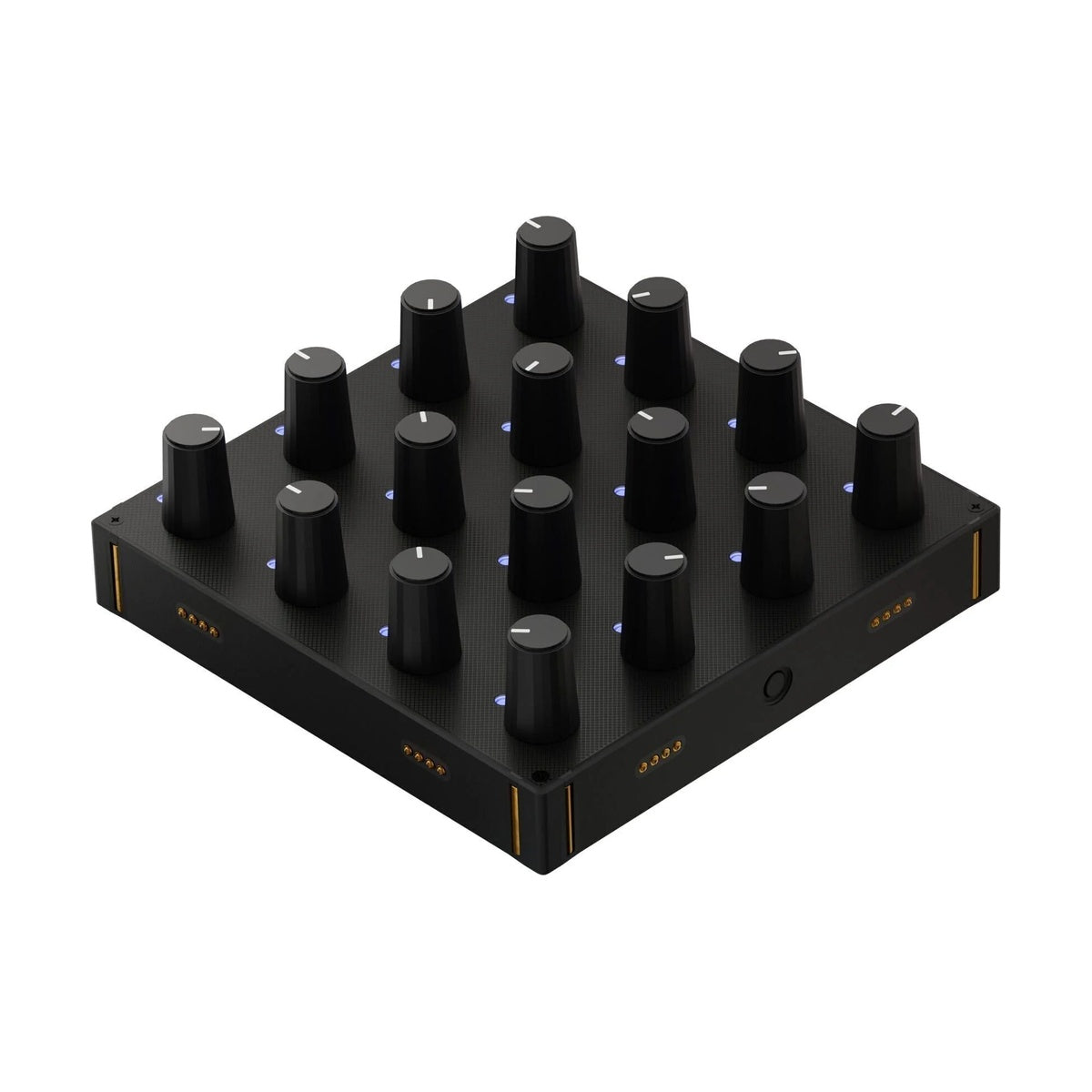

Intech Studio Grid Series 3 PO16 Linear is a third-generation modular USB MIDI controller from the Grid line, built around 16 single-turn rotary potentiometers with metal shafts arranged in a 4x4 grid. The GRID3-PO16-L variant uses linear-taper potentiometers – minimum at one end, maximum at the other, no center rest position – making it the natural choice for one-knob-per-function control layouts.

16 Potentiometers, 16 Parameters – Directly Under Your Fingers

Single-turn 300° potentiometers with metal shafts are the right tool wherever fast, direct value changes matter without repeated rotation: EQ bands, synth filters, effect send levels, channel panning, or LFO rates. Unlike endless encoders, the PO16 always reports the current physical knob position to the software – no pickup mode or value jump on bank changes as long as you are working within a single assignment page. Four assignment pages switched via the side utility button give access to potentially 64 parameters without touching the computer.

RGB LED as a Labelling System in the Dark

Each of the 16 potentiometers has an individual RGB LED configurable in Grid Editor: colour-code parameter groups, enable pulsing for active assignments, or adjust brightness to match stage lighting conditions. Magnetic side connectors with gold-plated pins support connection to other Grid modules in any direction – up to eight units powered over a single USB-C cable. The injection-moulded housing with a robust front panel holds up to daily studio and live use.

KEY FEATURES

  • 16x single-turn 300° potentiometers with metal shafts – linear taper, 4x4 grid
  • One-knob-per-function layout: immediate, direct parameter control
  • Individual RGB LED indicator per potentiometer – colour, brightness, and pulse animations
  • 4 assignment pages via side utility button – up to 64 parameters per module
  • Magnetic side connectors with gold-plated pins – expandable to 8 Grid modules
  • Programmable via Grid Editor (Lua API); supports MIDI and HID (keyboard, mouse, gamepad)
  • Compatible with macOS, Windows, Linux, and mobile platforms
  • Class-compliant USB – no drivers required, plug and play

TECHNICAL SPECIFICATIONS

  • SKU: GRID3-PO16-L
  • Potentiometers: 16x single-turn 300°, metal shafts, linear taper
  • Layout: 4x4 grid
  • Indicators: individual RGB LED per potentiometer
  • Connector: high-speed USB-C
  • Power consumption: 250 mA
  • Housing: injection-moulded base, robust front panel
  • Programming: Grid Editor (Lua API)
