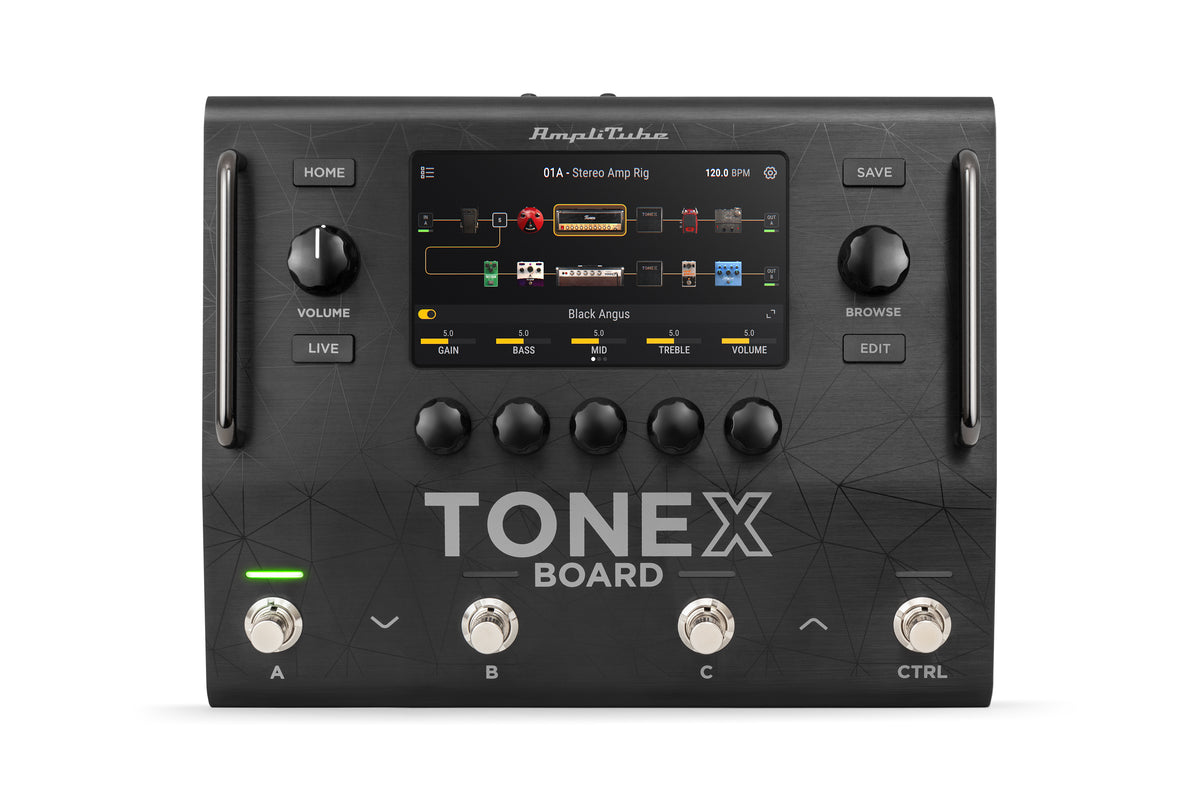

IK Multimedia TONEX Board

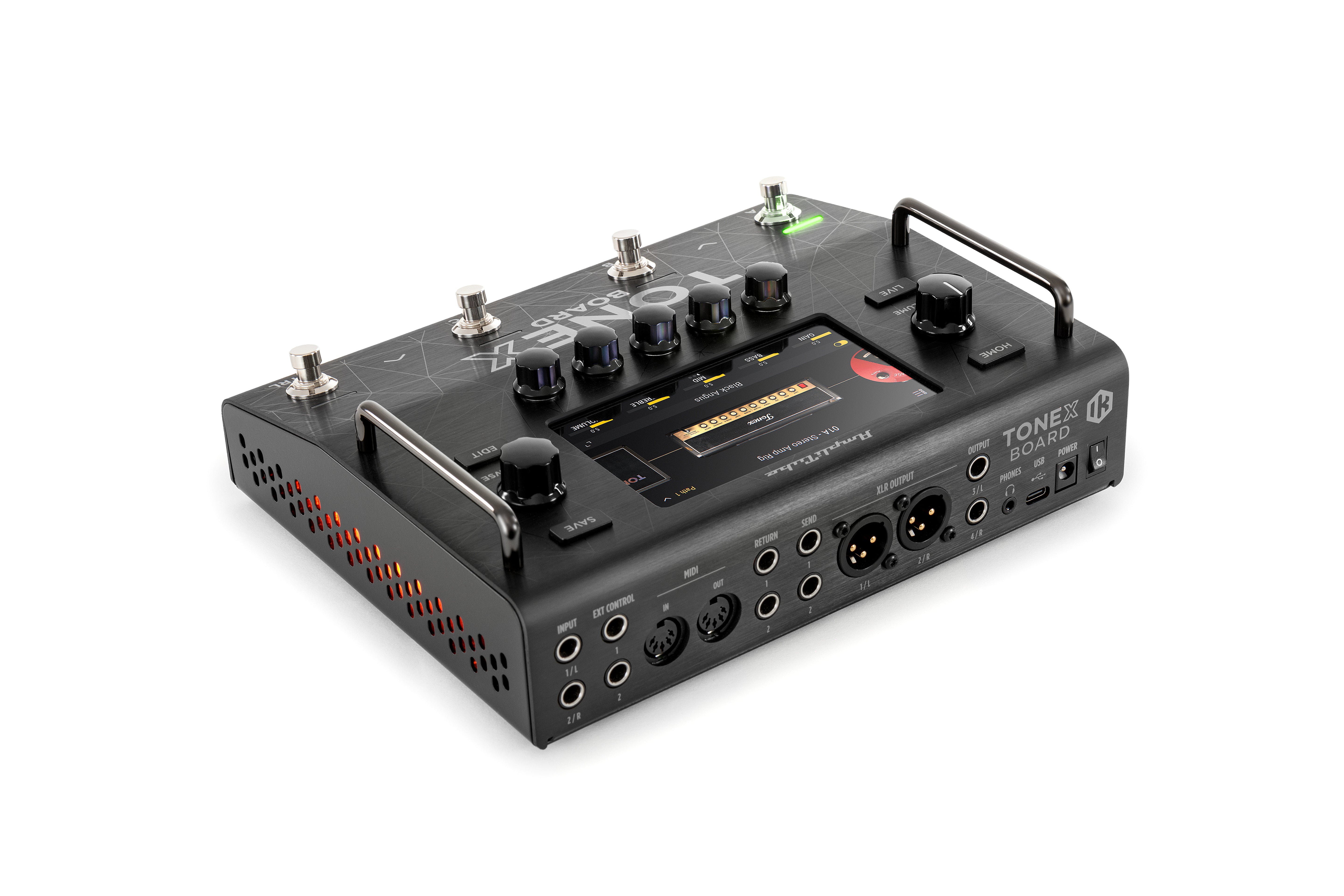

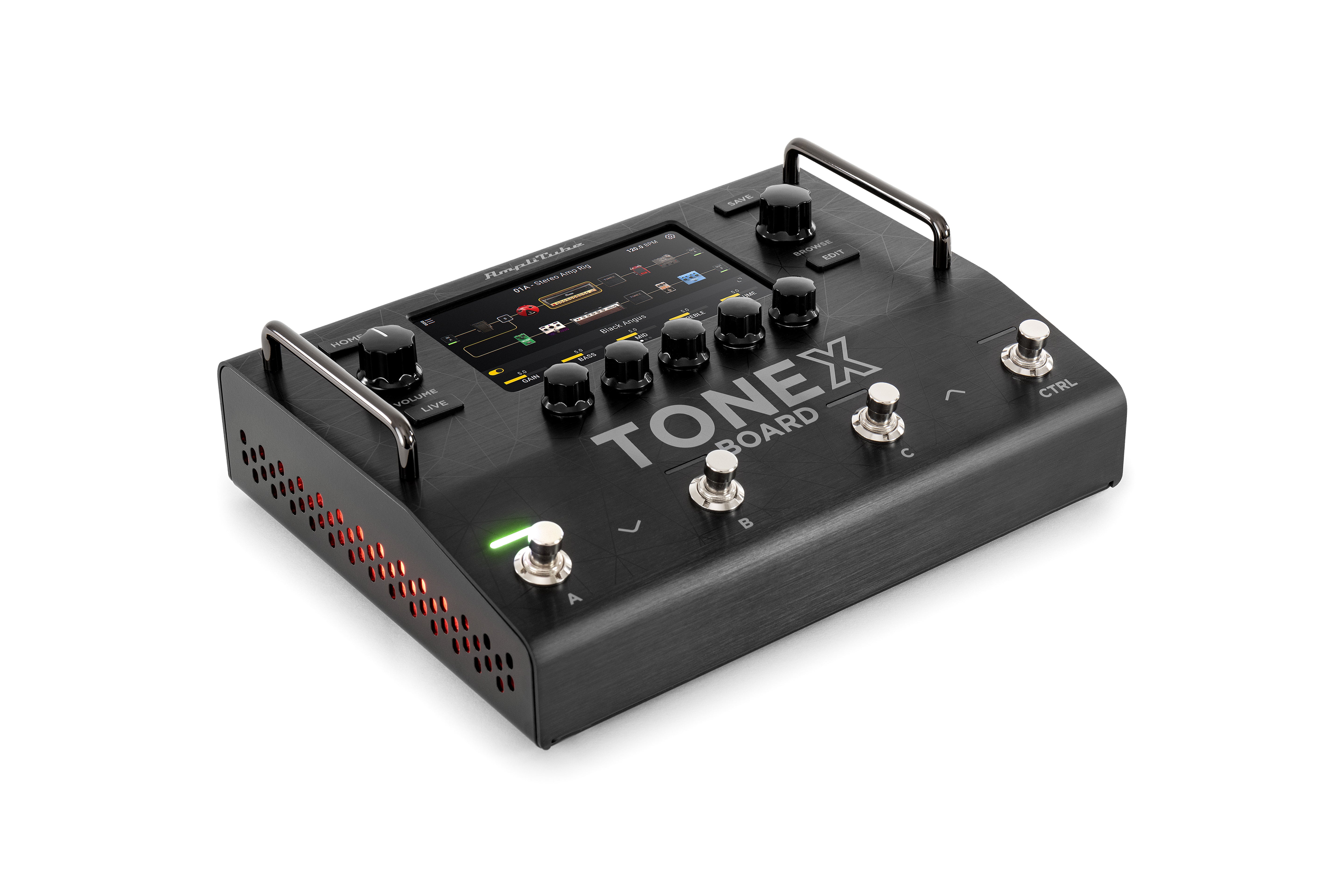

IK Multimedia TONEX Board — the flagship TONEX floor processor with a dual signal-chain architecture, running up to four Tone Models simultaneously, with a 5" touchscreen and a full AmpliTube-derived effects section.

The TONEX Board extends the concept introduced by the TONEX and TONEX ONE pedals into a complete, standalone floorboard rig. AI Machine Modeling technology reproduces the sound, feel, and dynamic response of real amps, cabinets, and pedals, and the dual-signal-chain architecture runs up to two Tone Models per path across two independent paths — up to four models total in one preset. The unit ships with 76 effects across nine categories (51 from AmpliTube 5, 15 from TONEX, and 10 brand-new), up to 12 effect slots per preset, and VIR cabinet modeling technology with custom IR loading support.

Two independent signal paths instead of one effects chain

A common problem with single-path modeling processors: building a stereo rig, a wet/dry configuration, or a dual-amp setup requires routing compromises or extra external hardware. The TONEX Board addresses this with two fully independent signal paths and flexible split-and-mix routing, supporting stereo operation, wet/dry configurations, and modeling two different amps simultaneously — functionality that a flat, single-path architecture would require working around.

Full integration into any stage rig

Musicians moving from a classic tube amp to a digital processor often run into incompatible connection methods — no support for the 4-cable method, or too few outputs to feed FOH and a stage amp at once. The TONEX Board has two independent stereo output pairs (including balanced XLR), two effects-loop insert points, and full 4-cable method support, letting the unit integrate with either an FRFR system or a classic tube combo without sacrificing routing flexibility.

KEY FEATURES

• AI Machine Modeling technology for capturing amps, cabinets, and pedals
• Dual-signal-chain: up to 4 Tone Models simultaneously (2 per path: amp + stomp)
• 76 effects across 9 categories, up to 12 effect slots per preset
• VIR cabinet technology with custom IR loading support
• Access to over 65,000 Tone Models on the ToneNET platform

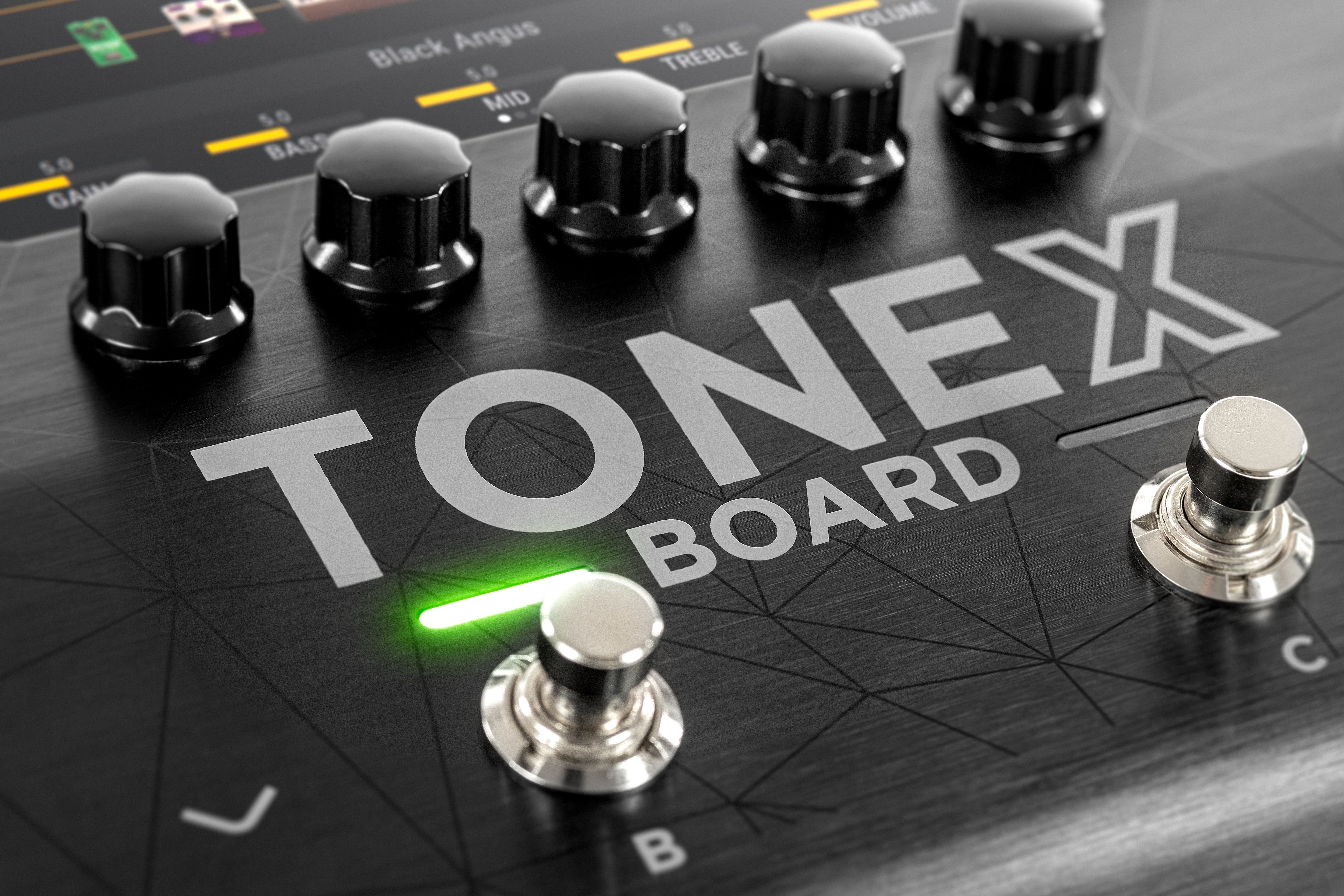

• 5" high-resolution color touchscreen and 5 precision encoders
• Preset, Scene, and Stomp performance modes; 1,400+ presets across 12 setlists
• 4-in/2-out USB audio interface, MIDI I/O, two expression pedal inputs

TECHNICAL SPECIFICATIONS

• Engine: AI Machine Modeling, up to 2 Tone Models per path (1 amp + 1 stomp)
• Signal paths: 2 independent, supporting stereo, wet/dry, dual-amp
• Effects: 76 (51 from AmpliTube 5, 15 from TONEX, 10 new)
• Effect slots: up to 12 per preset
• FX loop: stereo, configurable as 2 independent mono loops
• Display: 5" color, high-resolution
• Presets: 1,400+, 12 setlists / 40 banks / 3 per bank

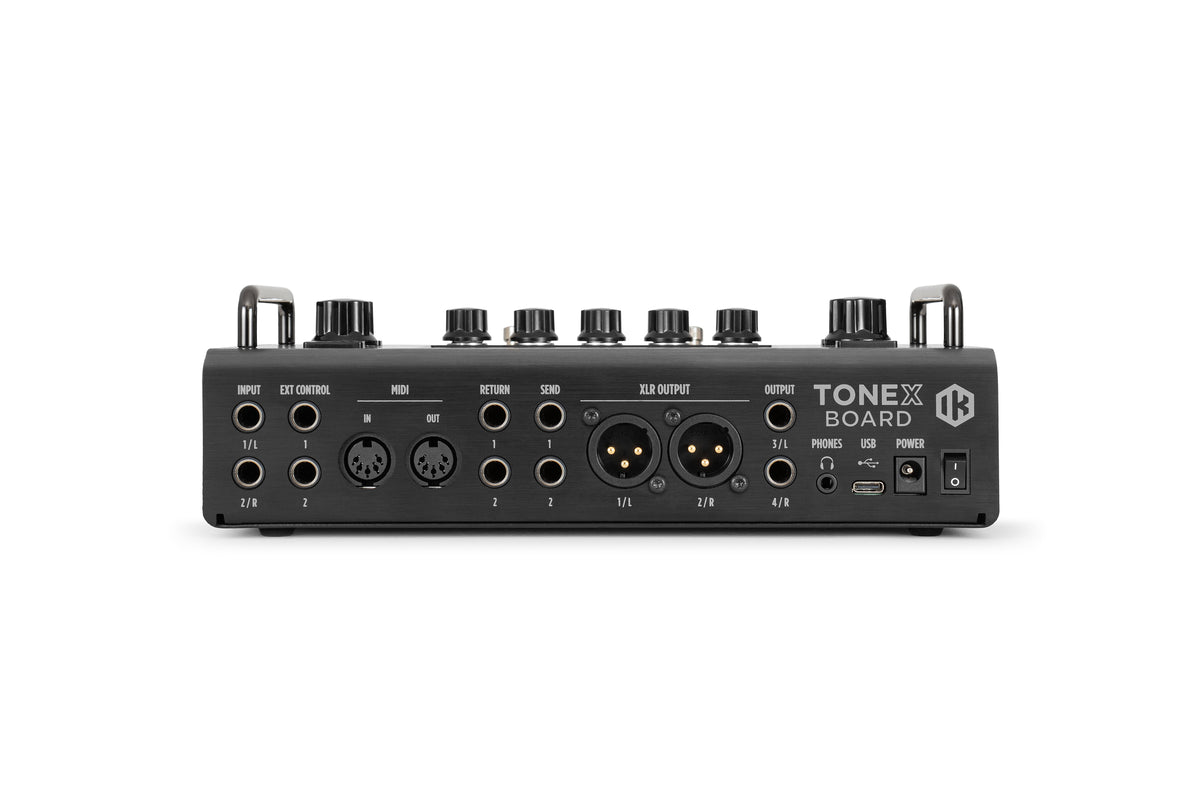

• Inputs: 1/L, 2/R (mono, stereo, or independent)

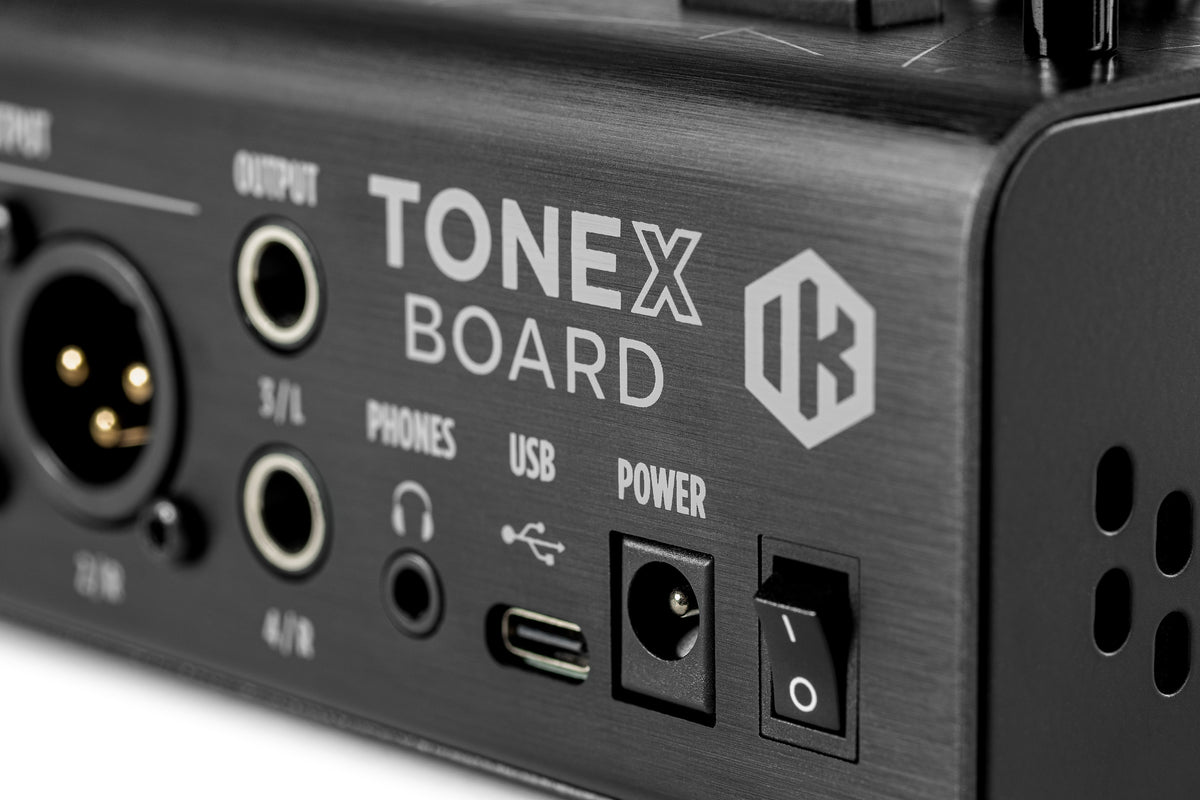

• Outputs: XLR 1/L, 2/R (balanced) + secondary TRS pair 3/L, 4/R
• Send/Return: stereo or dual-mono effects loop
• External control: 2x TRS for expression pedal / footswitch
• MIDI: 5-pin DIN connectors, fully configurable
• USB audio interface: 4 inputs / 2 outputs
